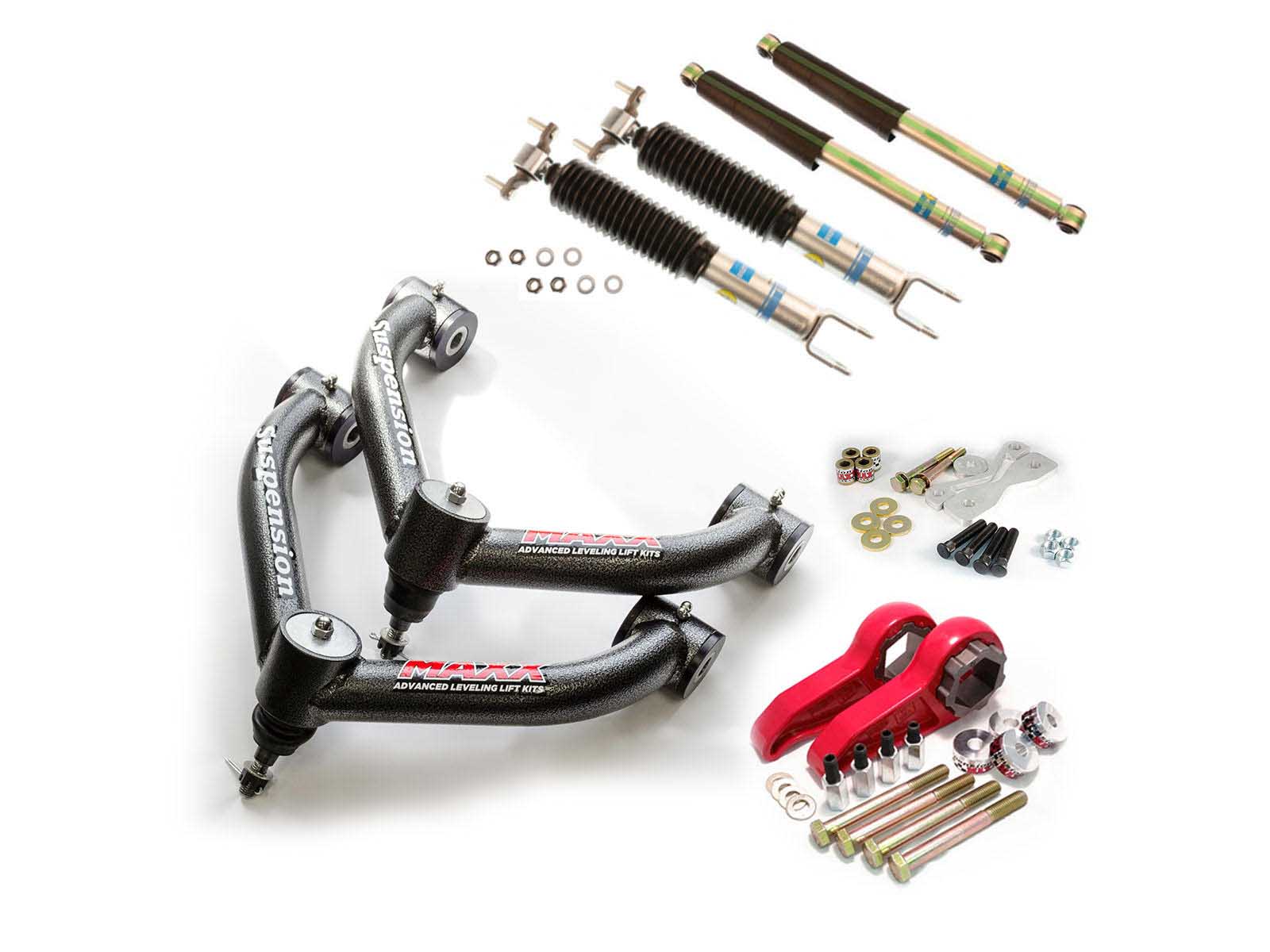

SuspensionMAXX SMX-20252 3 Inch Leveling Kit Combo W/ Bilstein 24-253161 24-6468 Silverado/Sierra Stage 2
3 Inch Leveling Kit Combo W/ Bilstein 2024-253161 2024-6468 Silverado/Sierra Stage 2SuspensionMAXX Truck Leveling Kit - Front-End Lift, Full-On Performance. When your truck rolls off the lot with a nose-down stance, it's more than a cosmetic issue - it limits tire clearance and balance.
The SuspensionMAXX Leveling Kit corrects that factory rake and gives your truck a confident, aggressive look with added functionality.
Why SUV owners upgrade with SuspensionMAXX:
- Levels Out Your Stance: Raises the front end to match the rear - no more factory nose dip.
- Increases Tire Clearance: Make room for larger, more capable tires without trimming or rubbing.
- Improves Load Balance and Appearance: A leveled truck not only looks tougher but sits more evenly when towing or hauling.
- Quick Bolt-On Installation: Designed for fast, secure installation with no cutting or welding required.
- Retains Factory Ride Comfort: No harsh ride or suspension compromise - just better balance and performance.
- Engineered to Last: Constructed with high-strength materials to handle off-road use and daily demands.
Whether you're prepping for tougher terrain or simply want your truck to sit right, SuspensionMAXX Leveling Kits deliver the form and function serious drivers expect.
SuspensionMaxx Stage 2 Leveling System For Your GM HD Trucks Including At4 Models.The Stage 2 Kit Is Built For Truck Owners Who Demand Only The Best For Their Trucks. Includes Patented SuspensionMaxx Maxx Cam 9 Leveling Kit and Our Upper Control Arms. Plus 5100 Bilstein Shocks.
Allowing For Up To 3.0 Inch Of Lift and Tires Sizes Up To 35.0 Inch All Terrain Tires On GM HD Trucks. Note: Must Use The Factory Or 9.0 Inch Wheel For Best Clearance. Stage 2 Leveling Kit Includes. Differential Spacers and Skidplate Spacers To Maintain The Proper Driveline Angles.
Maxx Cam 9 Patented Adjustable Torsion Bar Keys. Maxx Travel Upper Control Arms. Bilstein 5100 Front and Rear Shocks Shock Extensions Are Required On 5100 Shocks!
Why Choose SuspensionMaxx For Your Chevy Silverado 2500HD 3500HD and GMC Sierra 2500HD 3500HD Trucks? We Offer The Most Complete Leveling Kit Available For Your Chevy Silverado 2500HD, 3500HD and GMC Sierra 2500HD, 3500HD Trucks.
Using The Highest Quality American Made Parts That Will Ensure Your Truck Stands The Test Of Time.
We Back Our Leveling Kits With Our Maxx Structural Lifetime Warranty. The SuspensionMaxx Maxx Cam 9 Torsion Bar Key Is Manufactured From 4140 Investment Cast, Heat-Treated American Made Steel! We Include CNC'd Aluminum Differential Spacers and Hardened 10.9-Grade Fasteners To Ensure Your Front Drive Axles Maintain Proper Driveline Angles.
Every Component Down To Our Shock Extensions Are Precision Machined, Zinc Coated.
We Include These Extensions With Our Kit Ensuring Your Shocks Are Not Overextended. Longer Shock Studs Are Included To Allow You To Fasten Your Factory Wire Harness In Place. Last But Not Least, The Maxx Travel Control Arms, Designed To Give You Increased Ride Height While Maintaining Proper Suspension Geometry and Travel.
Some May Ask Why Changing The Control Arms Are Necessary. We Have Designed Our Control Arms To Compliment The Leveled Ride Height. The Factory Control Arms Are Flat Across All Three Mounting Points and As You Lift Your Truck, The Ball Joint Angle Is Increased.
At The Same Time, The Upper Control Arm Looses Clearance To The Suspension Limiting Bump Stop That Is Located Under The Front Of The Upper A-Arm. Our Hand Fabricated, Tig Welded Control Arms Feature Improved Clearance To This Bump Stop.
The Maxx Travel Will Allow You To Lift Your Truck Up To 3.0 Inch From Stock While Maintaining A Satisfactory Ride. Our Control Arms Are Had Fabricated From 0.188 Wall 1.25 Inch Tubing, Powder-Coated Finish and Utilize Greaseable Moog Ball Joints For Trouble-Free Operation For Thousands Of Miles.
If You Desire The Best Kit For Your HD Silverado Or Sierra and You Value Quality American Made Craftsmanship, Look No Further Than SuspensionMaxx For The Most Complete 3-Inch Leveling Kit On The Market.
Details:
- Fits - GMC Sierra 3500 HD, - GMC Sierra 2500 HD, - Chevrolet Silverado 2500 HD, - Chevrolet Silverado 3500 HD
- Position Front
- Lift 3.0 inch
- Material Steel
- Bolt Grade 10.9
- Sold As Kit
Notes
Images provided by manufacturer and may not be exact SKU. Lifetime Structural Warranty. Made in the USA. Sold as a Kit. Lift Height: 3.0 inch. Made from Steel.
