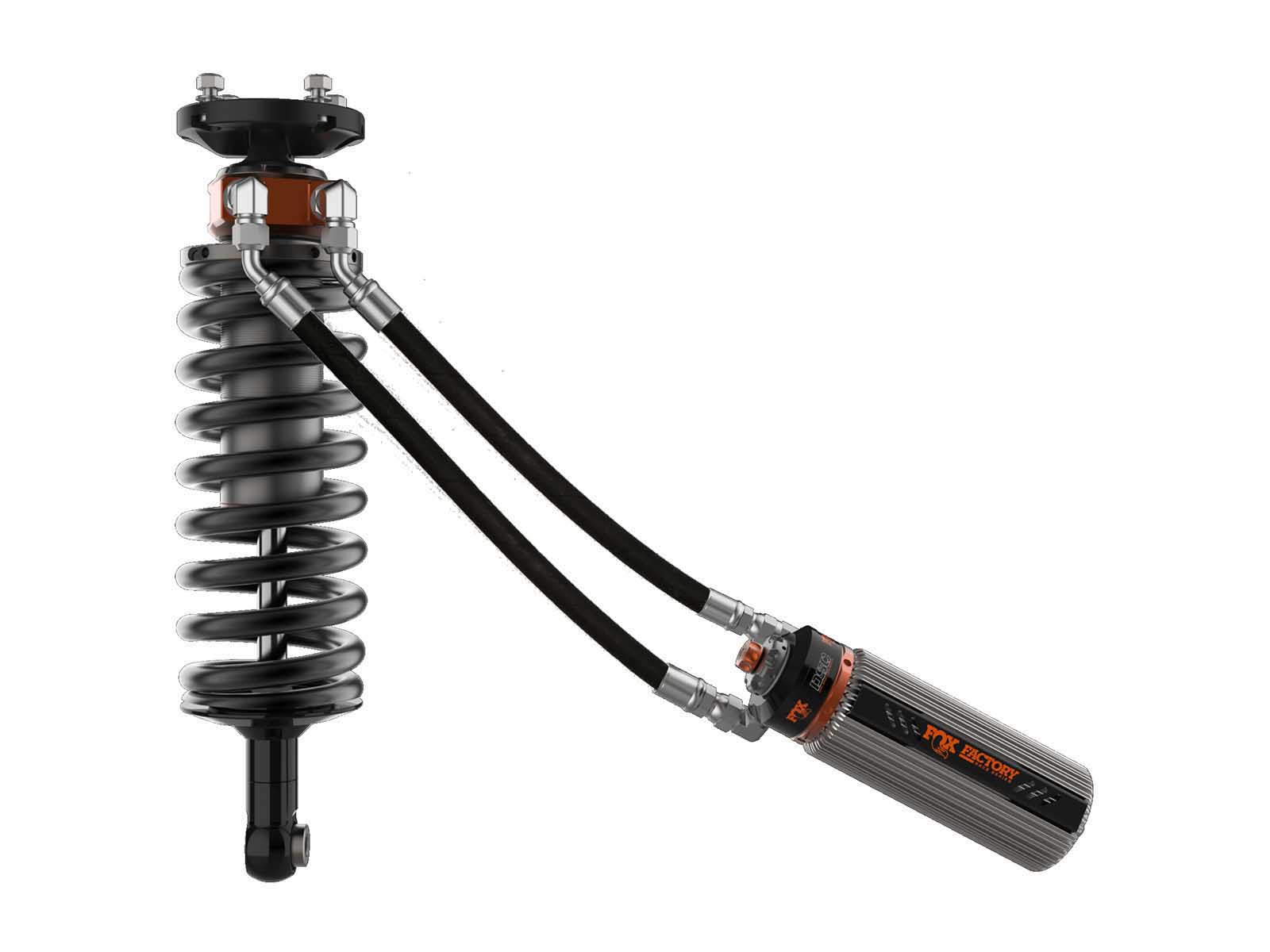

Fox FOX88306219 Factory Race 3.0 Front RIB Remote Reservoir Coilover, 2-2.25 Lift for 2022-26 Tundra

Fox Factory FOX88306219 Factory Race 3.0 Front Internal Bypass Recirculating Remote Reservoir Coilover, Dual Speed Compression Adjuster 2-2.25 Lift for 2022-2026 Toyota Tundra

FOX Factory Race Series 3.0 Internal Bypass shocks for the Chevrolet/GM 1500 deliver position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit.

Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping force through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing.

Shock fluid bypasses the main Piston through a Series of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main Piston.

A Recirculating Reservoir Bridge enables continuous exchange of shock fluid between the finned external Reservoir and Body using checked ports, keeping shock temperatures cool for better performance. Type III anodization prevents corrosion and wear of the 3-inch diameter aluminum bodies.

The DSC adjuster allows you to dial in your 1500 for load, environment, and driving style.

FOX Internal Bypass shocks deliver the support and confidence you need while driving Mach-3 through rugged terrain. Experience race-bred performance next time you leave the pavement.
Features

• 3.0 Inch impact extruded and CNC machined 6061-T6 Type III anodized aluminum Body
• Patented, internal bypass design
• Application-specific springs
• 7/8 Inch hard chrome-plated steel Shafts
• Vehicle-specific tuning maximizes performance
• Redundant sealing pack system: main seal, wiper seal, scraper seal
• Finned Reservoir, with DSC adjuster
• Travel 5.37
• Extended Length 21.6
• Compressed Length 15.65
• Top Mount OEM
• Bottom Mount Eyelet

Fitment Notes Front Lift: 2-2.25 inches Requires Upper Control Arm Extended CV Axles are required for non-TRD Off-Road/PRO Trims (TRD Off-Road/PRO red axle or 3 inch TRD Lift Kit silver axle)

Notes
Images provided by manufacturer and may not be exact SKU. Made in the USA! Designed for 2-2.25 Inch Lift Height. Front Adjustable Aluminum Recirculating Remote Reservoir Coil-Over Internal Bypass Shock. Sold as Pair. 5.37-Inches of Travel. Collapsed Length: 15.65-Inches. Extended Length: 21.69-Inches. OEM/Eyelet Shock Mount.
