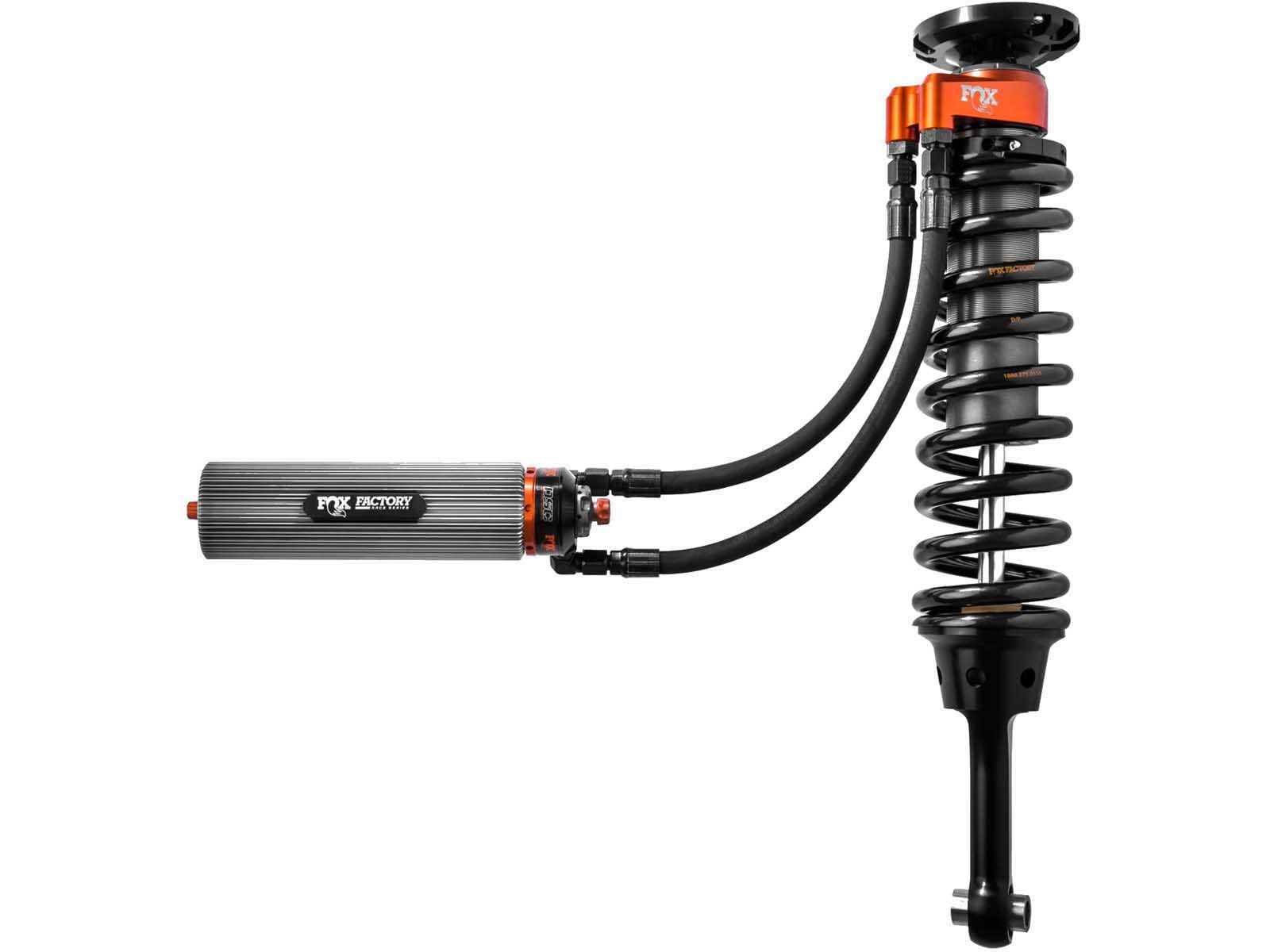

Fox Factory FOX88306140 Factory Race 3.0 Remote Reservoir Front Internal Bypass Coilover 7.9 Inch 0-2 Inch Lift for 2017-2025 Ford F150 Raptor/Raptor R, 2022-2025 Ford Bronco Raptor, 2024-2025 Ford Ranger Raptor
Take your Gen 2 Raptor to the next level with this Factory Race Series front upgrade kit, designed to deliver a high level of adjustability via Dual Speed Compression (DSC) adjusters and improved cooling efficiency through an all-new Recirculating Reservoir Bridge and finned remote Reservoir.
This kit delivers the next level of off-road performance without sacrificing every day ride quality and comfort.
Features
- Performance Tuned For Vehicle Specific Application, Durable Zinc Plated Seamless Alloy Body, External Reservoir System Dissipates Heat Fast, Black Anodized CNC Machined Aluminum Components
- Series Factory Race
- Travel 7.85
- Front Lift Height 0-2
- Body 3.0 Inch Hard anodized aluminum
- Body Plating NEW, hard anodized extruded aluminum finned remote Reservoir with NEW Recirculating Reservoir Bridge
- Reservoir 3.75 Inch racing spring selected specifically for the Gen 2 Raptor, preset to level your stock Raptor front-to-rear
- Components 3.75 Inch racing spring selected specifically for the Gen 2 Raptor, preset to level your stock Raptor front-to-rear
- Shaft 7/8 Inch 17-4 H900 hard chrome plated stainless steel
- Piston Hard anodized 6061-T6 billet aluminum high flow race Piston
- Valving Specific for Gen 2 Raptor to maximize performance and comfort
- Bearings Spherical, PFTE-lined, heat-treated steel
- Extended Length 28.45
- Compressed Length 20.6
- Top Mount TM
- Bottom Mount Eyelet
Notes
Images provided by manufacturer and may not be exact SKU. Made in the USA! Designed for 0-2 Inch Lift Height. Front Adjustable Aluminum Remote Reservoir Coil-Over Internal Bypass Shock. Sold as Pair. 7.85-Inches of Travel. Collapsed Length: 20.6-Inches. Extended Length: 28.45-Inches. TM/Eyelet Shock Mount.
Scroll to view product options.
| Part # |
Description |
Price |
|
| FOX-FOX88306140 |
Fox FOX88306140 Factory Race 3.0 Front IBRR Coilover 0-2" Lift for 2017-25 Raptor F150/Bronco/Ranger |
$3,879.95 |
Add to Cart |
Scroll to view product options.
Fits These Applications:
| Year |
Make |
Model |
SubModel |
Engine |
Transmission |
Drive |
