BDS Suspension BDS772FDSC 3.5" Lift Kit FOX Coil-Over 2019-2024 Silverado/Sierra 1500 4WD

BDS Suspension BDS772FDSC 3.5 Inch Lift Kit FOX Performance Elite Coil-Over Silverado/Sierra 1500 2019-2024 4WD Fox 2.0 Performance

Up the ante in your Chevy Silverado or GMC Sierra 1500 truck with style and performance by installing this 3.5-inch lift kit featuring FOX Performance Elite 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires (Chevy) or 33 inch tires (GMC).

Up front the lift kit includes FOX 2.5 Performance Elite Series remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes fabricated steel lift blocks, longer u-bolts and a complementary set of FOX 2.0 Performance shocks for the smoothest ride.

FOX Performance Elite
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology.

They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

HD Upper Control Arms (UCAs)
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 inch OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment.

At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability.

Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

Features & Benefits

• FOX 2.5 Performance Elite coil-overs offer improved damper performance over stock
• DSC Adjuster allows easy high-speed and low-speed compression tuning for optimal performance in any terrain
• Performance UCAs increase strength and allow for more suspension travel
• FOX 2.0 performance series IFP rear shocks included
• Factory Protection Plus drivetrain warranty included
• Easy, 100 percent Bolt on installation

Recommended Tires & Wheels

• (Trimming may be required)
• 33 x 12.5 with 20 x 9 and 5.5 in. Backspace
• 35 x 12.5 with 20 x 9 and 5.5 in. Backspace

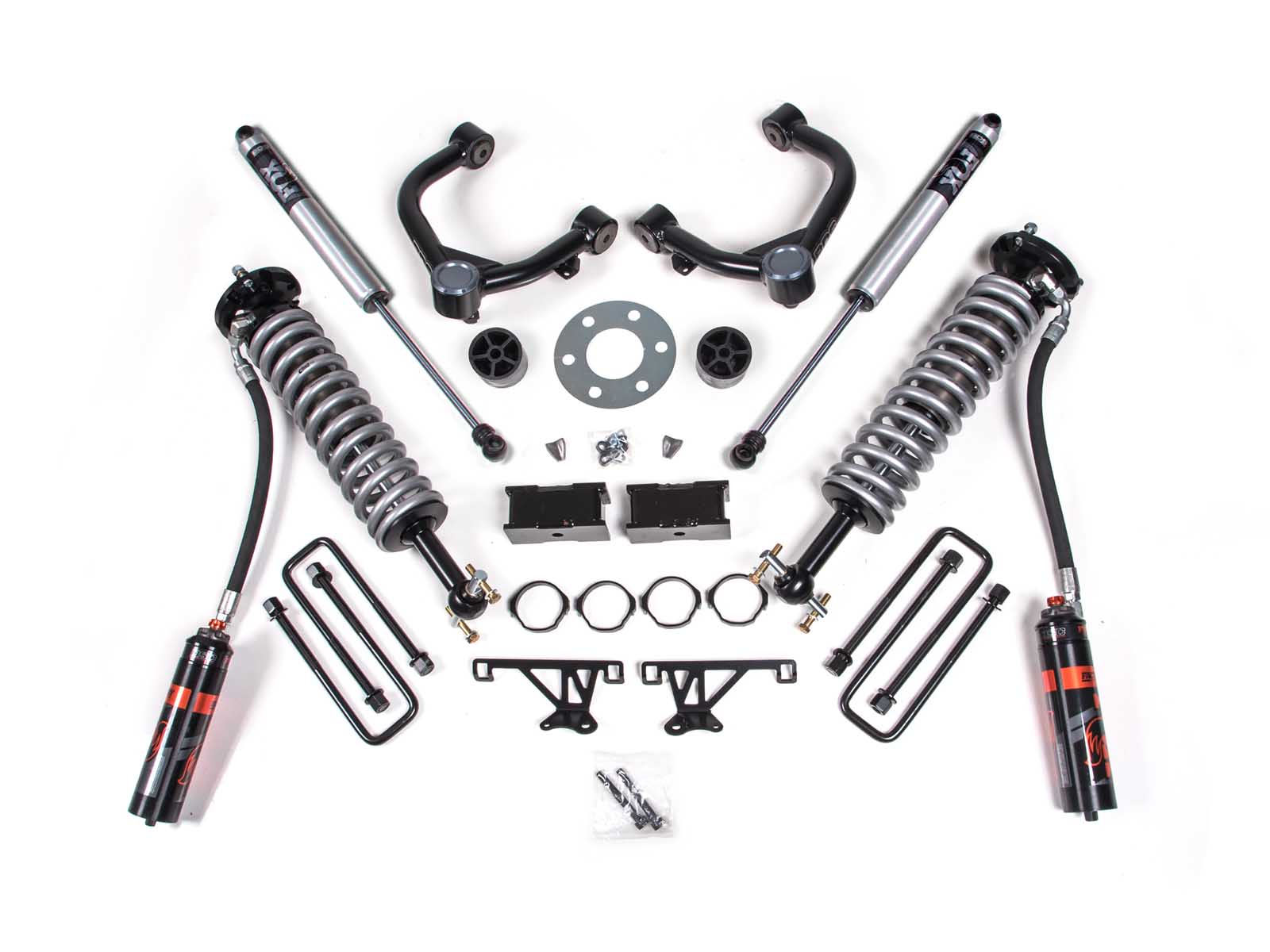

Kit Components:

• Includes one BDS011350, 2019-2024 Chevrolet Silverado/GMC Sierra 1500 Coilover 3.5 inch Box Kit, UPC Code 658848611775
• Includes one FOX88306162, Kit: 2019-2024 GM 1500, w/UCA, Front Coilover, 2.5 Series, AL, R/R, 6.0 inch, Non-TB/Non-AT4 3.5 inch Lift, TB/AT4 1.5 inch Lift, UPC Code 711745603943
• Includes two FOX98224719, Fox 2.0 Shock 26.85 x 16.75 x 2- EB1/EB1

Notes
Images provided by manufacturer and may not be exact SKU. Made in the USA. Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts. Sold as a Kit. Lift Height: 3.5 Inch. Fox 2.0 Performance Shocks included.
