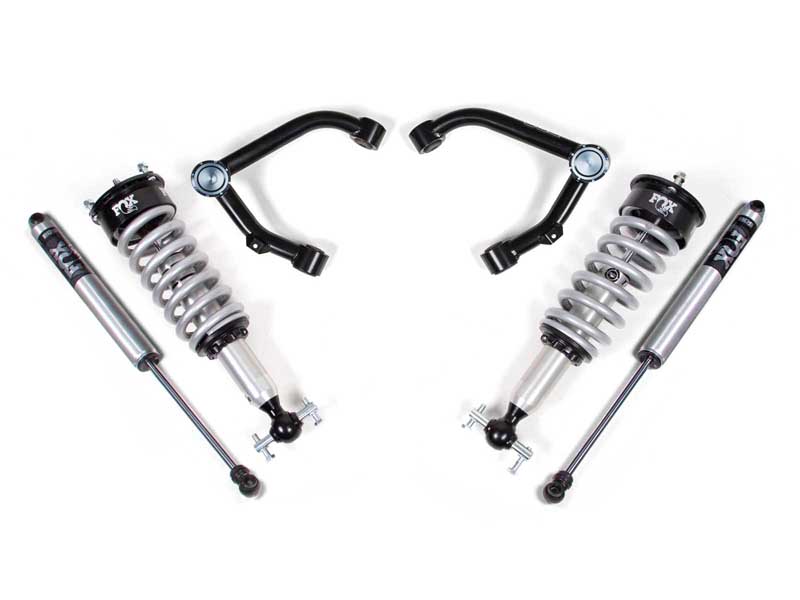

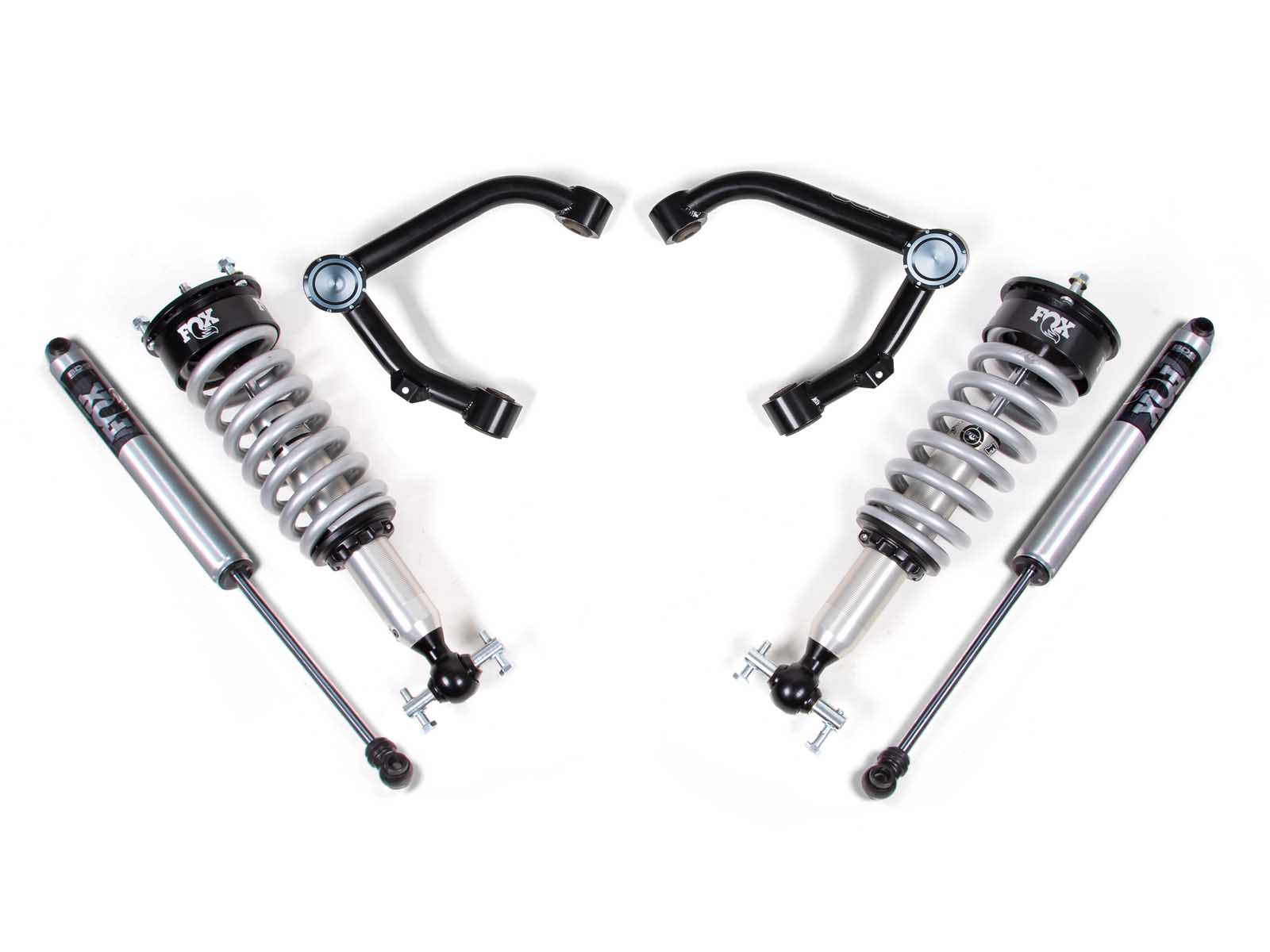

BDS Suspension BDS758FSL 2 Inch Lift Kit FOX 2.0 Coil-Over Silverado/Sierra 1500 2007-2018 4WD Aluminum Stamped Steel
Level out your 2007-2018 Silverado/Sierra 1500 truck and improve the ride with this 2-inch leveling kit featuring FOX 2.0 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.
Up front the lift kit includes FOX 2.0 Performance Series coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a matching set of FOX 2.0 Performance shocks for the smoothest ride.
FOX 2.0 Coil-Over Shocks
These FOX 2.0 Performance Series coil-overs bring impressive damper performance for great ride on and offroad capability designed as a direct bolt-in replacement for the factory strut.
They feature a 2.0 inch extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (Internal Floating Piston) to eliminate oil aeration, FOX's proprietary internals, 5/8 inch hard chrome plated heat treated alloy shaft and come preloaded with springs and top-plate for easy installation.
HD Upper Control Arms
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 inch OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment.
At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability.
Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
- Front Lift Method: Coil-Over
- Rear Lift Method: Stock
- Shocks Included: Yes
- Front Lift Height: 2 inch
- Rear Lift Height: 0 inch
- 33x12.50 Tires will require weld on steering stop, also it requires inner fender well modification to clear this width Tire
- Will Not fit MagneRide magnetic ride control equipped models
- FOX 2.0 performance series struts offer improved damper performance over factory and are a direct bolt-in replacement
- Performance UCAs increase strength and allow for more suspension travel
- FOX 2.0 performance series Internal Floating Piston rear shocks included
- Factory Protection Plus drivetrain warranty included
- Easy, 100 percent Bolt on installation
Factory Control Arm Type - Aluminum/Stamped Steel
IMPORTANT: GM is producing several knuckle/control arm configurations in 2014-2018 models trucks. Cast Steel control arm equipped models will require the inchCast Steel Control Arm inch kit.
Stamped Steel and Aluminum control arm equipped models will require the Aluminum Control Arm kit.Â
Tire Size: 285 / 70 Tire Size 2: 33 x 12.5 Wheel Diameter: 20 x 9 Wheel Diameter 2: 20 x 94.5
Kit Components:
- Includes one BDS121152, 2014-18 GM 1500 UCA - Aluminum / Stamped Steel CA, UPC Code 658848618897
- Includes two FOX98224719, Fox 2.0 Shock 26.85 x 16.75 x 2- EB1/EB1
- Includes two FOX98502018, 07-ON Chevy 1500 Front Coilover, PS, 2.0, Internal Floating Piston, 4.3 inch, 0-2 inch Lift, UPC Code 714686858809
Notes
Images provided by manufacturer and may not be exact SKU. Made in the USA. Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts. Sold as a Kit. Clear Anodized. Lift Height: 2.0 Inch. Max Tire Size: 33 Inch. Fox 2.0 Performance Shocks included.
