BDS Suspension BDS2310 Recoil Traction Bar Kit 2011-2016 F250/F350 Long Bed

BDS Suspension BDS2310 Recoil Traction Bar Kit 2011-2016 F250/F350 Long Bed
Part Number: BDS-BDS2310
Brand: BDS Suspension
List Price: $1,161.96
Price: $967.90

BDS Suspension BDS2310 Recoil Traction Bar Kit Ford F250/F350 Super Duty 2011-2016 Long Bed



Improve traction on your 2011-2016 Ford F250/F350 Super Duty 4WD Long Bed without limiting wheel travel with a BDS Recoil Traction Bar Mounting Kit, made with heavy wall construction and internal compression springs that can be loaded or unloaded while installed on the vehicle to control axle wrap.

Full float design for bind-free performance and can be installed with a range of lift heights.

Fabricated from 2-inch OD x 3/16-inch wall steel tubing with a threaded bung welded in toward the axle and a CNC-machined end at the frame. Axle mount uses BDS's ultra-durable large-forged flex end and jam nut.

Using a forged housing with large 1-1/4-nch x 12 threaded shank, a single sided snap ring and 1-piece flex ball, the flex ends are capable of up to 15 degrees of misalignment in either direction.

At the frame end the bar uses a durometer specific polyurethane bushing and free floats in the traction bar utilizing a pair of dual stage internal compression springs and UHMW polyurethane bearings.

  • Adjustable axle wrap control using dual-stage resistance springs
  • Full floating traction bar design will not bind throughout the full range of wheel travel and/or hinder suspension articulation
  • Spring preload can be adjusted on the vehicle without disassembling the traction bar
  • Traction bar ends are greaseable and rebuildable
  • Mounting brackets are bolt-on, only requiring minor drilling for frame mount installation

Install Time:

  • 3-4 hrs
  • Moderately
  • Easy

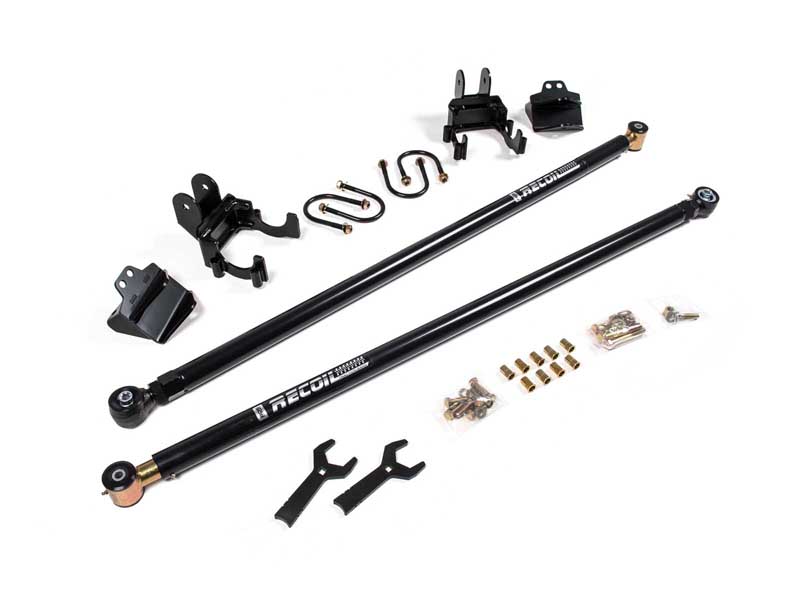

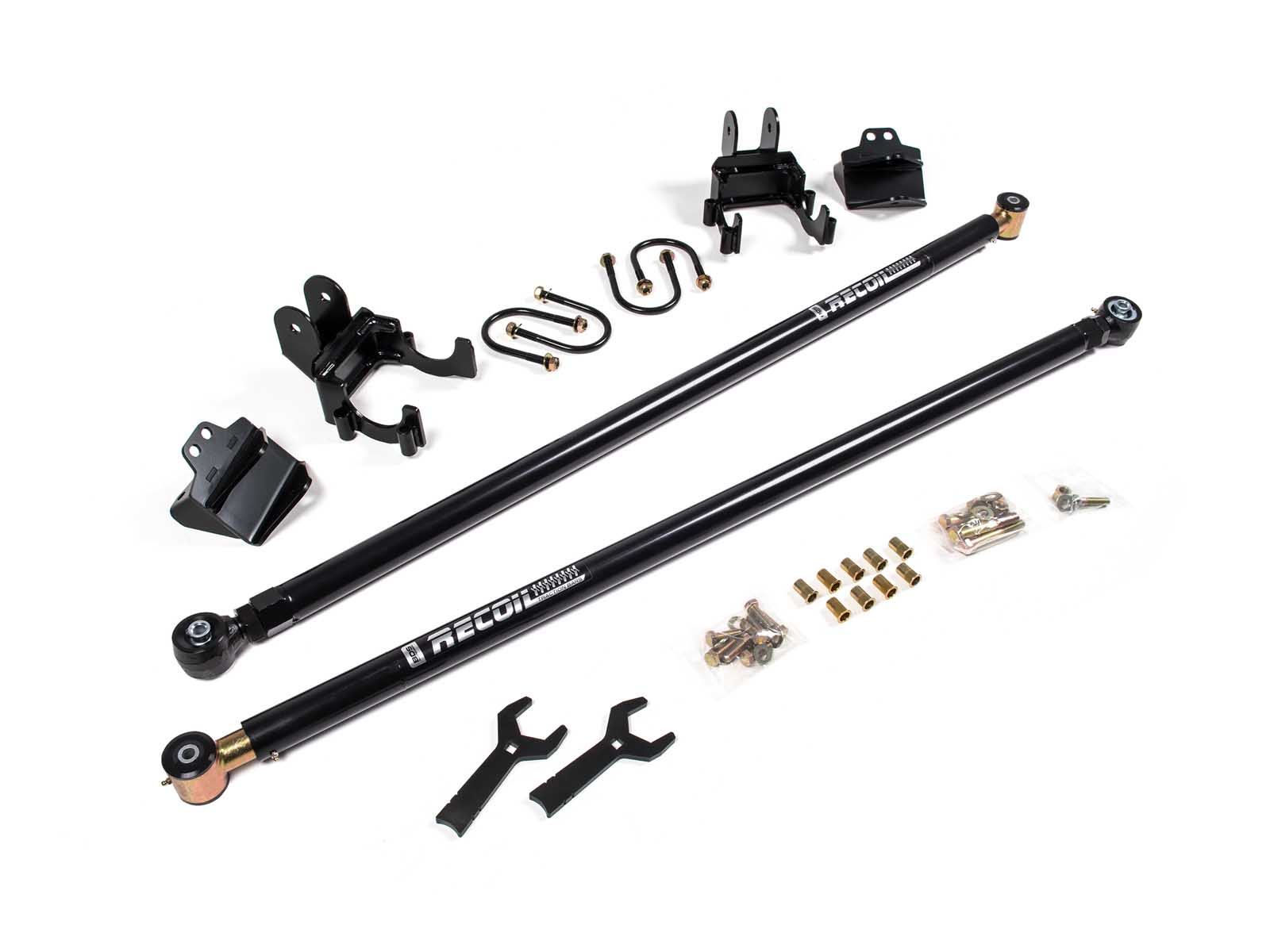

Kit Components

Includes one BDS123409, Recoil Traction Bar Box Kit, UPC Code 711745604230
Includes one BDS123418, 99-16 F250/350 Recoil Mount Kit-Long Box, UPC Code 711745604292


Notes
Images provided by manufacturer and may not be exact SKU. Made in the USA. Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts. Sold as a Kit.

Scroll to view product options.

Part # Description Price
BDS-BDS2310 BDS Suspension BDS2310 Recoil Traction Bar Kit 2011-2016 F250/F350 Long Bed $967.90

Scroll to view product options.

Fits These Applications:

Year Make Model SubModel Engine Transmission Drive
