BDS Suspension BDS2306 Recoil Traction Bar Kit 2019-2024 Ram 3500

BDS Suspension BDS2306 Recoil Traction Bar Kit Ram 3500 2019-24

Improve traction on your 2019-2024 Ram 3500 4WD without limiting wheel travel with a BDS Recoil Traction Bar Mounting Kit, made with heavy wall construction and internal compression springs that can be loaded or unloaded while installed on the vehicle to control axle wrap.

Full float design for bind-free performance and can be installed with a range of lift heights.

Fabricated from 2-inch OD x 3/16-inch wall steel tubing with a threaded bung welded in toward the axle and a CNC-machined end at the frame. Axle mount uses BDS's ultra-durable large-forged flex end and jam nut.

Using a forged housing with large 1-1/4-nch x 12 threaded shank, a single sided snap ring and 1-piece flex ball, the flex ends are capable of up to 15 degrees of misalignment in either direction.

At the frame end the bar uses a durometer specific polyurethane bushing and free floats in the traction bar utilizing a pair of dual stage internal compression springs and UHMW polyurethane bearings.

• Adjustable axle wrap control using dual-stage resistance springs
• Full floating traction bar design will not bind throughout the full range of wheel travel and/or hinder suspension articulation
• Spring preload can be adjusted on the vehicle without disassembling the traction bar
• Traction bar ends are greaseable and rebuildable
• Mounting brackets are bolt-on, only requiring minor drilling for frame mount installation

Install Time:

• 3-4 hrs Moderately Easy

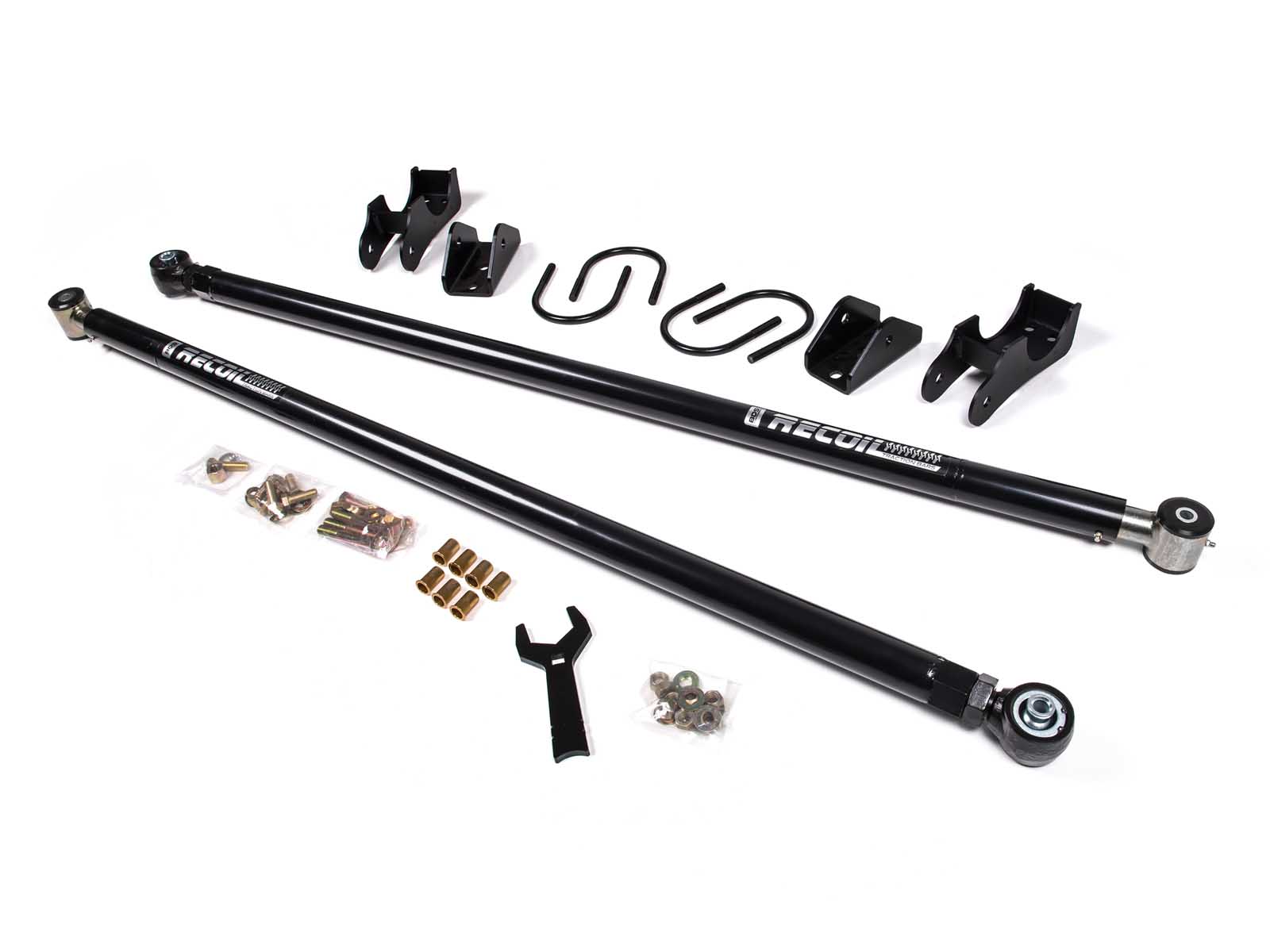

Kit Components

Includes one BDS122407, 2019-2024 Ram 3500 Recoil Traction Bar Mounting Kit, UPC Code 658848619504
Includes one BDS123409, Recoil Traction Bar Box Kit, UPC Code 711745604230

Notes
Images provided by manufacturer and may not be exact SKU. Made in the USA. Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts. Sold as a Kit.
