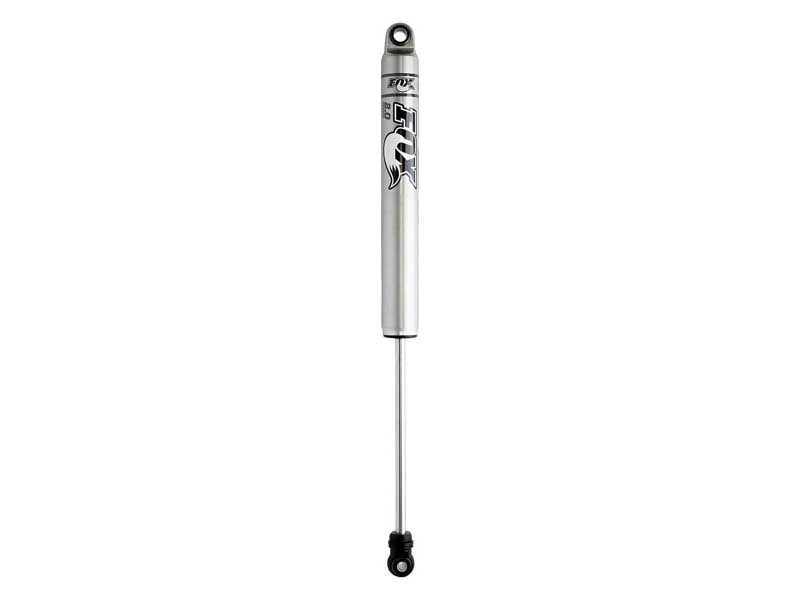

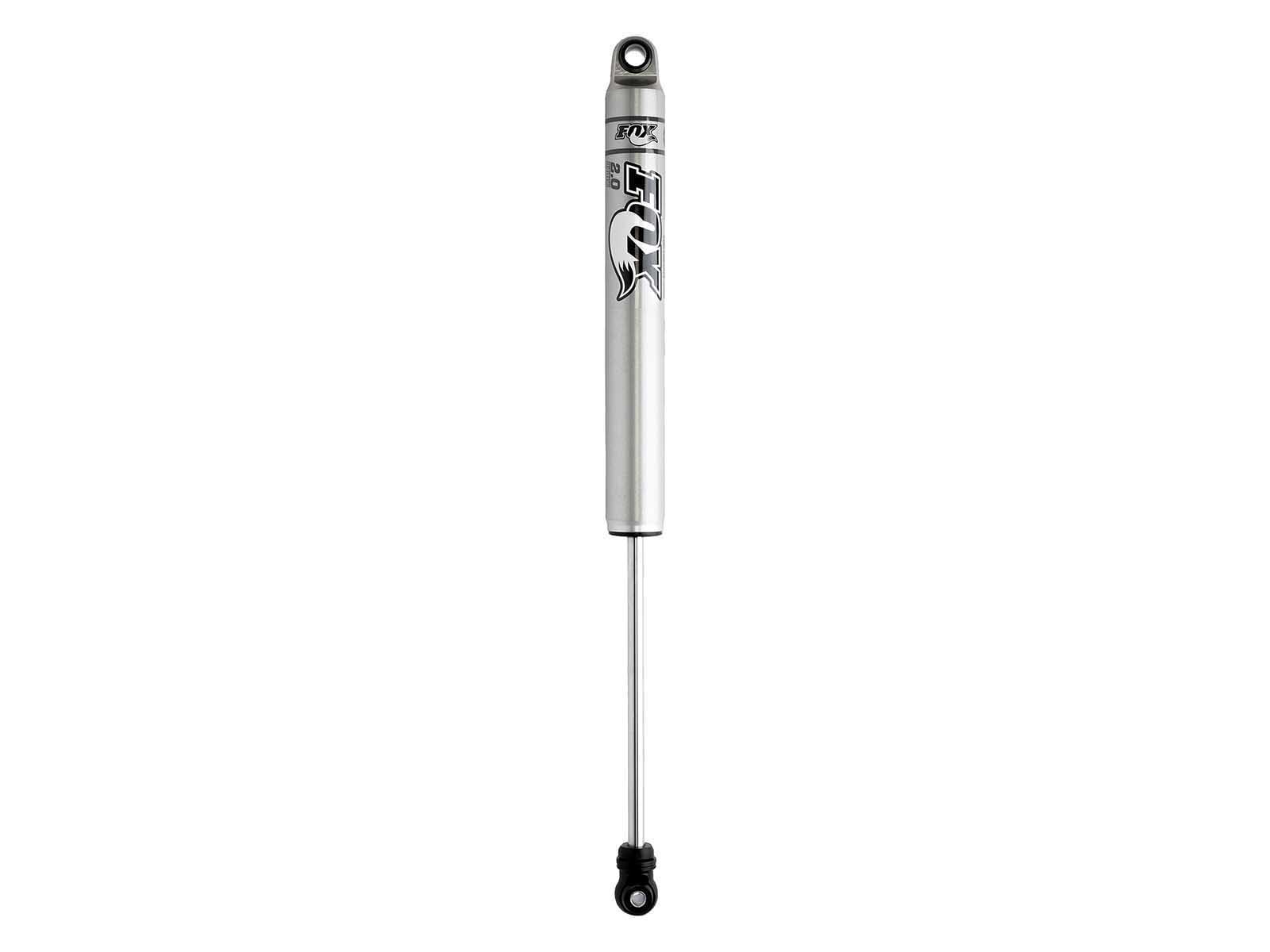

Fox Factory FOX98024647 Performance Series 2.0 Rear Internal Floating Piston 11.6 Inch 0-1 Inch Lift for 1999-2016 Ford F250/F350/F450/F550
The Performance Series 2.0 IFP Smooth Body shocks contain the latest in shock technology to transform the performance of your Truck or SUV. They use our race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions.
The precision metal impact aluminum Body increases cooling capacity and will never rust. Inside you will find our race-proven performance Valving technology. Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber.
The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision Valving.
The race developed high flow damping Piston matched with application specific Valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions.
Part Number
980-24-647
Features
- Performance Tuned For Vehicle Specific Application, Aluminum Body Dissipates Heat Faster Than Steel, IFP Separates Oil From High-Pressure Nitrogen Gas, Black Anodized CNC Machined Aluminum Components
- SeriesPerformance
- Travel 9.12
- Rear Lift Height 0-1
- Body 2.0 inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece Body resists rust over time
- Body Plating Clear-anodized for a durable finish
- Components Black-anodized, CNC-machined 6061-T6 billet aluminum
- Shaft 5/8 Inch hard chrome plated heat-treated alloy steel
- Piston Race-developed high-flow Piston design
- Valving Application specific Valving to maximize performance
- Seals Redundant sealing pack system main seal, wiper seal, scraper seal
- Extended Length 30.12
- Compressed Length 18.5
- Top Mount EB3
- Bottom Mount ES1
Notes
Images provided by manufacturer and may not be exact SKU. Made in the USA! Designed for 0-1 Inch Lift Height. Rear Aluminum Internal Floating Piston (IFP) Reservoir Smooth Body Shock. Sold Each. 11.62-Inches of Travel. Collapsed Length: 18.5-Inches. Extended Length: 30.12-Inches. EB3/ES1 Shock Mount.
Scroll to view product options.
| Part # |
Description |
Price |
|
| FOX-FOX98024647 |
Fox FOX98024647 Performance Series 2.0 Rear IFP 0-1 Inch Lift for 1999-16 F250/F350/F450/F550 |
$229.95 |
Add to Cart |
Scroll to view product options.
Fits These Applications:
| Year |
Make |
Model |
SubModel |
Engine |
Transmission |
Drive |
