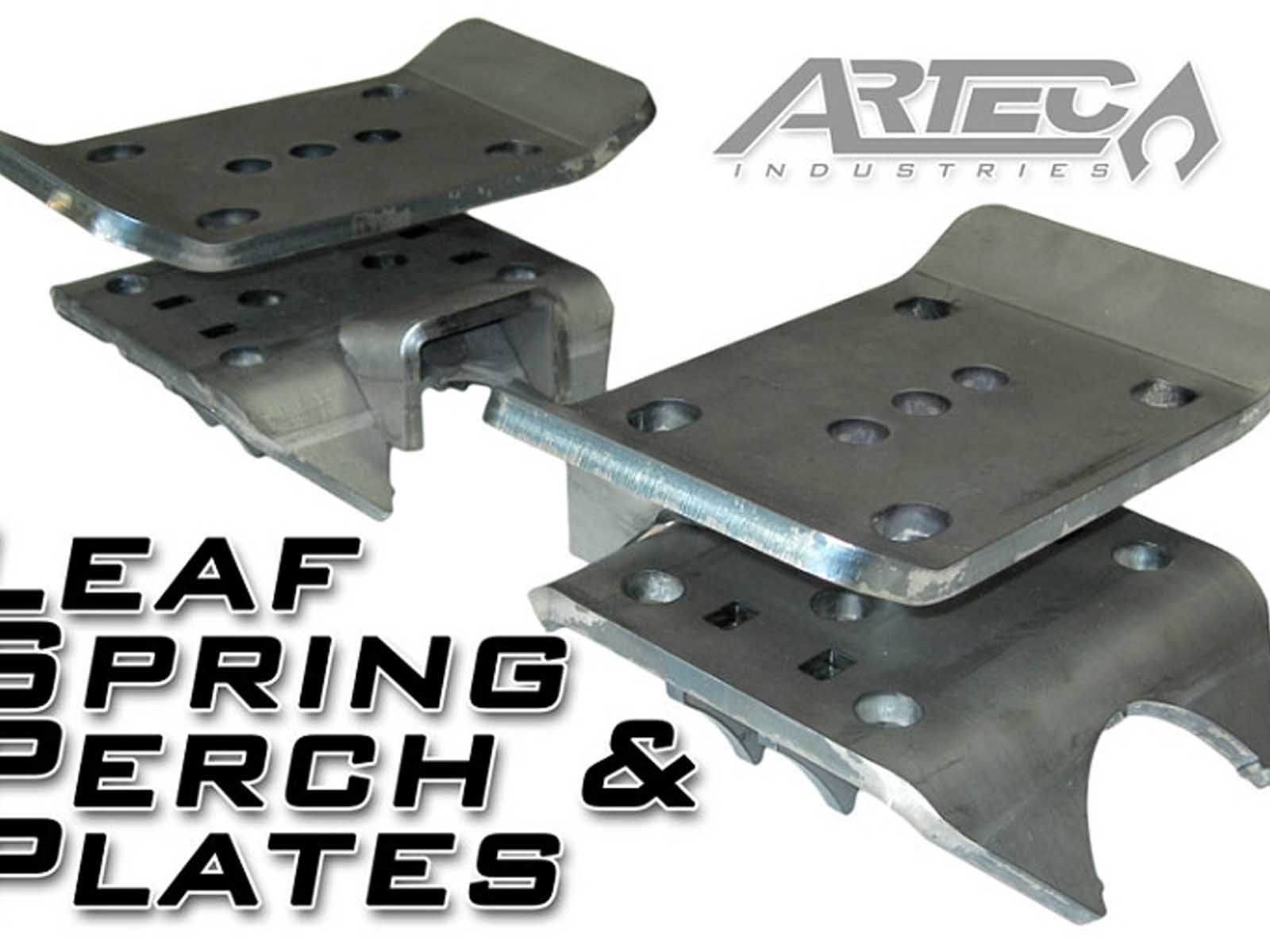

Artec Industries BR1034 Leaf Spring Perch And Plates Pair
Leaf Spring Perch and Plates (pair). The perfect compliment to your Spring Over Axle (SOA) swap and Artec Modular Truss. Eliminates U-bolts to increase strength by spreading load to 4 bolts rather than 2. Includes truss end caps For seamless transition between Artec Modular Trusses. Three leaf pin positions For one inch adjustments forward or back.
Details:
- Sold as Pair
- 3/8 inch thick top plates and perches, and 1/4 inch gussets
- Variable axle tube diameter; just grind off little tabs For larger tube diameter
- Current notch fits 3.25 inch-3.375 inch axle tubes.
- Hardware not included since leaf packs can vary Inch thickness.
- Grade 8 hardware and Nylon locking nuts recommended.
- For offroad use only.
Notes
Images provided by manufacturer and may not be exact SKU. Made in the USA. Sold as a Pair.
Scroll to view product options.
| Part # |
Description |
Price |
|
| ART-BR1034 |
Artec Industries BR1034 Leaf Spring Perch And Plates Pair |
$209.99 |
Add to Cart |
Scroll to view product options.
