Wilwood 340-16386 Adjustable 5.5-6.25:1 Ratio Reverse Swing Mount Tru-Bar Brake and Clutch Pedals

Wilwood 340-16386 Adjustable 5.5-6.25:1 Ratio Reverse Swing Mount Tru-Bar Brake and Clutch Pedals
Part Number: WIL-340-16386
Brand: Wilwood
List Price: $689.96
Price: $551.77

This product qualifies for Free Ground Shipping*
Qty

Wilwood 340-16386 Adjustable 5.5-6.25:1 Ratio Reverse Swing Mount Tru-Bar Brake and Clutch Pedals

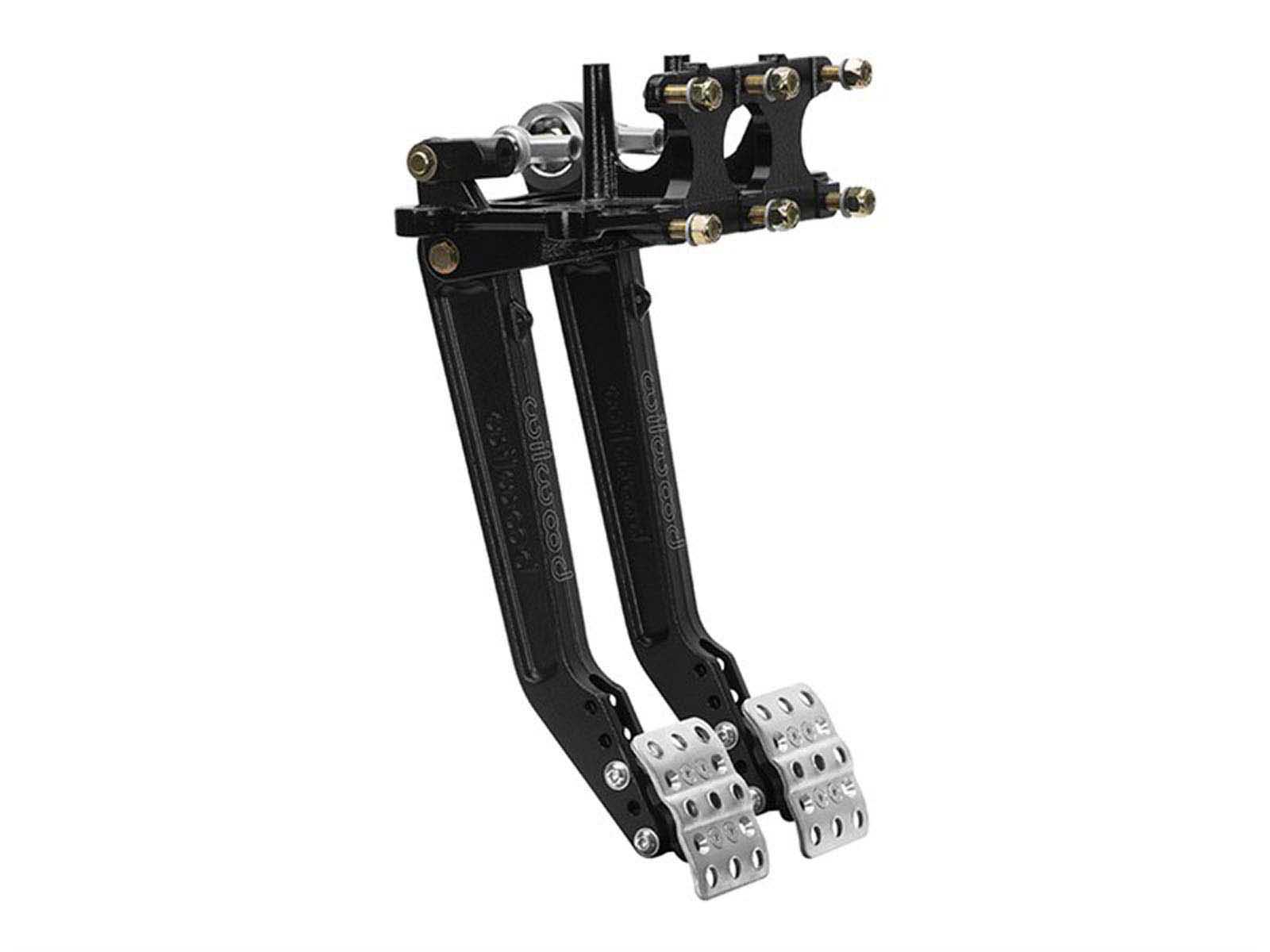

Wilwood adjustable ratio balance bar brake pedal and clutch pedal combo from Accesspeed is available in a reverse swing hanging assembly. Pedal head adjusts vertically to provide a 5.50, 5.88, or 6.25:1 ratio for more feel or less pedal effort. A clutch master cylinder and two brake master cylinders mount to the assembly, with a friction-free, trunnion based adjustable Tru-Bar balance bar providing front to rear brake bias fine tuning. The non-skid waffled pedal pads can be laterally adjusted to be from 3 to 5 inches on center for driver preference. The pedals feature a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arms. The Tru-Bar incorporates a positive detent stop every full turn to maintain adjustment position and can be locked in place with the included jam nut, or used with an optional remote knob, which is an Accesspeed customer favorite for quick on-track adjustments. Tru-Bar pedals utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments reducing compliance and friction for more accurate brake feel. Tru-Bar pedals utilize the same chassis and master cylinder mounting as Wilwood balance bar style pedals. This pedal accepts any three Wilwood 2.25-inch vertical mount flange single outlet master cylinders, available separately in a variety of styles and bore sizes from Accesspeed.



Prop 65 Warning WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Part # Description Price
WIL-340-16386 Wilwood 340-16386 Adjustable 5.5-6.25:1 Ratio Reverse Swing Mount Tru-Bar Brake and Clutch Pedals $551.77 Add to Cart

Scroll to view product options.

Fits These Applications:

Year Make Model SubModel Engine Transmission Drive
