Wilwood 340-16381 Adjustable Ratio Swing Mount Brake or Clutch Pedal with 6.25-7:1 Ratio

Wilwood 340-16381 Adjustable Ratio Swing Mount Brake or Clutch Pedal with 6.25-7:1 Ratio
Part Number: WIL-340-16381
Brand: Wilwood
List Price: $169.96
Price: $135.78

This product qualifies for Free Ground Shipping*
Qty

Wilwood 340-16381 Adjustable Ratio Swing Mount Brake or Clutch Pedal with 6.25-7:1 Ratio

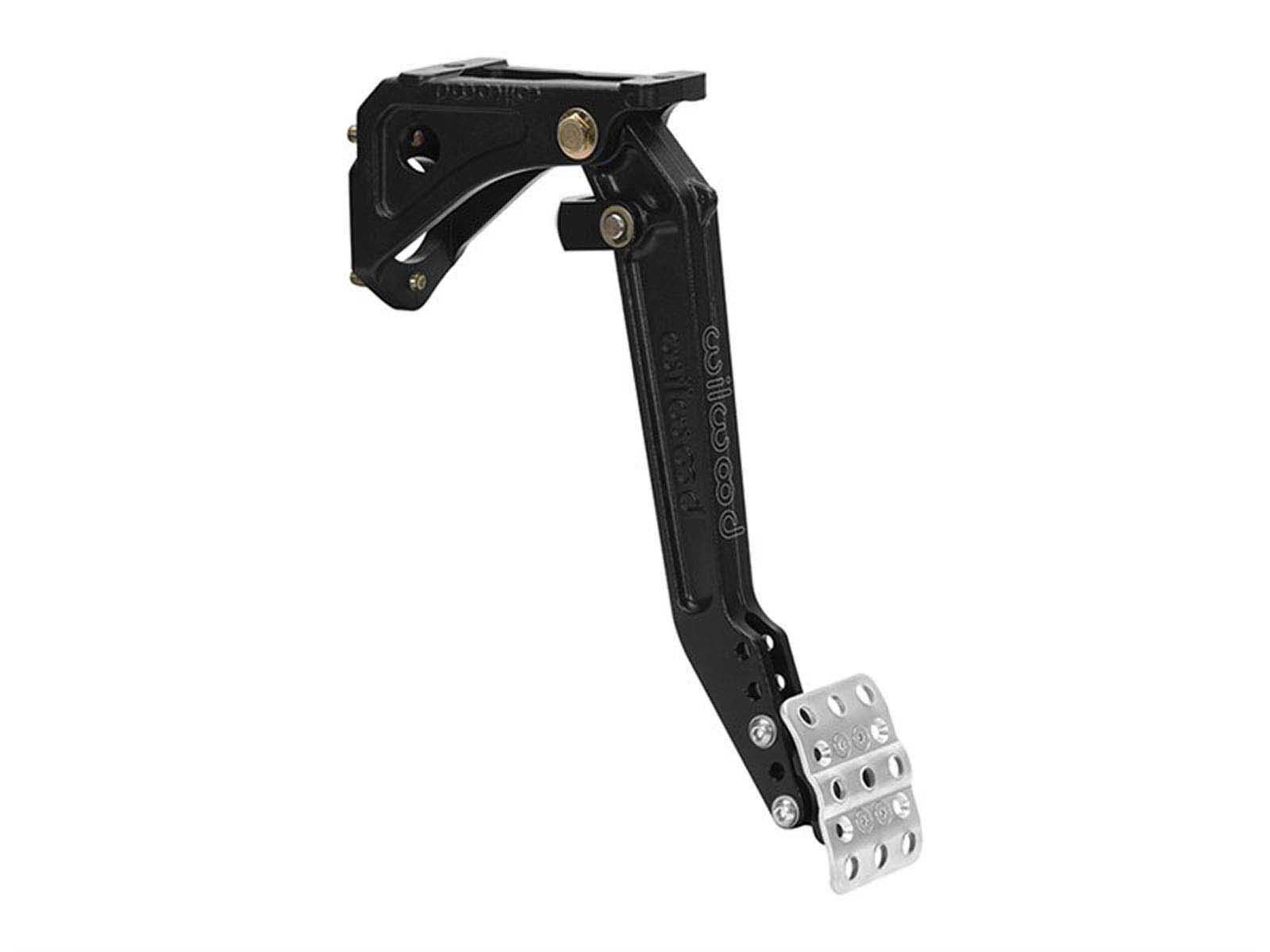

The Wilwood adjustable ratio single clutch pedal from Accesspeed comes in a forward swing hanging assembly. The pedal head adjusts vertically to provide a 6.25, 6.63, or 7.00:1 ratio for more feel or less pedal effort. The non-skid waffled pedal pad can be laterally adjusted 1/2 inch in either direction for driver preference. The pedals feature a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arms. A pin and clevis pushrod attachment system ensures the smallest possible misalignment angle for bind free operation through the entire range of travel. This pedal accepts Wilwood 2.25-inch vertical mount flange single outlet master cylinders, available separately in a variety of styles and bore sizes from Accesspeed.



Prop 65 Warning WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Part # Description Price
WIL-340-16381 Wilwood 340-16381 Adjustable Ratio Swing Mount Brake or Clutch Pedal with 6.25-7:1 Ratio $135.78 Add to Cart
