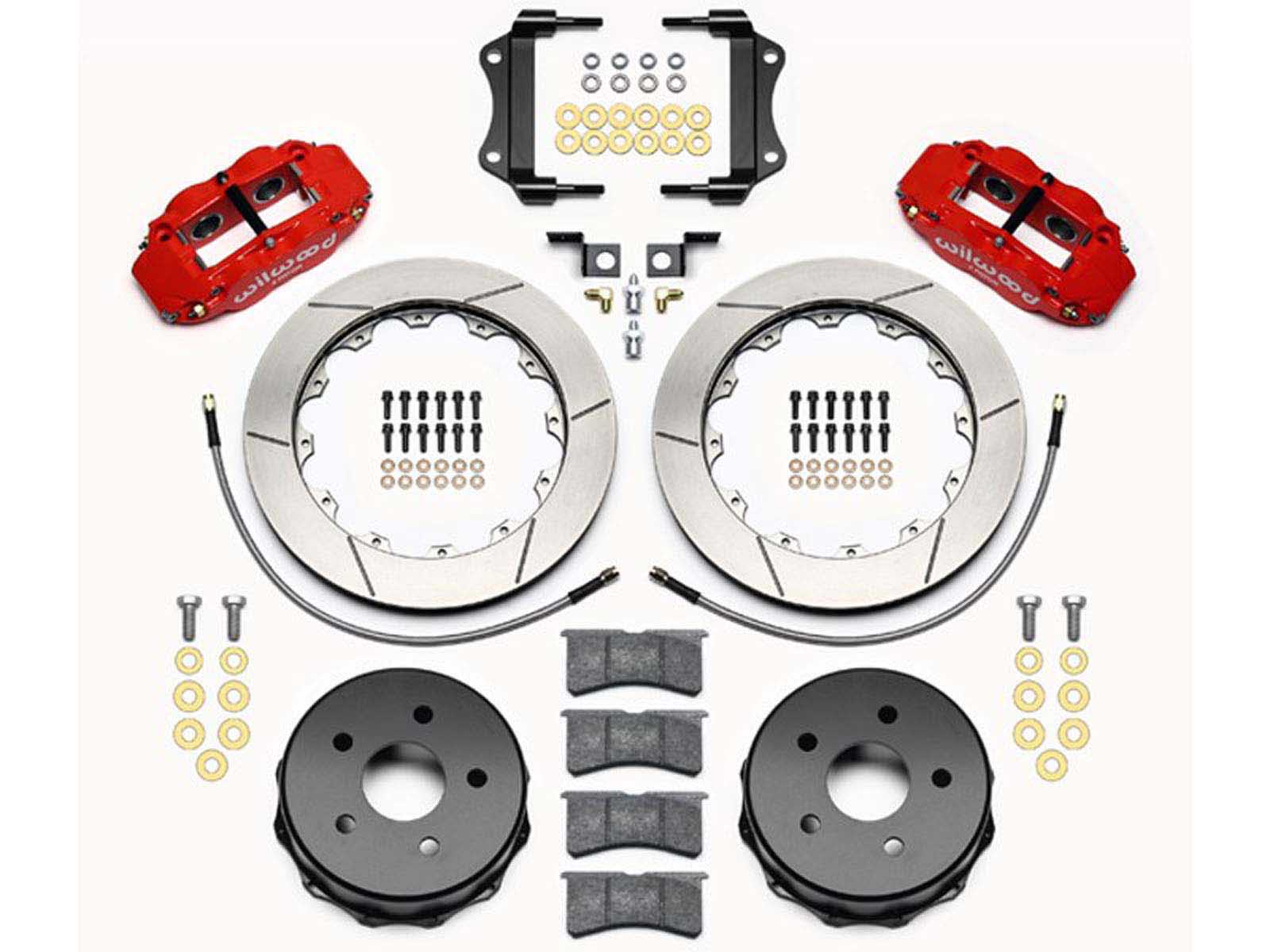

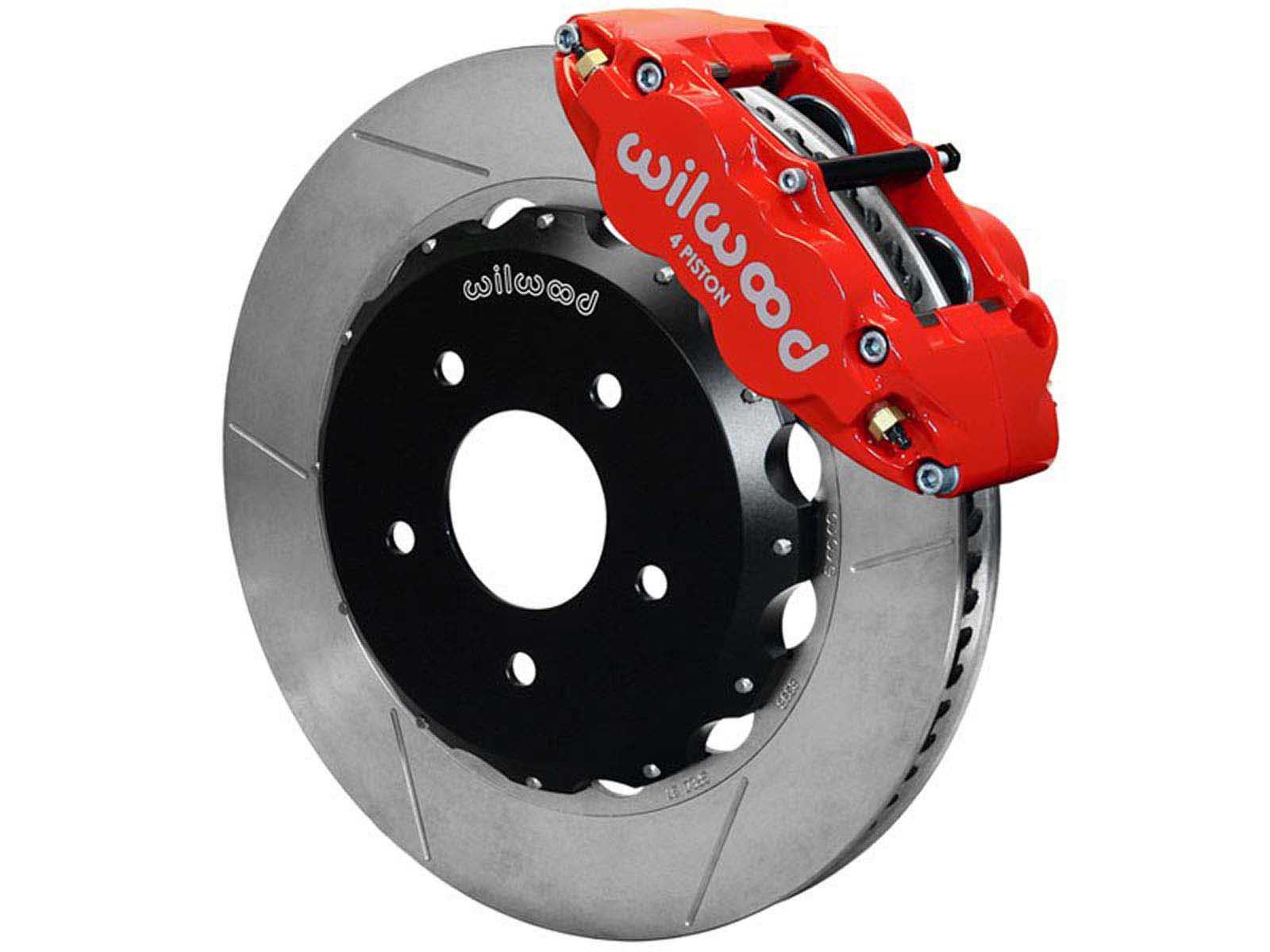

Wilwood 140-9194-R Superlite 4 Front 13" Big Brake Kit, Slotted, Red, 1989-1998 Nissan 240SX

Wilwood 140-9194-R Superlite 4R Front 12.88" Big Brake Kit With Red Calipers and Slotted Rotors, Fits 1989-1998 Nissan 240SX With 5-Lug Hub Conversion

The big pad capacity of the forged Superlite four piston caliper is combined with oversized rotors for this unique group of specialized application kits. The roots of the forged Superlite are deep in competition. It is a track proven performer. But the FSL is far from one dimensional. Lug mounting and a full range of piston sizes give the FSL widespread adaptability for applications with unique mounting and piston volume requirements. Options for caliper finish and rotor design provide the opportunity to configure these kits for high-tech style with full capability for extreme duty use on the street or at the track. Brake Kit does not include flex lines. Flex lines are necessary to complete the installation of the kit and must be ordered separately.

Wilwood Flexline Kit # WIL-220-9199

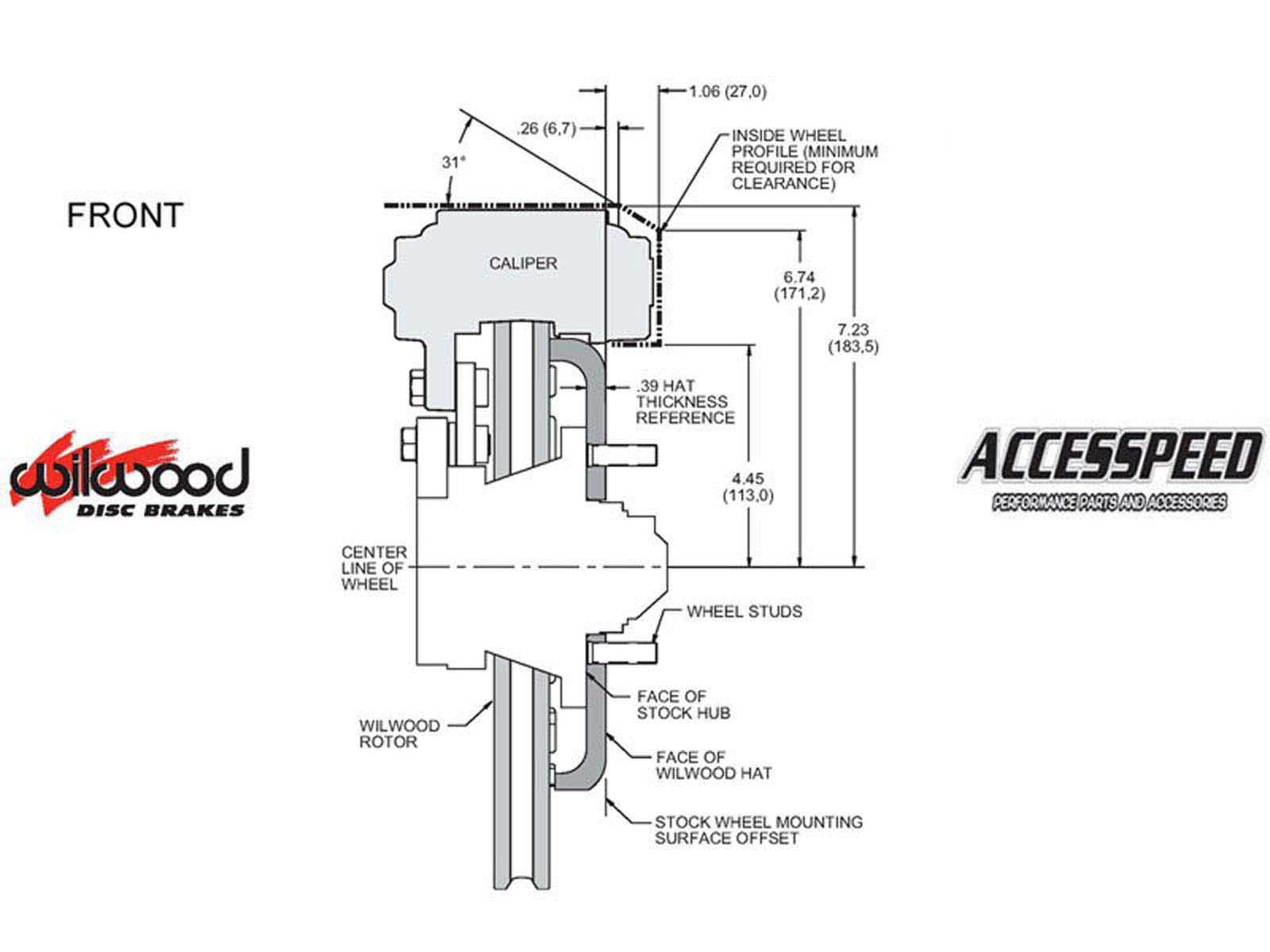

*This Brake Kit may require 17-inch or larger wheels and/or wheel spacers. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.

**Kit requires conversion to 5 lug hub for fitment onto 4 lug vehicles.

This kit fits the following vehicles:

Nissan 240SX 1989-1994 Nissan 240SX 1995-1998

Notes

Red Calipers. See separate listing for the black caliper system. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering. Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.

WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Scroll to view product options.

Fits These Applications:
