Wilwood 140-8922-DR Red Front Forged Narrow Superlite Brake Kit- 14" SRP Rotors 1997-2013 Corvette

Wilwood 140-8922-DR Red Front Forged Narrow Superlite Brake Kit- 14" SRP Rotors 1997-2013 Corvette
Part Number: WIL-140-8922-DR
Brand: Wilwood
List Price: $2,649.96
Price: $2,118.49

This product qualifies for Free Ground Shipping*
Qty

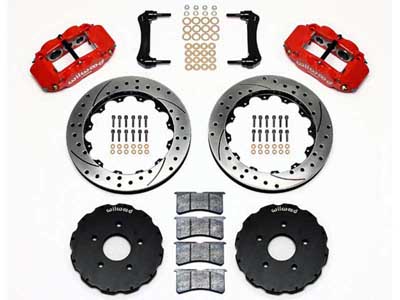

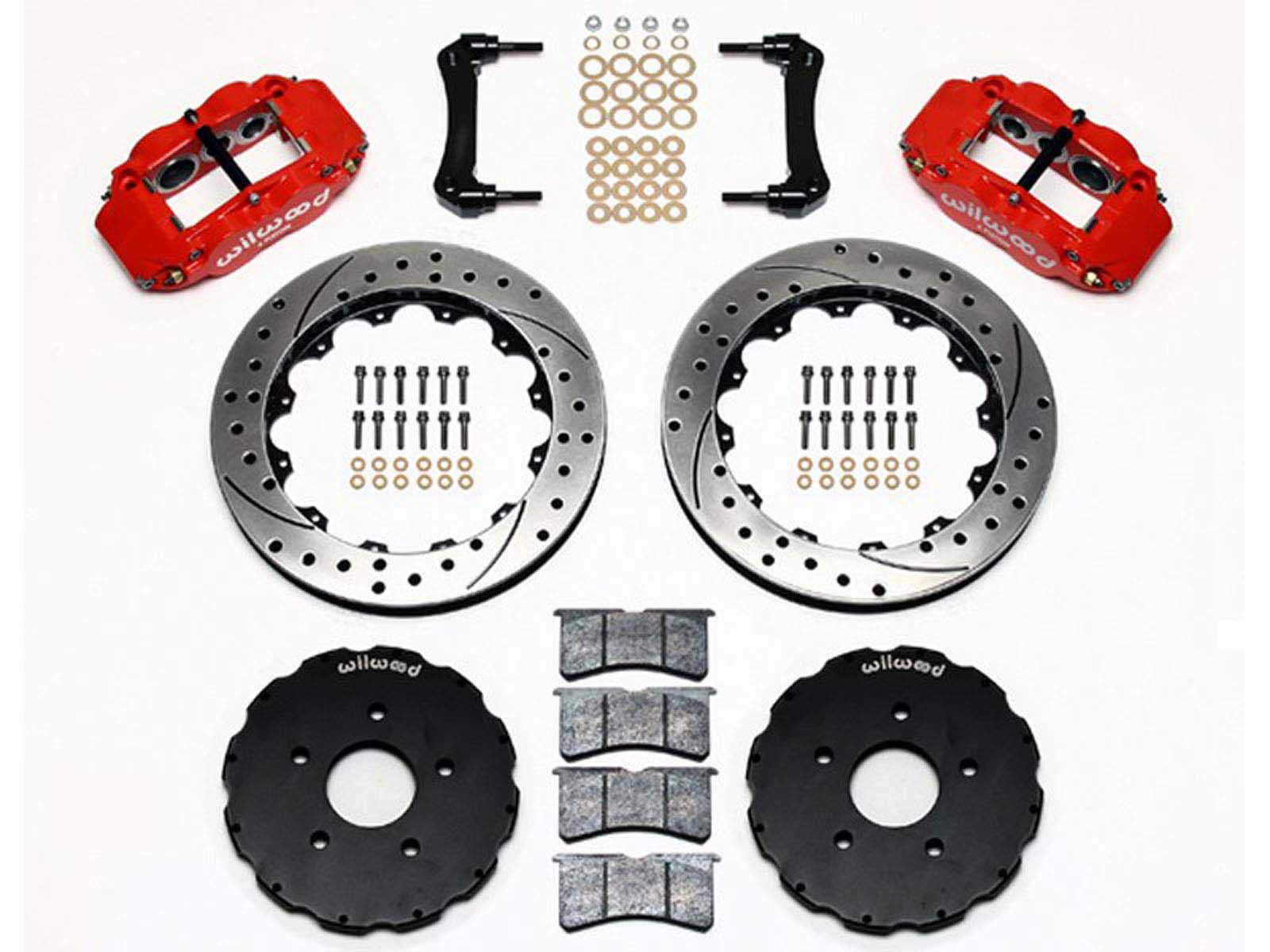

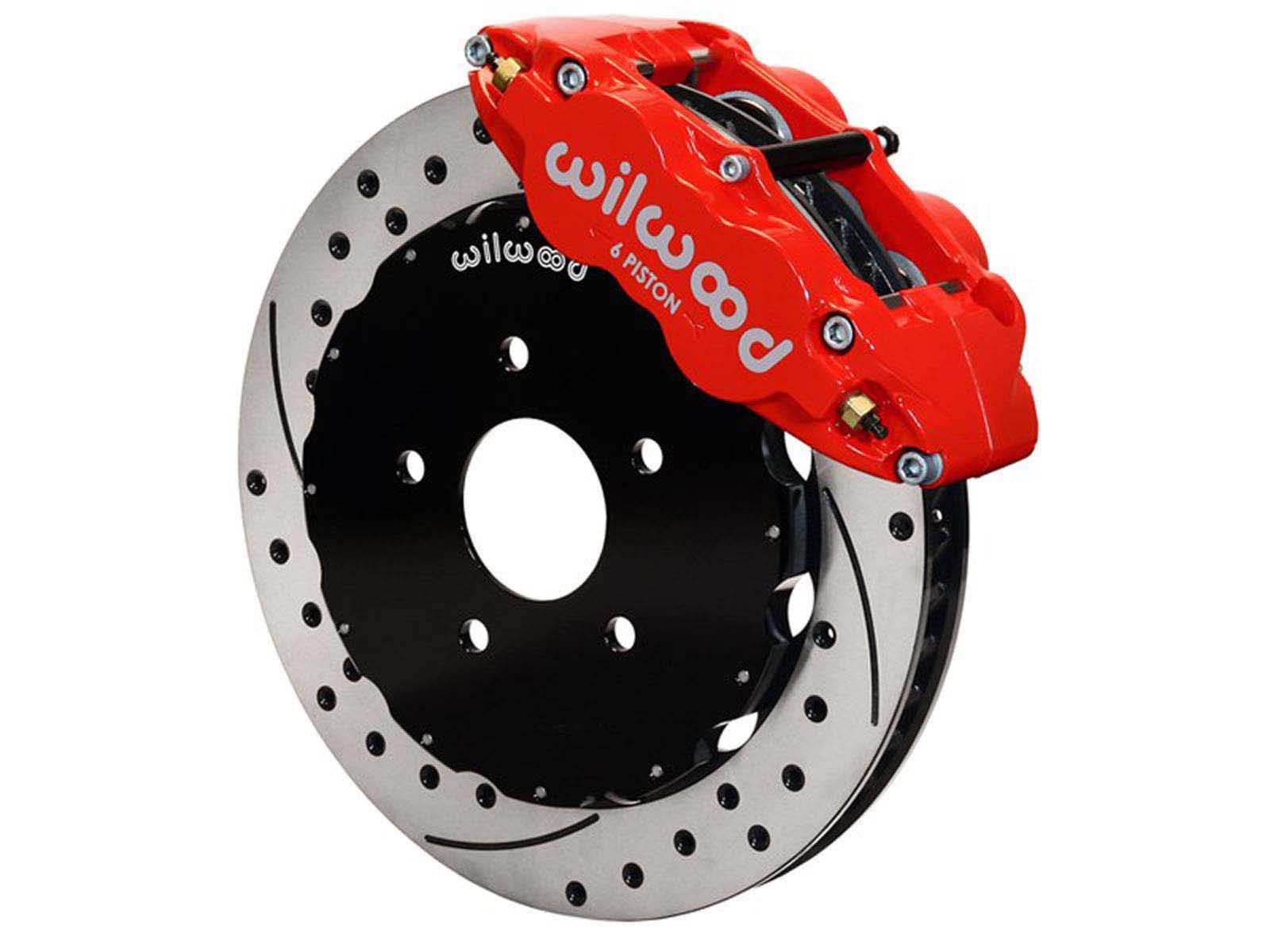

Wilwood 140-8922-DR Red Front Forged Narrow Superlite Big Brake Kit - 14" SRP Drilled Rotors, Fits 1997 1998 1999 2000 2001 2002 2003 2004 Corvette C5 and 2005 2006 2007 2008 2009 2010 2011 2012 2013 Corvette C6

The Wilwood Superlite 6 Big Brake Front Hat Kits are engineered for use in conjunction with OE front hubs on a variety of competition, show, custom, and sport driving applications. Billet Superlite 6 piston calipers, PolyMatrix brake pads, machined aluminum hats, and 14" GT directional vane rotors exemplify award winning style and provide the ultimate in Big Brake stopping power. Born from Wilwood's 25 year tradition of building championship brake systems, SL6 Big Brake kits are the perfect compliment to wheel, tire, and suspension equipment upgrades.

SL6 Calipers

SL6 calipers are pure performance featuring a fully CNC machined billet body with closed end bridges and a reinforced bridge to body transition. Center bridge body bolts provide additional strength and positive retention of the pads. These elements combine as an ultra-rigid body that resists separation and deflection under high load. Driver comfort and confidence soar with immediate response from a very firm pedal. The SL6 generates high clamping force and balanced pad loading from a race-proven differential bore six-piston configuration. Staggered piston sizes distribute pressure to compensate for the natural variances in temperature, load, and wear rate that occur over the length of the pad. Pad life is extended and performance is measurably improved. Stainless steel pistons are used in all custom show and sport performance applications for their low heat transfer properties and resistance to corrosion.  SL6 calipers bear Wilwood's signature and a high luster black anodized finish in a style that will catch the eye and win the favor of the most discriminating enthusiast.  Calipers Available in Black or Red.

GT Series Rotor Hats
GT aluminum hats are lightweight and strong to manage the exceptional brake torque generated by the SL6 Big Brake system. The hats are specially designed for use on OE hubs without modifications or interference to the suspension or ABS components. The hats carry Wilwood's signature and a high luster black anodized finish to prevent corrosion and enhance the overall appearance of the complete package inside the wheel.

SRP Series 14" Rotors
Large diameter vented iron rotors provide substantial increases in cooling and stopping power over small diameter OE rotors. All Wilwood rotors are manufactured from premium grade, long grain carbon iron to provide long wear with high thermal stability and resistance to distortion. The superior heat absorption and dissipation qualities of a directional vane iron rotor are essential to preventing heat fade and realizing the longest service life from the pads and rotors. For custom, show, and high performance sport driving, SRP rotor kits offer the high-tech look and improved performance of a directional cross-drill and face slot pattern. In addition to their aesthetic appeal, the venting and cleaning action of the holes and slots will reduce pad glaze, dissipate surface heat, and minimize irregular pad build-up on the rotor faces. The results are smoother engagement with improved consistency and response at the pedal. Every SRP rotor is treated with a silver zinc wash to reduce corrosion on the areas of the rotor not kept clean by pad contact.

PolyMatrix Brake Pads
PolyMatrix brake pads get fast response with high resistance to fade, long wear, and the low rotor abrasion that PolyMatrix is so well known for. Specific pad types and compounds have been selected for each application and are listed in the service parts guide for each kit.

Caliper Brackets and Hardware
Aluminum mount brackets are lightweight and strong. Each bracket is CNC machined for precise fit on each specific spindle. Grade 8 strength or higher nuts, bolts, studs, washers, and alignment shims are included with each kit.

Plumbing

Fittings and flexlines to install these brake systems are NOT INCLUDED and must be ordered separately.  This kit requires part #WIL-220-9100.

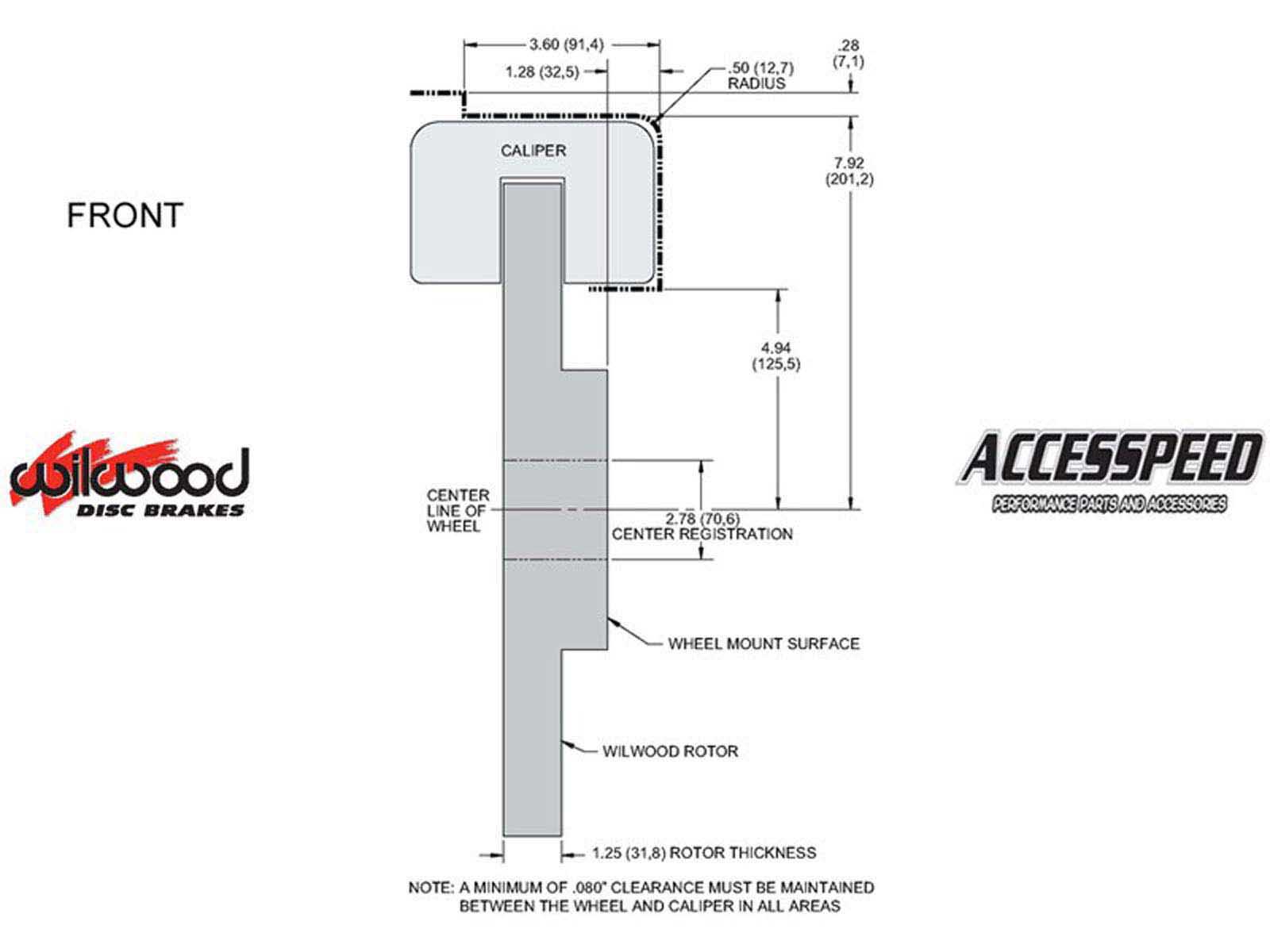

Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance.  All returned orders are subject to a 25% re-stocking fee, so please make sure your wheels will work before ordering!  Please list your caliper color preference (Black or Red) in the NOTES Field when ordering.





Below is a great video showing How To Install Corvette C5 and C6 Brakes:


Notes

Red Calipers. See separate listing for the black caliper system. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering. Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.

Prop 65 Warning WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Part # Description Price
WIL-140-8922-DR Wilwood 140-8922-DR Red Front Forged Narrow Superlite Brake Kit- 14" SRP Rotors 1997-2013 Corvette $2,118.49 Add to Cart

Scroll to view product options.

Fits These Applications:

Year Make Model SubModel Engine Transmission Drive
2013 Chevrolet Corvette C6 - Convertible 6.2 RWD
2013 Chevrolet Corvette C6 - Coupe 6.2 RWD
2013 Chevrolet Corvette C6 Z06 - Hard Top Coupe 7.0 RWD
2013 Chevrolet Corvette C6 ZR1 - Hard Top Coupe 6.2 SC RWD
2012 Chevrolet Corvette C6 - Convertible 6.2 RWD
2012 Chevrolet Corvette C6 - Coupe 6.2 RWD
2012 Chevrolet Corvette C6 Z06 - Hard Top Coupe 7.0 RWD
2012 Chevrolet Corvette C6 ZR1 - Hard Top Coupe 6.2 SC RWD
2011 Chevrolet Corvette C6 - Convertible 6.2 RWD
2011 Chevrolet Corvette C6 - Coupe 6.2 RWD
2011 Chevrolet Corvette C6 Z06 - Hard Top Coupe 7.0 RWD
2011 Chevrolet Corvette C6 ZR1 - Hard Top Coupe 6.2 SC RWD
2010 Chevrolet Corvette C6 - Convertible 6.2 RWD
2010 Chevrolet Corvette C6 - Coupe 6.2 RWD
2010 Chevrolet Corvette C6 Z06 - Hard Top Coupe 7.0 RWD
2010 Chevrolet Corvette C6 ZR1 - Hard Top Coupe 6.2 SC RWD
2009 Chevrolet Corvette C6 - Convertible 6.2 RWD
2009 Chevrolet Corvette C6 - Coupe 6.2 RWD
2009 Chevrolet Corvette C6 Z06 - Hard Top Coupe 7.0 RWD
2009 Chevrolet Corvette C6 ZR1 - Hard Top Coupe 6.2 SC RWD
2008 Chevrolet Corvette C6 - Convertible 6.2 RWD
2008 Chevrolet Corvette C6 - Coupe 6.2 RWD
2008 Chevrolet Corvette C6 Z06 - Hard Top Coupe 7.0 RWD
2007 Chevrolet Corvette C6 - Convertible 6.0 RWD
2007 Chevrolet Corvette C6 - Coupe 6.0 RWD
2007 Chevrolet Corvette C6 Z06 - Hard Top Coupe 7.0 RWD
2006 Chevrolet Corvette C6 - Convertible 6.0 RWD
2006 Chevrolet Corvette C6 - Coupe 6.0 RWD
2006 Chevrolet Corvette C6 Z06 - Hard Top Coupe 7.0 RWD
2005 Chevrolet Corvette C6 - Convertible 6.0 RWD
2005 Chevrolet Corvette C6 - Coupe 6.0 RWD
2004 Chevrolet Corvette C5 - Convertible 5.7 RWD
2004 Chevrolet Corvette C5 - Coupe 5.7 RWD
2004 Chevrolet Corvette C5 Z06 - Hard Top Coupe 5.7 RWD
2003 Chevrolet Corvette C5 - Convertible 5.7 RWD
2003 Chevrolet Corvette C5 - Coupe 5.7 RWD
2003 Chevrolet Corvette C5 Z06 - Hard Top Coupe 5.7 RWD
2002 Chevrolet Corvette C5 - Convertible 5.7 RWD
2002 Chevrolet Corvette C5 - Coupe 5.7 RWD
2002 Chevrolet Corvette C5 Z06 - Hard Top Coupe 5.7 RWD
2001 Chevrolet Corvette C5 - Convertible 5.7 RWD
2001 Chevrolet Corvette C5 - Coupe 5.7 RWD
2001 Chevrolet Corvette C5 Z06 - Hard Top Coupe 5.7 RWD
2000 Chevrolet Corvette C5 - Convertible 5.7 RWD
2000 Chevrolet Corvette C5 - Coupe 5.7 RWD
2000 Chevrolet Corvette C5 - Hard Top Coupe 5.7 RWD
1999 Chevrolet Corvette C5 - Convertible 5.7 RWD
1999 Chevrolet Corvette C5 - Coupe 5.7 RWD
1999 Chevrolet Corvette C5 - Hard Top Coupe 5.7 RWD
1998 Chevrolet Corvette C5 - Convertible 5.7 RWD
1998 Chevrolet Corvette C5 - Coupe 5.7 RWD
1997 Chevrolet Corvette C5 - Coupe 5.7 RWD
