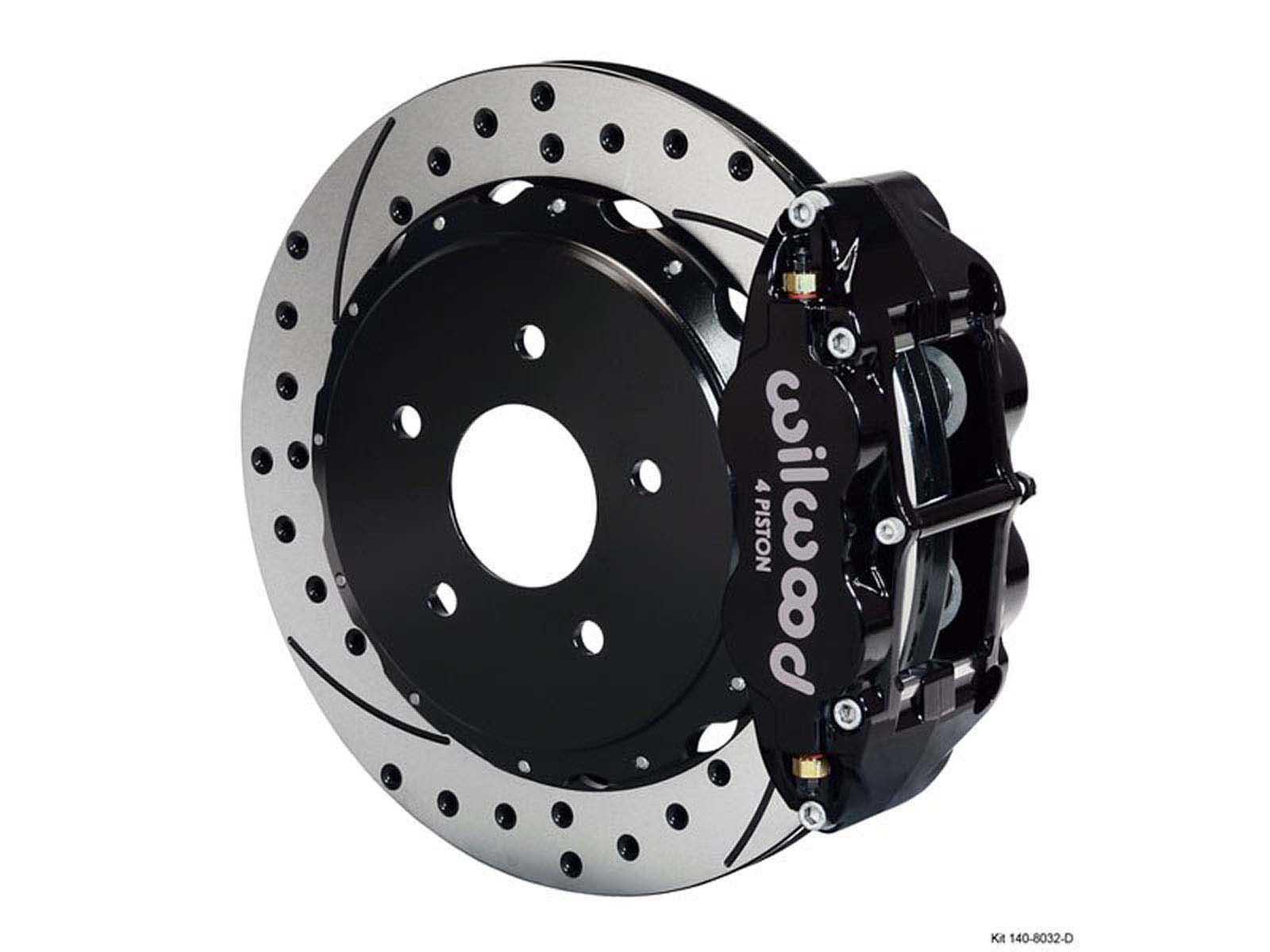

Wilwood 140-8032-D Rear Superlite 4 Big Brake Kit - 13" SRP Rotors 1997-2004 Corvette C5/Z06

Wilwood 140-8032-D Rear Superlite 4 Big Brake Kit - 13" SRP Rotors 1997 1998 1999 2000 2001 2002 2003 2004 Corvette C5/Z06

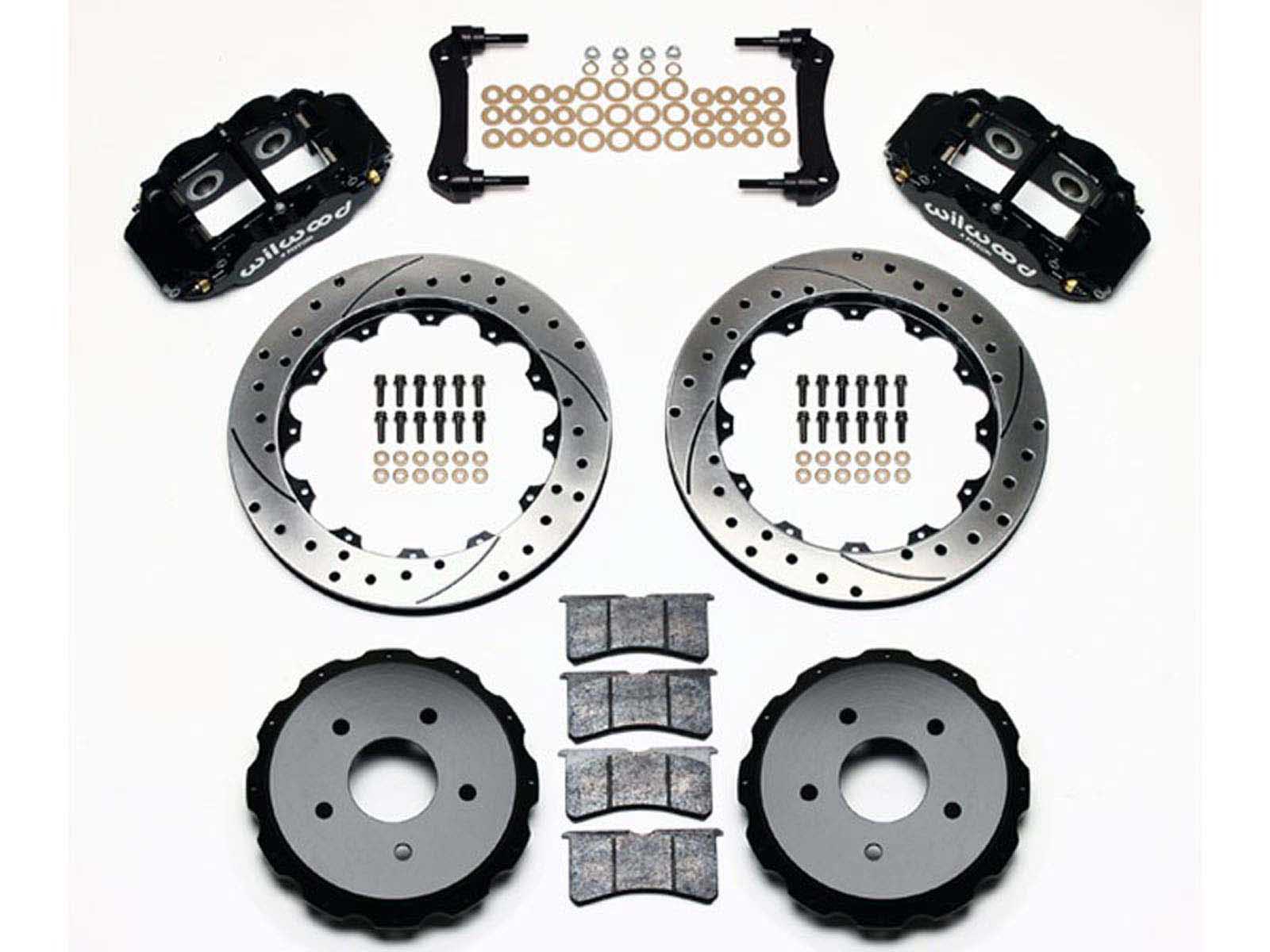

Wilwood "Big Brake" kits use real race technology and components derived from high-end motorsports applications to generate superior stopping power with the durability necessary to survive in extreme environments. Big Brake kits combine high-tech looks with contemporary style that will appeal to the most discriminating Corvette enthusiast. Each kit is a complete bolt-on installation that is fully compatible with the OE master cylinder and ABS while retaining original track width.

Billet SL4R Calipers:
SL4R machined billet four piston radial mount calipers are volume matched to provide the correct front to rear bias when used with the SL6 front kit. Stainless steel pistons are used to combat heat. Stainless steel SRS bridge wear plates eliminate pad gouging and extend caliper service life. The spring-loaded action of the SRS plates also eliminates pad rattle and dampens harmonic vibrations that contribute to pad squeal. These calipers are available in black or red to match the front calipers.

SRP and GT Rotors:
13" and 14" diameter SRP drilled and slotted or GT competition series two piece rotors provide additional balance and stopping power with that "Big Brake" look inside the wheel.

Iron Hats
The specially machined iron hats bolt to the rotors and contain the drums for operation with the OE parking brake assembly. These hats are plated in a black zinc finish that resists corrosion and completes the high tech look of the rear brake assembly.

PolyMatrix Brake Pads
PolyMatrix "Q" or "E" compound pads provide response and temperature range matched to the front kits.

CNC Machined Caliper Brackets
Aluminum radial mount caliper brackets with premium grade hardware complete the total car package.

Utilizes the OE internal parking brake assembly, new hat and rotor assembly supplied with kit.

Below is a great video showing How To Install Corvette C5 and C6 Brakes:

Notes

Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering! Please list your caliper color preference (Black or Red) in the NOTES Field when ordering. Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.
