Wilwood 140-13868-R Rear TX6R Red 15.5" Slotted Big Brake Kit 2005-2012 Ford F250/F350 4WD SRW

Wilwood 140-13868-R Rear TX6R Red Caliper 15.5" Slotted Big Brake Kit 2005 2006 2007 2008 2009 2010 2011 2012 Ford F250/F350 Super Duty 4WD SRW

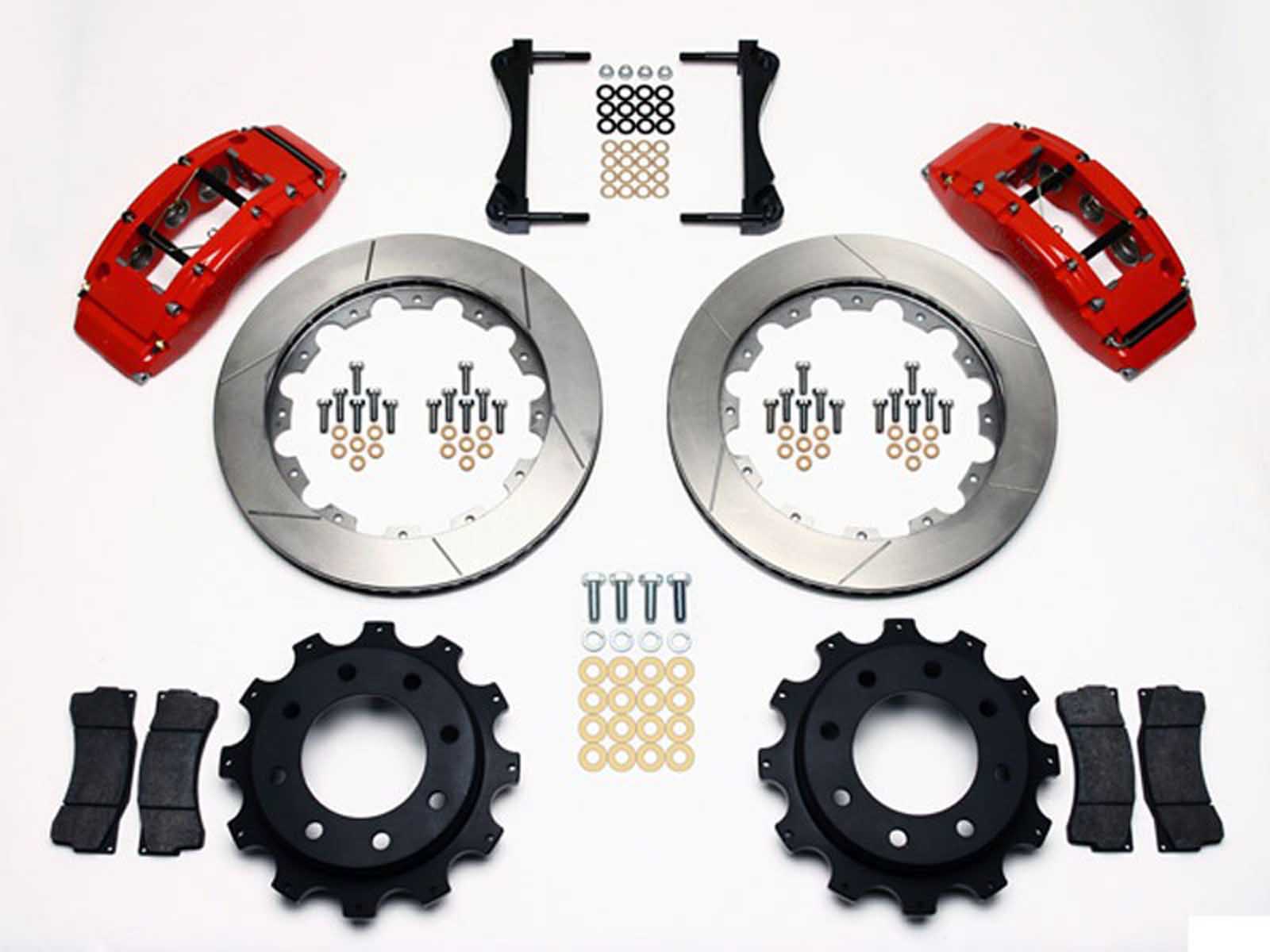

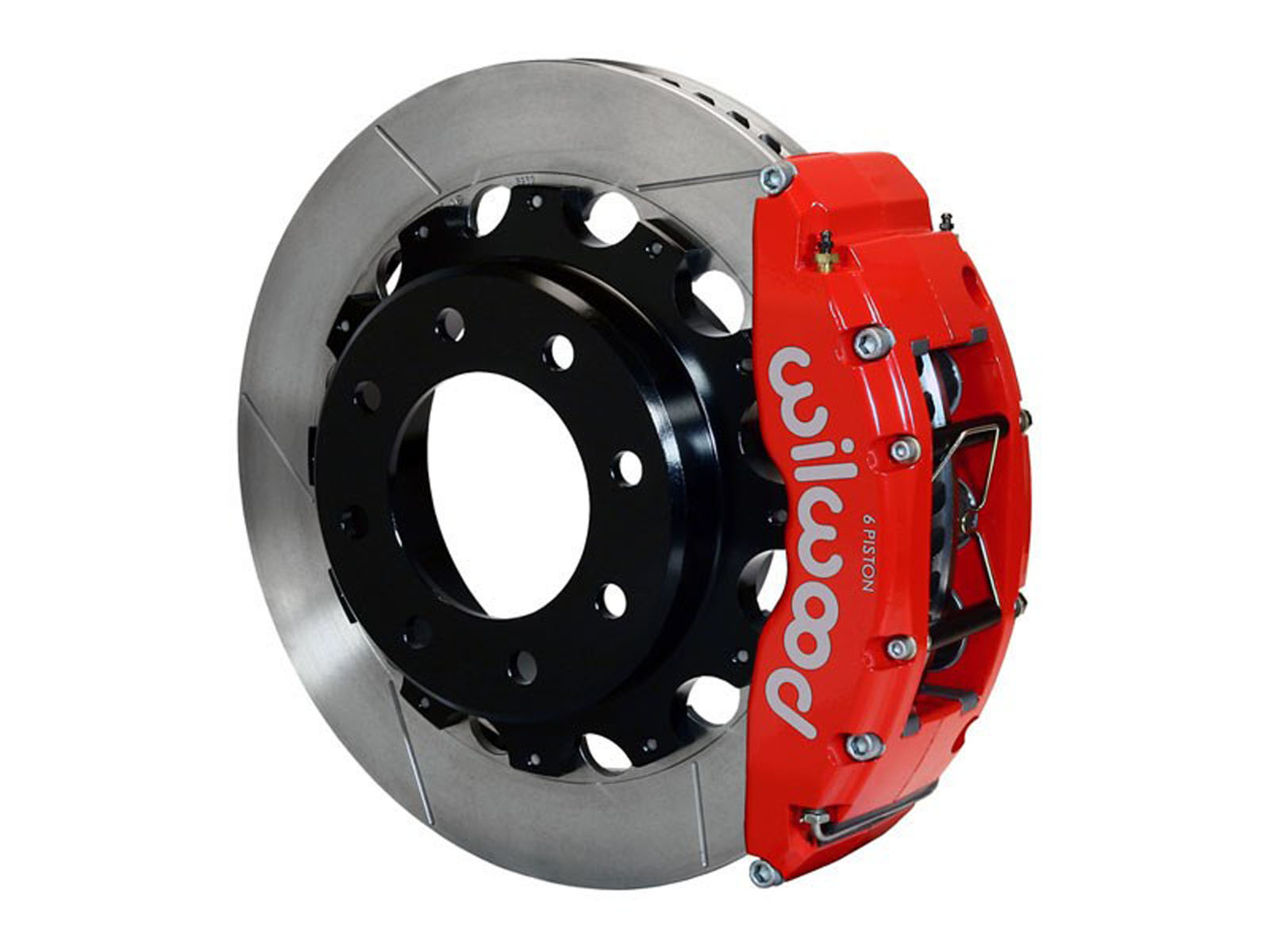

Wilwood’s Tactical Extreme TX6R Big Brake kits are ultimate in braking performance for Truck, SUV and Armored Vehicles. Using TX6R radial mount six-piston calipers and massive 15.50” GT-60 directional vane Spec-37 alloy rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit. The calipers are volume matched for compatibility with original equipment power brake system output. Kits include radial mount caliper brackets, and all the necessary hardware to complete the installation. Braided stainless steel flex lines will need to be purchased for some applications.

Fittings and flexlines to install these brake systems are NOT INCLUDED and must be ordered separately.  This kit requires part #WIL-220-14165 or WIL-14166, depending on your year and model.

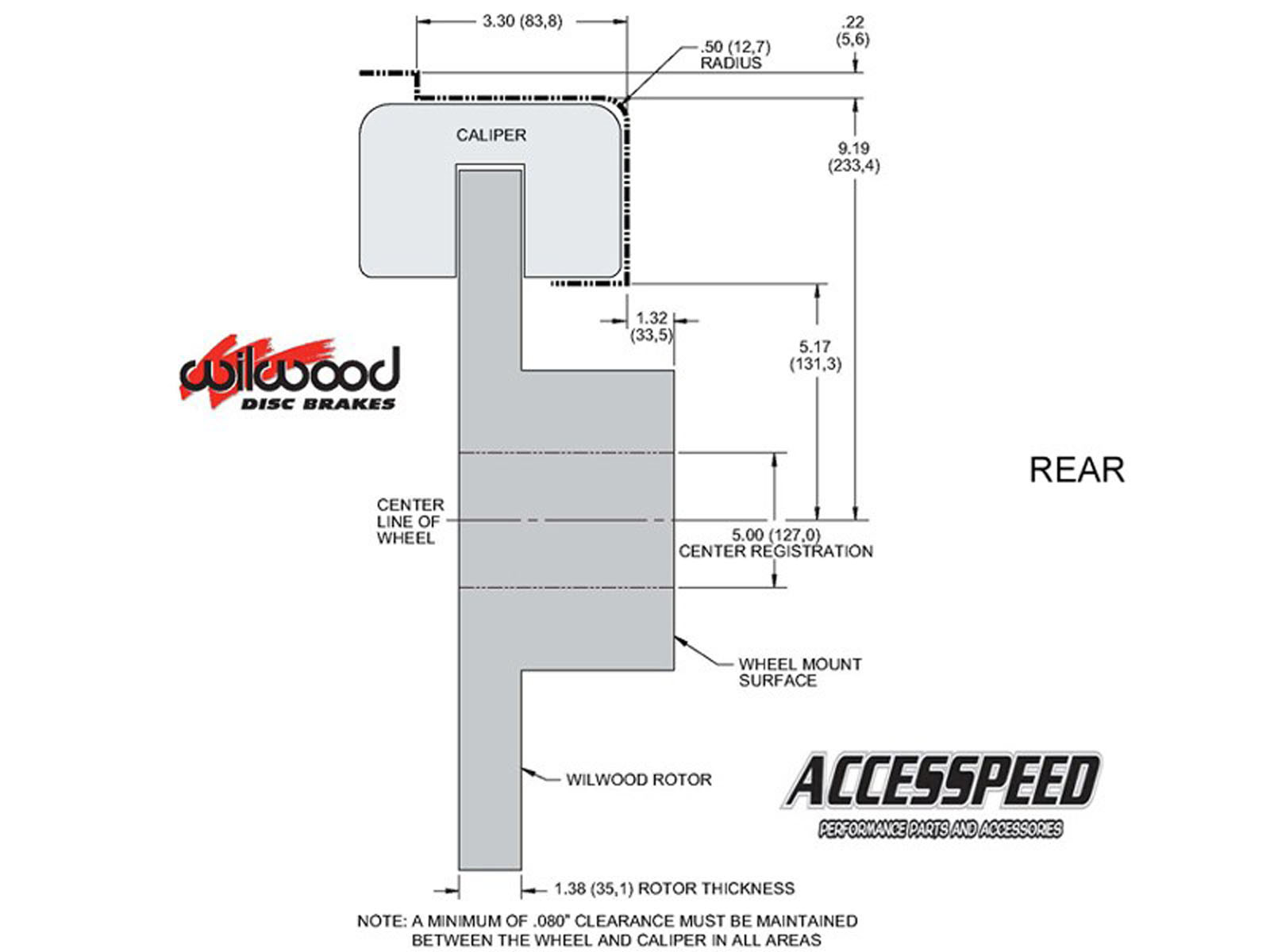

*This Brake Kit may require 20-inch or larger wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.

Notes

Red Calipers. See separate listing for the black and clear anodized caliper system. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering!

Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.

WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Scroll to view product options.

Fits These Applications:
