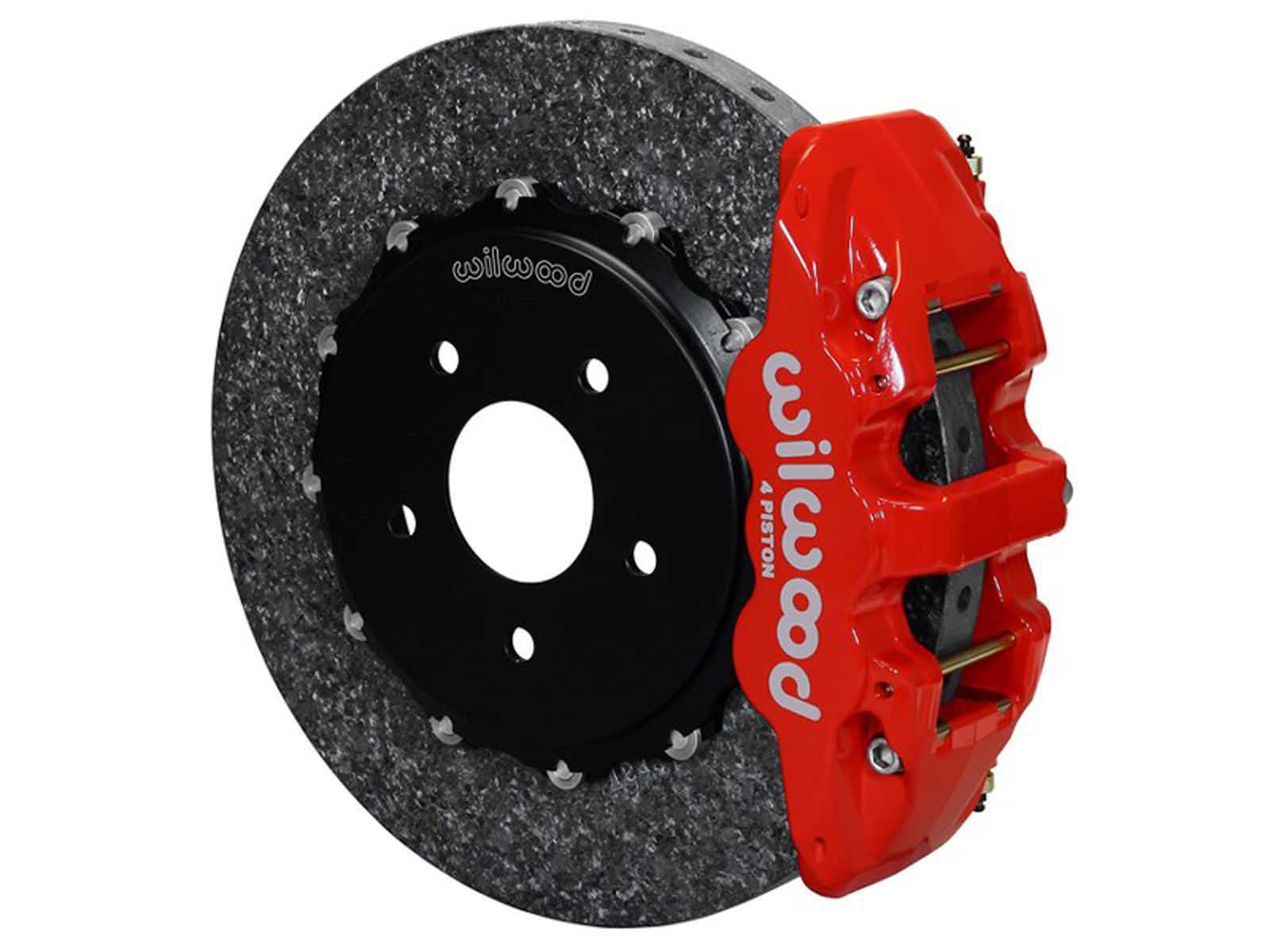

Wilwood 140-13161-CSICR AERO4 Rear Carbon-Ceramic Red 14" Big Brake Kit 1997-2013 Corvette C5/C6

Wilwood 140-13161-CSICR AERO4 Rear WCCB Carbon-Ceramic Red 14" Big Brake Kit 1997 1998 1999 2000 2001 2002 2003 2004 Corvette C5, 2005 2006 2007 2008 2009 2010 2011 2012 2013 Corvette C6

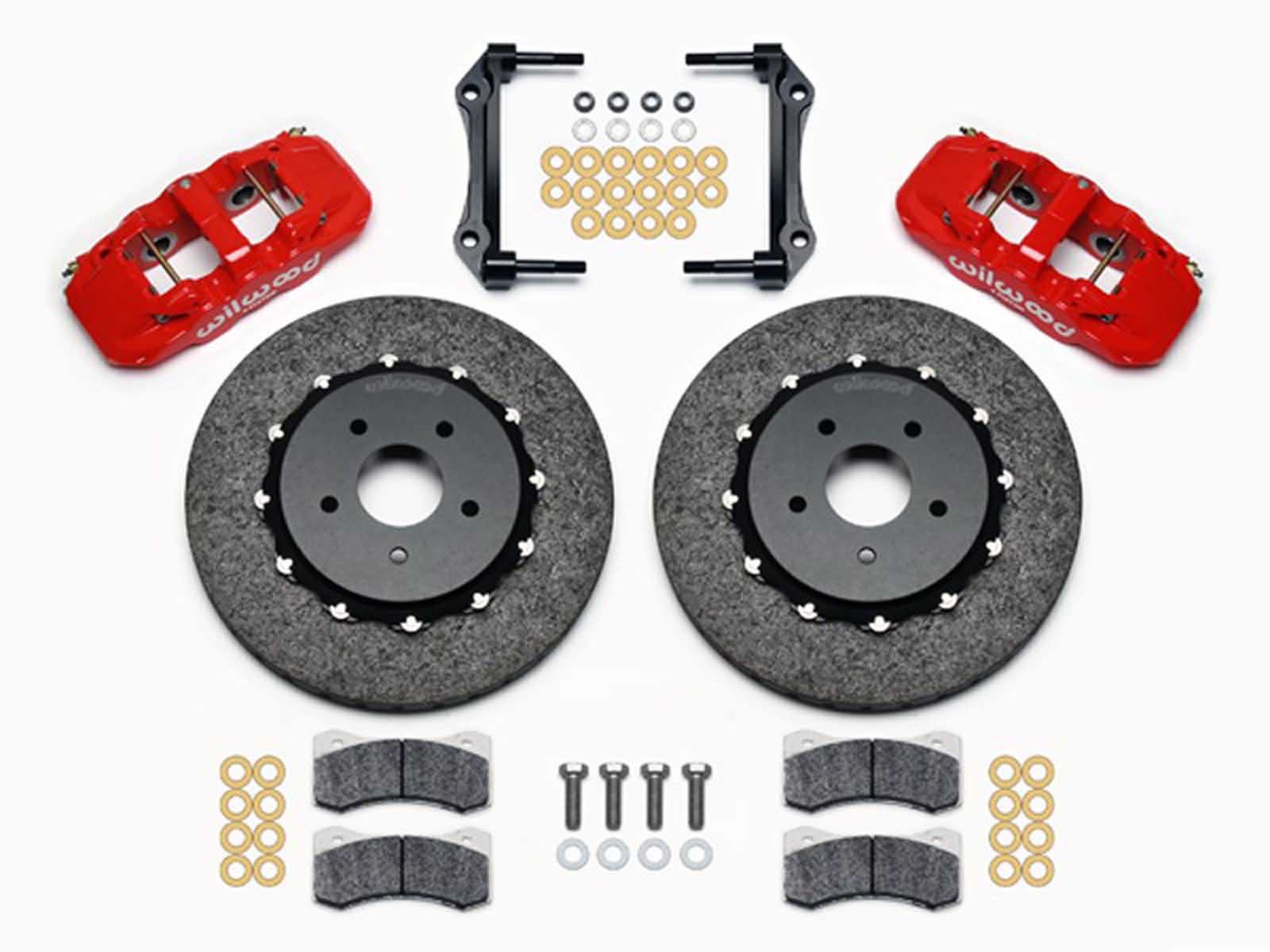

AERO4 WCCB Carbon-Ceramic Rotor Rear OE Parking Brake Kits offer an extreme performance upgrade featuring WCCB Carbon-Ceramic Dynamic Mount Rotors with Wilwood’s exclusive Bobbin Mounting System. AERO4 WCCB kits are engineered to maximize braking capacity inside custom wheels. Rear parking brake kits offer a simple bolt-on installation with OE original internal shoe parking brakes for outstanding holding power and are fully compatible with ABS and OE master cylinder output. AERO4 calipers are a competition proven and offer fully detail machined forged caliper body demonstrates superior strength and resistance to deflection and separation under high load. A high temperature, fluid resistant “Quick-Silver“ Nickel plate is the standard for performance, other colors (Black and Red powder coat) are available as options. 14.00” WCCB rotors are made from a proprietary blend ceramic matrix composite material commonly known as Carbon-Ceramic and dynamically using Wilwood’s proprietary integrated anti-rattle Bobbin Mounting System. WCCB rotors offer higher thermal conductivity and heat capacity in excess of conventional iron or titanium rotors of similar or even greater weight and have been developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking and wear.

Brake Kit does not include flex lines. Flex lines are necessary to complete the installation of the kit and must be ordered separately #WIL-220-8177 for C5 and WIL-220-9101 for C6.

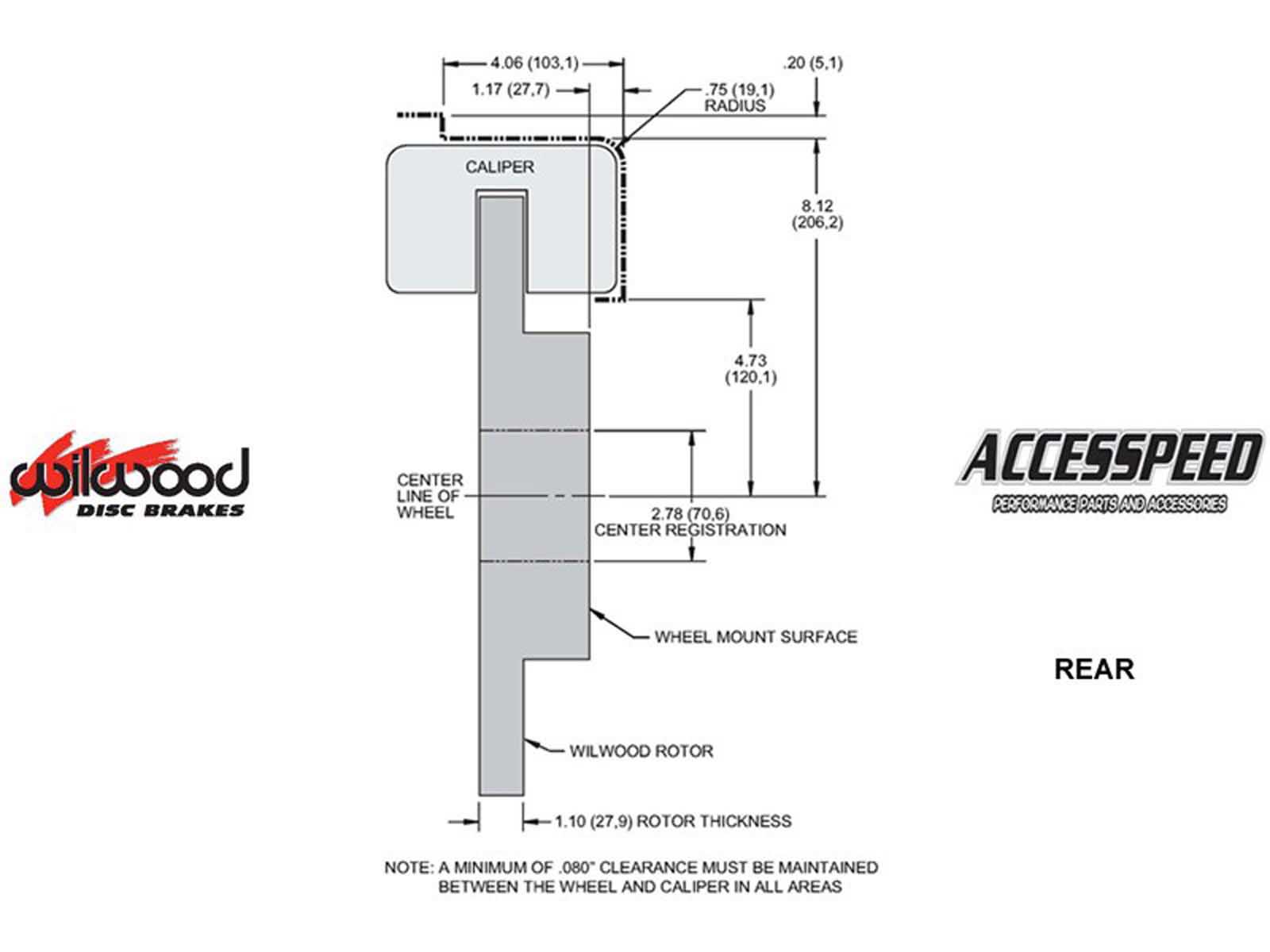

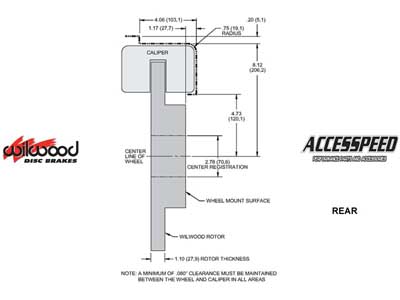

*This Brake Kit may fit 18-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram.

Below is a great video showing How To Install Corvette C5 and C6 Brakes:

Notes

Red Calipers. See separate listing for black caliper systems. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering. Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.
