Wilwood 140-12996 Dynapro Front 10.32" Rotor/Caliper Upgrade, Black, Fits Acura/Honda W/262mm OE

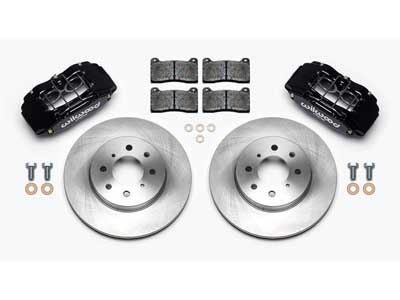

Wilwood 140-12996 Forged Dynapro 10.32" DPHA Front Caliper & Rotor Upgrade Black Calipers, Fits 1990-2005 Acura & 1990-2013 Honda With 262mm OE Rotors

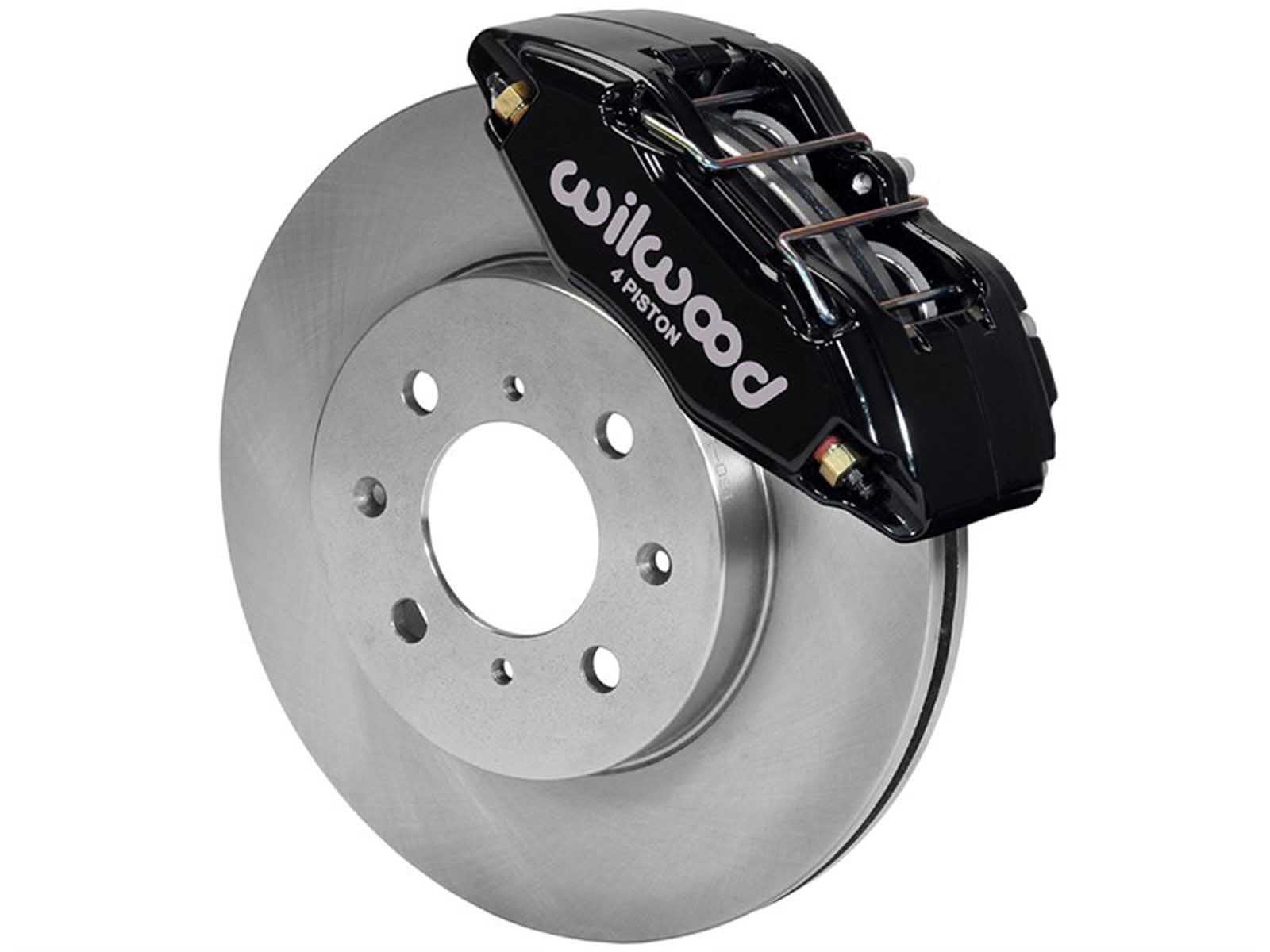

Wilwood’s new DynaPro Honda/Acura Caliper (DPHA) for Honda and Acura models originally equipped with 262mm diameter rotors. These calipers bolt directly to the stock mounts on factory spindles, fit over the OE 262mm diameter rotor, accept the OE brake hose, and clear many factory aluminum wheels including the EM1 Si 15” wheel. Designed around Wilwood’s proven DynaPro series four piston calipers, the forged billet bodied DPHA caliper delivers high-strength clamping force and positive stopping power. Four stainless steel pistons provide fully balanced pad loading, along with the corrosion resistance and thermal retardant qualities of the stainless alloy that will keep your calipers cooler and running trouble free for many more miles. Calipers work perfectly with the OE master cylinder and ABS functions, and are available with either black or red high-gloss, high-temp, brake fluid resistant sealed powder coat and feature Wilwood’s signature logo.

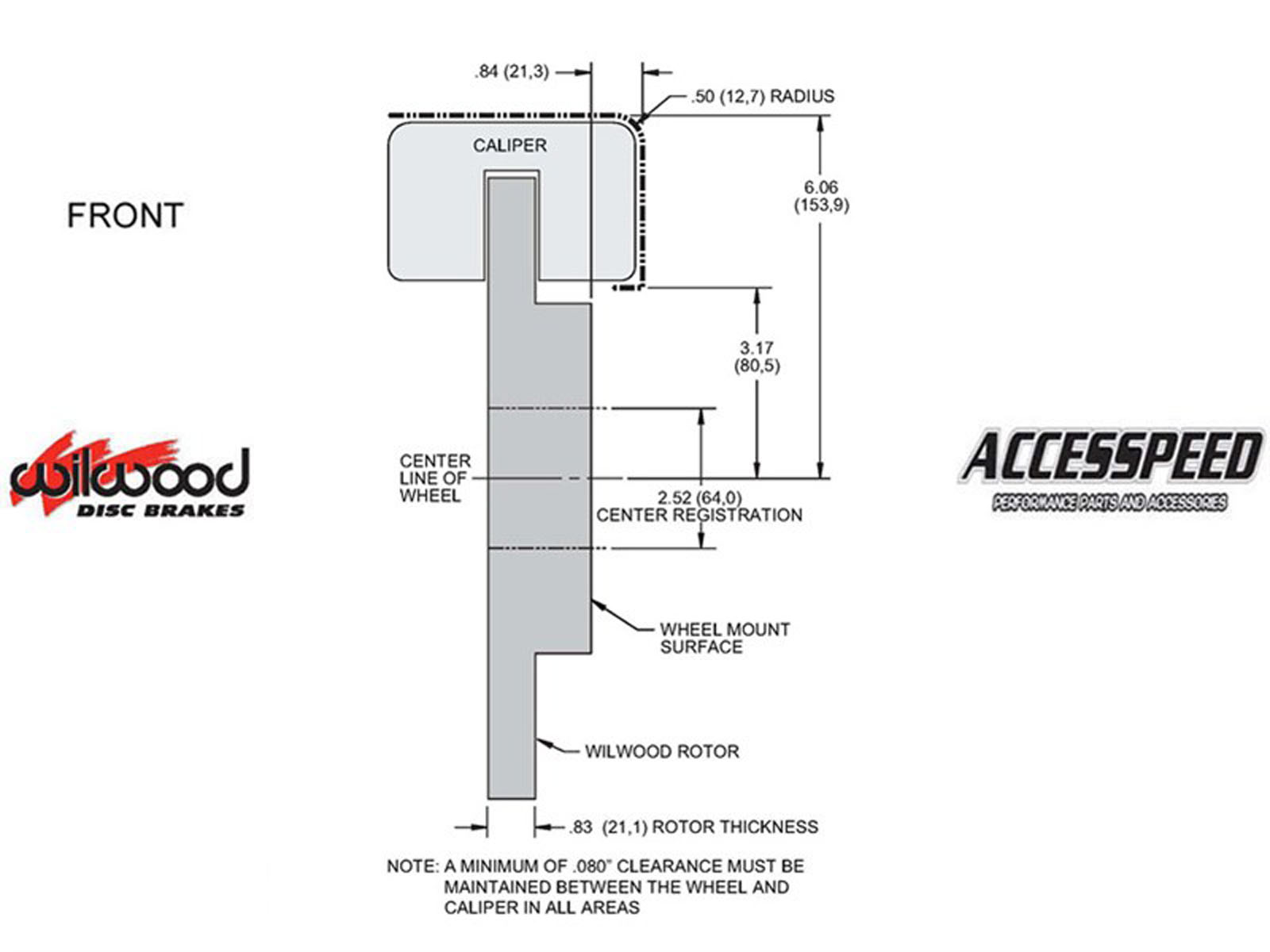

*This Brake Kit may require 15-inch or larger wheels and/or wheel spacers. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.

**This kit requires spindles from vehicles originally equipped with 262mm (10.32") diameter rotors.

This kit fits the following vehicles:

Acura EL 2001-2005 Acura Integra 1990-1996 Acura Integra 1997-2001 Honda Civic 1990-2000 Honda Civic 1992-1995 Honda Civic 1993-1995 Honda Civic 1994-1995 Honda Civic 1996 Honda Civic 1996-2000 Honda Civic 1999-2000 Honda Civic 2001-2003 Honda Civic 2002-2003 Honda Civic 2004 Honda Civic 2004-2005 Honda Civic 2005 Honda Civic del Sol 1994 Honda Civic del Sol 1995-1997 Honda Fit 2007-2013 Honda Fit 2008-2013 Honda Fit 2012 Honda Fit 2012-2013

Notes

This system includes Black Calipers. Please see additional listings for Red Calipers. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering. Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.
