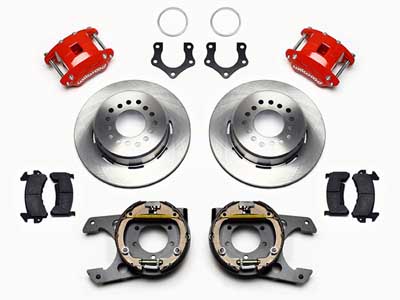

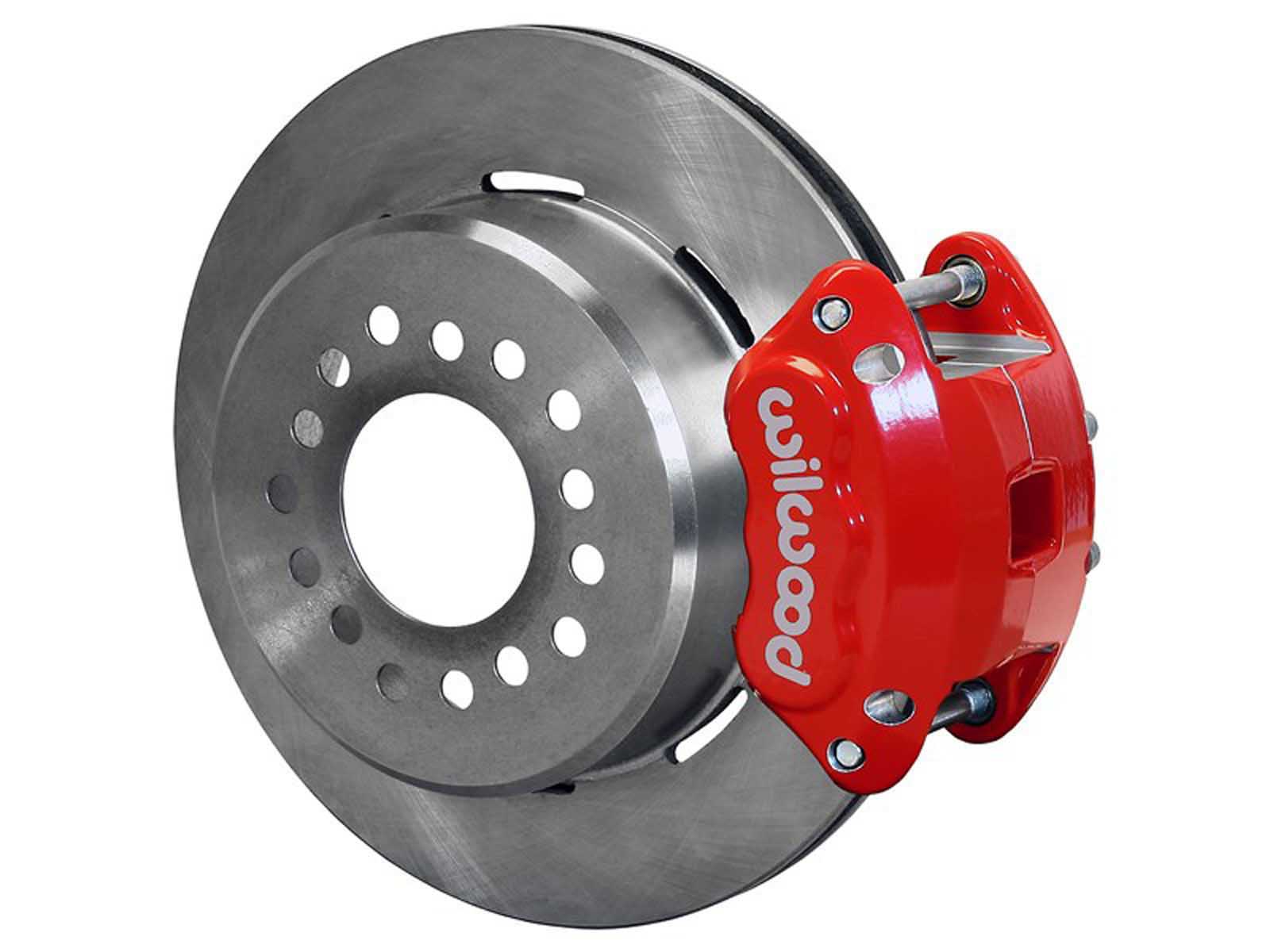

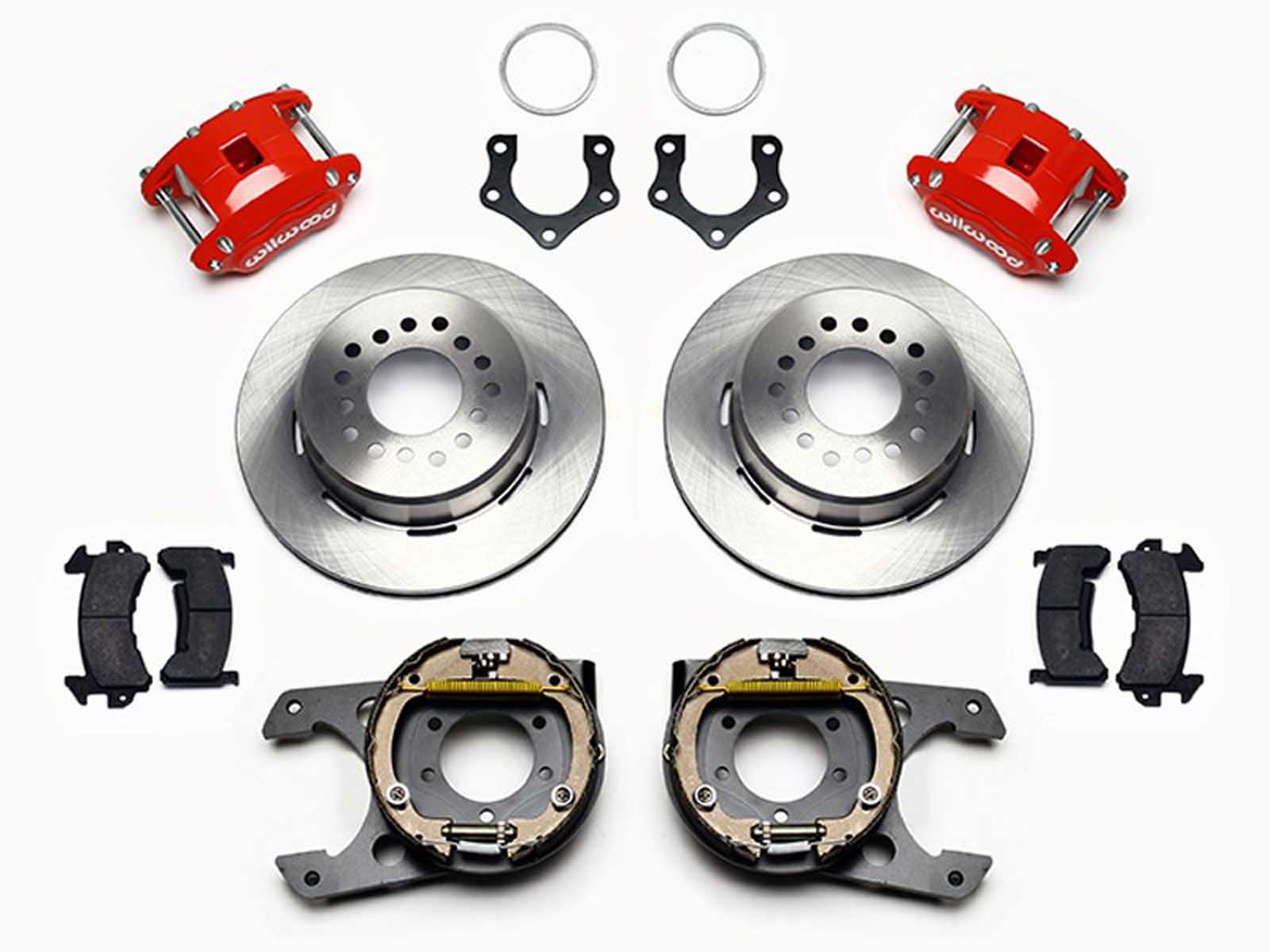

Wilwood 140-12208-R Rear Forged D154 12" Big Brake Kit, Red, Dodge Chrysler Plymouth 2.50" Offset

Wilwood 140-12208 D154 Forged Pro-Series Rear 12" Big Brake Kit With Red Calipers, Fits Various 1963-1989 Dodge, 1965-1989 Chrysler & 1965-1983 Plymouth Models With 8.75" & 9.75" Mopar/Dana 60 Rear Ends and 2.50" Axle Offset

D154 Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged D154 dual piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. D154 rear caliper kits offer a complimentary match to vehicles using Wilwood D52 or D154 calipers on OE spindles. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance. Requires use of snap ring style Green Bearing. (MO400)

Brake Kit does not include flex lines. You will need to order Kit # WIL-220-12630

This kit also requires an extended rear parking brake cable for proper parking brake function. Use Kit # WIL-330-9371

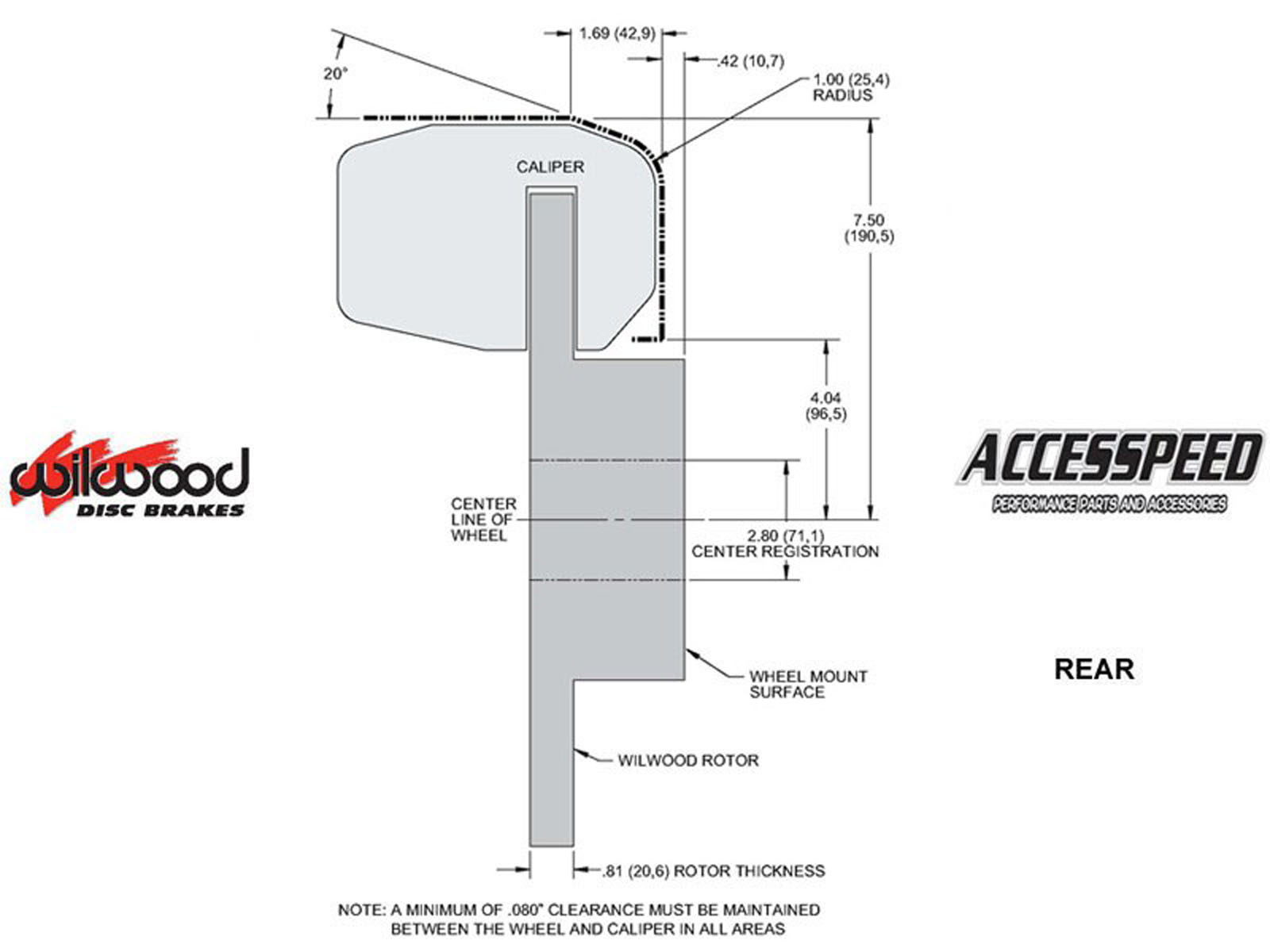

*This Brake Kit may require 16-inch or larger wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.

Notes

This system includes Red Calipers. Please see additional listings for Black and Polished Calipers. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering! Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.

WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Scroll to view product options.

Fits These Applications:
