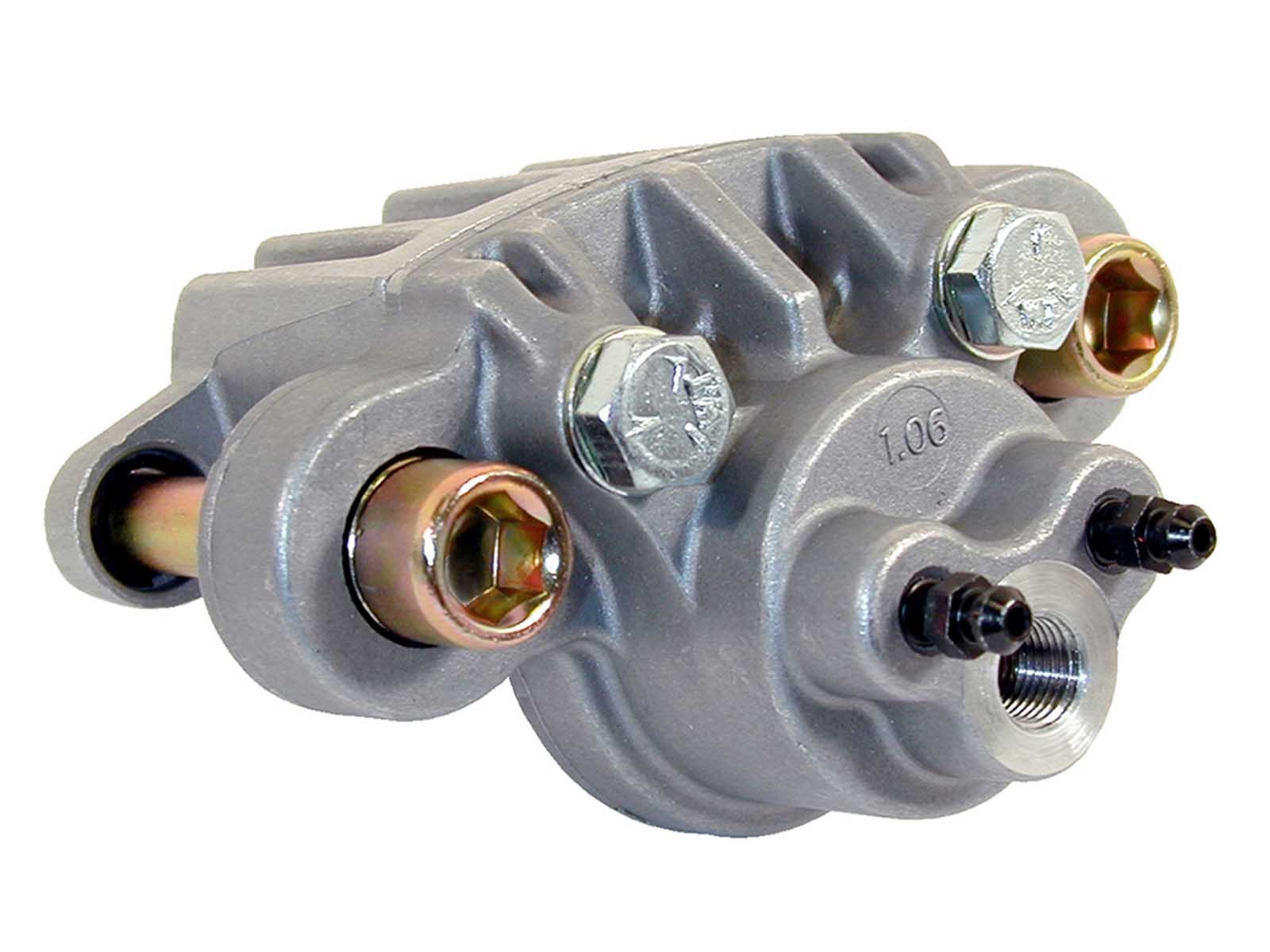

Wilwood 120-8787 SC3 Brake Caliper, 1.06" Bore, For .250" Rotor
Designed, engineered and manufactured in the U.S.A., the Wilwood SC floating die cast aluminum caliper from Accesspeed is a strong, compact, inexpensive answer to the braking needs of recreational, agricultural and industrial vehicles. Features of this single piston design include availability of either 1.06”, 1.19” or 1.25” bore size, fitted dust seal to prevent ingress of environmental contamination, dual bleed fittings for versatility in mounting position and fluid inlets in M10 x 1.0 banjo.
The mounting system features corrosion resistant slide pins floating in viscoelastic rings mounted in the ears of the body for smooth, rattle-free operation. This system controls pad knock-back to retain a consistent pedal or hand lever feel throughout the life of the pads. Weight: from 1.1 pounds. Rotor thickness range: .15” to .25”
Notes
Images supplied by manufacturer and may be a generic product representtation instead of the exact part number.
WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov
Scroll to view product options.
| Part # |
Description |
Price |
|
| WIL-120-8787 |
Wilwood 120-8787 SC3 Brake Caliper, 1.06" Bore, For .250" Rotor |
$74.10 |
Add to Cart |
Scroll to view product options.
Fits These Applications:
| Year |
Make |
Model |
SubModel |
Engine |
Transmission |
Drive |
