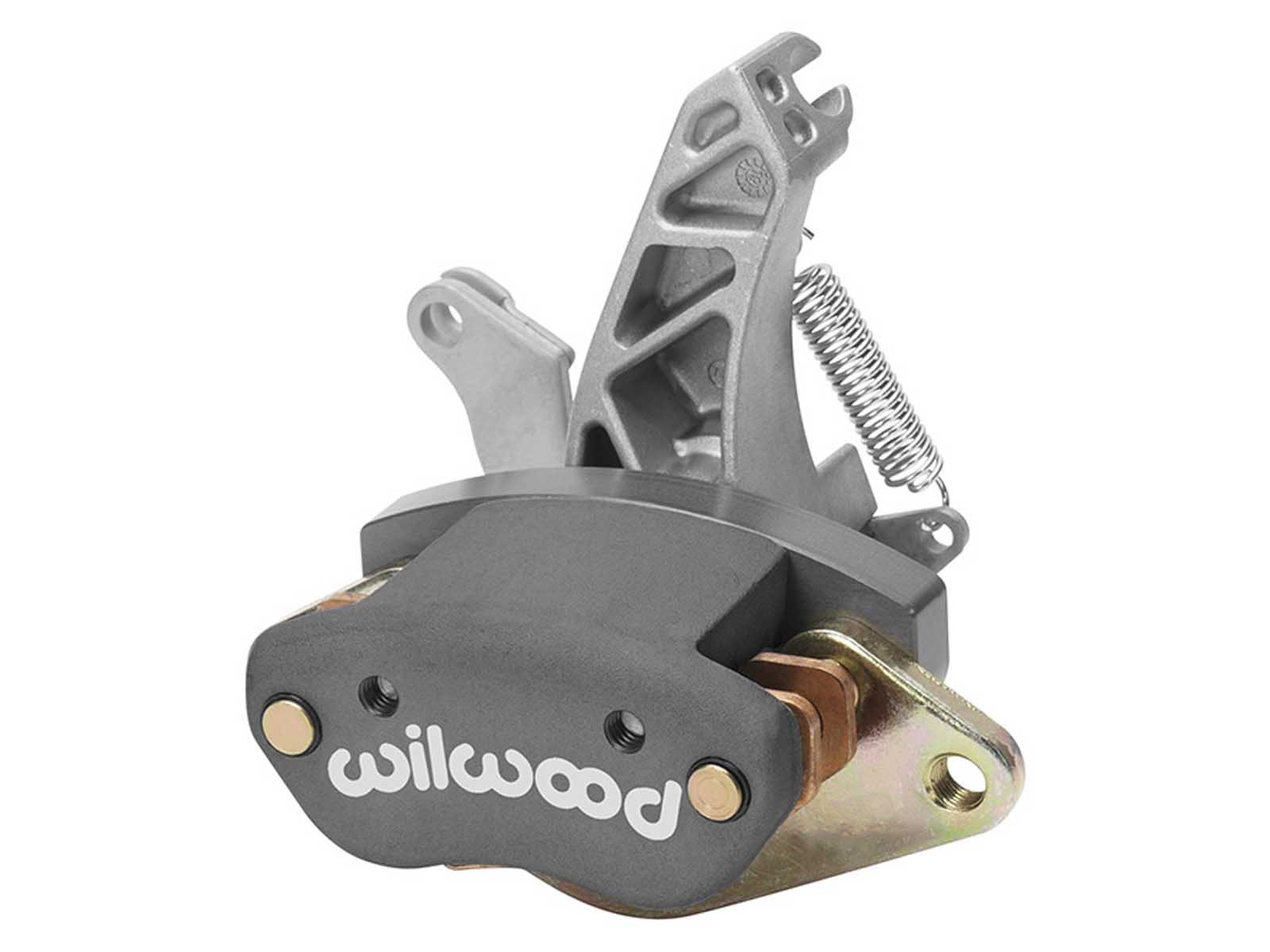

Wilwood 120-16362 MC5 Mechanical P-Brake Caliper, 1.25, .250 Rotor

Wilwood 120-16362 MC5 Mechanical P-Brake Caliper, 1.25, .250 Rotor

The Wilwood MC5 Mechanical Parking Brake Caliper from Accesspeed is a multi-use, cable operated brake caliper that combines high output performance with simplicity in design and construction and is the perfect solution for vehicle applications requiring a separate, mechanically actuated parking brake caliper. Built to accept rotors that are .250” thick, with 11.00” - 12.88” diameter range, the MC5 combines an efficient die cast body with a forged billet anvil for superior strength under load, yet is lightweight at only 3.30 (2.95 without pads) pounds. Supplied with each caliper are our Composite Metallic (CM) high friction, high static-hold brake pads, and are pre-fitted with noise cancelling shields.

Engineered with noise-dampening features for quiet, rattle-free operation, the MC5 sliding caliper includes a steel bracket for convenient mounting. Although caliper is built in a top cable bracket configuration, the caliper’s lever cartridge can be clocked in three positions for optimum positioning and ease of cable routing. The 1.25” aluminum piston is fully dust booted to keep moisture and debris out. Each caliper is fitted with a cable return spring, and the mechanical lever accepts a .310” diameter barrel-ended parking brake cable*. The convenient manual adjuster requires no special tools, allowing incremental adjustment to compensate for pad and rotor wear. MC5 calipers are available on a type III anodize finish.

Notes

Images supplied by manufacturer and may be a generic product representtation instead of the exact part number.
