Wilwood Forged SL4R 13" Rear Brake Kit, Black, Slotted, PB Cable, Lines, Fluid 2005-2014 Mustang

ACCESSPEED-WIL-MUS05R-A Wilwood Forged Narrow Superlite 4R 13" Rear Big Brake Kit, Black Calipers, Slotted Rotors, Parking Brake Cable, Stainless Brake Lines & Brake Fluid 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 Mustang

This is an all-inclusive Rear Big Brake Kit, WITH Stainless Steel Brake Lines, Parking Brake Cable and 2 Bottles of Wilwood 570 Fluid!

REAR KIT DETAILS:

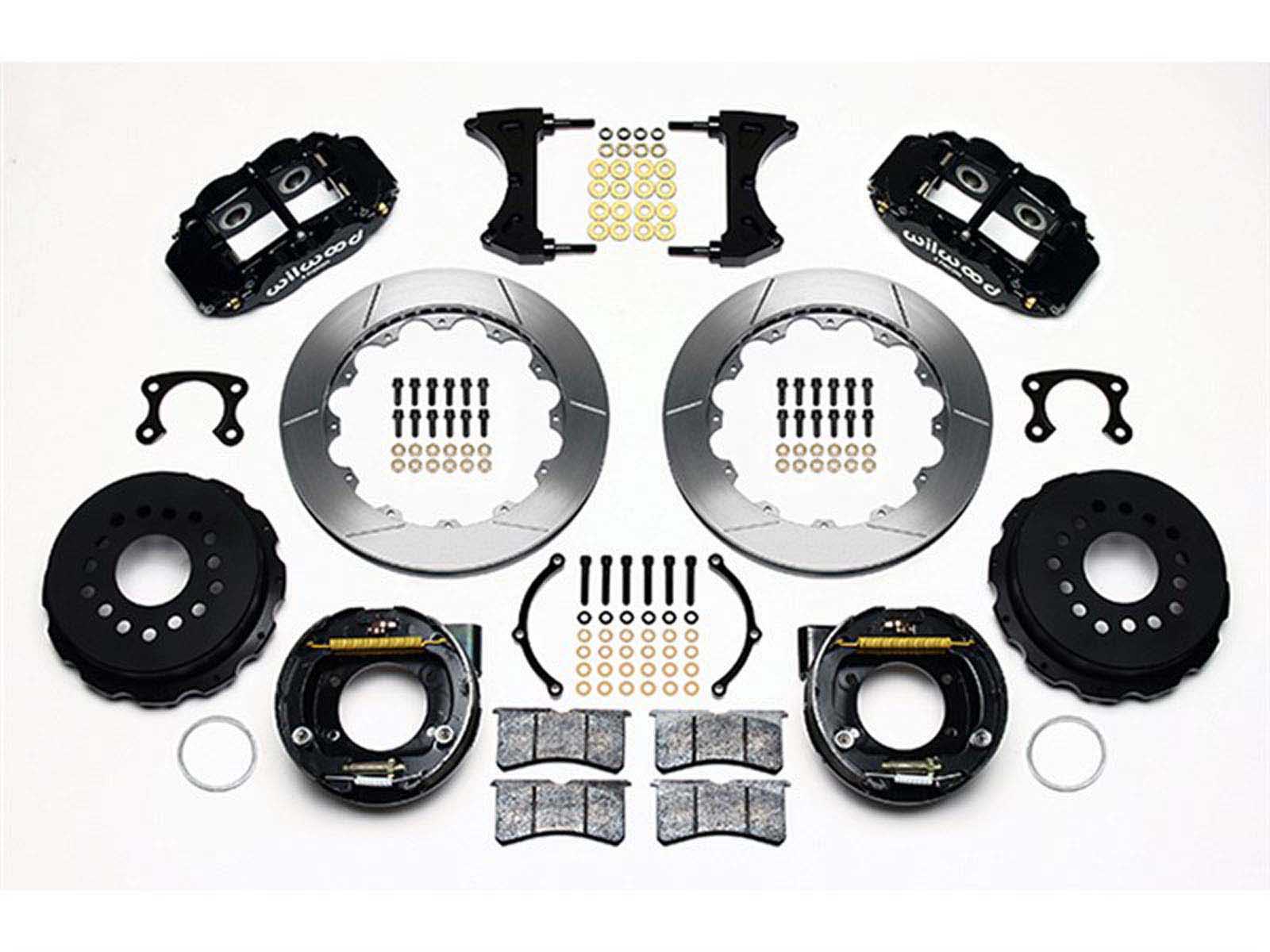

Forged Narrow Superlite 4R rear disc kits provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake. FNSL4R four piston calipers, 13” or 14” two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades on all types of custom, show and high performance street machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs allow builders to personalize the style and performance for every application.

BRAKE LINE DETAILS:

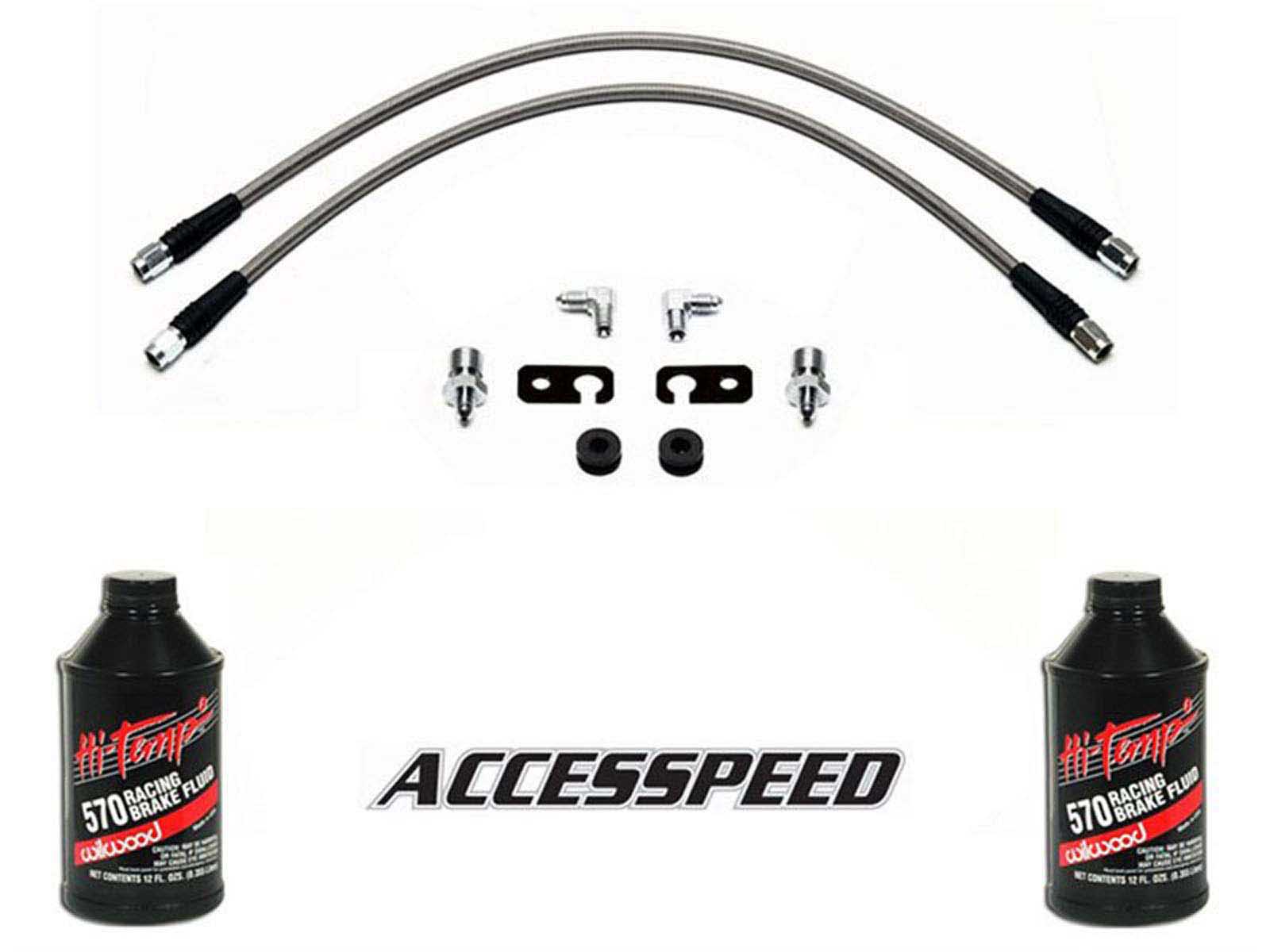

Wilwood’s stainless steel braided Flexlines are manufactured to the highest quality standards, and are designed to fit each application.  These premium grade Flexlines are durable and provide “hard line” pedal feel, while allowing braided line heat dissipation.

PARKING BRAKE CABLE DETAILS:

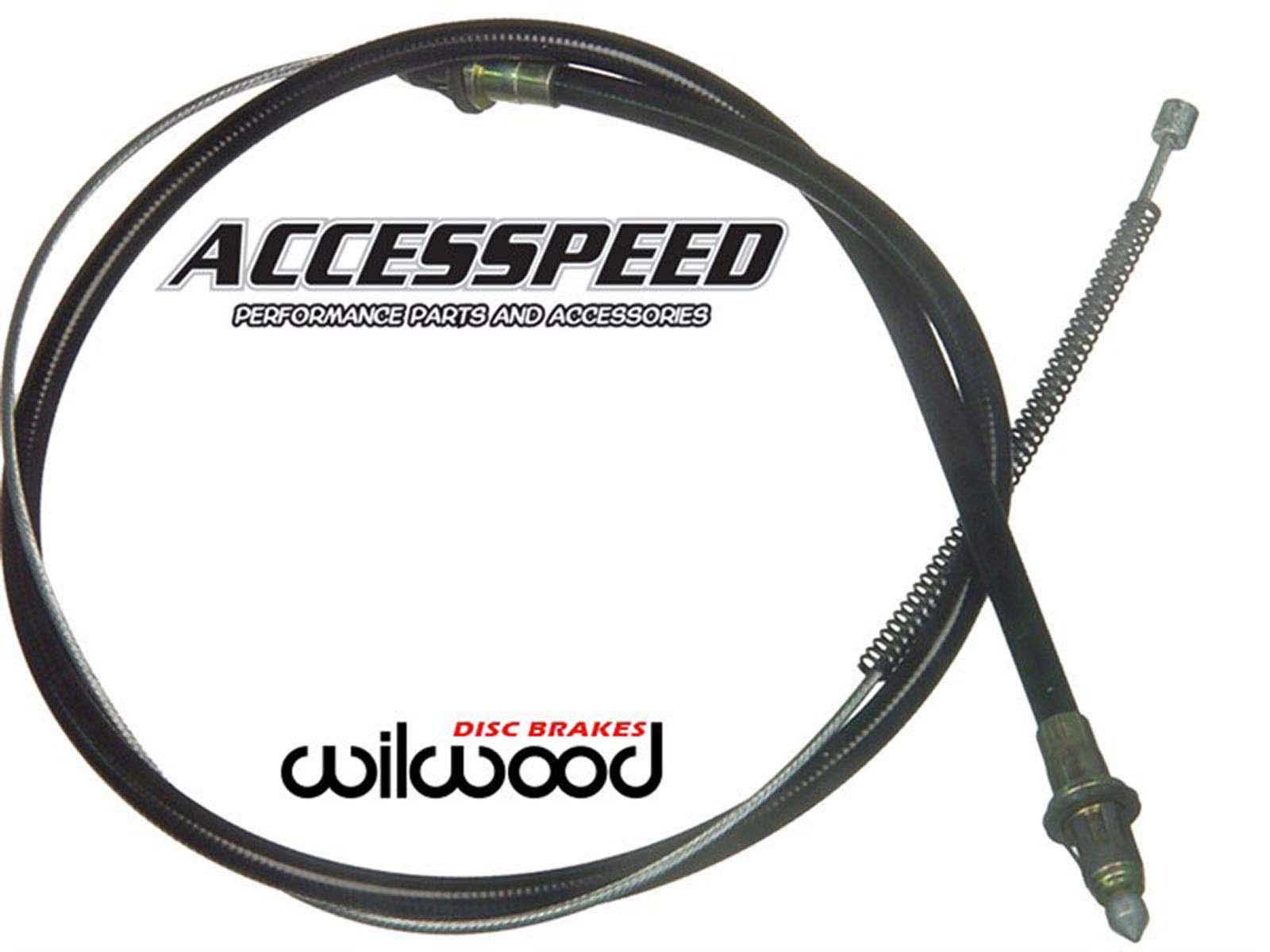

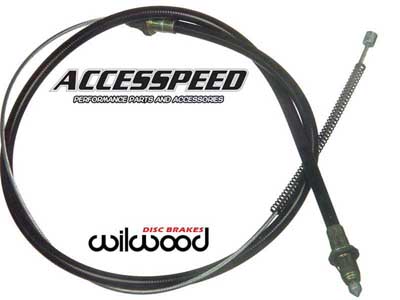

This Parking Brake Cable Kit is for Wilwood Rear Big Brake Kits.  Wilwood’s Caliper Cable Kit contains all parts necessary for effective installation on most vehicles. Kit contents include cable and sheath assemblies, clevises and hardware.

BRAKE FLUID DETAILS:

Wilwood’s specially formulated Hi-Temp° 570 Racing Brake Fluid has a minimum 570° F dry boiling point to withstand the severe heat requirements of automotive racing. Hi-Temp° 570’s low viscosity allows easy bleeding of your brake system, eliminating aeration of the brake fluid caused by foaming due to excessive pumping of the pedal. Hi-Temp° 570 comes in convenient 12 ounce containers hermetically sealed to guarantee against unwanted absorption of moisture which can drastically lower the fluids boiling point (fluid from larger containers tends to become contaminated with moisture, lowering its boiling point and making it unsuitable for racing applications).

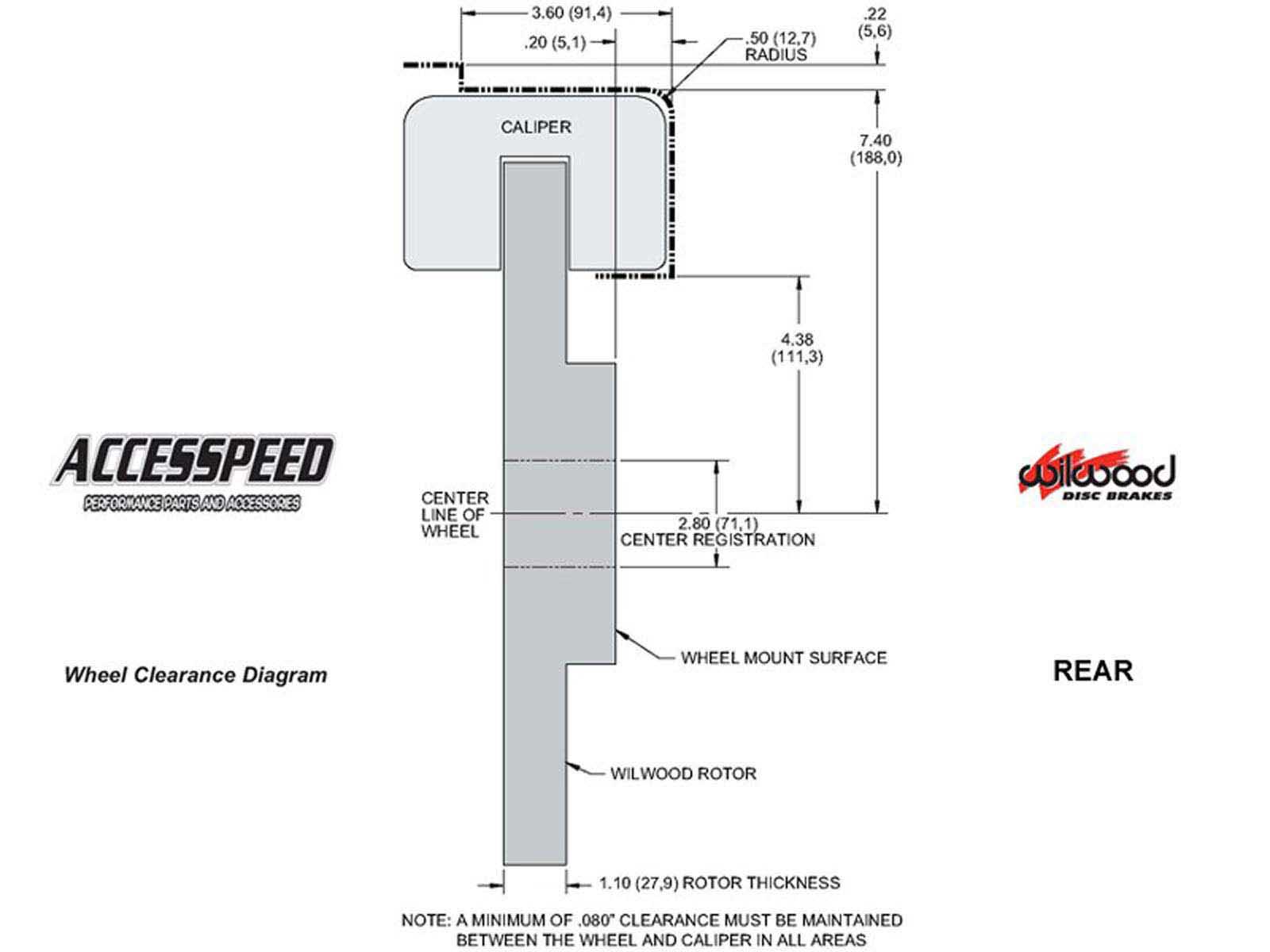

*This Brake Kit may require 18-inch or larger wheels and or wheel spacers. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.

Notes

Black Calipers.  Please see other listings for Red Calipers. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering!

Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.

WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov
