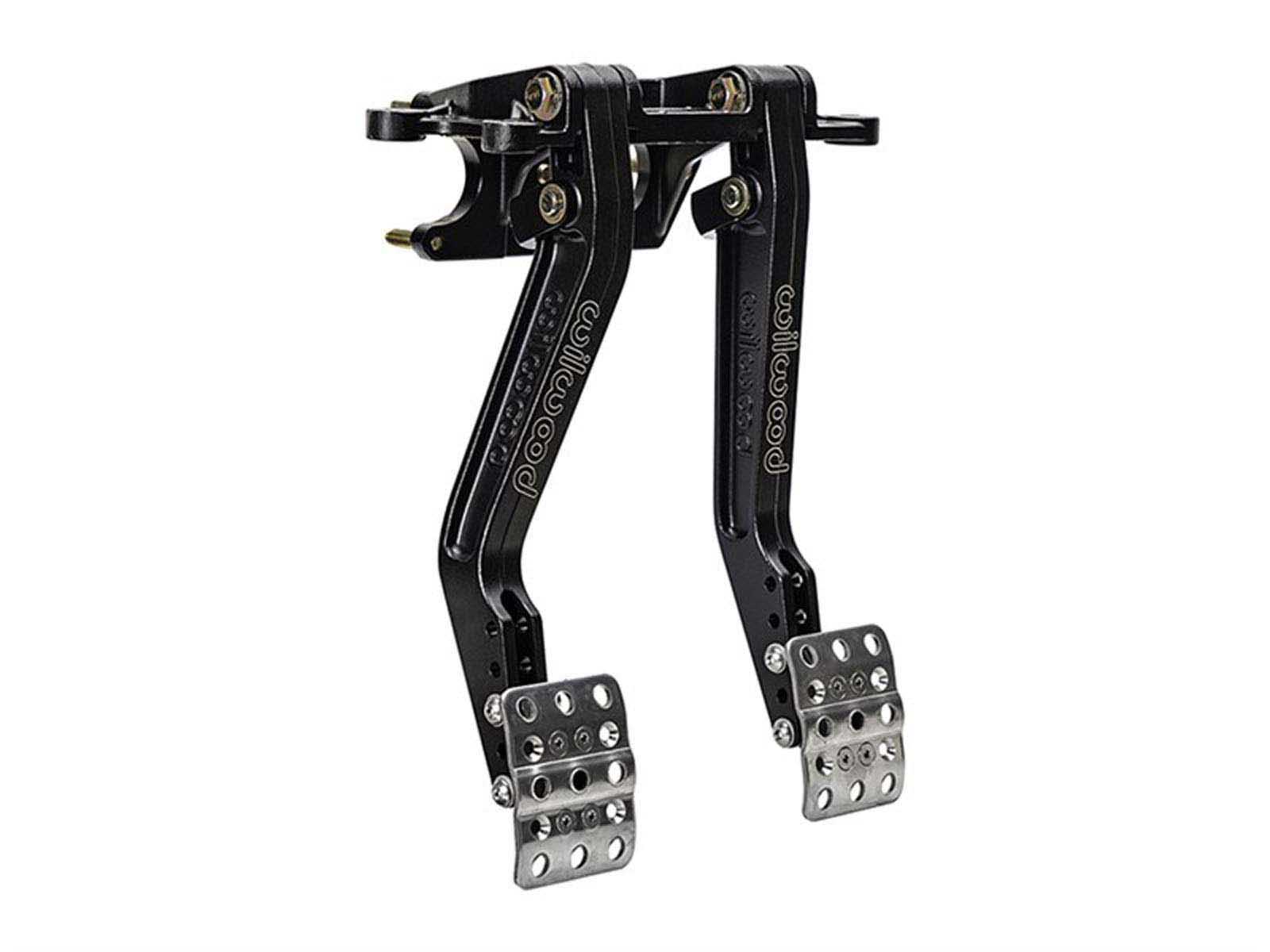

Wilwood 340-16833 Adjustable Swing Mount Tandem Brake and Clutch Pedal with 5.5-6.25:1 Ratios

Wilwood 340-16833 Adjustable Swing Mount Tandem Brake and Clutch Pedal with 5.5-6.25:1 Ratios

Wilwood adjustable ratio brake pedal with offset clutch pedal from Accesspeed is available in a forward swing hanging assembly. Pedal head adjusts vertically to provide a 5.50, 5.88, or 6.25:1 ratio for more feel or less pedal effort. A clutch master cylinder and tandem brake master cylinder mount to the assembly through the firewall. The non-skid waffled pedal pads can be laterally adjusted to be from 5” to 7” on center for driver preference. The pedals feature a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arms. A pin and clevis pushrod attachment system ensures the smallest possible misalignment angle for bind free operation through the entire range of travel. The clutch pedal accepts a 2.25-inch vertical mount flange single outlet master cylinder, while the brake uses a 3.25-inch horizontal mount flange tandem master cylinder, available separately in a variety of styles and bore sizes from Accesspeed.

WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Scroll to view product options.

Fits These Applications:
