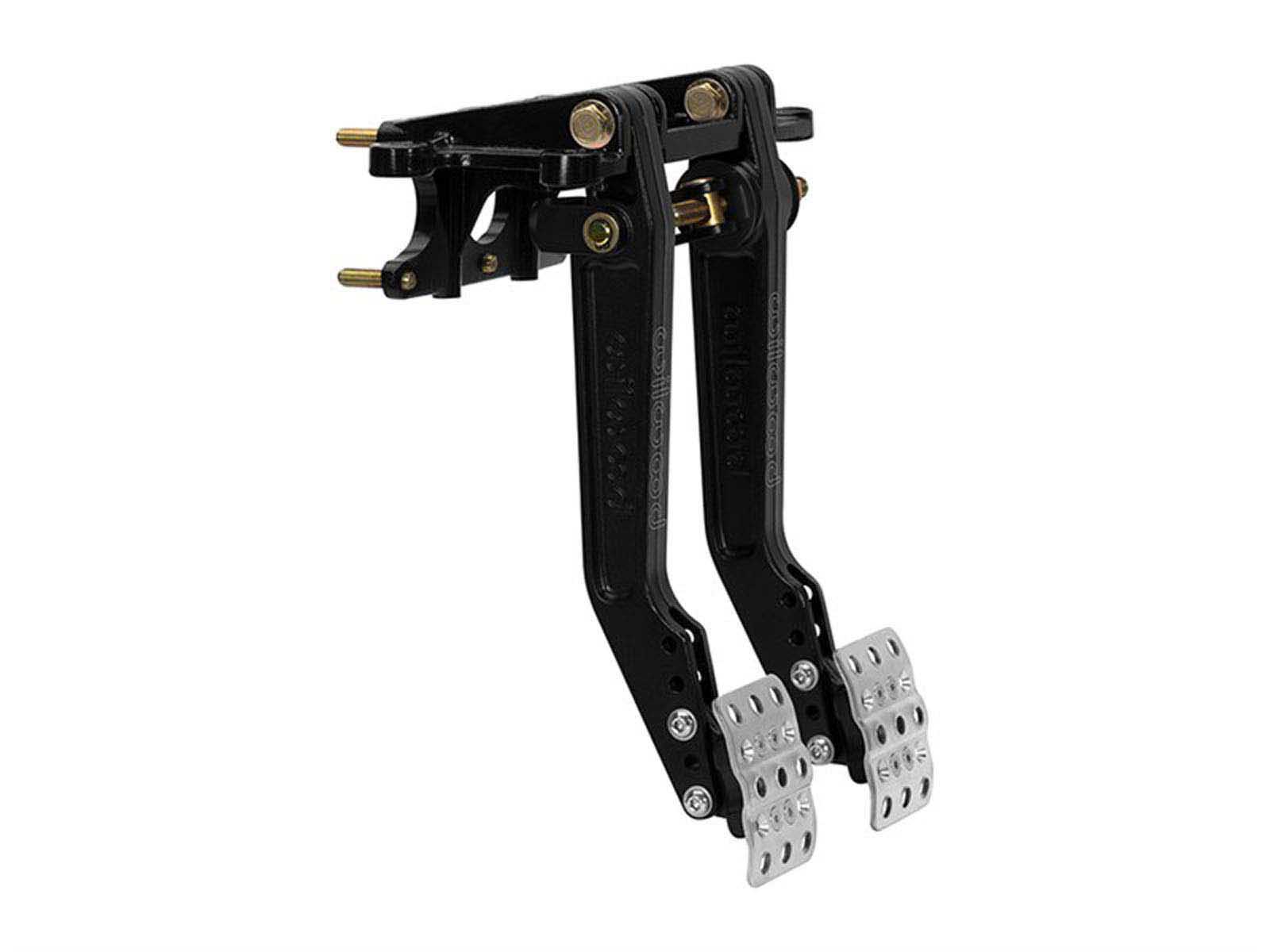

Wilwood 340-16382 Adjustable Swing Mount Brake and Clutch Pedal with 5.5-6.25:1 Ratios

Wilwood 340-16382 Adjustable Swing Mount Brake and Clutch Pedal with 5.5-6.25:1 Ratios
Part Number: WIL-340-16382
Brand: Wilwood
List Price: $399.96
Price: $313.46

This product qualifies for Free Ground Shipping*
Qty

Wilwood 340-16382 Adjustable Swing Mount Brake and Clutch Pedal with 5.5-6.25:1 Ratios



This is the Wilwood adjustable ratio balance bar brake pedal and clutch pedal combo from Accesspeed, in a forward swing hanging assembly. Pedal head adjusts vertically to provide a 5.50, 5.88, or 6.25:1 ratio for more feel or less pedal effort. A clutch master cylinder and two brake master cylinders mount to the assembly through the firewall, with an adjustable balance bar providing front to rear brake bias fine tuning. The non-skid waffled pedal pads can be laterally adjusted to be from 3 to 5 inches on center for driver preference. The pedals feature a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arms. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and can be locked in place with the included jam nut, or used with an optional remote knob, which is an Accesspeed favorite for quick on-track adjustments. A pin and clevis pushrod attachment system ensures the smallest possible misalignment angle for bind free operation through the entire range of travel. This pedal accepts any three Wilwood 2.25-inch vertical mount flange single outlet master cylinders, available separately in a variety of styles and bore sizes.

Prop 65 Warning WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Part # Description Price
WIL-340-16382 Wilwood 340-16382 Adjustable Swing Mount Brake and Clutch Pedal with 5.5-6.25:1 Ratios $313.46 Add to Cart

Scroll to view product options.

Fits These Applications:

Year Make Model SubModel Engine Transmission Drive
