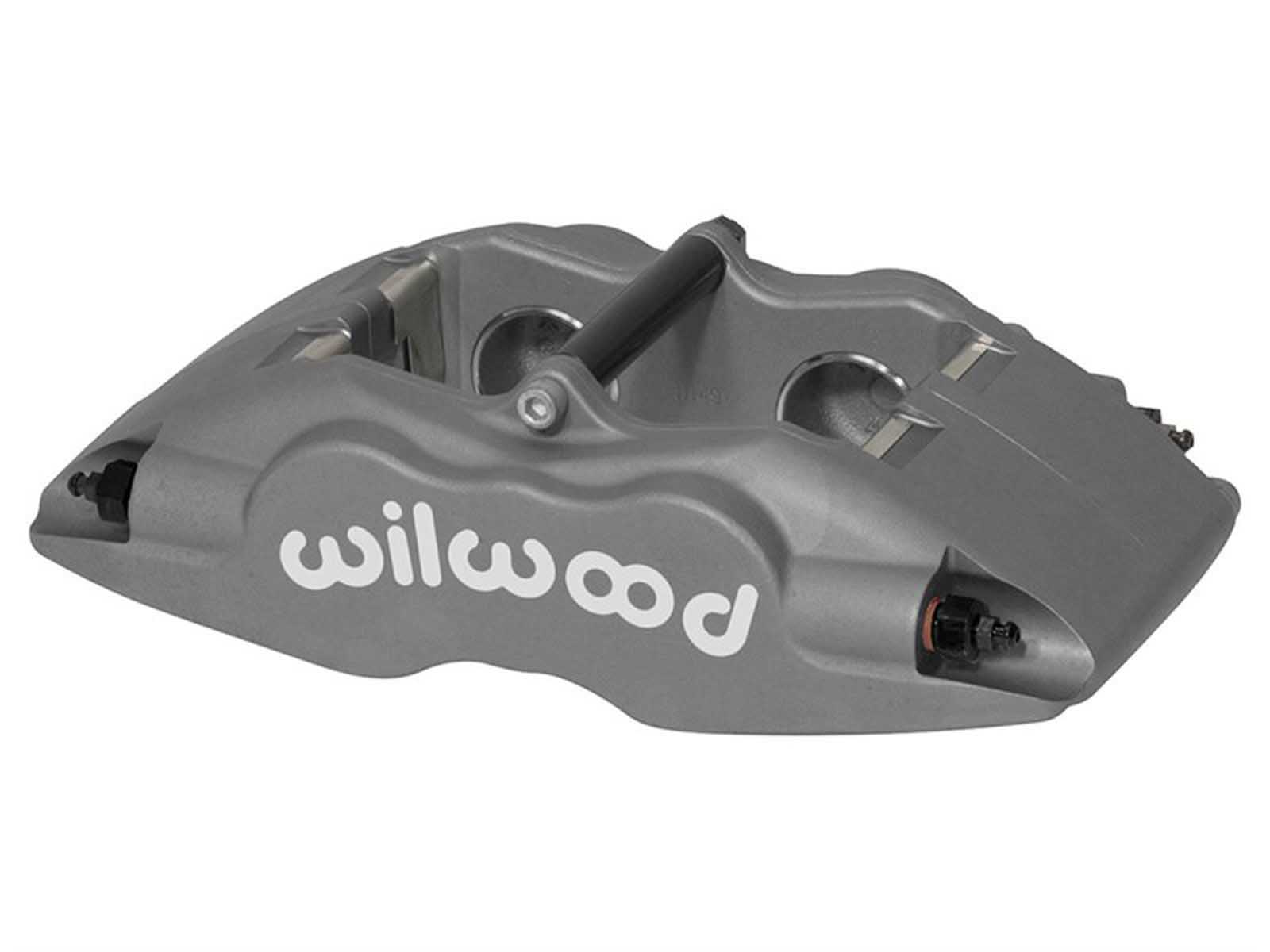

Wilwood 120-11133 Forged Superlite Internal Caliper, Anodized Gray 1.62" Pistons, 1.25" Disc

Wilwood 120-11133 Forged Superlite Internal Caliper, Anodized Gray 1.62" Pistons, 1.25" Disc
Part Number: WIL-120-11133
Brand: Wilwood
List Price: $279.96
Price: $212.17

This product qualifies for Free Ground Shipping*
Qty

Wilwood 120-11133 Forged Superlite Internal Caliper - Anodized Gray 1.62-in Pistons, 1.25-in Disc

The Wilwood Superlite caliper series is the benchmark in short track, late model, modified and open wheel competition. It also enjoys prominence in a variety of road-race, off-road, rally and sport driving applications. The new FSLI model series is the latest innovation to this Superlite family of calipers. It has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes, along with any potential problems that could arise from a damaged tube. The transfer tube has been replaced with two additional bleed screw assemblies which allows this group of symmetrical piston-bore models to be mounted either right or left in a leading or trailing position.

The most noteworthy feature of this new caliper design is the forging. Each body is stress-flow forged from premium grade aluminum alloy billets. Stress-flow forging re-aligns the metal's internal grain structure to flow within the contour of the caliper body. This process eliminates the stresses and interruptions to the internal grain structure that occur when machining a straight block billet. Simply stated, there is no better way to build a stronger aluminum caliper body.

The FSL body design is a highly efficient product of computer-generated solid modeling and stress analysis technology. Each caliper features closed end bridges with a radial transition to the piston body housings. The elimination of machined steps and sharp shoulders in this critical area provides a measurable increase in overall body strength and resistance to deflection under load. Center bridge bolts replace cotter pins to provide additional support and allow quick access with positive brake pad retention. Clamping force, structural deflection, and volume displacement tests have proven the superior strength and efficiency of the FSL. On-track testing has proven driver satisfaction. The bottom line is better stopping power with less pedal travel.

Prop 65 Warning WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Part # Description Price
WIL-120-11133 Wilwood 120-11133 Forged Superlite Internal Caliper, Anodized Gray 1.62" Pistons, 1.25" Disc $212.17 Add to Cart
