Wilwood 140-17938 Dynapro-ST 11.75" Front Road Race Brake Kit With Lines Gray Calipers 2016-up Miata

Wilwood 140-17938 Dynapro-ST 11.75" Front Road Race Brake Kit W/Lines, Gray Ano Calipers for 2016-up Mazda Miata

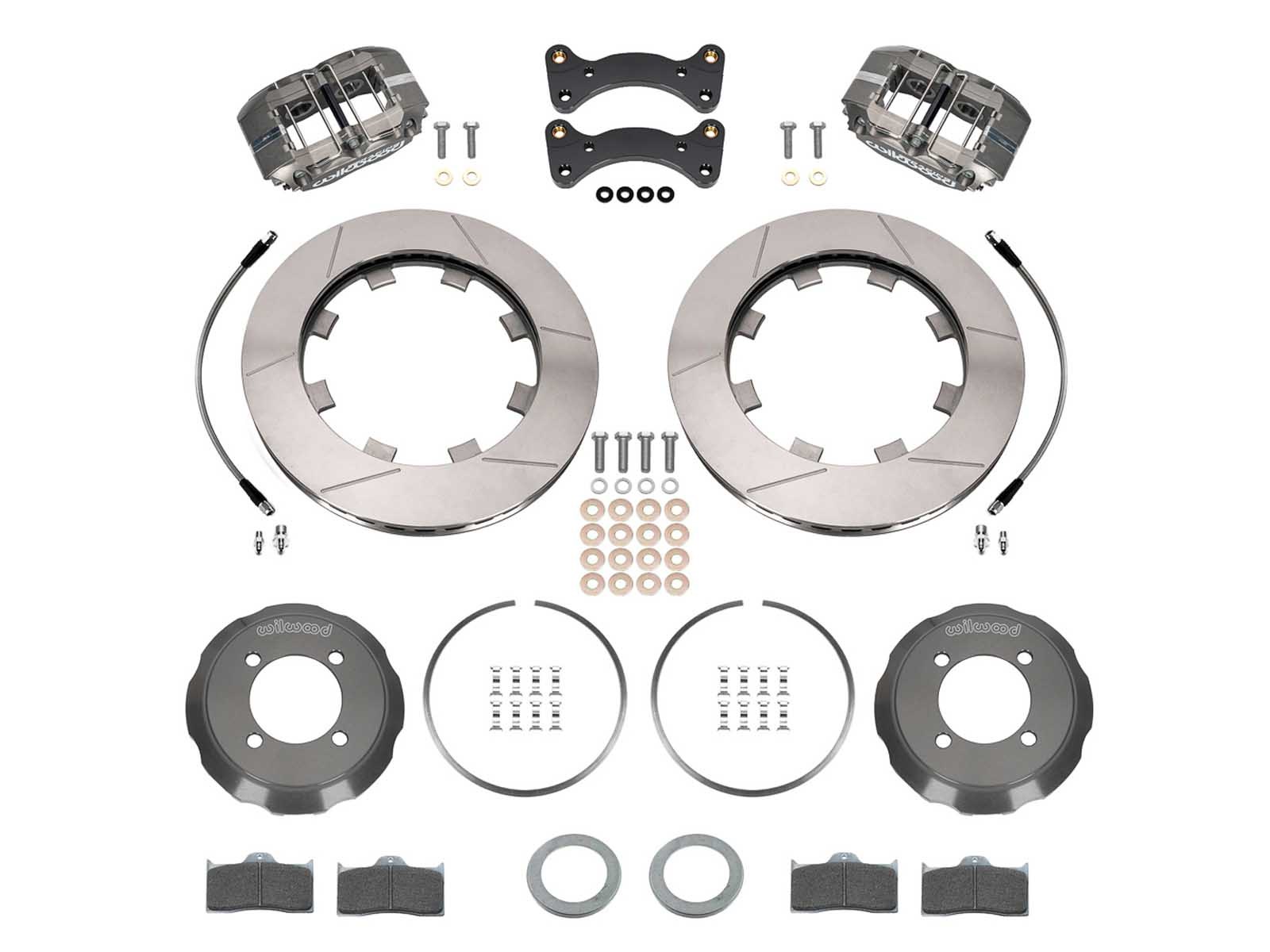

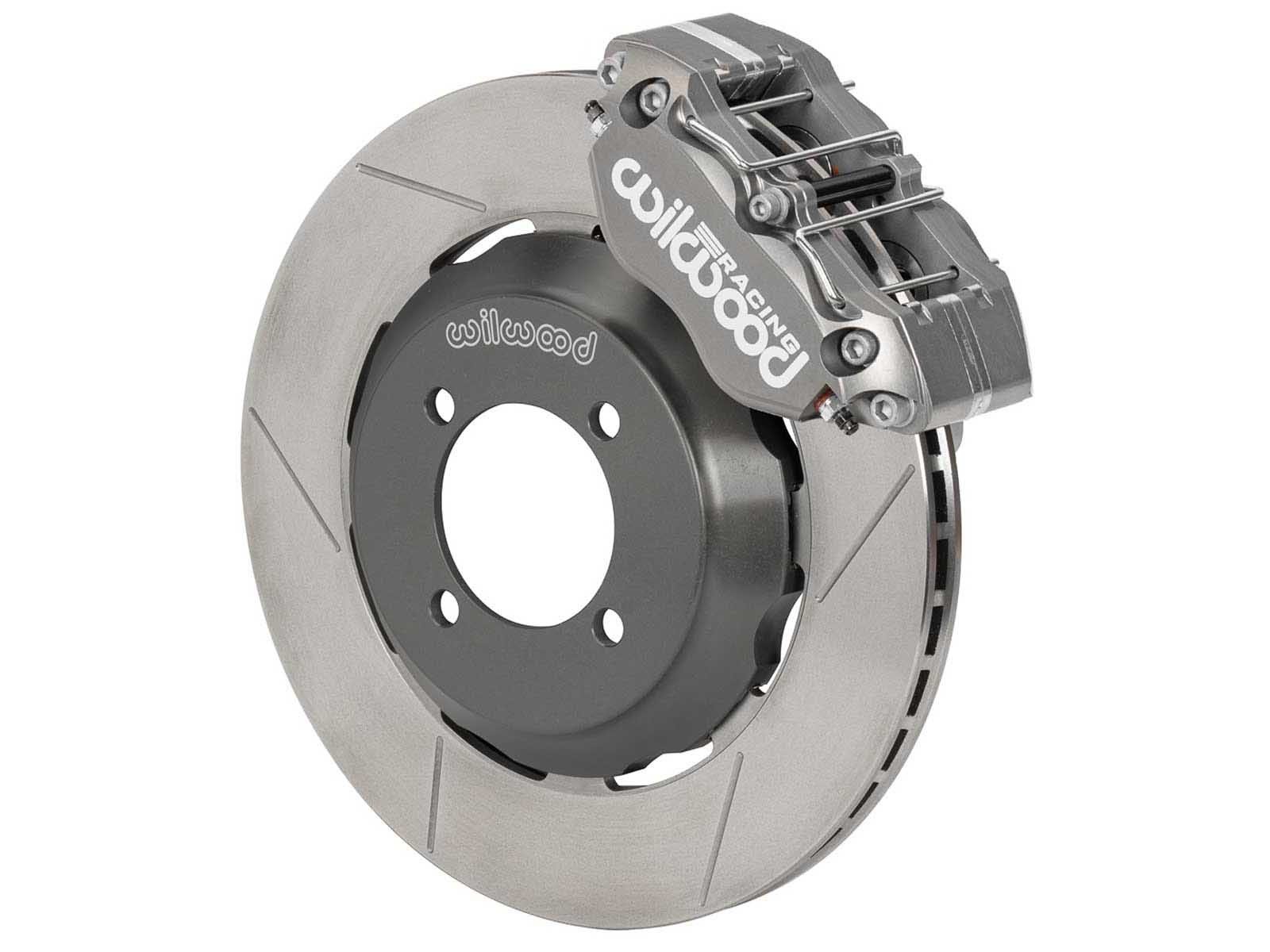

This Wilwood Brake Kit from Accesspeed is configured for dedicated road racing with the 2016-up Mazda MX-5 Miata and 2017 Fiat 124. It requires 15” wheels designed with additional inside clearance to accommodate the larger than stock brake package. The four piston DPL/ST calipers used in this kit feature a forged aluminum body with a Type III Mil-Spec hard anodized, medium gray color finish. Hard anodizing provides superior wear resistance in the piston bores, and high resistance to abrasion and corrosion throughout. Thermlock® pistons are used to reduce heat transfer from the pads to increase fade resistance, and to extend service life by decreasing temperatures in the caliper body, fluid, and seals. Internal damper springs and controlled retraction, high-temperature piston seals assure consistent pedal height from start to finish. Caliper piston volumes are sized for compatibility with OE power brake boosters and master cylinders and are easily configured with manual brake conversions and balance bar pedals using appropriately sized master cylinders. Spec37 alloy, GT competition series 11.75” diameter 40 vane rotors are mounted to weight saving forged aluminum lug mount hats. Unsprung and rotating weight are minimized while providing high cooling efficiency and rugged durability with thermal stability in sustained high heat competition. Mounting brackets, including all premium grade fasteners, secure the calipers in the stock location, without modifications. This race winning system is completed with high temperature, high friction, and endurance compound race pads selected specifically by application. Stainless steel braided Flexlines are included in each kit to complete the installation.

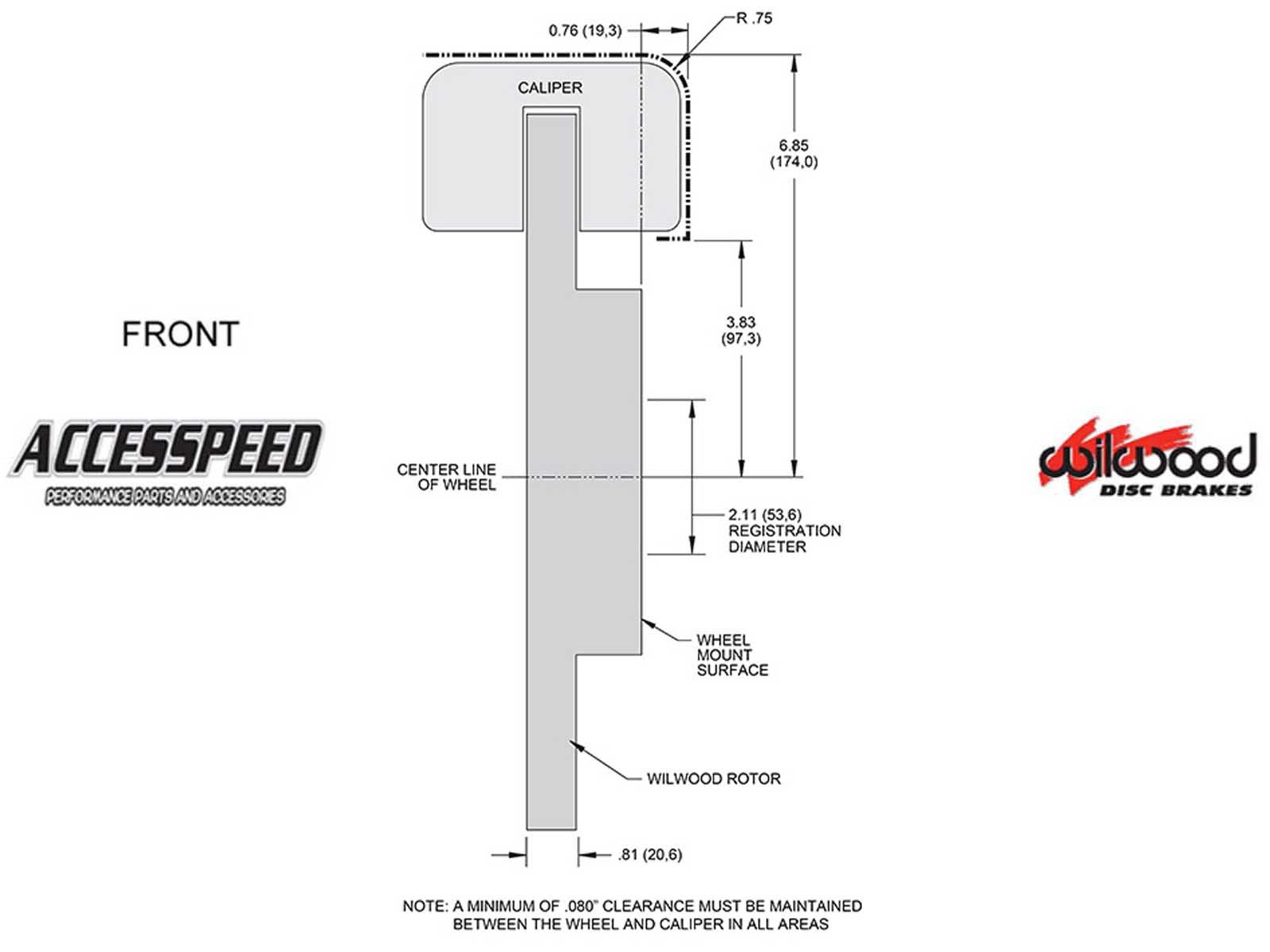

*This Brake Kit may require 15-inch or larger wheels. Please refer to the wheel clearance diagram image to verify caliper clearance for your specific wheel.

Notes

Images supplied by manufacturer and may be a generic product representtation instead of the exact part number.
