ATS Diesel Performance 303-007-2272 47RE 48RE Billet Channel Plate Valve Body Upgrade Fits 96-07 Dodge 5.9L Cummins
The ATS 47RE/48RE Billet Channel Plate Upgrade Kit replaces warped, flexible factory cast-aluminum channel plates with a rigid, precision-machined billet solution. By restoring a perfectly flat sealing surface, it eliminates the internal cross-leaks that bleed off critical line pressure and cause shift flares or premature clutch failure.
Features and Benefits:
- Eliminates Cross-Leaks: Replaces flexible, warped factory cast-aluminum channel plates to guarantee a perfectly flat, cross-leak-free seal.
- Premium ATP5 Aluminum: Precision-machined in Arvada, CO from 5083 Aluminum Alloy - highly stable, virtually porosity-free, and completely resistant to warping under extreme heat cycles.
- Redesigned Fluid Routing: Optimized internal channels decrease the time it takes transmission fluid to pressurize the clutch packs and bands.
- Faster, Cleaner Shifts: Shaves hundredths of a second off shift timing, keeping your truck firmly locked in its power band between gears.
- Complete Installation Kit: Includes premium separator plates, a specialized drill guide, and the exact drill bit required for a precise install.
- Exceptional Dimensional Stability: Vertically quenched to eliminate internal stress before machining, preventing warping or distortion under severe service conditions.
- Porosity-Free Microstructure: A dense, uniform composition ensures Automatic Transmission Fluid (ATF) never hides in microscopic pockets or leaks across channels.
- Uniform Heat Distribution: Built to withstand heavy towing and extreme line pressures without losing its perfectly flat shape.

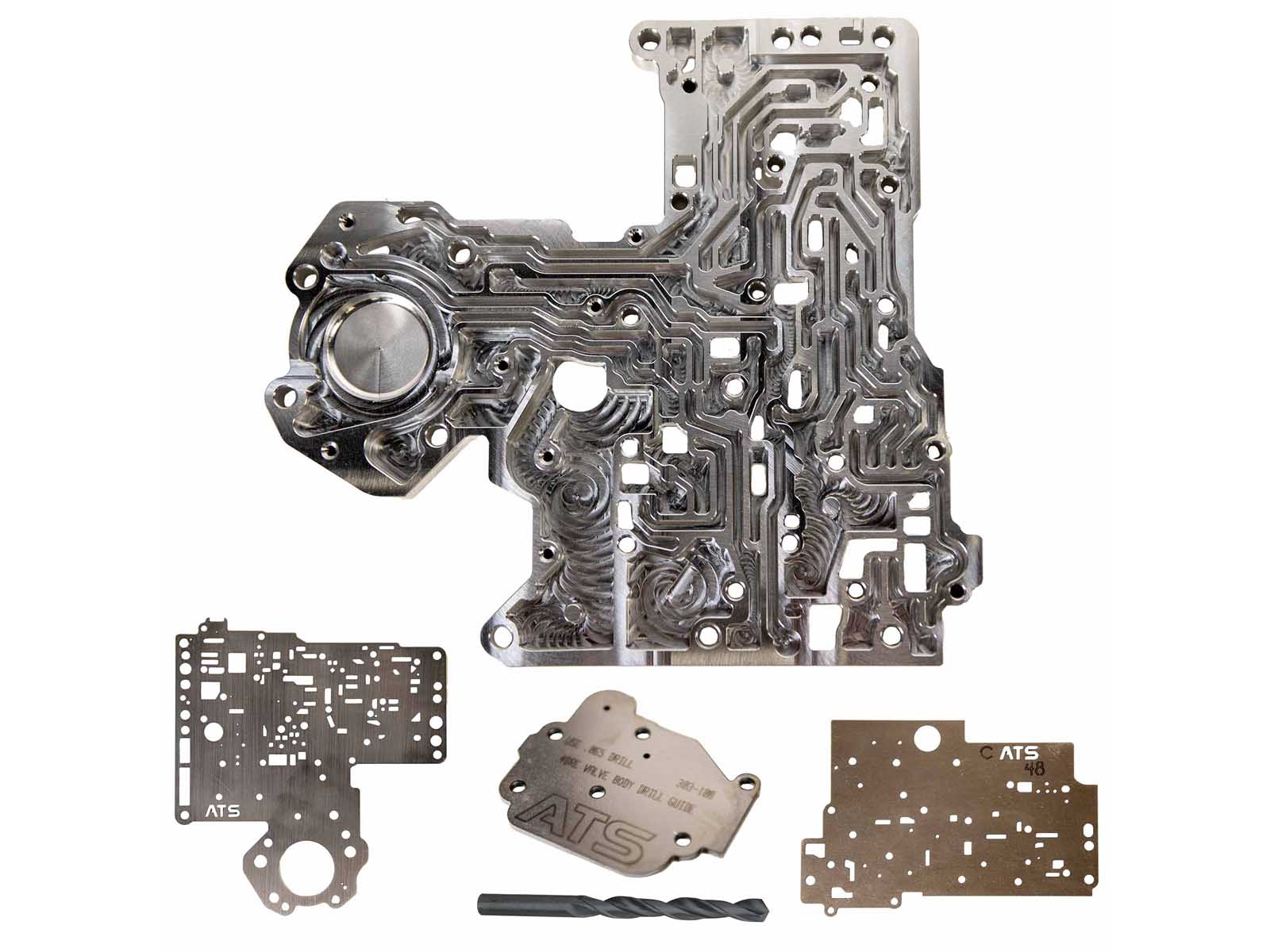

Includes:

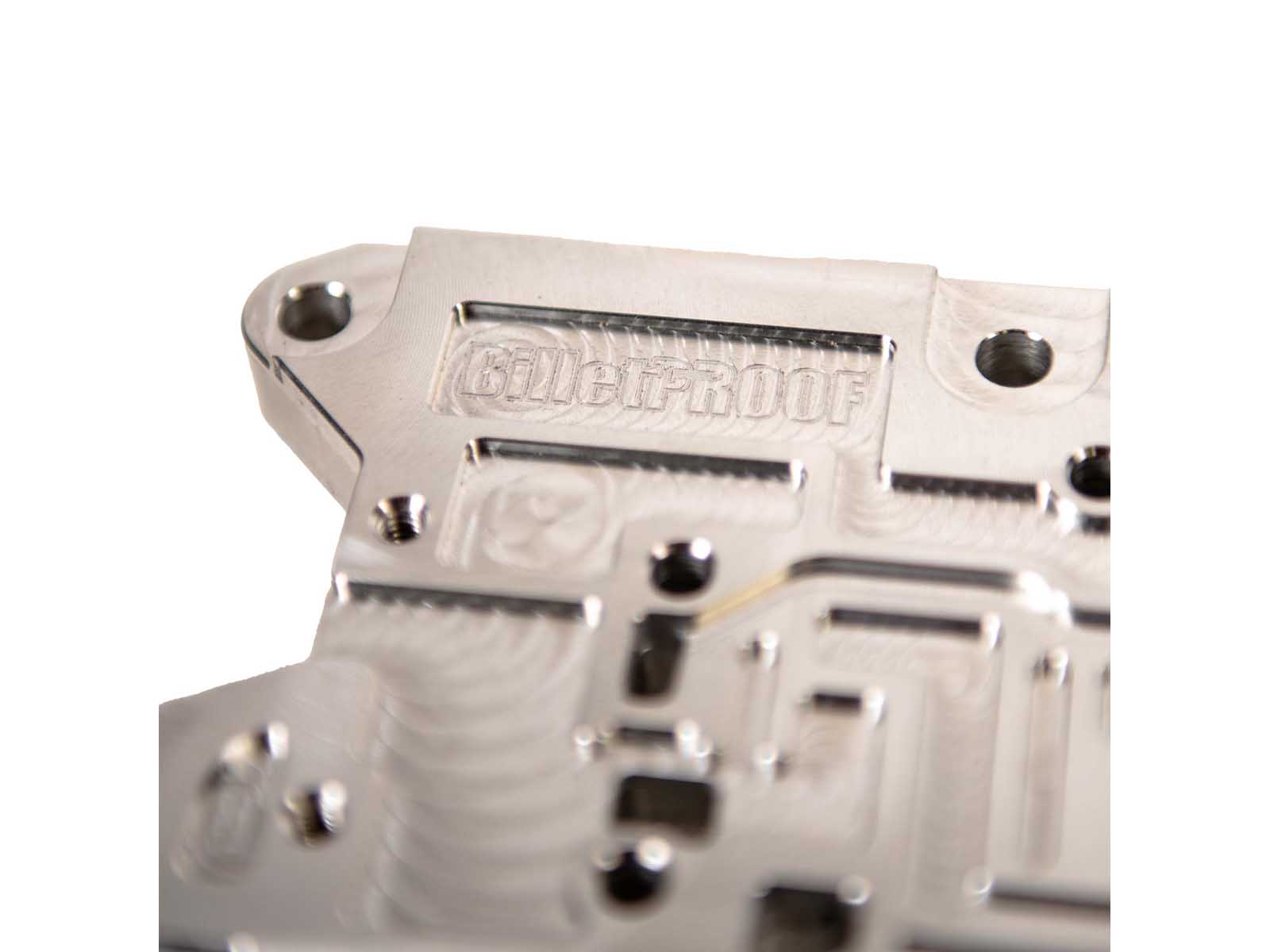

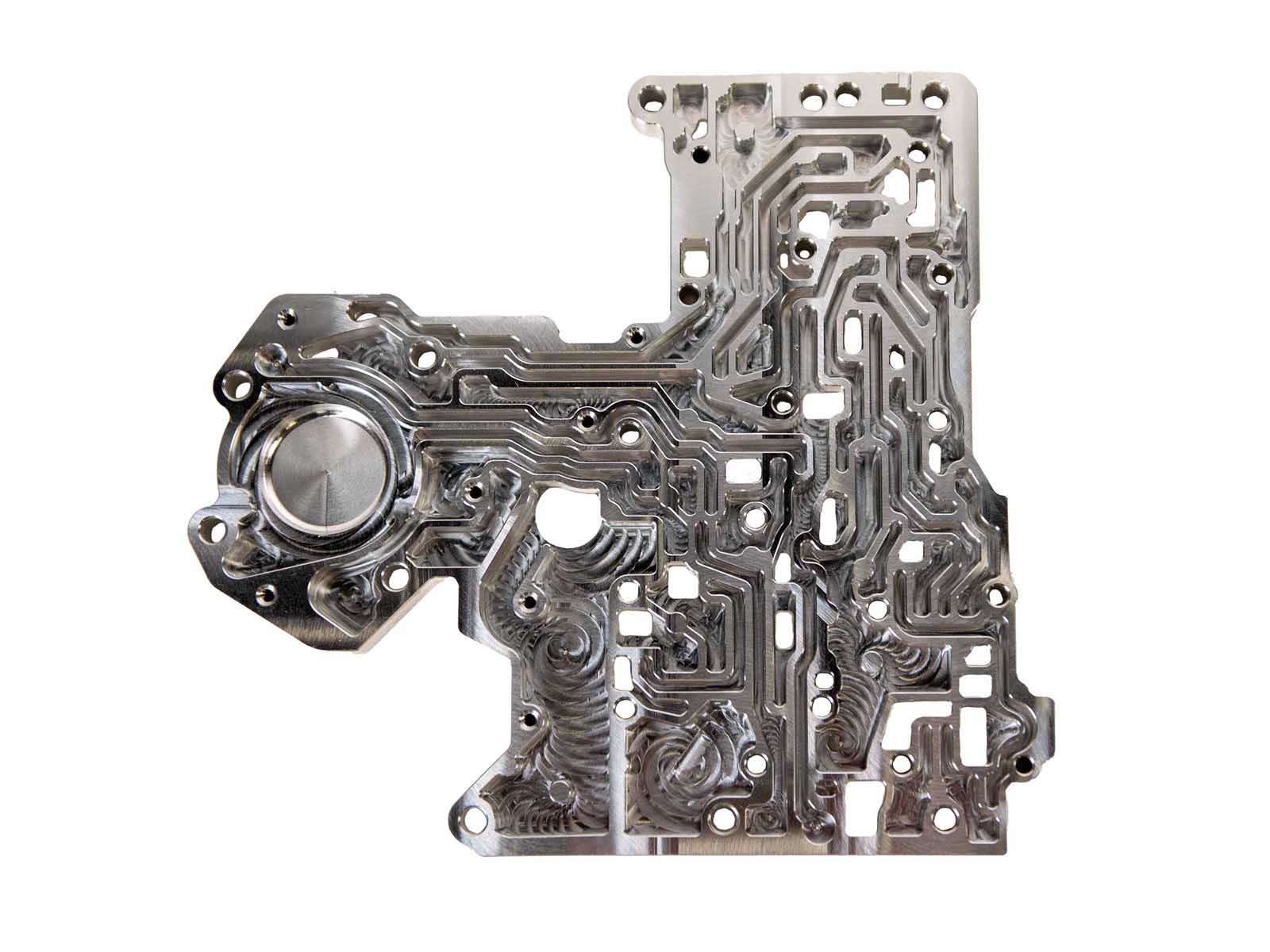

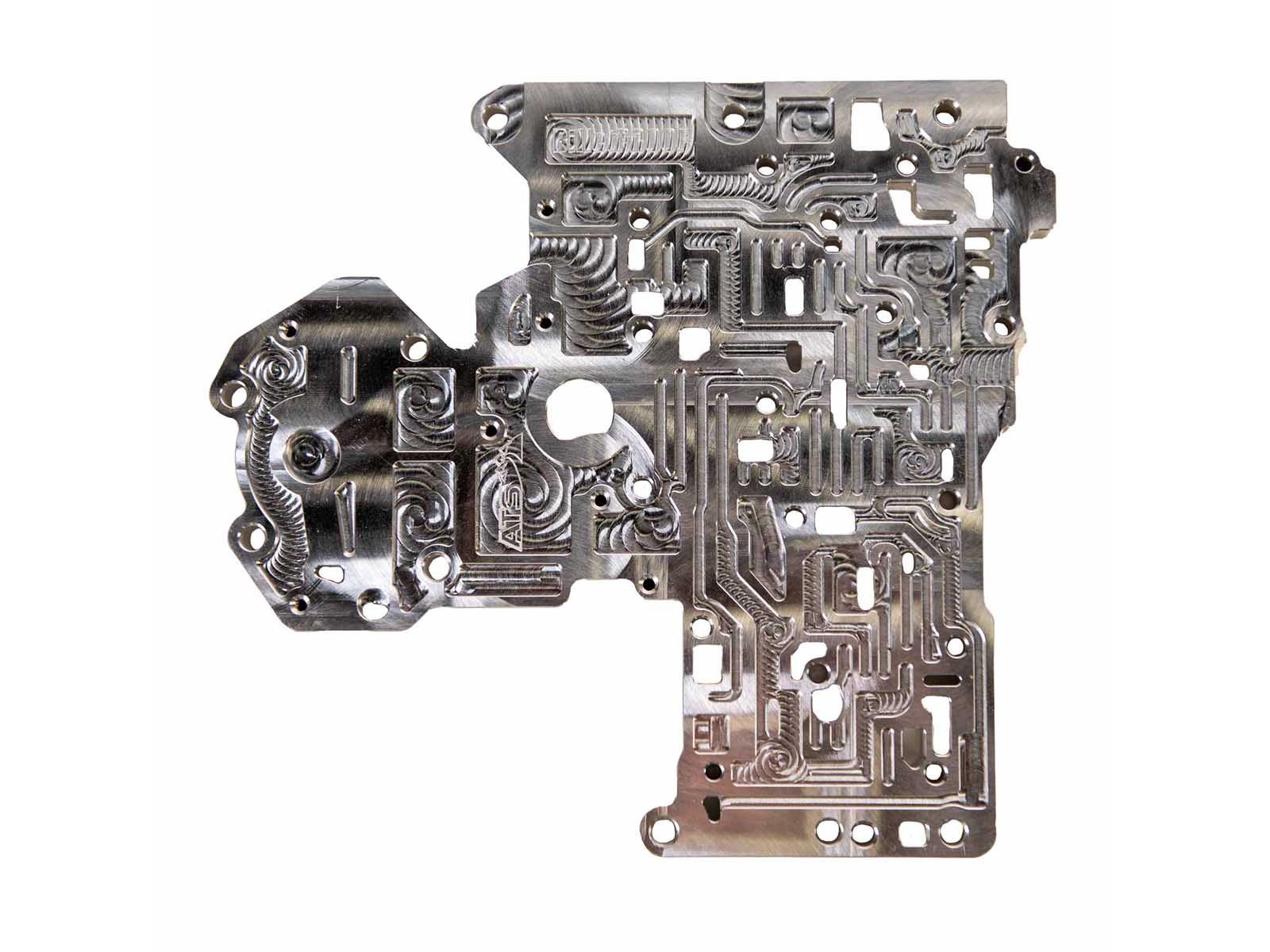

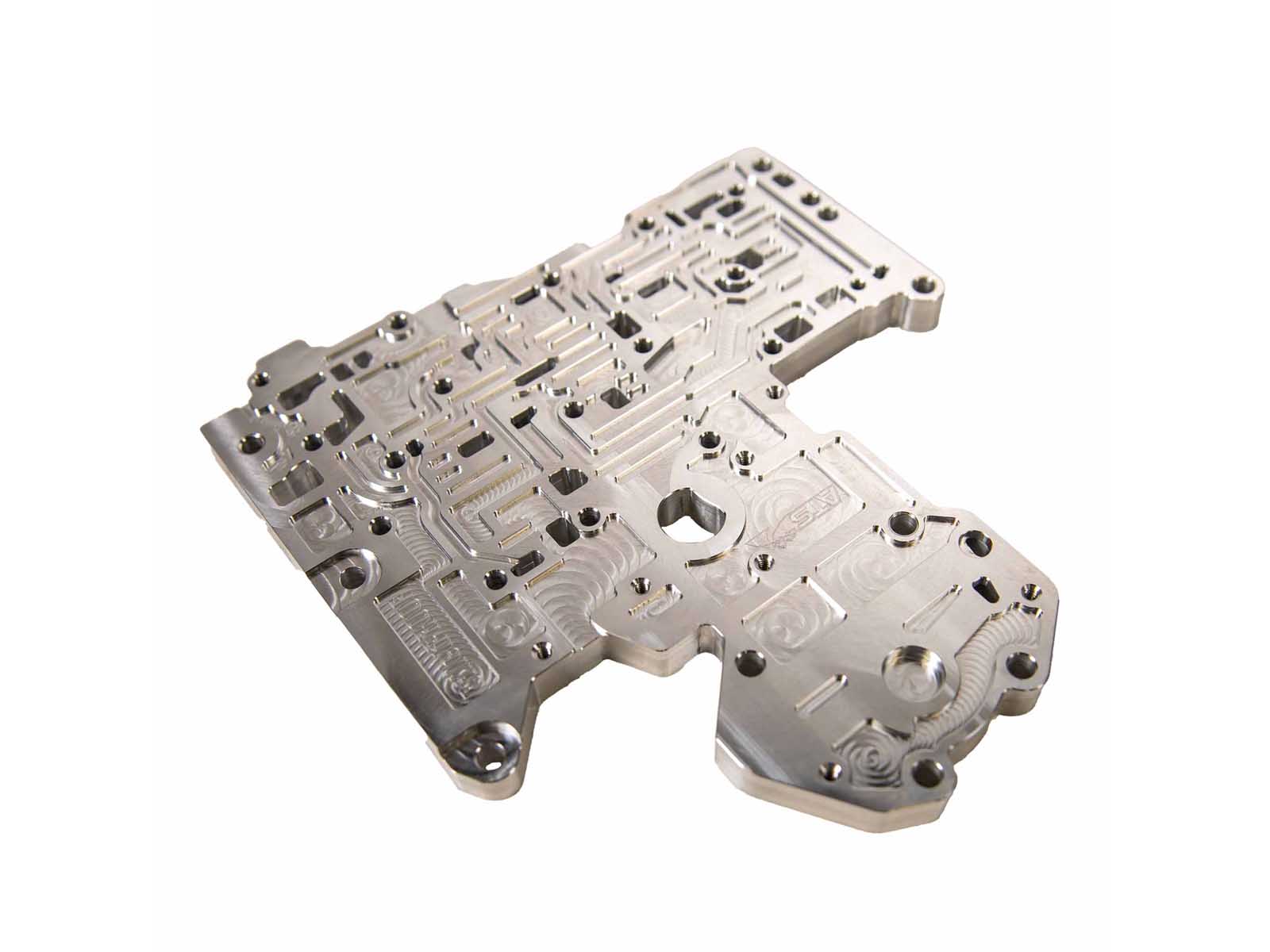

- ATS Billet Channel Plate (CNC-machined from premium ATP5 aluminum alloy)
- ATS Large Separator Plate
- ATS Small Separator Plate

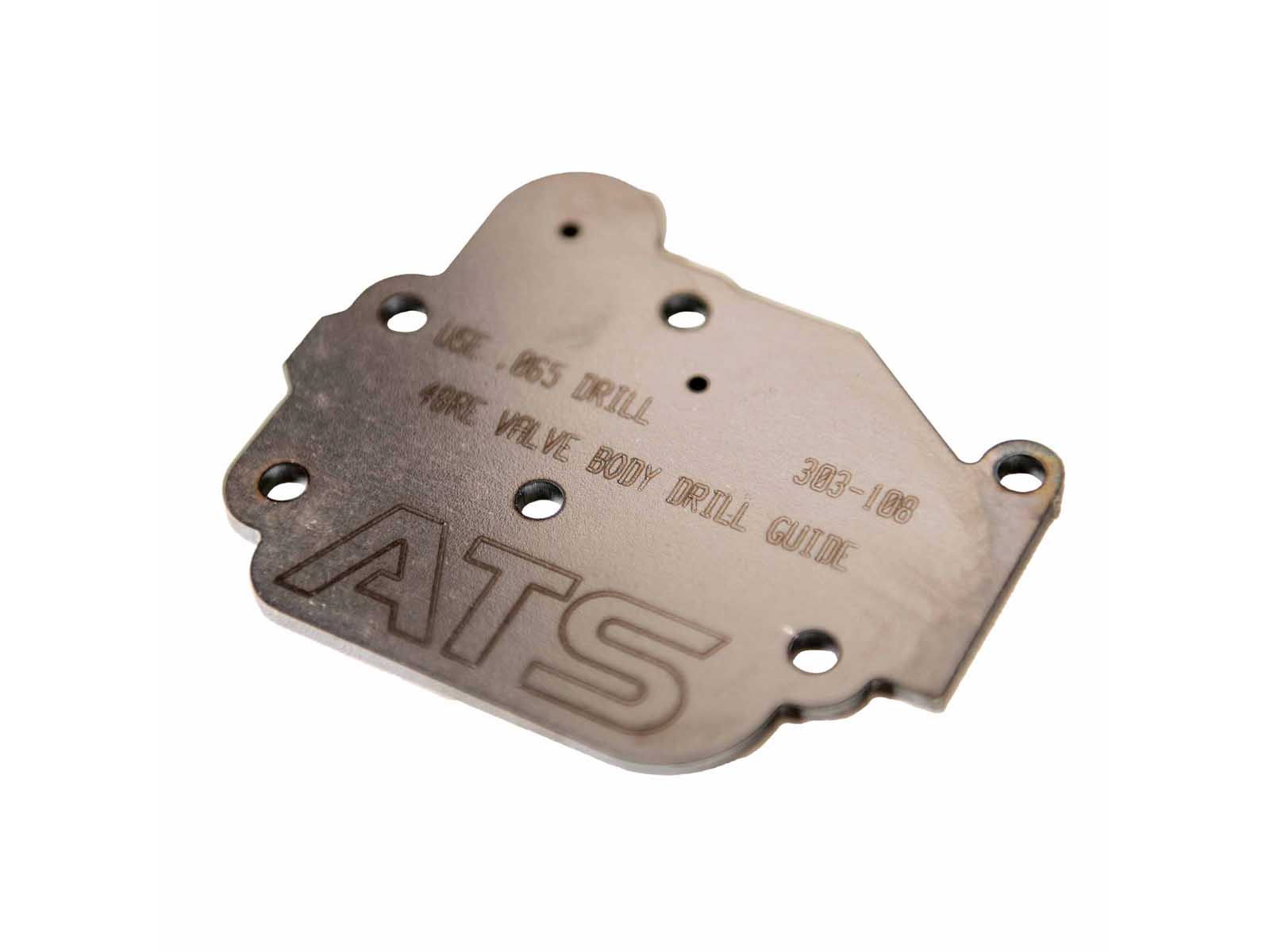

- Drill Guide
- .065 inch Drill Bit
Applications:
- 1996-2007 Dodge 2500/3500 5.9L Cummins (47RE/48RE)
Details:
- Material: 5083 Aluminum Alloy
- Finish: Raw
- Engine Manufacturer: Cummins
- Engine Years: 1996-2007
- Fuel Type: Diesel
- Liter: 5.9 Liter
- Transmission Model: 47-RE, 48-RE
- Transmission Type: Automatic
- Country Of Origin: USA
- Warranty: 3-Year Limited Warranty
Notes
Images provided by manufacturer and may not be exact SKU. Sold as a Kit. Made in the USA. 3-Year Limited Warranty. 47-RE|48-RE Transmission. 1996-2007 Cummins 5.9 Liter Diesel.
Scroll to view product options.
| Part # |
Description |
Price |
|
| ATS-303-007-2272 |
ATS 303-007-2272 47RE 48RE Billet Channel Plate Valve Body Upgrade Fits 96-07 Dodge 5.9L Cummins |
$439.99 |
Add to Cart |
