ATS 302-950-4248 Five Star Torque Converter 1300-1500 RPM Stall Speed Allison LCT1000 01-10 GM 6.6D

ATS Diesel Performance 302-950-4248 Five Star Performance Torque Converter Factory 1300-1500 RPM Stall Speed Allison LCT1000 2001-2010 GM 6.6L Duramax

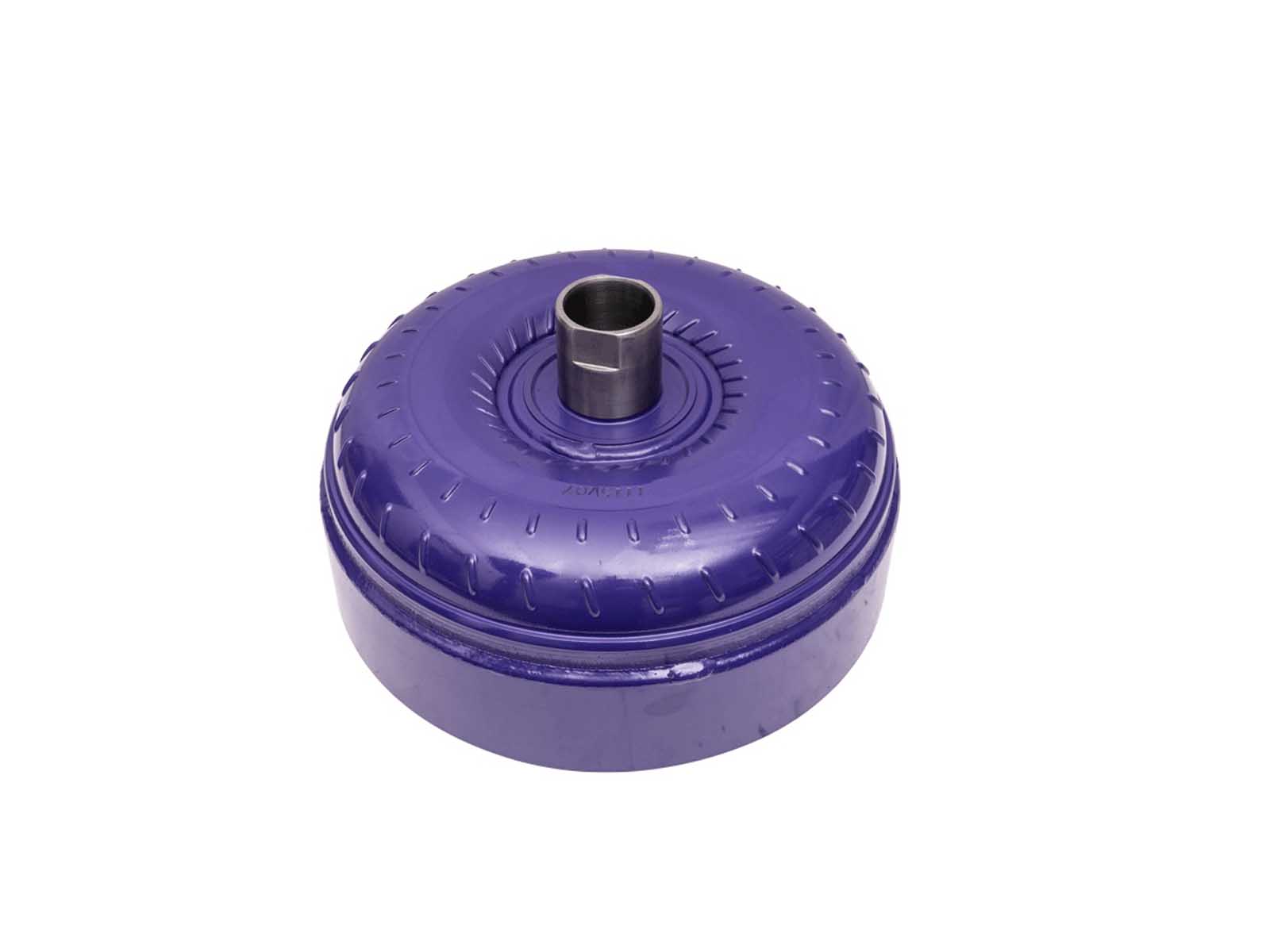

Standard in all transmission packages, and available individually, is the ATS Five Star Torque Converter. This torque converter is built to handle daily driving and towing duties while delivering reliable performance.

Key features of the ATS Five Star Torque Converter include:

• Patented Viskus Clutch Drive System for increased efficiency
• Billet Cover with Patented Square Flank Drive
• Square Tab Construction (Not Round)
• Viskus Disc CNC Laser Cut Clutch Plates
• Billet Piston with Patented Flank Drive Tab design
• Proprietary ATS exclusive Clutch Formulation with unique bonding technology (ensures 100% chemical Bond)
• Redesigned Spring Dampener supports increased torque loads
• 4340 hardened turbine splines provide longevity and reliability
• Fully welded turbine and impeller vanes
• CNC Stator with high flow windows increase oil flow, providing increased efficiency
• Full roller bearing construction between high load areas
• 4340 CNC cut pump drive hub locked into impeller housing
• Plasma welded for unsurpassed strength

The ATS Five Star utilizes an optimized factory stall speed that features improved torque multiplication. With factory torque multiplication at approximately 1.25:1, the ATS Five Star boasts 2.4:1. This occurs when peak engine torque is achieved. Increased torque multiplication results in improved vehicle response, towing and driving ability.

Every Five Star comes standard with a 5 year / 500,000 mile warranty. When the most efficient torque converter is required, look no further than ATS? Five Star Torque Converter.
Features:

• 2001-2010 2500/3500
• Duramax GM Light Duty
• Diesel

Notes
Images provided by manufacturer and may not be exact SKU. Sold Each. Made in the USA. 5-Year/500,000 Mile Limited Warranty. Recommended For Competition Use. 2001-2010 Duramax 6.6 Liter Diesel. This product requires a refundable Core Charge of $500. Accesspeed will send you a separate invoice for the refundable Core Charge, including the return address for ATS. You will be responsible for shipping the core back to ATS at your expense. Core must be returned to ATS within their specified timeline or the core charge will not be refunded.

Scroll to view product options.

Scroll to view product options.

Fits These Applications:
