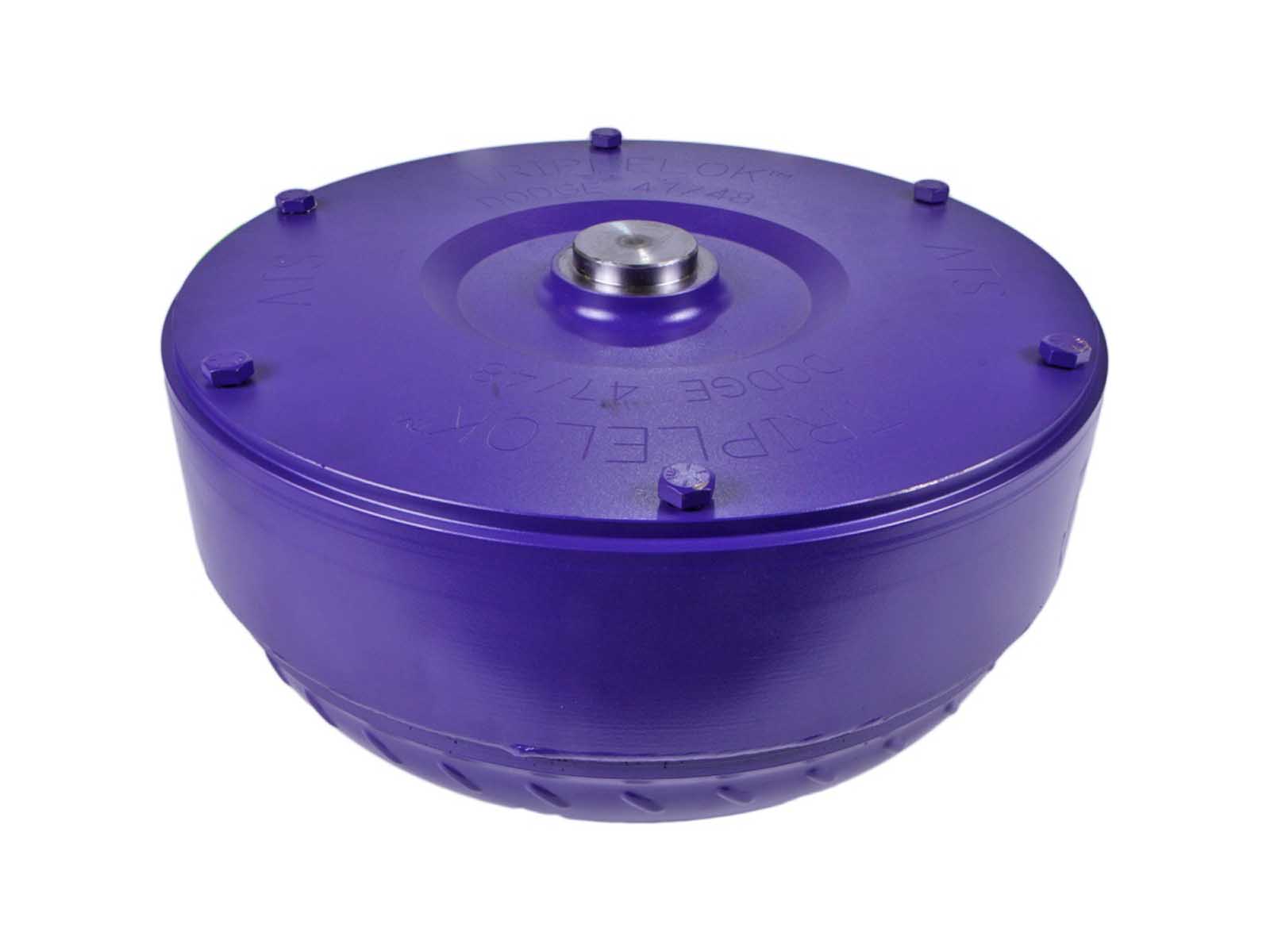

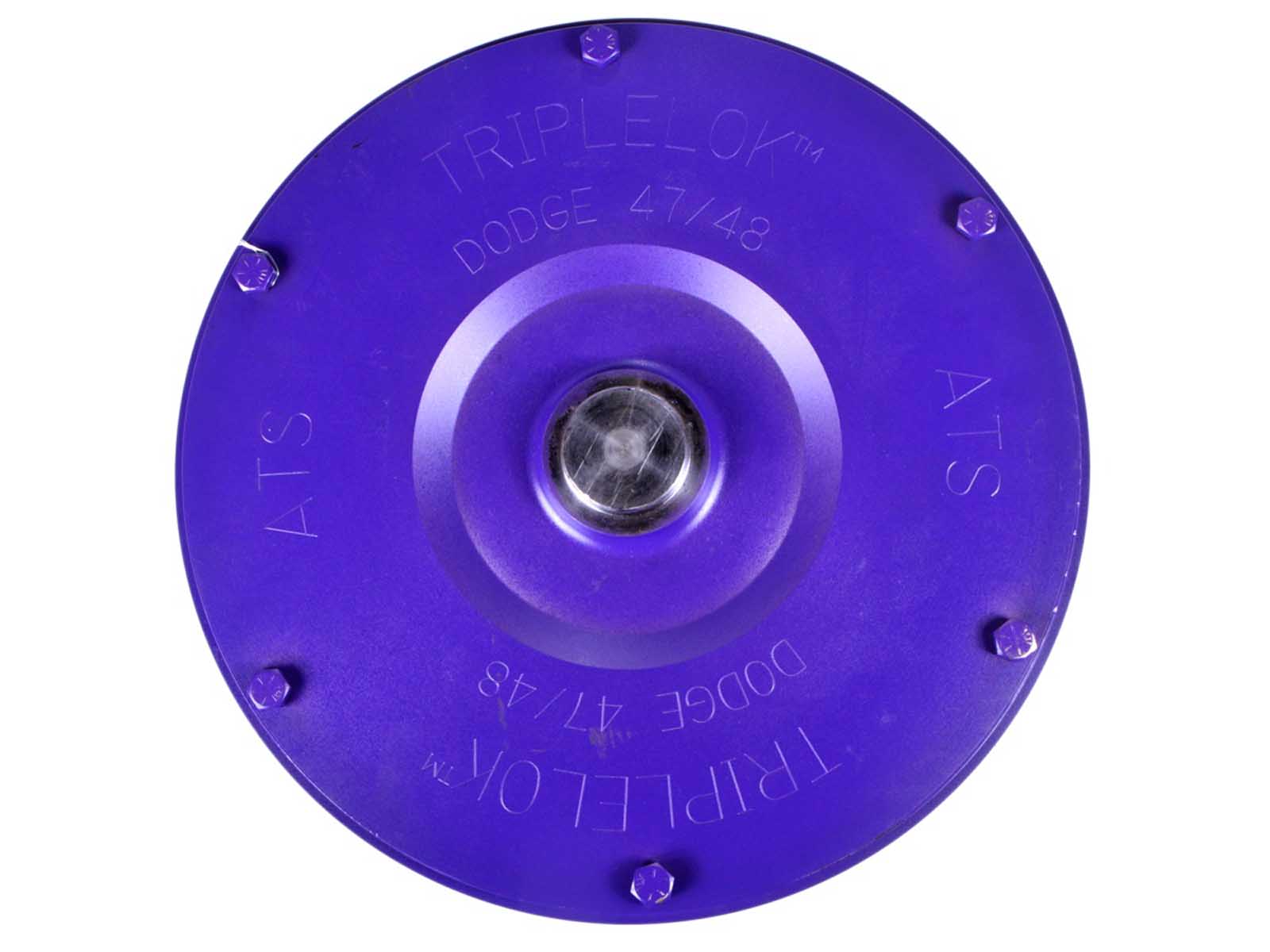

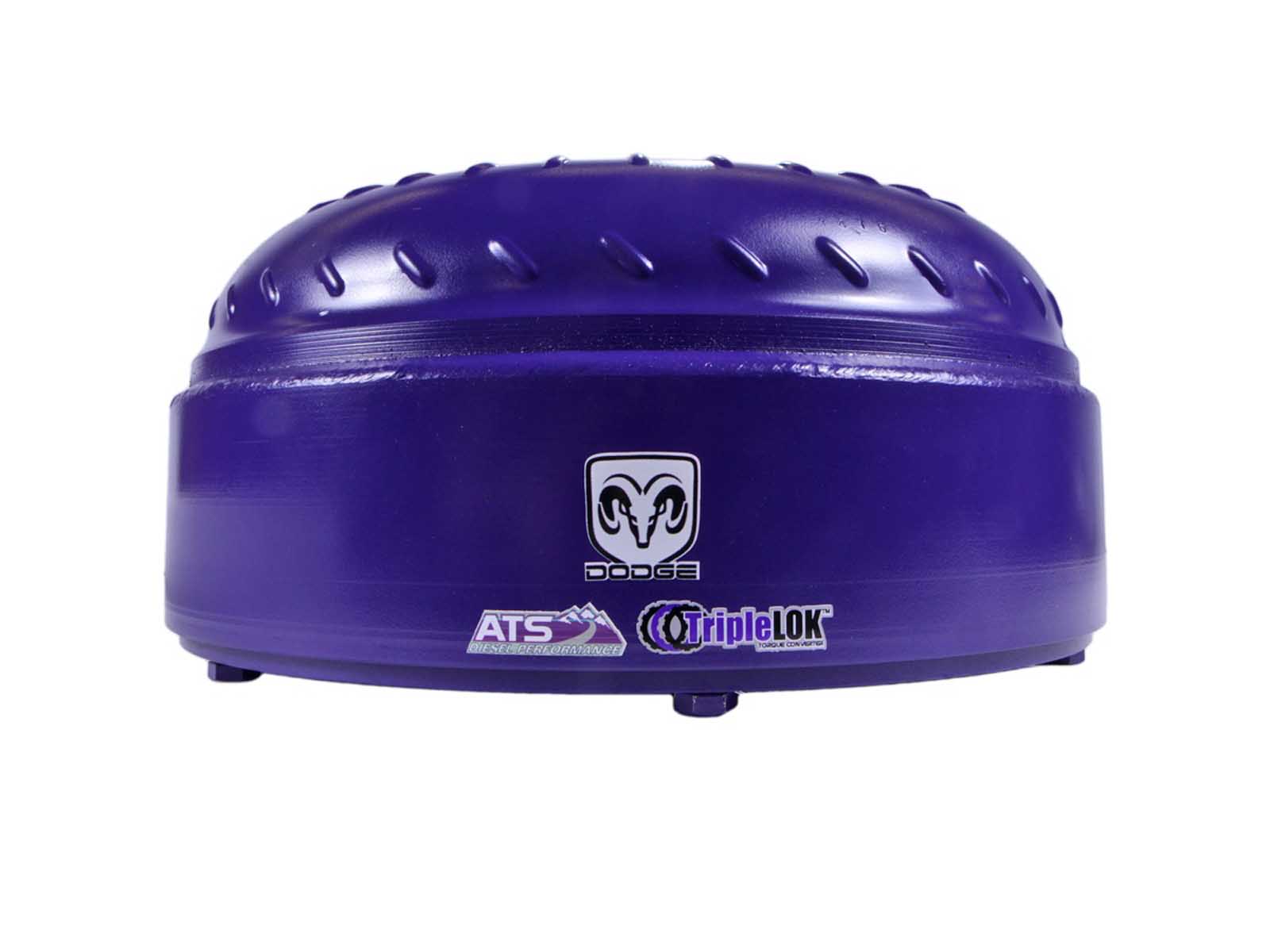

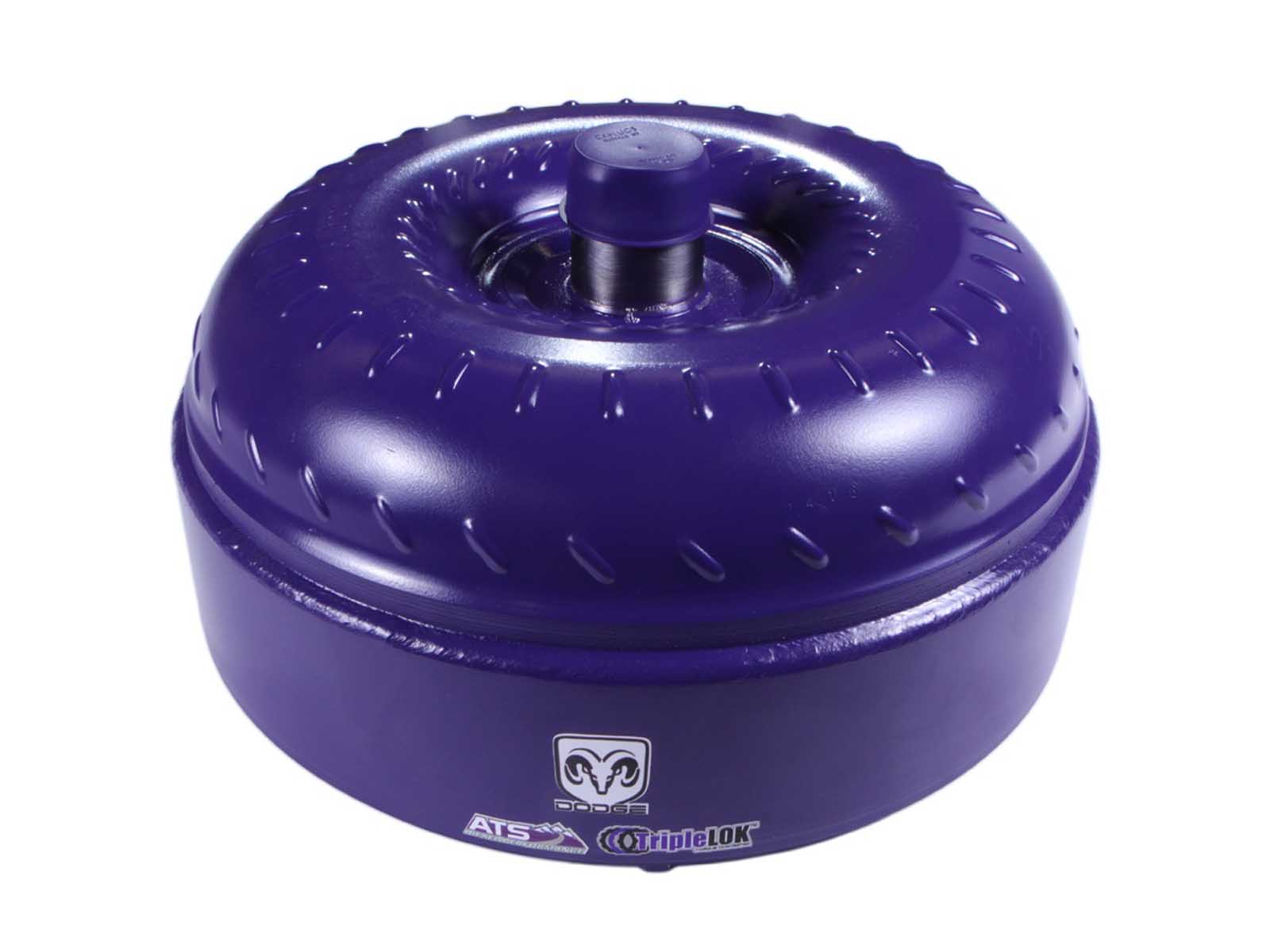

ATS Diesel Performance 302-930-2164 TripleLok Performance Torque Converter Factory Stall Speed 47RH / 47RE / 48RE 1994-2007 Dodge 5.9L Cummins
Available individually is the ATS TripleLok Torque Converter. This torque converter is built to handle daily driving and towing duties while delivering reliable performance.
The ATS TripleLok utilizes an optimized factory stall speed that features improved torque multiplication. With factory torque multiplication at approximately 1.25:1, the ATS TripleLok increases it to 2.0:1. This occurs when peak engine torque is achieved. Increased torque multiplication results in improved vehicle response, towing and driving ability.
Every TripleLok comes standard with a 5 year / 500,000 mile warranty. When the most efficient torque converter is required, look no further than the ATS TripleLok Torque Converter.
Details:
- TripleLok Torque Converter
- Factory Stall Speed
- Patented Viskus Clutch Drive System for increased efficiency
- Billet Cover with Patented Square Flank Drive
- Square Tab Construction (Not Round)
- Viskus Disc CNC Laser Cut Clutch Plates
- Billet Piston with Patented Flank Drive Tab design
- Proprietary ATS exclusive Clutch Formulation with unique bonding technology (ensures 100 percent chemical Bond)
- Redesigned Spring Dampener supports increased torque loads
- 4340 hardened turbine splines provide longevity and reliability
- Fully welded turbine and impeller vanes
- Custom Stator with high flow windows increase oil flow, providing increased efficiency
- Full roller bearing construction between high load areas
- 4340 CNC cut pump drive hub locked into impeller housing
- Plasma welded for unsurpassed strength
- Sold Individually
- SKU: 3029302164
Fits:
- 1994-2007 Dodge Ram 2500|3500 Truck w/5.9L Cummins Engine and Chrysler 47R-H|47-RE|48-RE Transmission
Notes
Images provided by manufacturer and may not be exact SKU. Sold Each. Made in the USA. 5-Year/500,000 Mile Limited Warranty. Recommended For Competition Use. Chrysler 47-RE|Chrysler 47R-H|Chrysler 48-RE Transmission. 1994-2007 Cummins 5.9 Liter Diesel. This product requires a refundable Core Charge of $400. Accesspeed will send you a separate invoice for the refundable Core Charge, including the return address for ATS. You will be responsible for shipping the core back to ATS at your expense. Core must be returned to ATS within their specified timeline or the core charge will not be refunded.
