Up Down Air 220-0118 4 Tire Inflation System Engine Bay Engine Mount for 2017-2025 F150 Raptor

Up Down Air 220-0118 Black 4 Tire Inflation System Engine Bay Engine Mount With Box Fittings Hoses and Storage Bag for 2017-2025 Ford F150 Raptor

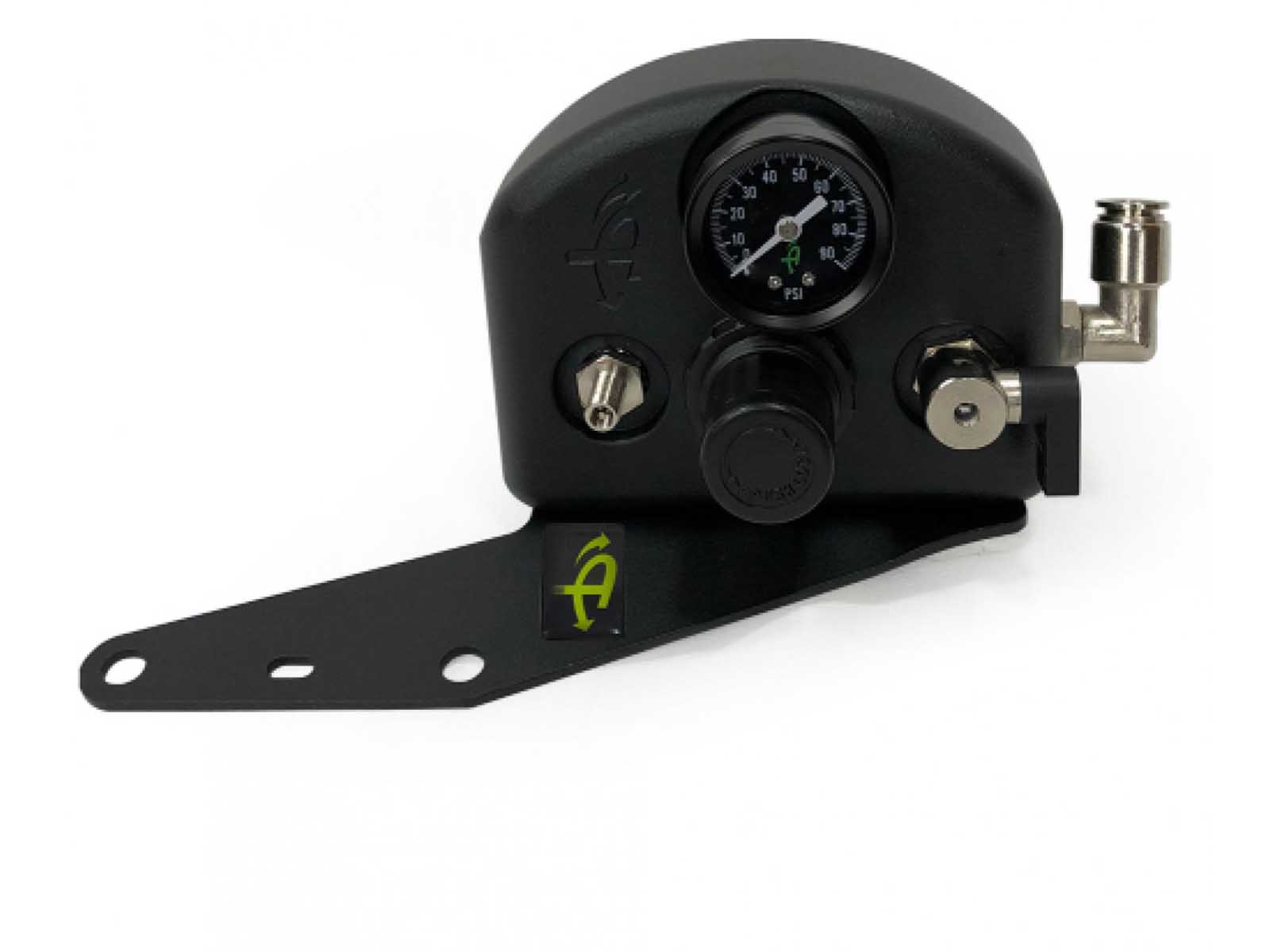

Introducing our Gen2 Air Delivery System (ADS) Ford Raptor engine bay mount that allows you to inflate or deflate all four tires simultaneously which makes managing tire air pressure quick and easy.

Our system can manage air through an on-board permanent air source with dedicated air inlet or through portable air pump that can attach through an external Schrader valve.

Each kit comes complete with DOT approved 3/8 inch air line throughout the system, whips with quick connect chucks with our Betty Bar feature, ADS control box with air regulator and 90-degree Schrader valves.

Our Gen2 system is designed specifically for your application with pre-cut hoses and quick connect fittings to make the installation fast and easy.
Details:

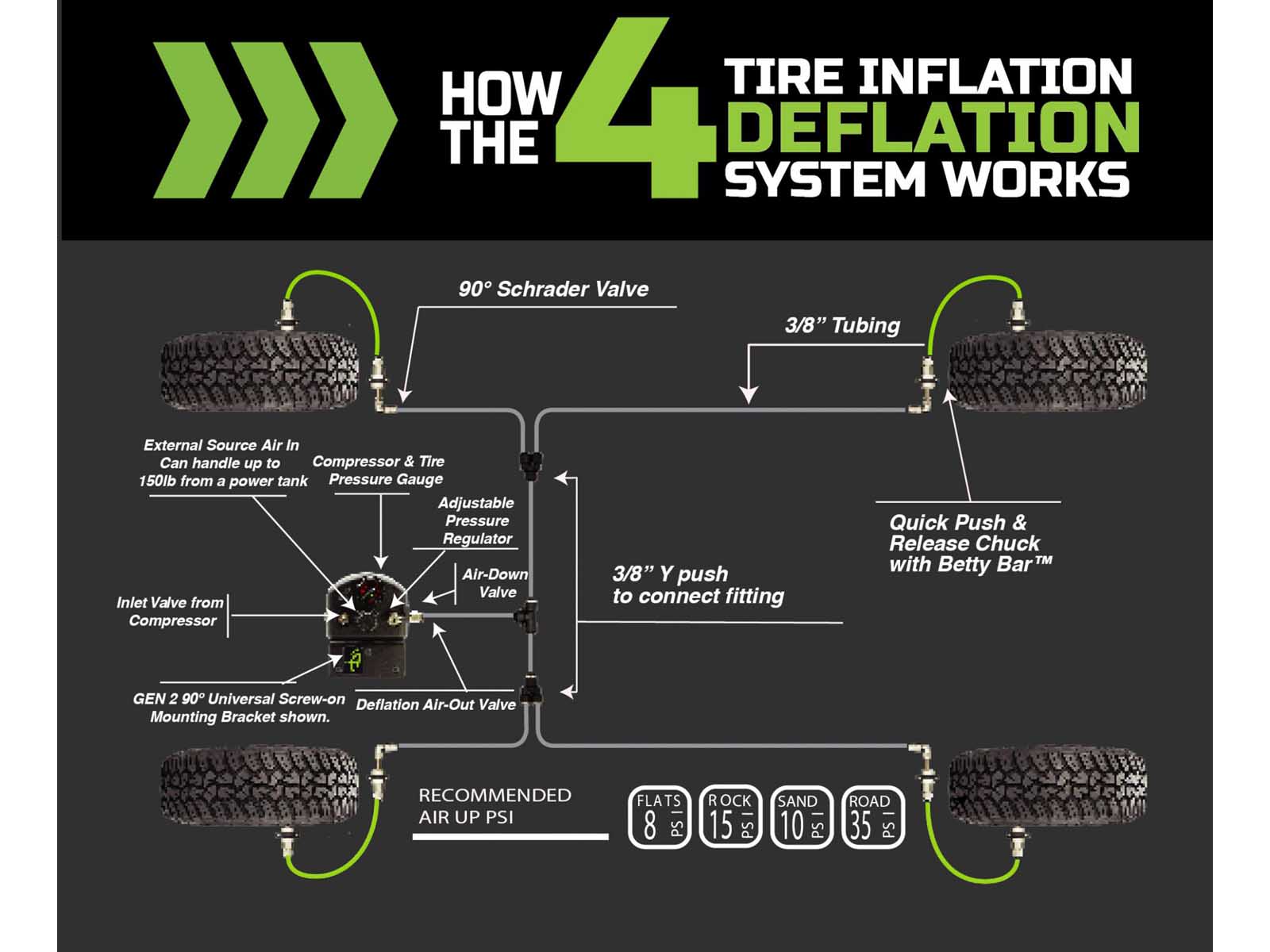

• Air It Up 4 Tire Inflation System can deflate, and automatically inflate or equalize 4 tires at the same time.

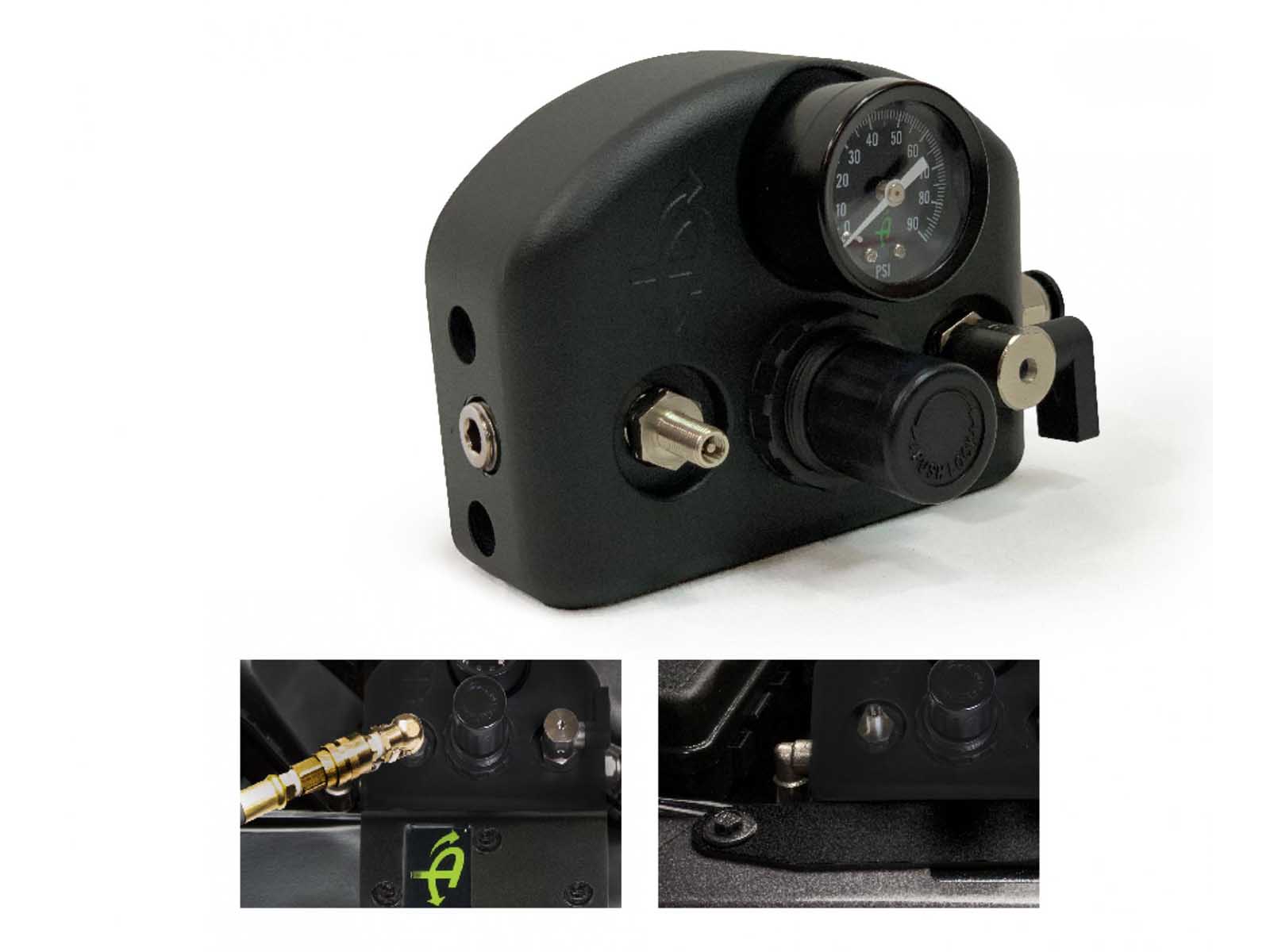

• Includes ADS Controller Box, 90 psi Pressure Regulator, 150 psi Blow-off Valve.
• ADS Controller features 2 inlet valves with permanent or portable air source.

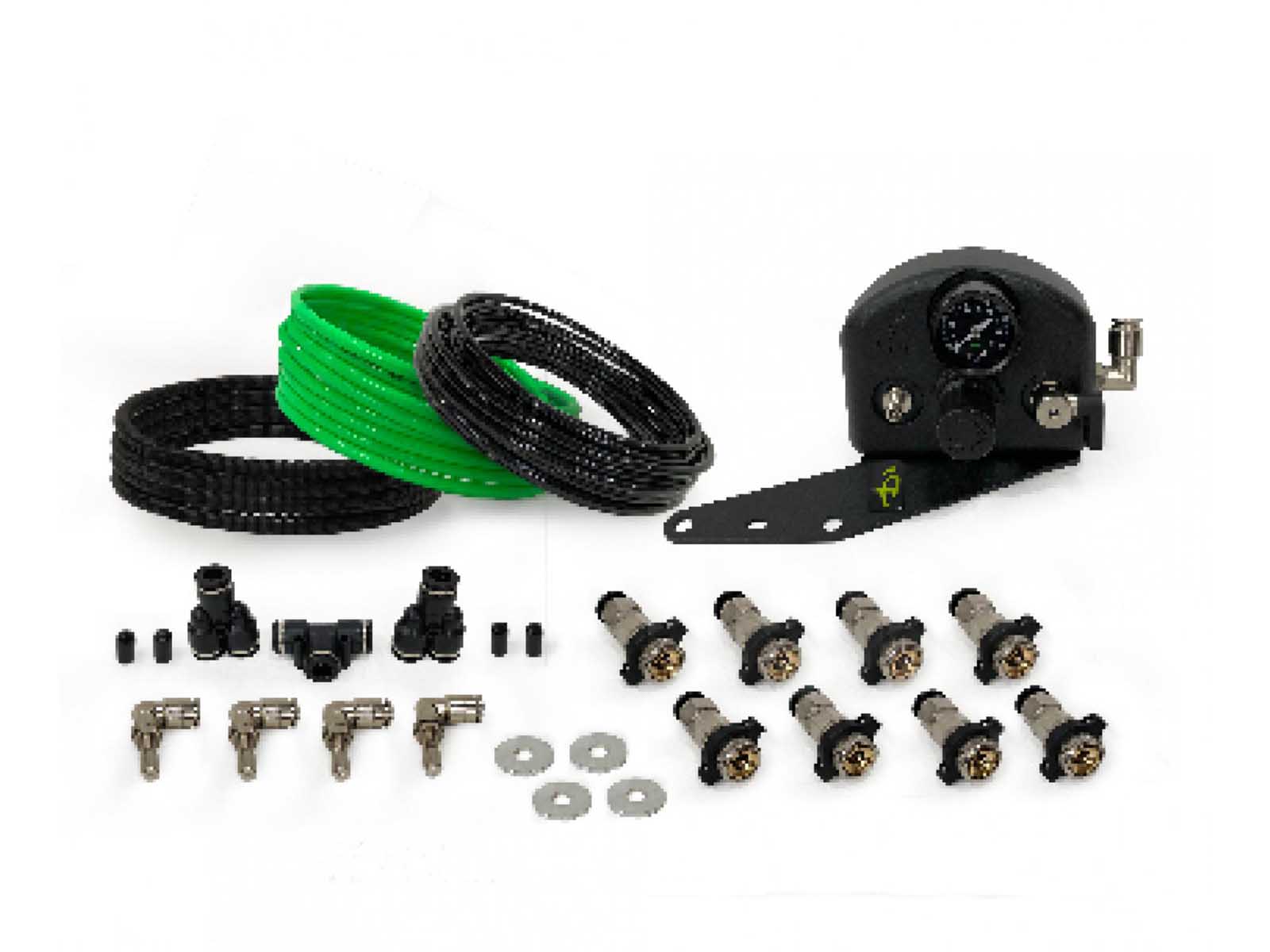

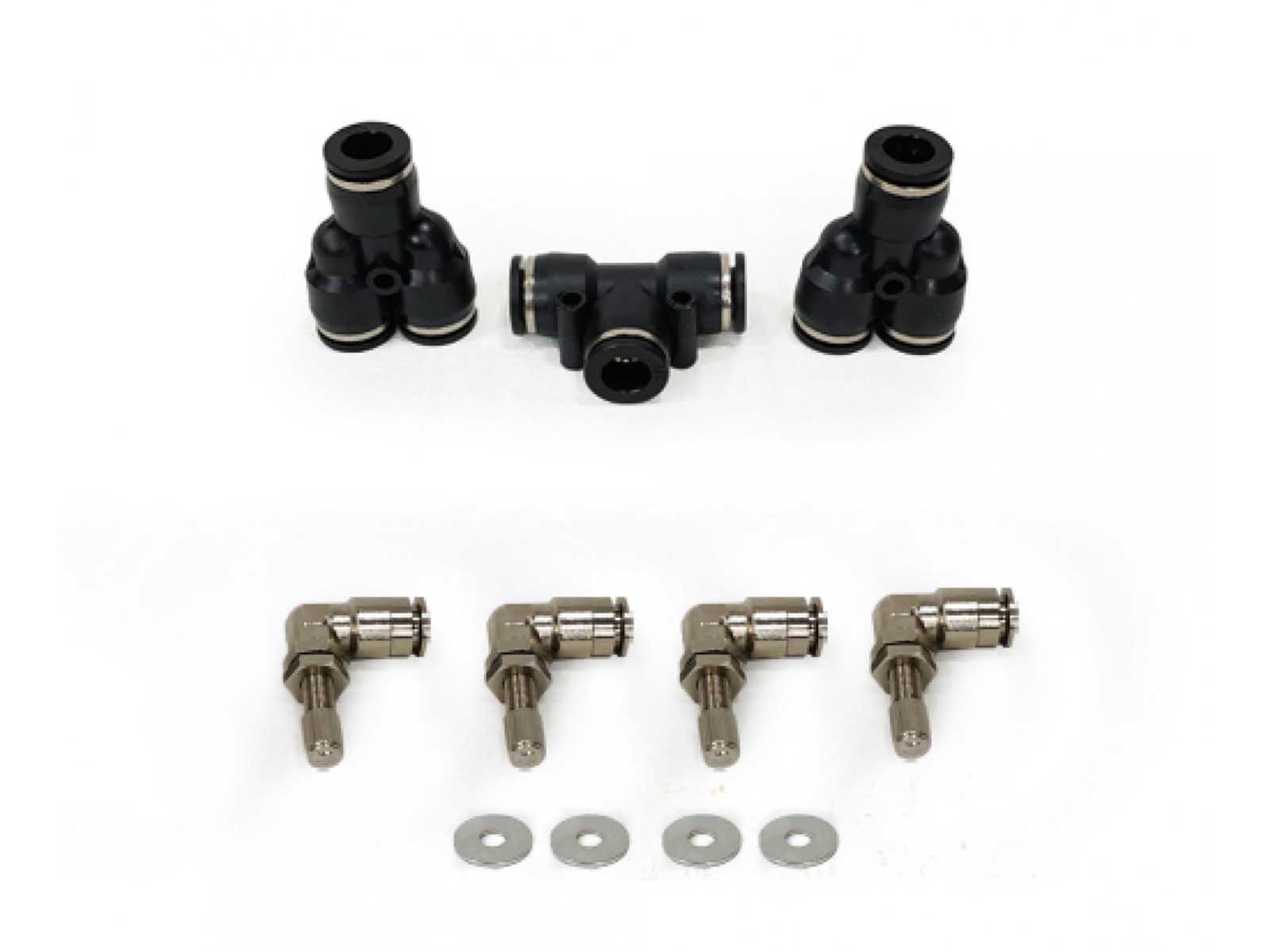

• Includes Pre-cut Hoses, Push To Connect Fittings, and everything that is needed for easy installation.

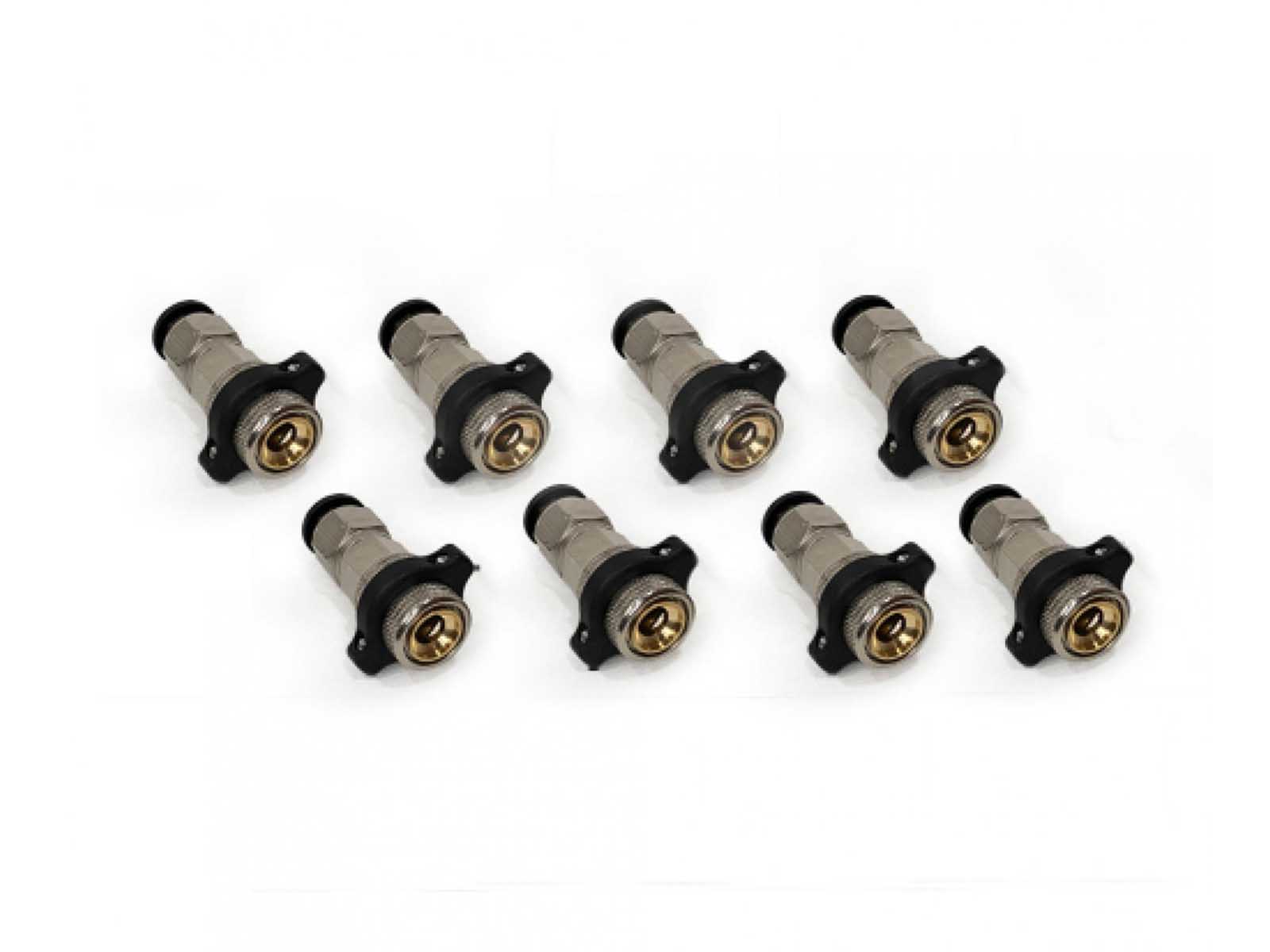

• Includes 8 Quick Connect Chucks with the easy to use Betty Bar feature and 4 Green Tire Connect Whips with a Storage Bag
• Heavy Duty Construction with DOT approved hoses and fittings.
• Designed to work with the EGOI 2 Air Compressor, ARB and Viair Compressors
• Complete line of Air Compressor Bracket Kits Available for Under Engine, Under Seat, and Rear Cargo Area Mounting Solutions.
• 5-Year Limited Month Warranty

Notes
Images provided by manufacturer and may not be exact SKU. Sold as a System. Black Finish. Engine Bay Mount. 5 Year Limited Warranty.
