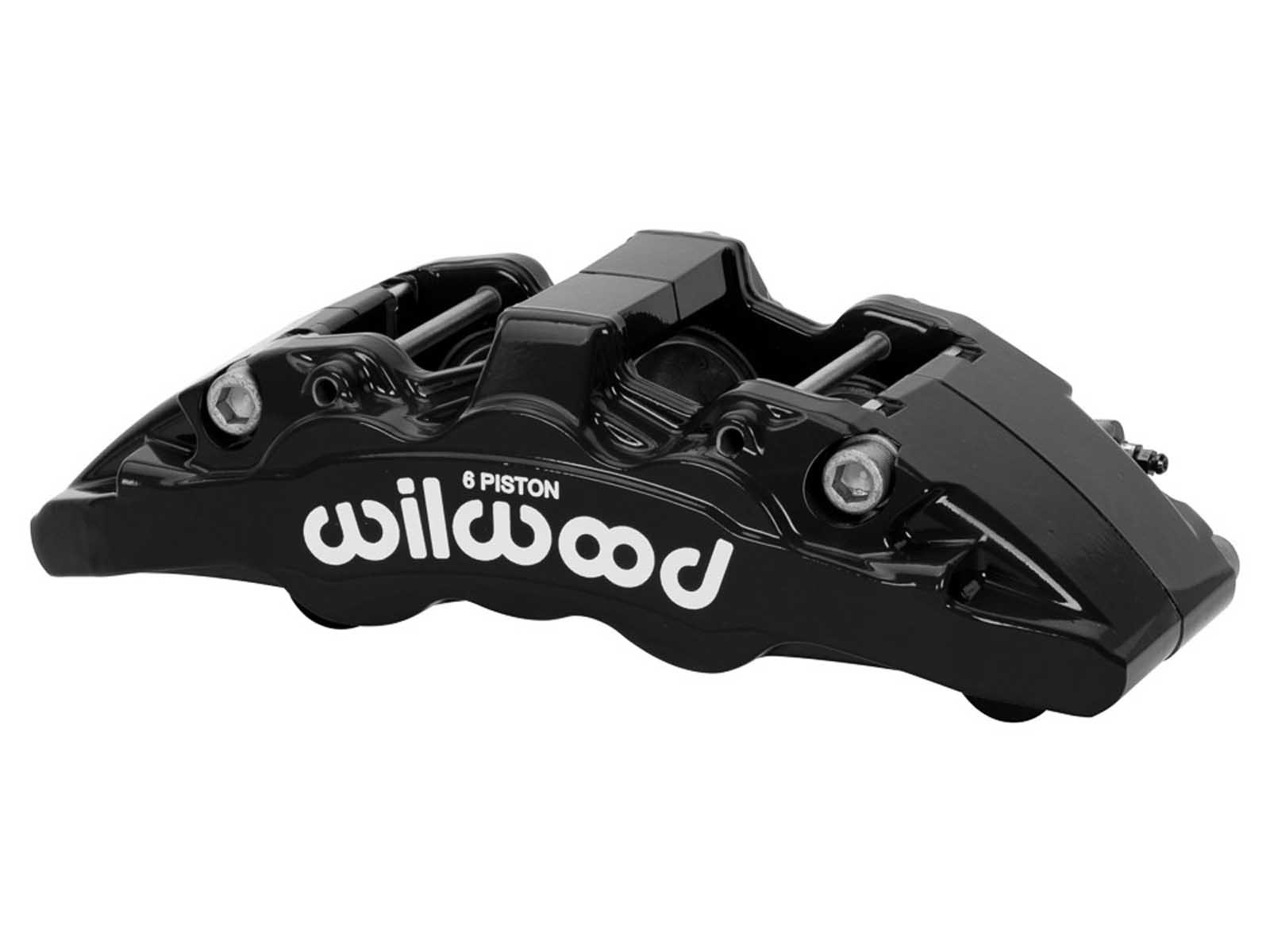

Wilwood 120-17591-BK AERO6-DM Brake Caliper, 1.75/, 1.62/1.62, 1.25 Rotor, Right-Hand, Black For 2013-2018 RAM 1500
The new Wilwood AERO6-DM forged six-piston calipers from Accesspeed deliver heavy duty stopping power for the street and off road. The caliper incorporates race technology into a body design with widespread adaptability. With variable lug geometry the AERO6-DM offers direct spindle mounting with proprietary 13.38” diameter rotors on many late model trucks with multiple options for piston volume give this caliper the versatility necessary to suit all types of heavy weight braking requirements. The new AERO6-DM the latest innovation to the AERO4/6 series of calipers. It has been designed with internal fluid ports that eliminate the external fluid cross-over tubes and massive center bridge assembly for extra rigidity.
The body of AERO series is stress-flow forged from a premium grade aluminum alloy billet. Stress-flow forging realigns the metal's internal grain structure to flow within the contour of the caliper body. This process eliminates the stresses and interruptions to the internal grain structure that occur when machining a straight block billet. The results are a caliper with superior clamping efficiency and ultimate strength against fatigue, stresses, and distortion under load.
Notes
Images supplied by manufacturer and may be a generic product representtation instead of the exact part number.
WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov
Scroll to view product options.
| Part # |
Description |
Price |
|
| WIL-120-17591-BK |
Wilwood 120-17591-BK AERO6-DM Brake Caliper, 1.75/, 1.62/1.62, RH, Black For 2013-2018 RAM 1500 |
$769.95 |
Add to Cart |
Scroll to view product options.
Fits These Applications:
| Year |
Make |
Model |
SubModel |
Engine |
Transmission |
Drive |
