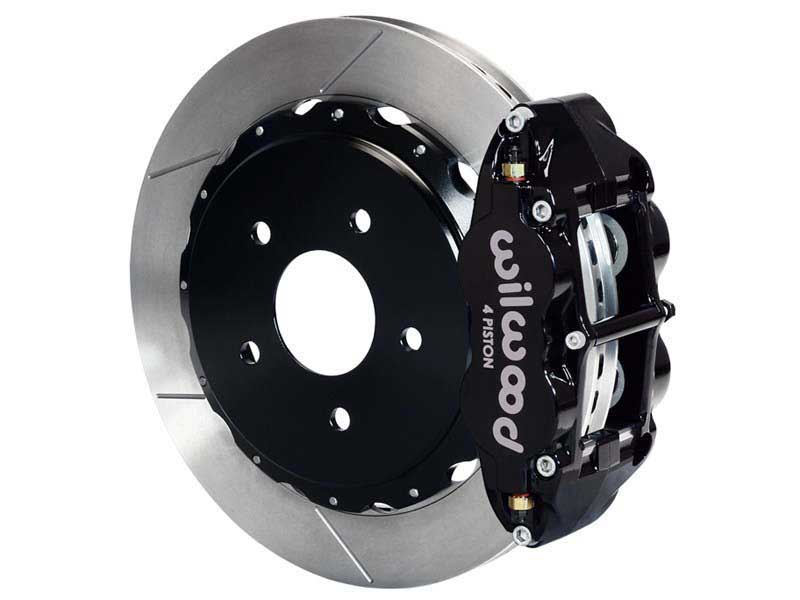

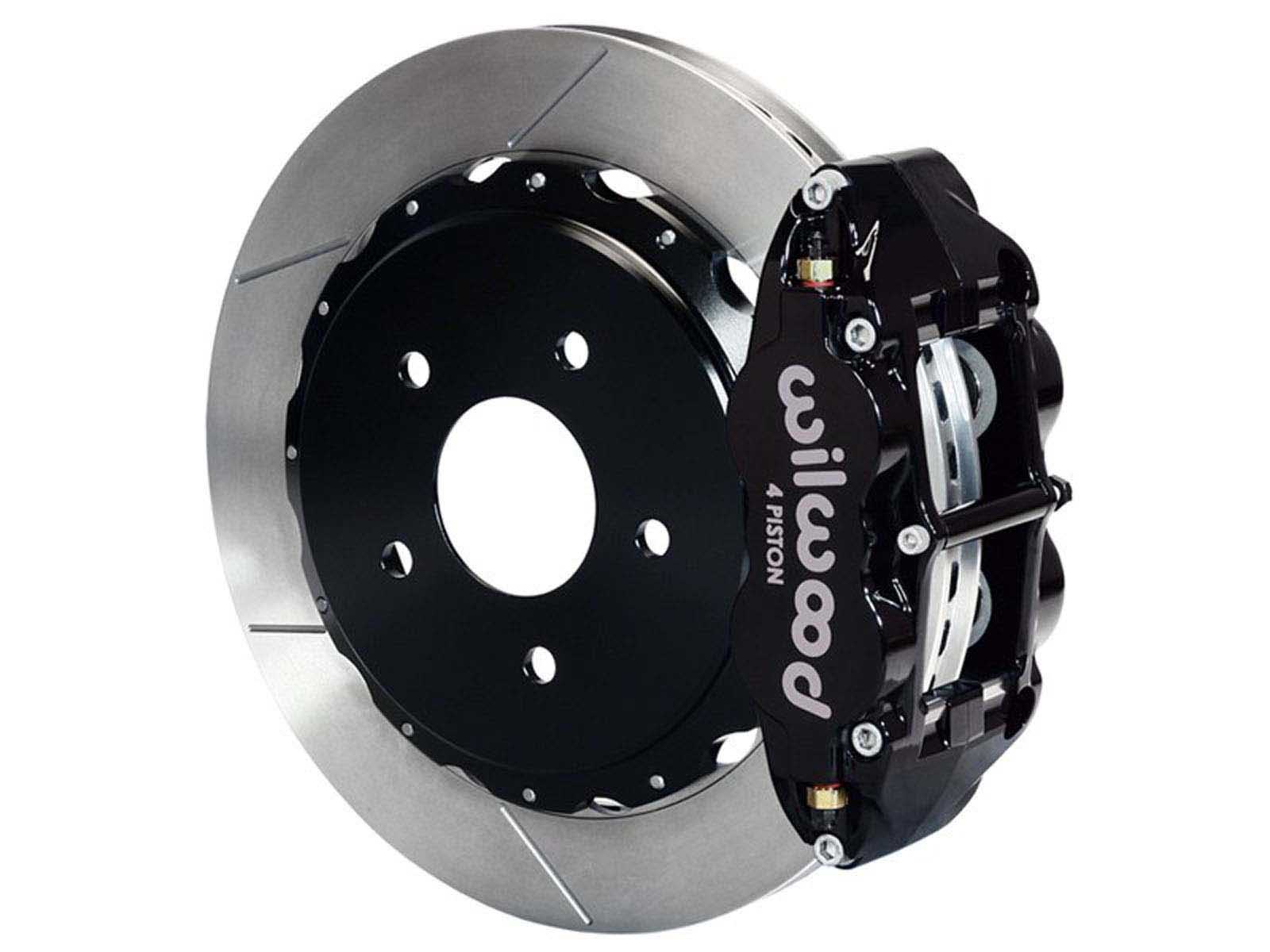

Wilwood 140-9119 Black Forged Superlite 4R Rear Big Brake Kit 14" GT Rotors 1997-2013 Corvette

Wilwood 140-9119 Forged Narrow Superlite 4R 14" Rear Big Brake Kit With Black Calipers & Slotted Rotors, Fits 1997 1998 1999 2000 2001 2002 2003 2004 Corvette C5 2005 2006 2007 2008 2009 2010 2011 2012 2013 Corvette C6

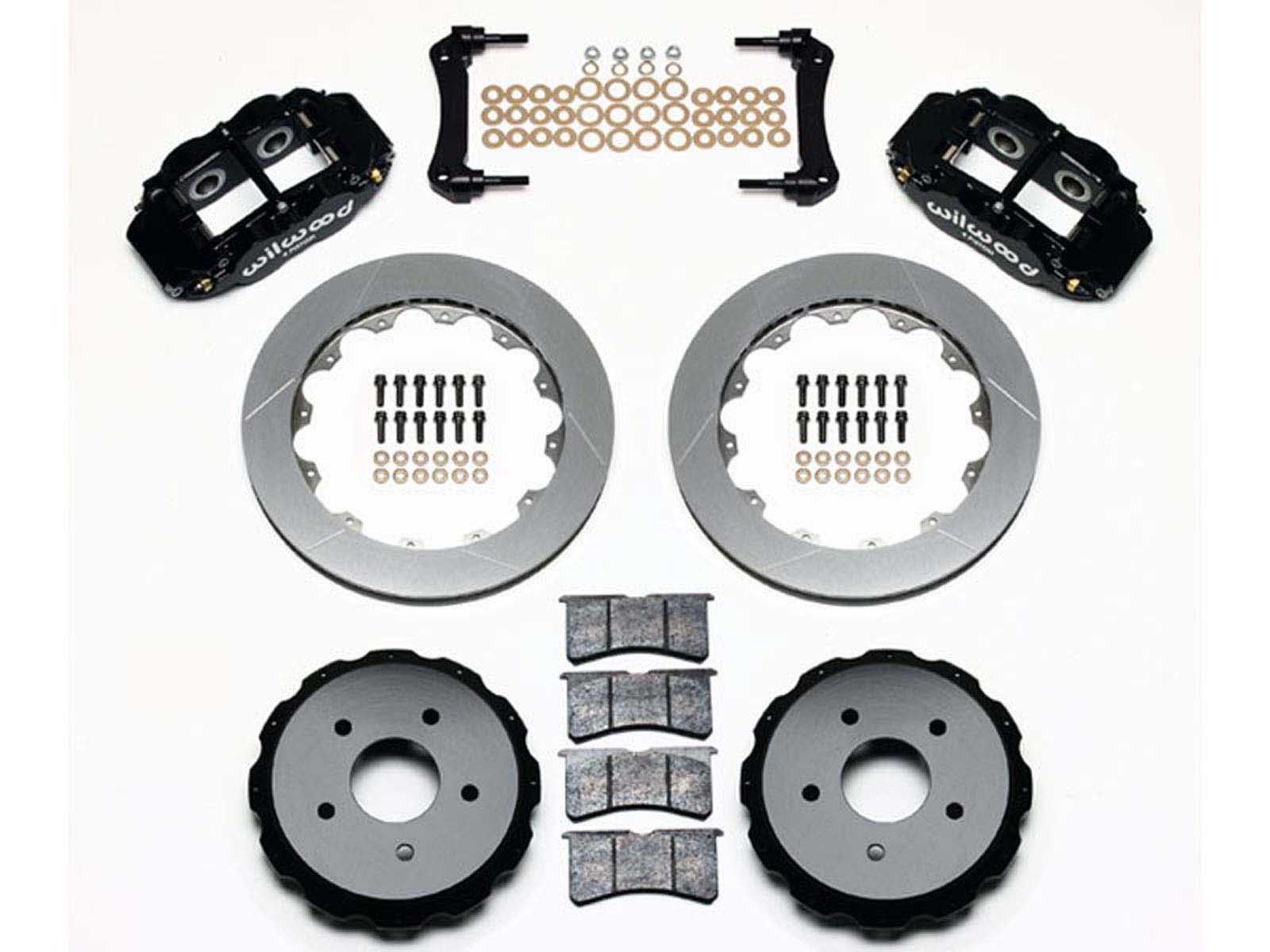

Wilwood "Big Brake" kits use real race technology and components derived from high-end motorsports applications to generate superior stopping power with the durability necessary to survive in extreme environments. Big Brake kits combine high-tech looks with contemporary style that will appeal to the most discriminating Corvette enthusiast. Each kit is a complete bolt-on installation that is fully compatible with the OE master cylinder and ABS while retaining original track width. Utilizes the OE internal parking brake assembly, new hat and rotor assembly supplied with kit.

Billet SL4R Calipers:
SL4R machined billet four piston radial mount calipers are volume matched to provide the correct front to rear bias when used with the SL6 front kit. Stainless steel pistons are used to combat heat. Stainless steel SRS bridge wear plates eliminate pad gouging and extend caliper service life. The spring-loaded action of the SRS plates also eliminates pad rattle and dampens harmonic vibrations that contribute to pad squeal. These calipers are available in black or red to match the front calipers.

SRP and GT Rotors:
13" and 14" diameter SRP drilled and slotted or GT competition series two piece rotors provide additional balance and stopping power with that "Big Brake" look inside the wheel.

Iron Hats
The specially machined iron hats bolt to the rotors and contain the drums for operation with the OE parking brake assembly. These hats are plated in a black zinc finish that resists corrosion and completes the high tech look of the rear brake assembly.

PolyMatrix Brake Pads
PolyMatrix "Q" or "E" compound pads provide response and temperature range matched to the front kits.

CNC Machined Caliper Brackets
Aluminum radial mount caliper brackets with premium grade hardware complete the total car package.

NOTE: Fittings and flexlines to install these brake systems are NOT INCLUDED and must be ordered separately.  This kit requires part #WIL-220-8177 for C5 models and WIL-220-9101 for C6 models.

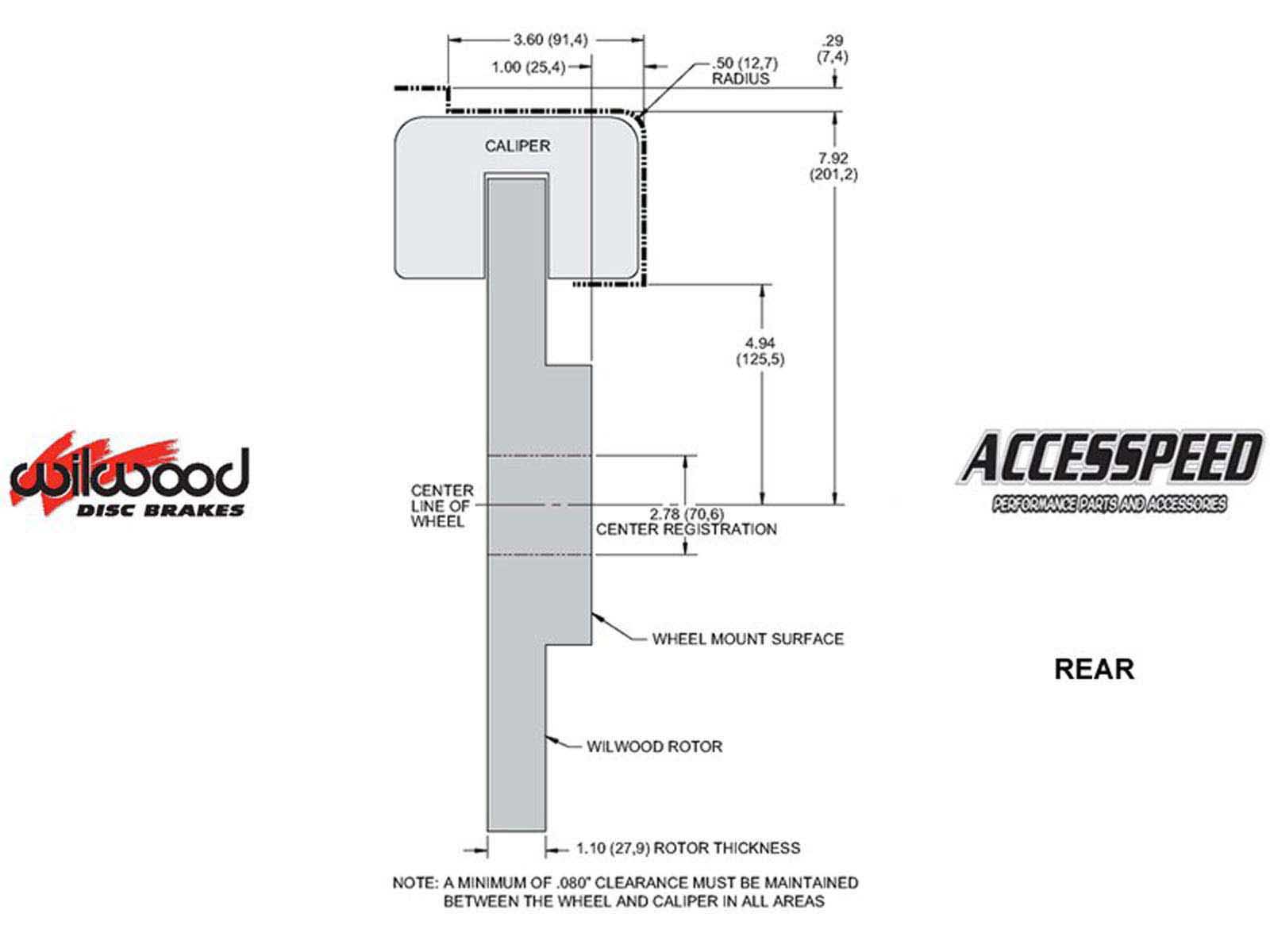

*This Brake Kit may fit 18-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.

Below is a great video showing How To Install Corvette C5 and C6 Brakes:

Notes

Black Calipers. See separate listing for the red caliper system. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering. Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.
