Wilwood 140-13743 AERO6R/ST 14" Front Race Big Brake Kit, Slotted, Gray Anodized, 1997-2013 Corvett

Wilwood 140-13743 Front AERO6 RACE 14" Big Brake Kit With Gray Anodized Finish and Slotted Rotors, Fits 1997-2004 Corvette C5 and 2005-2013 Corvette C6

AERO6R/ST six piston radial mount race calipers are coupled with the high cooling capacity of 14.00" dynamically mounted Spec37 GT directional vane rotors to provide the ultimate brake package for unrestricted road race competition. AERO6R/ST calipers use a forged aluminum body and feature a Type III Mil-Spec, medium gray color hard anodized finish. Hard anodizing provides superior wear resistance in the piston bores, and high resistance to abrasion and corrosion throughout. This latest model of the AERO6R/ST calipers features a wider than standard body that accepts 20mm thick pads to add volume for longer service life. Thermlock® pistons are used to reduce heat transfer from the pads to increase fade resistance, and extend service life with decreased temperatures in the caliper body, fluid, and seals. Internal damper springs and controlled retraction, high-temperature piston seals assure consistent pedal height from start to finish. Caliper piston volumes are matched for full compatibility with the OE master cylinder output and ABS controls. The calipers are also fully compatible with manual brake conversions to balance bar pedals using appropriately sized master cylinders. Spec37 alloy GT series directional vane rotors are dynamically mounted to the OE hubs with weight saving forged aluminum hats. As is with the calipers, the hats are hard anodized for superior wear resistance and extended service life at the load bearing surfaces. Mounting brackets, including all premium grade fasteners, secure the calipers to the uprights in the stock location with no modifications required. This championship proven system is completed with high temperature, high friction, race compound pads selected specifically by application.

Brake Kit does not include flex lines. Flex lines are necessary to complete the installation of the kit and must be ordered separately #WIL-220-8176 for C5 and WIL-220-9100 for C6.

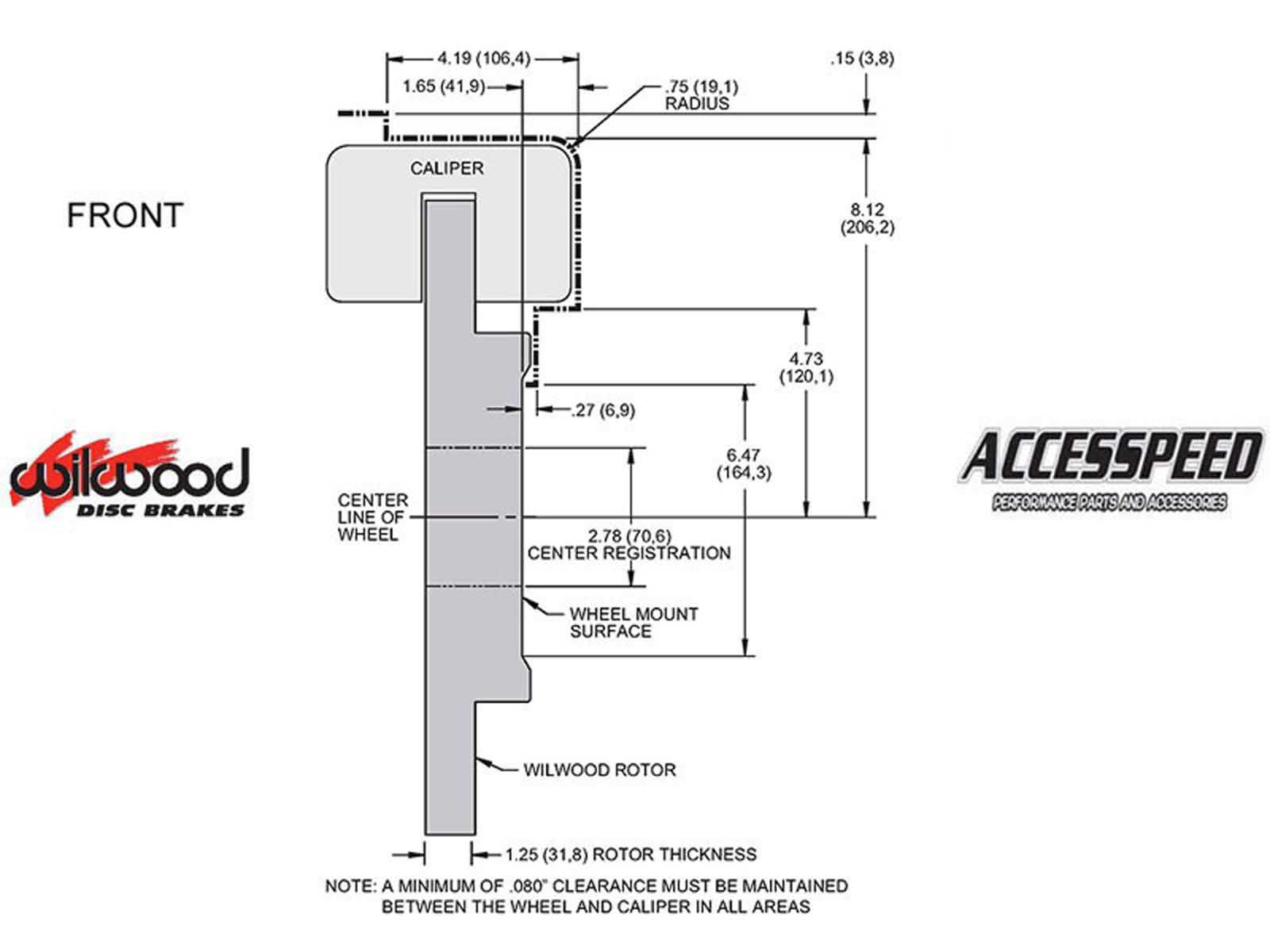

*This Brake Kit may require 18-inch or larger wheels for proper fit. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.

Below is a great video showing How To Install Corvette C5 and C6 Brakes:

Notes

1. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear.
2. Kit may fit some 18" wheels. Check wheel clearance diagram in kit installation instructions before purchase.

WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Scroll to view product options.

Fits These Applications:
