Wilwood 140-13322 Dynapro 12" Rear Big Brake Kit, Black, 1966-1977 Bronco W/Big Axle & 2.36" Offset

Wilwood 140-13322 Dynapro Rear 12.19" Big Brake Kit With Black Calipers, Fits 1966 1967 1968 1969 1970 1971 1972 1973 1974 1975 1976 1977 Ford Bronco With 2.36" Offset 5 x 5.5" Big Ford Flange

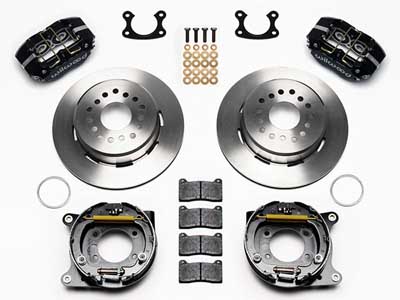

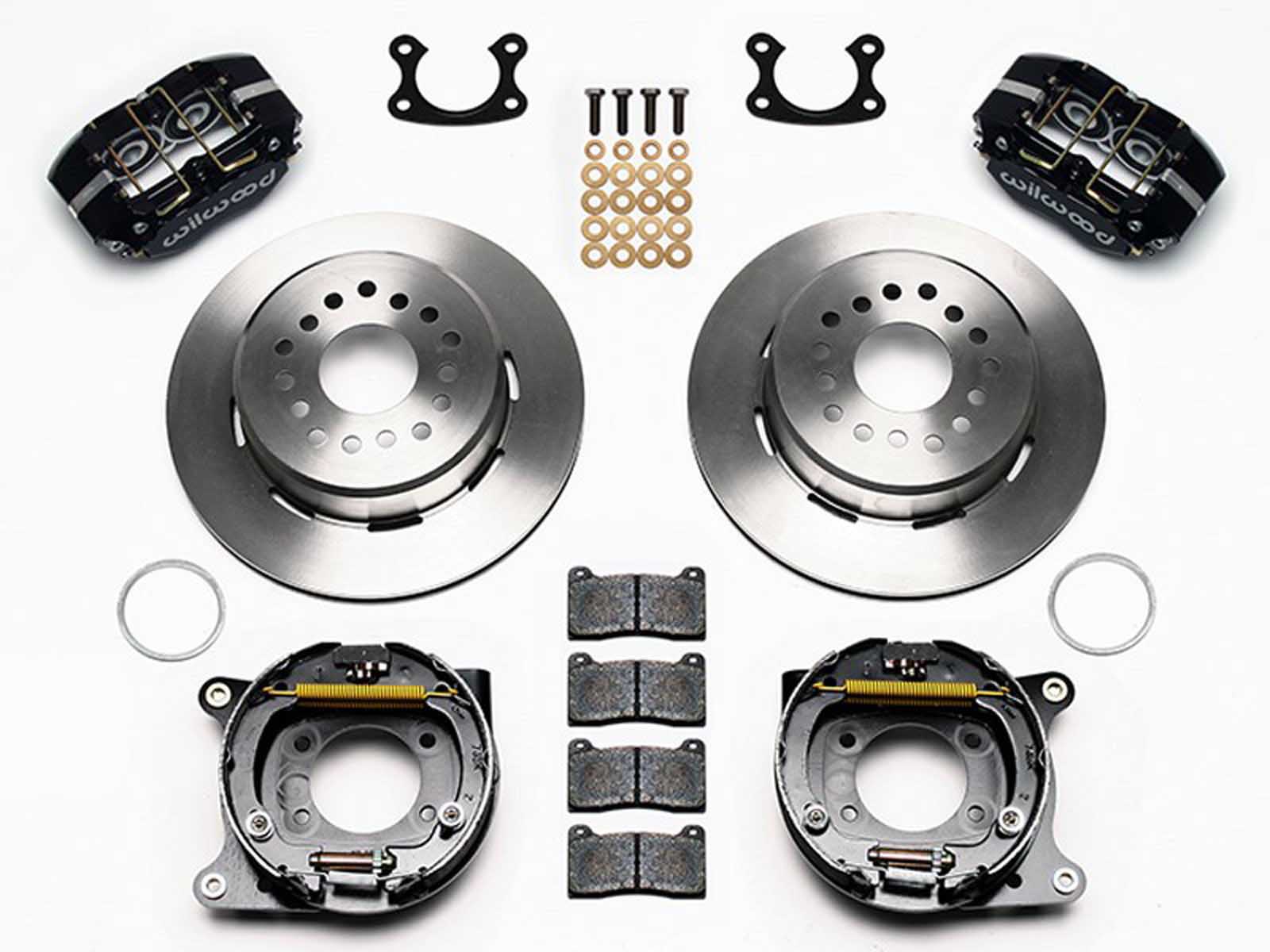

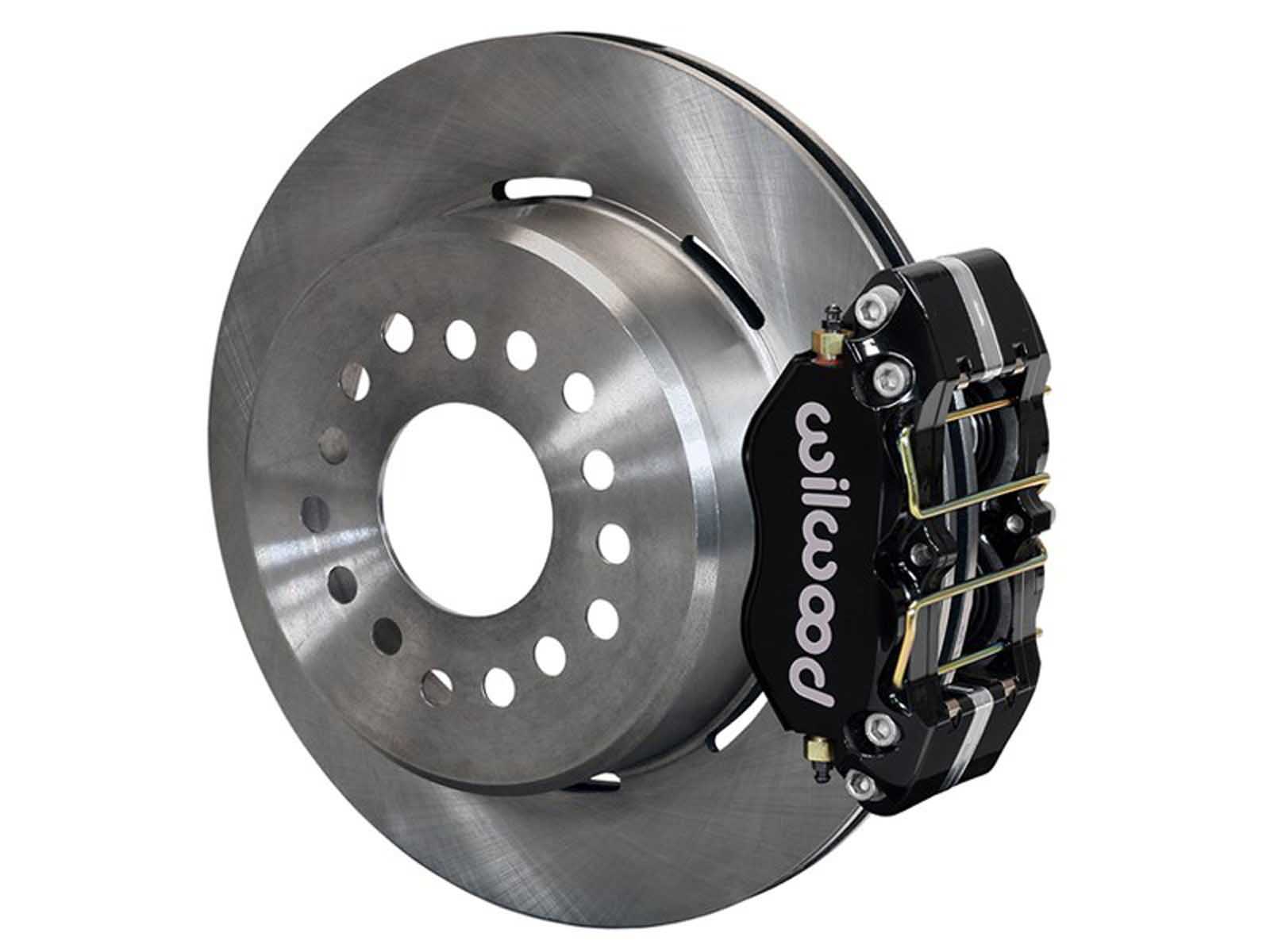

These versions of DPL Pro-Series rear disc kits provides a complete solution for Bronco 65-77 rear axles with Big Ford flange and bearing. (normally: OE 11 inch diameter brakes and 3300 GVW.) Forged Billet Dynapro Lug Mount four piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking to compliment front big brake upgrades available for Bronco platform. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application. This brake kit does not include brake lines. Wilwood Flexline brake lines are necessary to complete the installation of the kit and must be ordered separately. See below for brake line kit options:

Flexline 14-inch Stainless Braided Brake Line Kit # WIL-220-7056

Flexline 16-inch Stainless Braided Brake Line Kit # WIL-220-7699

Flexline 18-inch Stainless Braided Brake Line Kit # WIL-220-8307

Some vehicles may require an extended rear parking brake cable for proper function, which is sold separately. Please use kit # WIL-330-9371

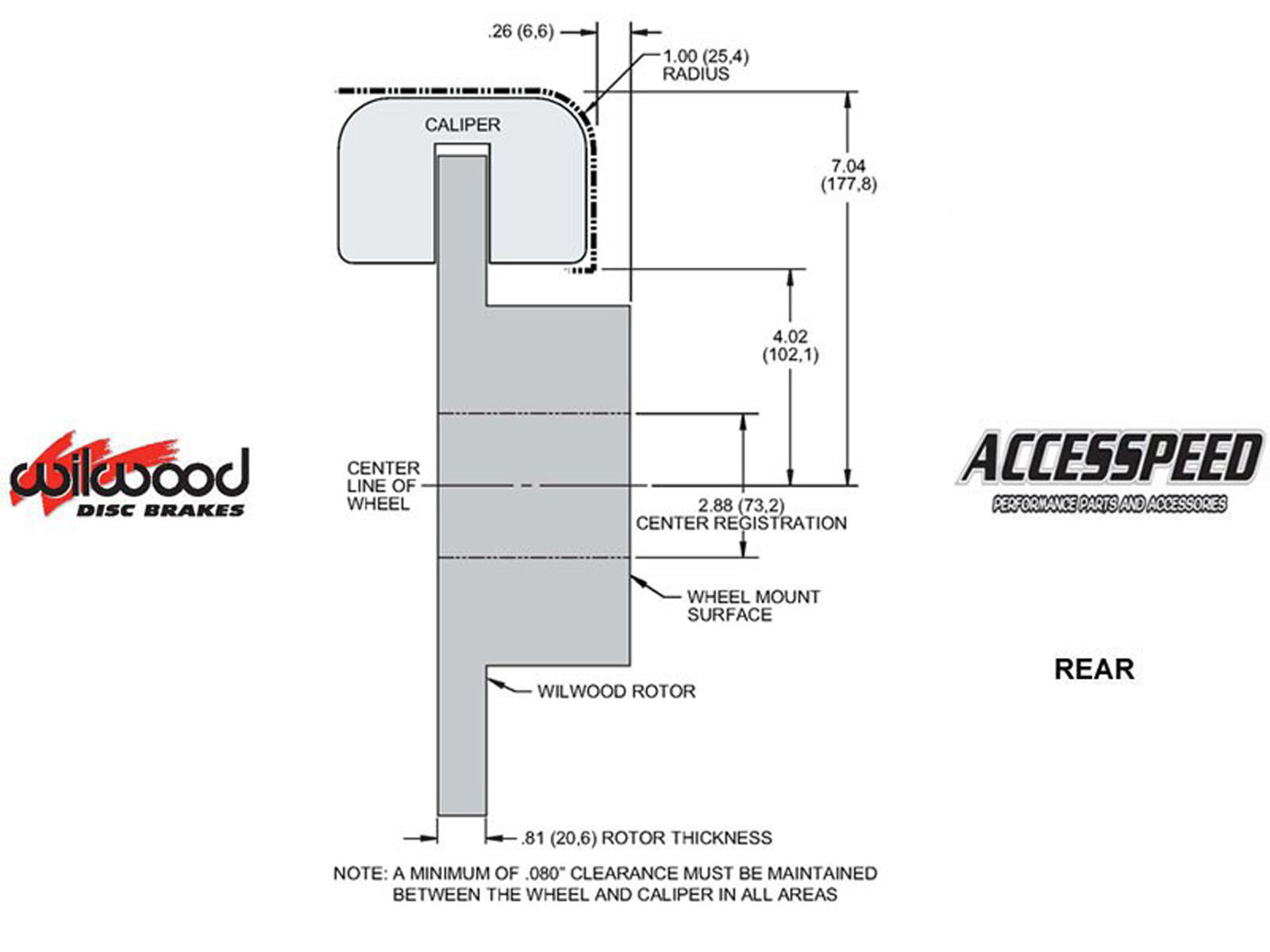

*This Brake Kit may require 15-inch or larger wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.

Notes

This system includes Black Calipers. Please see additional listings for Red Calipers. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering! Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.
