Wilwood 140-12768 Rear CPB 11" Big Brake Kit Black Calipers & Standard Rotors 2012-2015 Fiat 500

Wilwood 140-12768 Rear CPB 11" Big Brake Kit Black Calipers & Standard Rotors 2012-2015 Fiat 500
Part Number: WIL-140-12768
Brand: Wilwood
List Price: $1,364.96
Price: $1,089.99

This product qualifies for Free Ground Shipping*
Qty

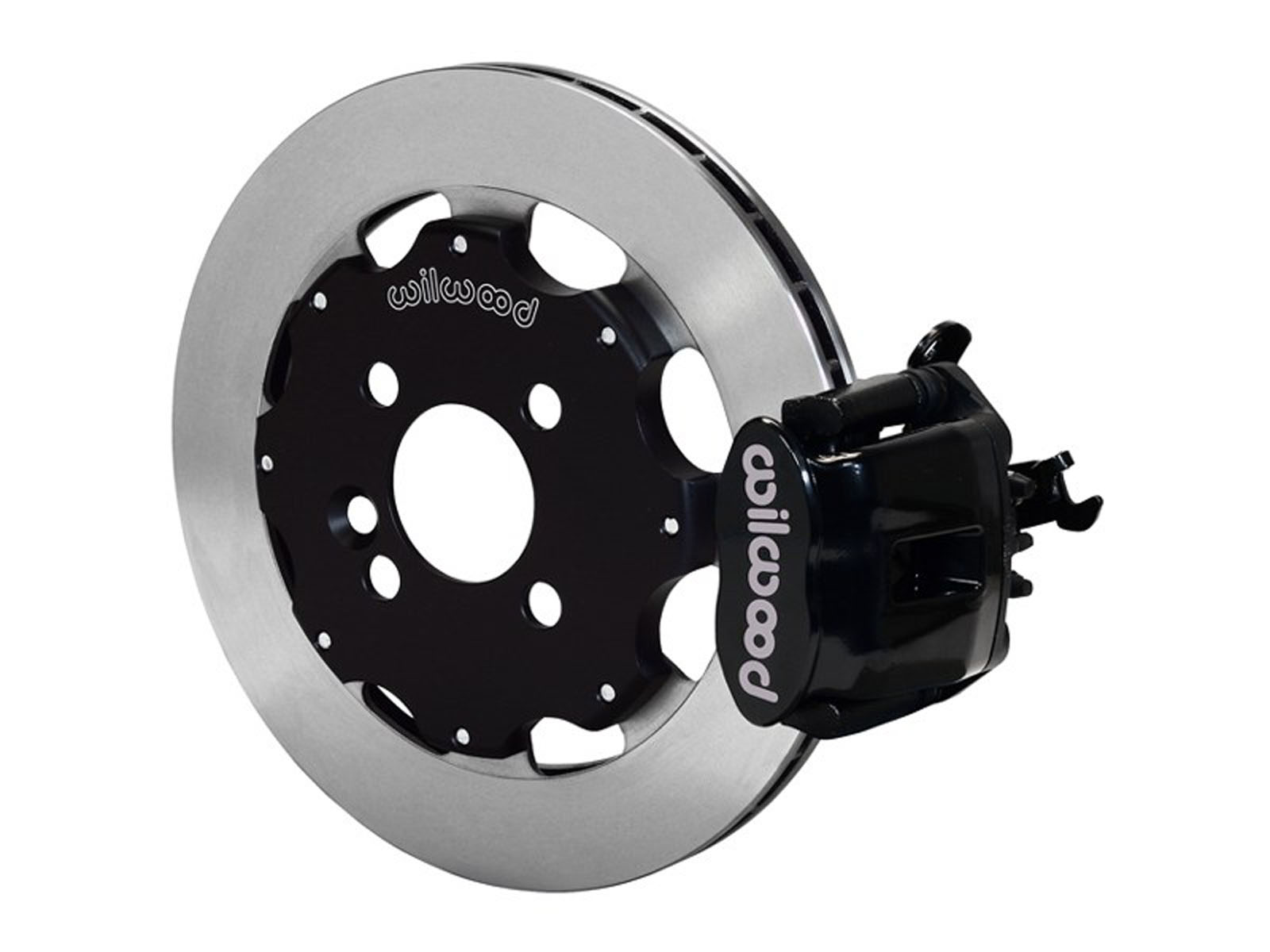

Wilwood 140-12768 Rear CPB 11" Big Brake Kit With Black Calipers & Standard Rotors 2012 2013 2014 2015 Fiat 500

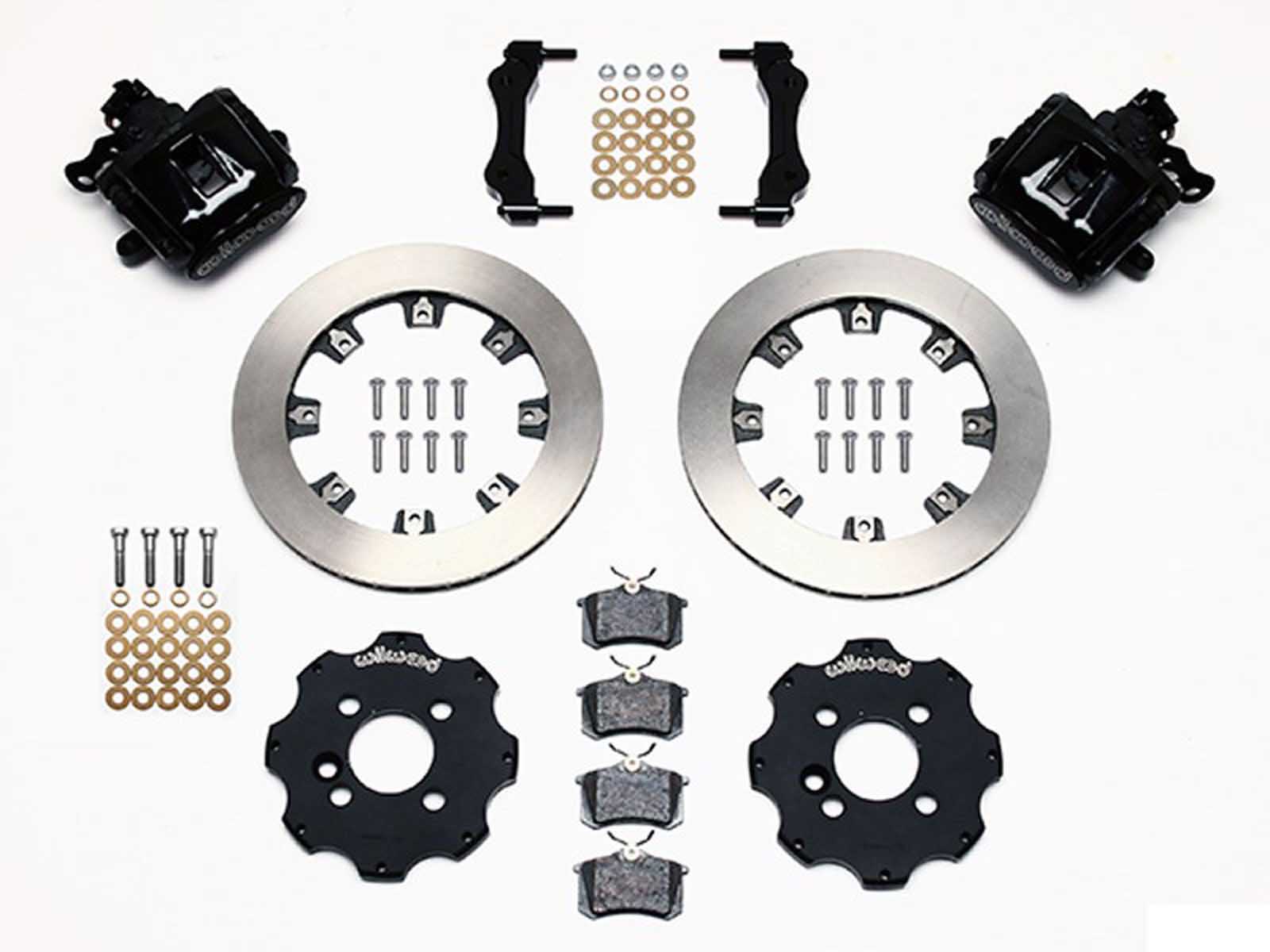

Combination hydro-mechanical Parking Brake calipers use hydraulic pressure from the master cylinder for stopping power, and an internal mechanical lock within the caliper for a parking brake. CPB kits are built primarily for front wheel drive vehicles, and select rear wheel drive axles that are not well suited for internal shoe style parking brakes. The calipers are coupled with oversized two-piece rotor assemblies with aluminum hats and high friction BP-10 compound pads. CPB kits provide the correct balanced brake performance and matching style to compliment front big brake upgrade kits.

Flexline brake lines are included in this kit.

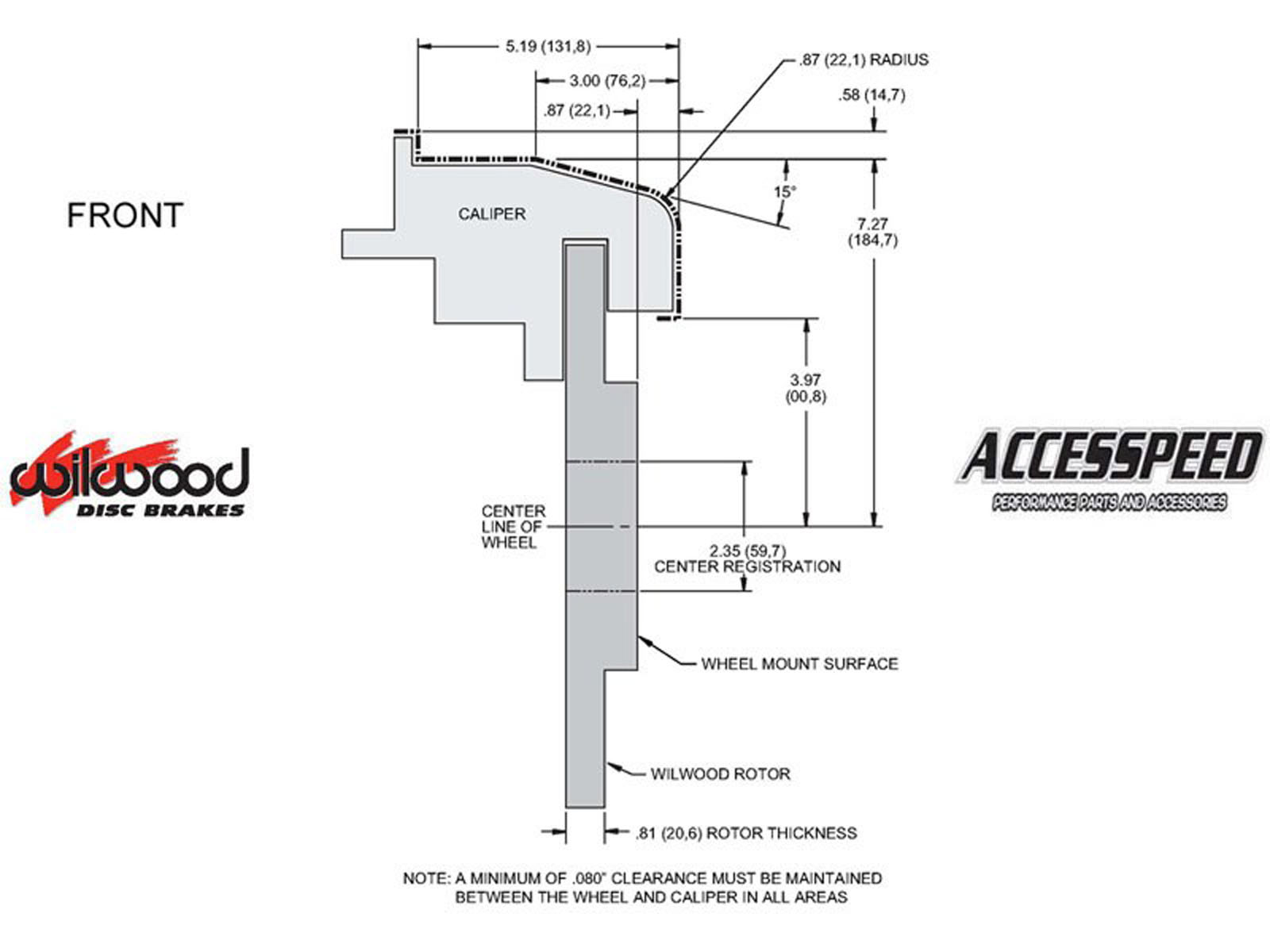

*This Brake Kit may require 15-inch or larger wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.


Notes

This system includes Black Calipers. Please see additional listing for Red Calipers. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering. Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.

Prop 65 Warning WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Part # Description Price
WIL-140-12768 Wilwood 140-12768 Rear CPB 11" Big Brake Kit Black Calipers & Standard Rotors 2012-2015 Fiat 500 $1,089.99 Add to Cart

Scroll to view product options.

Fits These Applications:

Year Make Model SubModel Engine Transmission Drive
2015 Fiat 500 1.4 FWD
2015 Fiat 500 1.4 T FWD
2014 Fiat 500 1.4 FWD
2014 Fiat 500 1.4 T FWD
2013 Fiat 500 1.4 FWD
2013 Fiat 500 1.4 T FWD
2012 Fiat 500 1.4 FWD
2012 Fiat 500 1.4 T FWD
