Wilwood 140-10691 Superlite 4R Front 12" Race Brake Kit, Slotted, Gray Anodized, 1993-2002 Camaro

Wilwood 140-10691 Forged Narrow Superlite 4R Front 12.19" Road Race Big Brake Kit With Gray Anodized Calipers and Slotted Rotors, Fits 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 Camaro & Firebird

This kit is configured for dedicated road racing on all models of the 1998-2002 Camaro and Firebird. The four piston FSL4R/ST calipers used in this kit feature a forged aluminum body with a Type III Mil-Spec hard anodized, medium gray color finish. Hard anodizing provides superior wear resistance in the piston bores, and high resistance to abrasion and corrosion throughout. Thermlock® pistons are used to reduce heat transfer from the pads to increase fade resistance, and to extend service life by decreasing temperatures in the caliper body, fluid, and seals. Internal damper springs and controlled retraction, high-temperature piston seals assure consistent pedal height from start to finish. Caliper piston volumes are matched for full compatibility with the OE power brake booster and master cylinder, and are easily configured with manual brake conversions and balance bar pedals using appropriately sized master cylinders. Spec37 alloy GT competition series 12.19” diameter directional vane rotors provide high cooling efficiency with rugged durability and thermal stability in sustained high heat competition. Unsprung and rotating weight are minimized by using forged aluminum rotor mounting hats for mounting on the factory hubs. Mounting brackets, including all premium grade fasteners, secure the calipers in the stock location, with minor modifications to the spindle for bracket clearance. Details of the required modifications are illustrated on page 4 of assembly instructions. This championship proven system is completed with high temperature, high friction, endurance race compound pads selected specifically by application. Stainless steel braided flexlines are included in each kit to complete the installation.

*This kit will fit 1993-1997 Camaro & Firebird With 1998-2002 F-Body spindle conversion.

**Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear.

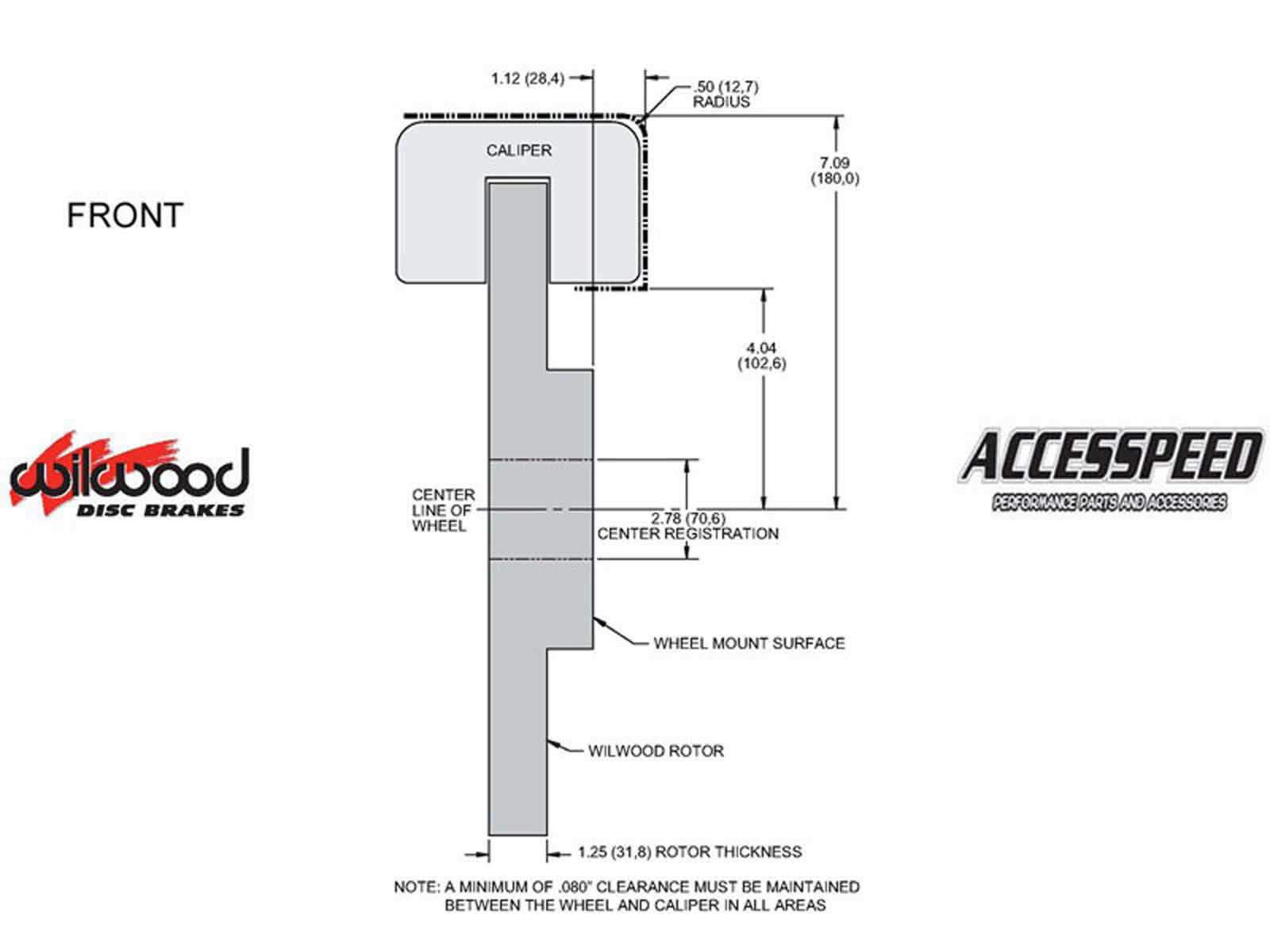

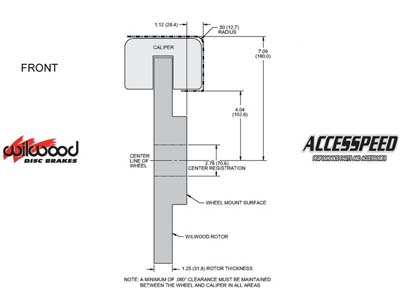

***This Brake Kit may require 15-inch or larger wheels or wheels spacers for proper fit. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.

Notes

This system includes Gray Anodized Calipers. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering. Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.
