Wilwood 140-8996-R TC6R 6-Piston Red Big Brake Kit 16" Slotted Rotors 1999-2011 GM Truck/SUV 8-Lug

Wilwood 140-8996-R TC6R 6-Piston Red Big Brake Kit 16" Slotted Rotors 1999-2011 GM Truck / GM SUV / Hummer H2 8-Lug

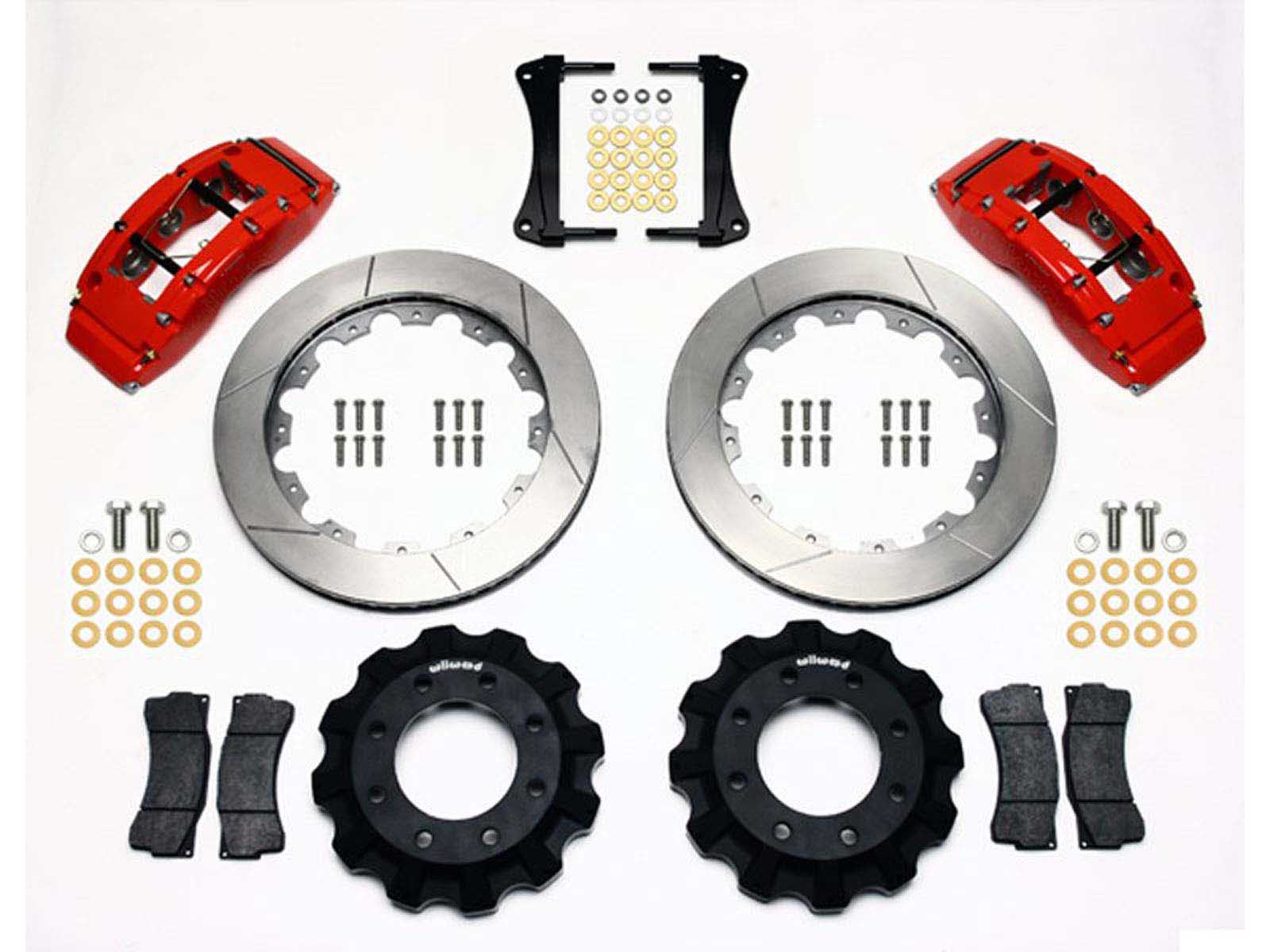

Big Brake Truck Front Hat Kits are engineered for use in conjunction with OE front hubs on a variety of competition, show, custom, and sport driving applications. Forged TC 6 piston calipers, Wilwood brake pads, machined aluminum hats, and 16" GT directional vane rotors exemplify award winning style and provide the ultimate in Big Brake Truck stopping power. Born from Wilwood's 25 year tradition of building championship brake systems, TC Big Brake kits are the perfect compliment to wheel, tire, and suspension equipment upgrades.

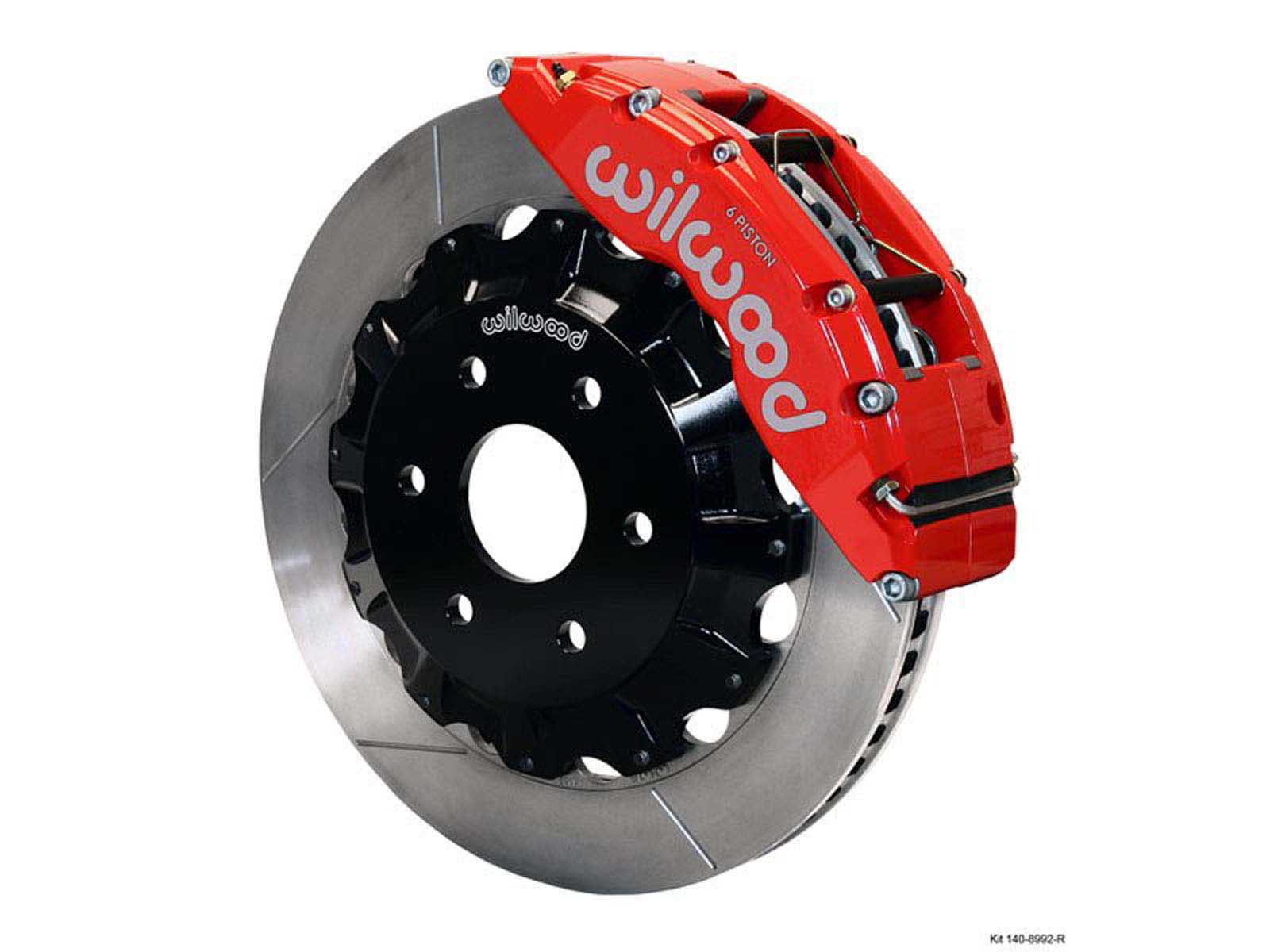

Forged Billet TC 6 Piston Calipers

Superior strength forged billet calipers resist deflection under load without adding unnecessary weight. Six stainless steel pistons generate high clamping force and balanced pad loading while resisting corrosion and reducing heat transfer from the pads. Standard kits include black calipers with the Wilwood signature. Red calipers available on custom orders. Calipers Available in Black or Red

GT 16” Staggered Vane Directional Rotors

Staggered direction vane rotors offer the highest cooling efficiency by maximizing the surface area and air circulation between the rotor faces. GT series rotors are face slotted to enhance pad performance and carry the maximum rotor mass for thermal stability in high temperature or competition applications.

Forged Aluminum Rotor Hats

High strength forged aluminum hats are rib reinforced to carry extreme loads and eliminate unnecessary, power robbing rotational weight. Black anodizing prevents oxidation while adding to the custom look inside the wheel.

Wilwood Brake Pads

Advanced formula high friction compounds have quick response, big stopping power, and extended fade resistance over OE compound pads. Low dust, low noise formulas are easy on the driver and the wheels.

Mount Brackets and Hardware

Race proven radial caliper mount system with brackets and premium grade studs, nuts, bolts, washers, and alignment shims assure an accurate and secure installation.

Plumbing

Fittings and flexlines to install these brake systems are NOT INCLUDED and must be ordered separately.  This kit requires part #WIL-220-8998.

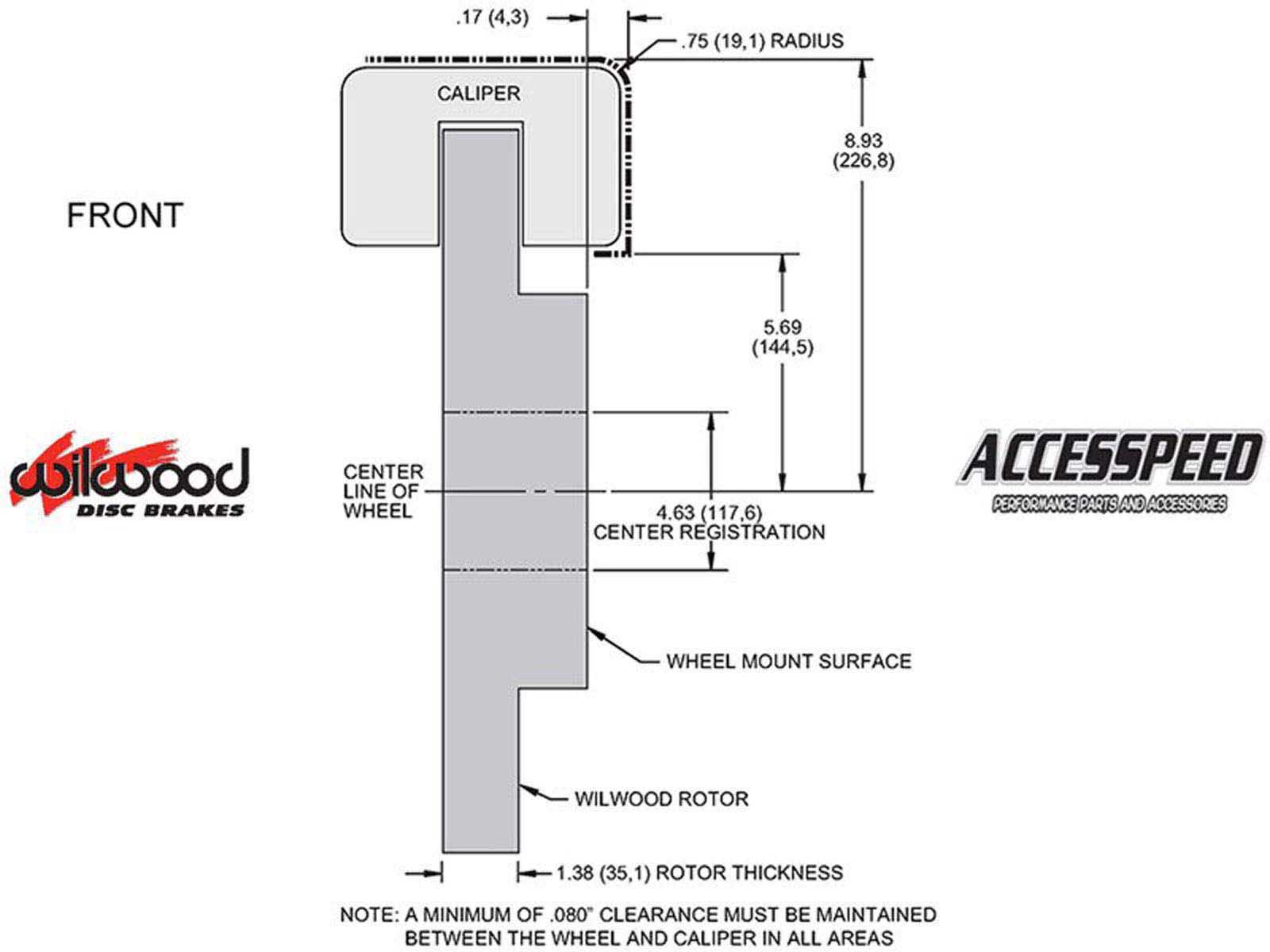

*This Brake Kit may require 20-inch or larger wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.

Notes

Red Calipers. See separate listing for the black caliper system. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering! Please list your caliper color preference (Black or Red) in the NOTES Field when ordering.

Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.
