Wilwood 140-8754-R Rear Dynalite 4-Piston Big Brake Kit 12.19" GT Rotors 2004 2005 2006 Pontiac GTO

Wilwood 140-8754-R Rear Dynalite 4-Piston Big Brake Kit 12.19" GT Rotors and Red Calipers 2004 2005 2006 Pontiac GTO

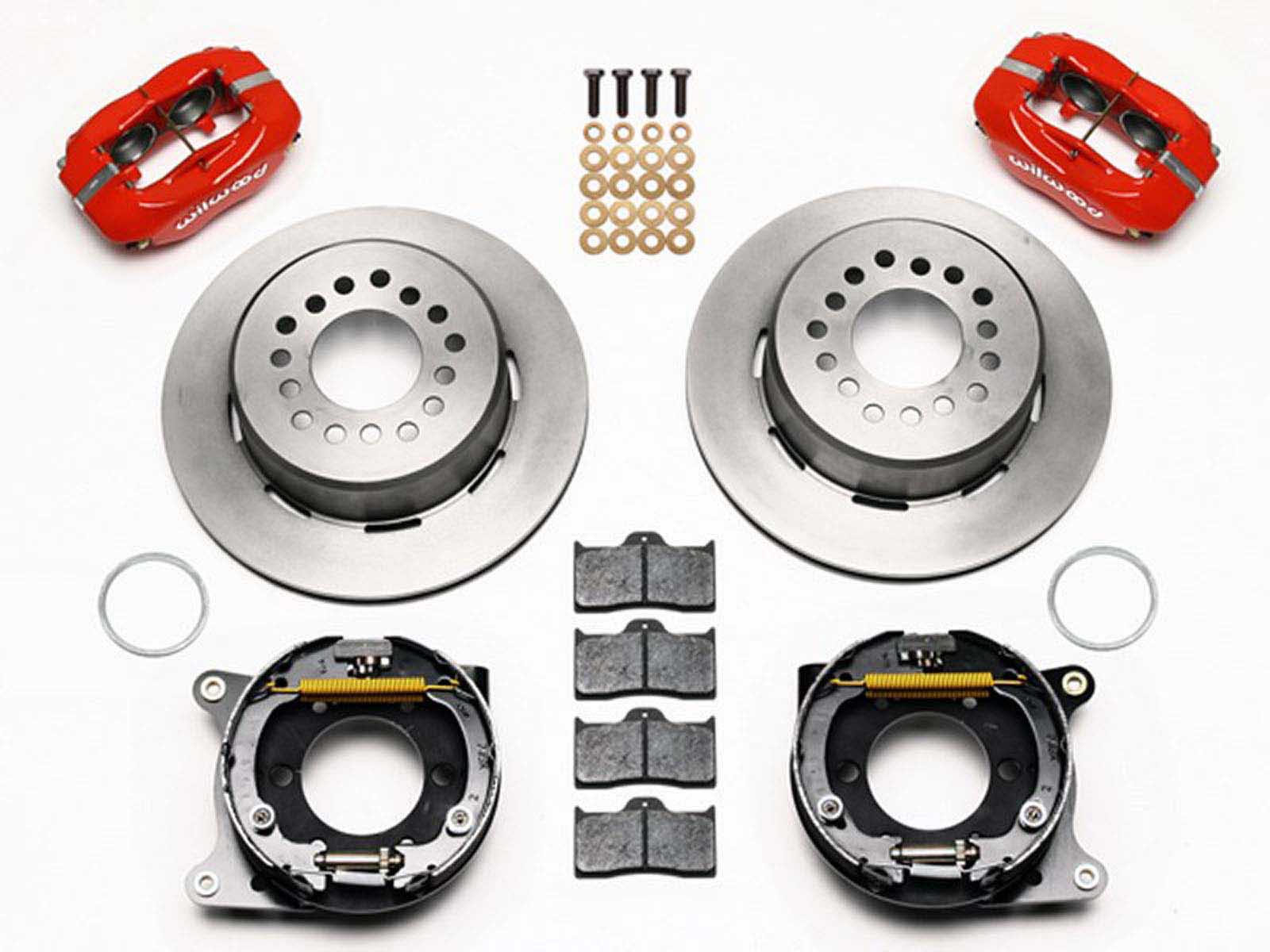

The Wilwood "Big Brake" kits use real race technology and components derived from high-end motorsports applications to generate superior stopping power with the durability necessary to survive in extreme environments. Big Brake kits combine high-tech looks with contemporary style that will appeal to the most discriminating enthusiast. Each kit is a complete bolt-on installation that is fully compatible with the OE master cylinder and ABS while retaining original track width.  This kit utilizes the OE internal parking brake assembly.

DynaPro 4-Piston Calipers:

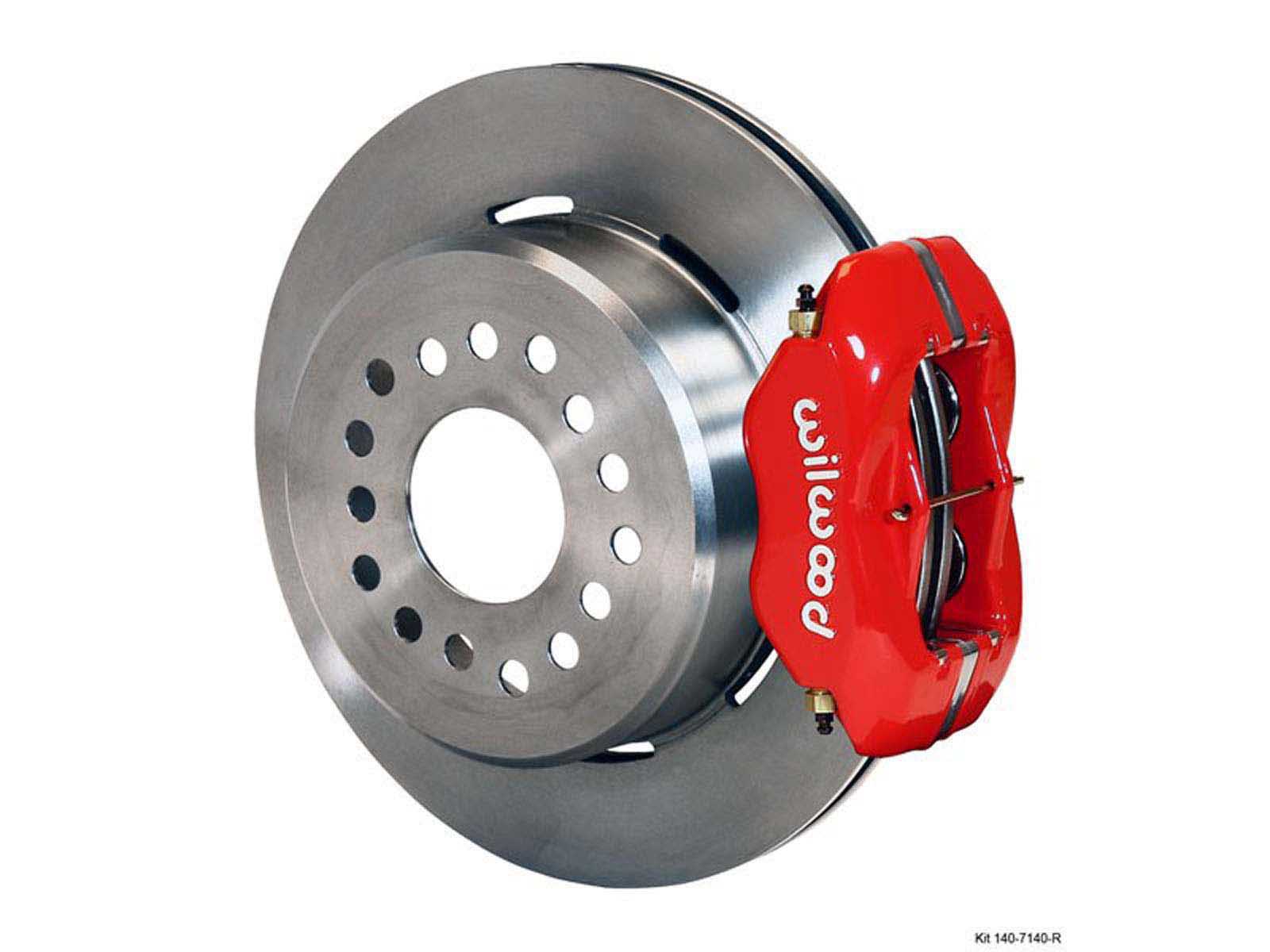

DynaPro machined billet four piston radial mount calipers are volume matched to provide the correct front to rear bias when used with the SL6 front kit. Stainless steel pistons are used to combat heat. Stainless steel SRS bridge wear plates eliminate pad gouging and extend caliper service life. The spring-loaded action of the SRS plates also eliminates pad rattle and dampens harmonic vibrations that contribute to pad squeal. These calipers are available in black or red to match the front calipers.

GT Rotors:

12.19" diameter GT competition series two piece slotted-only rotors provide additional balance and stopping power with that "Big Brake" look inside the wheel.

Iron Hats:

The specially machined iron hats bolt to the rotors and contain the drums for operation with the OE parking brake assembly. These hats are plated in a black zinc finish that resists corrosion and completes the high tech look of the rear brake assembly.

PolyMatrix Brake Pads:

PolyMatrix "Q" or "E" compound pads provide response and temperature range matched to the front kits.

CNC Machined Caliper Brackets:

Aluminum radial mount caliper brackets with premium grade hardware complete the total car package.

Plumbing:

Fittings and flexlines to install these brake systems are NOT INCLUDED and must be ordered separately.  This kit requires part #WIL-220-8755.

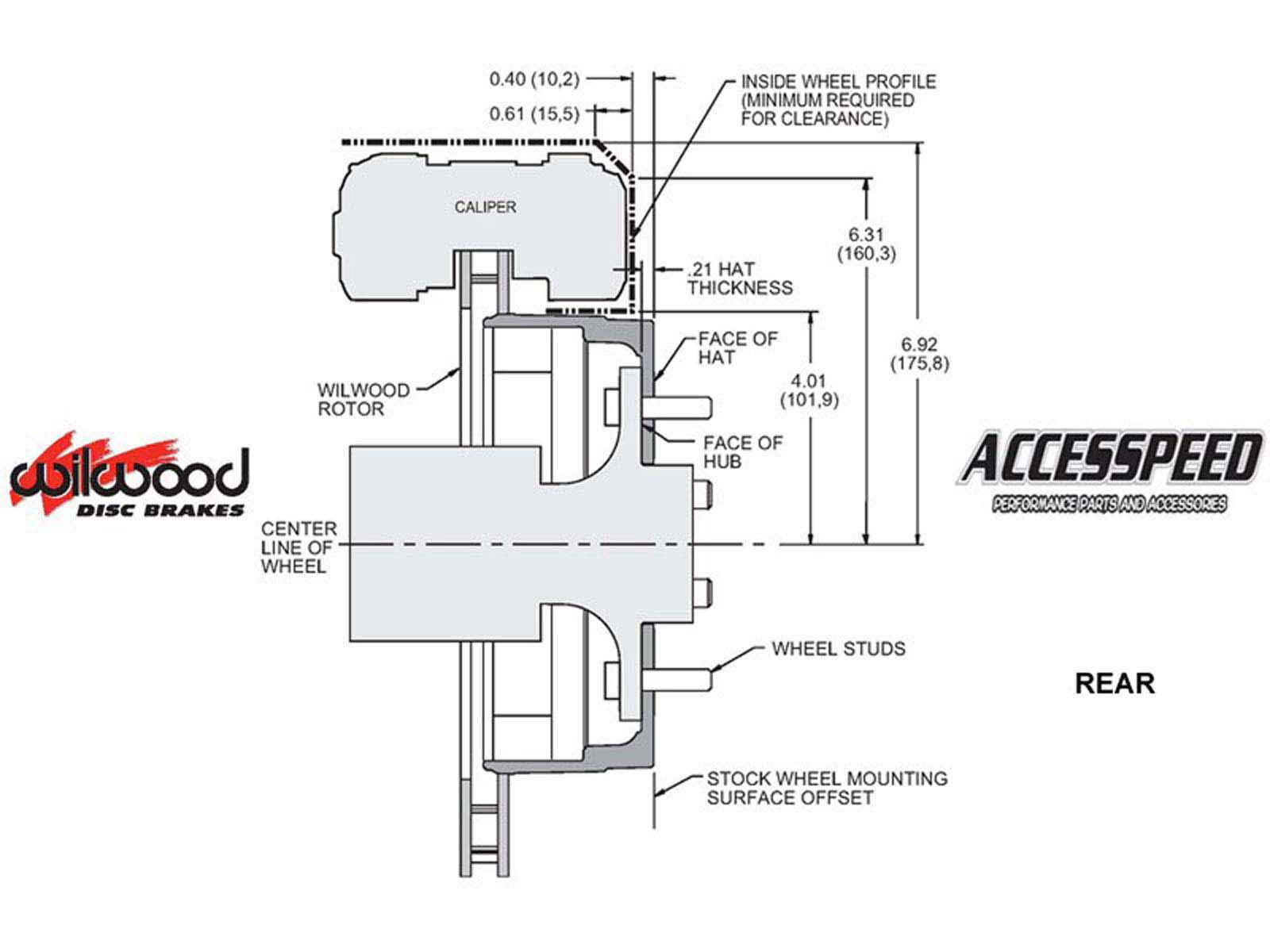

Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance.  All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering!   For wheel fitment diagram, please go to: http://www.wilwood.com/PDF/ds494.pdf.

Notes

Red Calipers. See separate listing for the black caliper system. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering!  Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.
