Wilwood 140-15942-D SL6R 14-in Front Big Brake Kit, Drilled Black, 1963-87 GM C10/C15 W/Drop Spindl

Wilwood 140-15942-D SL6R 14-in Front Big Brake Kit, Drilled Black, 1963-87 GM C10/C15 W/Drop Spindl
Part Number: WIL-140-15942-D
Brand: Wilwood
List Price: $2,819.96
Price: $2,252.36

This product qualifies for Free Ground Shipping*
Qty

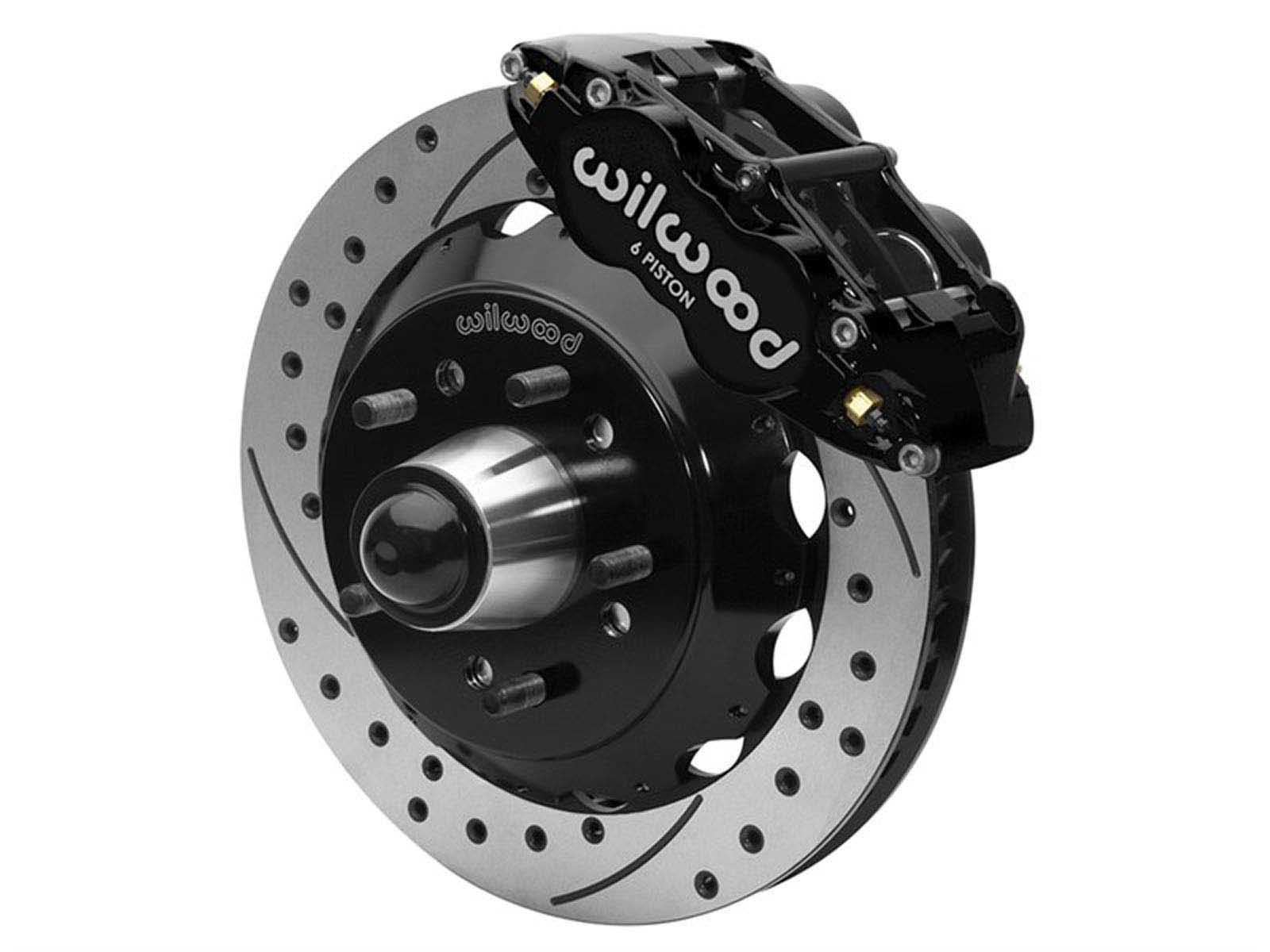

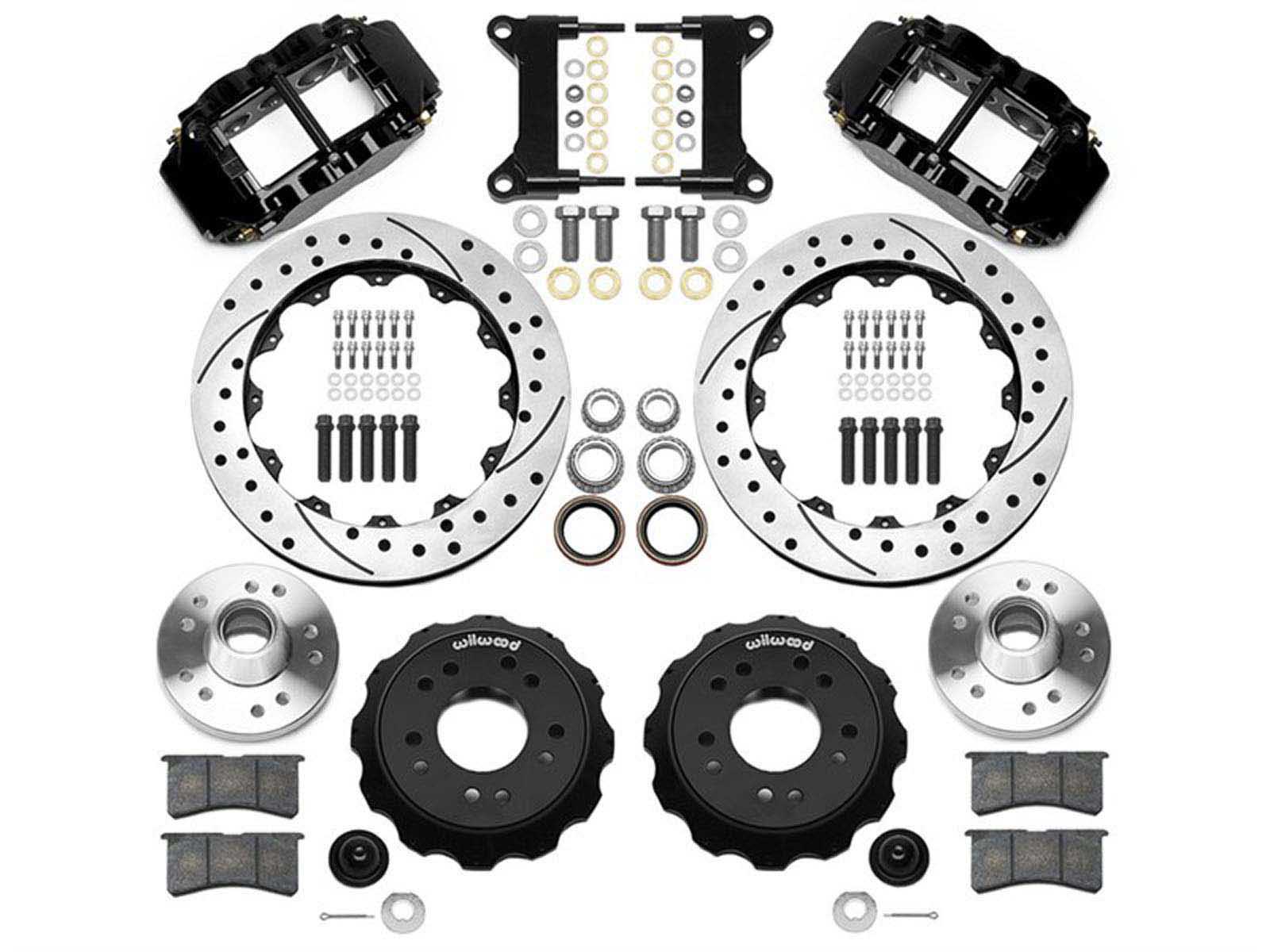

Wilwood 140-15942-D SL6R 14-in Front Big Brake Kit With Black Calipers and Drilled Rotors For 1963-1987 GM C10/C15 With Wilwood Drop Spindles



The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this 13.06” big rotor kit for the popular 1963 thru 1987 Chevrolet & GM C10 / C15 Trucks with Wilwood's new 1 Piece Iron Drop Pro Spindles. SL6 kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. FNSL6R Billet Forged six-piston caliper kits deliver the cost-effective combination for braking power and style in this group of kits engineered for traditional non-ABS spindles on American muscle cars and vintage rods. Built exclusively for 15” and larger wheels, FNSL6 kits enhance tire and suspension upgrades on all types of custom show and high-performance dual-purpose street and track machines. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application. This kit contains hubs with 5 x 4.75” and 5 x 5.00” bolt circle. See below for brake line kit options.

THIS BRAKE KIT WILL NOT FIT OEM FACTORY SPINDLES.

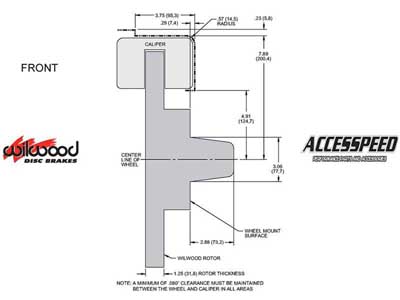

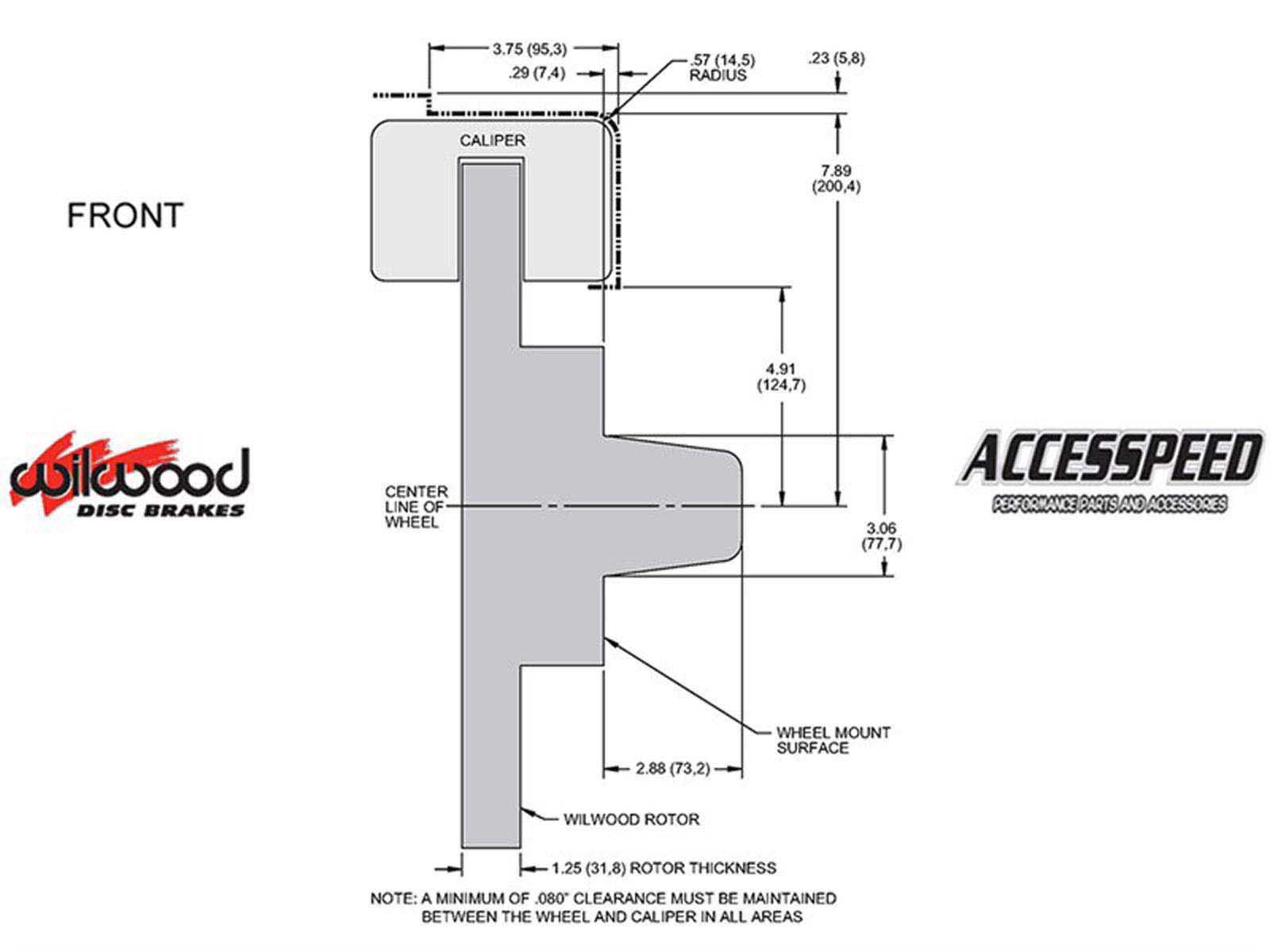

*This Brake Kit may require 18-inch or larger wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.



BRAKE LINE OPTIONS:

Wilwood Flexline Brake Line Kit # WIL-220-12168

  • 1963-1966 Chevrolet C10 Panel, C10 Pickup & Suburban
  • 1963-1966 GMC 1000 Series & Suburban



Wilwood Flexline Brake Line Kit # WIL-220-7056

  • 1967-1972 Chevrolet C10 Pickup, Panel & Suburban
  • 1967-1970 GMC C15/C1500 Pickup & Suburban
  • 1970-1972 Chevrolet Blazer
  • 1970-1972 GMC Jimmy



Wilwood Flexline Brake Line Kit # WIL-220-11237

  • 1971-1974 GMC C15/C1500 Suburban
  • 1971-1986 GMC C1500 Pickup
  • 1973-1982 Chevrolet Blazer
  • 1973-1982 GMC Jimmy
  • 1973-1986 Chevrolet C10 Pickup & Suburban
  • 1975-1978 GMC C15 & Suburban
  • 1979-1986 GMC C1500 Suburban
  • 1987 Chevrolet R10 Pickup & Suburban
  • 1987 GMC R1500 Pickup & Suburban




Notes

Black Calipers. See separate listing for the red caliper systems. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering. Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.

Prop 65 Warning WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Part # Description Price
WIL-140-15942-D Wilwood 140-15942-D SL6R 14-in Front Big Brake Kit, Drilled Black, 1963-87 GM C10/C15 W/Drop Spindl $2,252.36 Add to Cart

Scroll to view product options.

Fits These Applications:

Year Make Model SubModel Engine Transmission Drive
1987 Chevrolet Truck/SUV C10 - Pickup 2WD
1986 Chevrolet Truck/SUV C10 - Pickup 5.0 2WD
1986 Chevrolet Truck/SUV C10 - Pickup 5.7 2WD
1985 Chevrolet Truck/SUV C10 - Pickup 5.0 2WD
1985 Chevrolet Truck/SUV C10 - Pickup 5.7 2WD
1985 Chevrolet Truck/SUV C10 - Pickup 6.2 2WD
1984 Chevrolet Truck/SUV C10 - Pickup 5.0 2WD
1984 Chevrolet Truck/SUV C10 - Pickup 5.7 2WD
1984 Chevrolet Truck/SUV C10 - Pickup 6.2 2WD
1983 Chevrolet Truck/SUV C10 - Pickup 5.0 2WD
1983 Chevrolet Truck/SUV C10 - Pickup 5.7 2WD
1983 Chevrolet Truck/SUV C10 - Pickup 6.2 2WD
1982 Chevrolet Truck/SUV C10 - Pickup 5.0 2WD
1982 Chevrolet Truck/SUV C10 - Pickup 5.7 2WD
1982 Chevrolet Truck/SUV C10 - Pickup 6.2 2WD
1981 Chevrolet Truck/SUV C10 - Pickup 5.0 2WD
1981 Chevrolet Truck/SUV C10 - Pickup 5.7 2WD
1980 Chevrolet Truck/SUV C10 - Pickup 5.0 2WD
1980 Chevrolet Truck/SUV C10 - Pickup 5.7 2WD
1979 Chevrolet Truck/SUV C10 - Pickup 5.0 2WD
1979 Chevrolet Truck/SUV C10 - Pickup 5.7 2WD
1978 Chevrolet Truck/SUV C10 - Pickup 2WD
1978 Chevrolet Truck/SUV C10 - Pickup 5.0 2WD
1978 Chevrolet Truck/SUV C10 - Pickup 5.7 2WD
1977 Chevrolet Truck/SUV C10 - Truck 5.0 2WD
1977 Chevrolet Truck/SUV C10 - Truck 5.7 2WD
1976 Chevrolet Truck/SUV C10 - Pickup 2WD
1976 Chevrolet Truck/SUV C10 - Pickup 5.7 2WD
1975 Chevrolet Truck/SUV C10 - Pickup 5.7 2WD
1975 Chevrolet Truck/SUV C10 - Truck 5.0 2WD
1974 Chevrolet Truck/SUV C10 - Truck 2WD
1974 Chevrolet Truck/SUV C10 - Truck 5.0 2WD
1974 Chevrolet Truck/SUV C10 - Truck 5.7 2WD
1973 Chevrolet Truck/SUV C10 - Pickup 5.0 2WD
1973 Chevrolet Truck/SUV C10 - Pickup 5.7 2WD
1972 Chevrolet Truck/SUV C10 - Pickup 5.0 2WD
1972 Chevrolet Truck/SUV C10 - Pickup 5.7 2WD
1972 Chevrolet Truck/SUV C10 - Pickup 6.6 2WD
1971 Chevrolet Truck/SUV C10 - Pickup 5.0 2WD
1971 Chevrolet Truck/SUV C10 - Pickup 5.7 2WD
1970 Chevrolet Truck/SUV C10 - Pickup 5.0 2WD
1970 Chevrolet Truck/SUV C10 - Pickup 5.7 2WD
1970 Chevrolet Truck/SUV C10 - Pickup 6.6 2WD
1969 Chevrolet Truck/SUV C10 - Pickup 5.0 2WD
1969 Chevrolet Truck/SUV C10 - Pickup 5.3 2WD
1969 Chevrolet Truck/SUV C10 - Pickup 5.7 2WD
1969 Chevrolet Truck/SUV C10 - Pickup 6.5 2WD
1968 Chevrolet Truck/SUV C10 - Pickup 5.0 2WD
1968 Chevrolet Truck/SUV C10 - Pickup 5.3 2WD
1968 Chevrolet Truck/SUV C10 - Pickup 6.5 2WD
1967 Chevrolet Truck/SUV C10 - Pickup 3.8 2WD
1967 Chevrolet Truck/SUV C10 - Pickup 4.1 2WD
1967 Chevrolet Truck/SUV C10 - Pickup 4.6 2WD
1967 Chevrolet Truck/SUV C10 - Pickup 4.8 2WD
1967 Chevrolet Truck/SUV C10 - Pickup 5.3 2WD
1966 Chevrolet Truck/SUV C10 - Pickup 3.8 2WD
1966 Chevrolet Truck/SUV C10 - Pickup 4.1 2WD
1966 Chevrolet Truck/SUV C10 - Pickup 4.6 2WD
1966 Chevrolet Truck/SUV C10 - Pickup 4.8 2WD
1966 Chevrolet Truck/SUV C10 - Pickup 5.3 2WD
1965 Chevrolet Truck/SUV C10 - Pickup 3.8 2WD
1965 Chevrolet Truck/SUV C10 - Pickup 4.6 2WD
1965 Chevrolet Truck/SUV C10 - Pickup 4.8 2WD
1964 Chevrolet Truck/SUV C10 - Pickup 3.8 2WD
1964 Chevrolet Truck/SUV C10 - Pickup 4.6 2WD
1964 Chevrolet Truck/SUV C10 - Pickup 4.8 2WD
1963 Chevrolet Truck/SUV C10 - Pickup 3.8 2WD
1963 Chevrolet Truck/SUV C10 - Pickup 4.6 2WD
1963 Chevrolet Truck/SUV C10 - Pickup 4.8 2WD
1986 GMC Truck/SUV C15 - Pickup 5.7 2WD
1985 GMC Truck/SUV C15 - Pickup 5.0 2WD
1985 GMC Truck/SUV C15 - Pickup 5.7 2WD
1985 GMC Truck/SUV C15 - Pickup 6.2 2WD
1984 GMC Truck/SUV C15 - Pickup 5.0 2WD
1984 GMC Truck/SUV C15 - Pickup 5.7 2WD
1984 GMC Truck/SUV C15 - Pickup 6.2 2WD
1983 GMC Truck/SUV C15 - Pickup 5.0 2WD
1983 GMC Truck/SUV C15 - Pickup 5.7 2WD
1983 GMC Truck/SUV C15 - Pickup 6.2 2WD
1982 GMC Truck/SUV C15 - Pickup 5.0 2WD
1982 GMC Truck/SUV C15 - Pickup 5.7 2WD
1982 GMC Truck/SUV C15 - Pickup 6.2 2WD
1981 GMC Truck/SUV C15 - Pickup 5.0 2WD
1981 GMC Truck/SUV C15 - Pickup 5.7 2WD
1980 GMC Truck/SUV C15 - Pickup 5.0 2WD
1980 GMC Truck/SUV C15 - Pickup 5.7 2WD
1979 GMC Truck/SUV C15 - Pickup 5.0 2WD
1979 GMC Truck/SUV C15 - Pickup 5.7 2WD
1978 GMC Truck/SUV C15 - Pickup 5.0 2WD
1978 GMC Truck/SUV C15 - Pickup 5.7 2WD
1977 GMC Truck/SUV C15 - Pickup 5.0 2WD
1977 GMC Truck/SUV C15 - Pickup 5.7 2WD
1976 GMC Truck/SUV C15 - Pickup 5.7 2WD
1975 GMC Truck/SUV C15 - Pickup 5.7 2WD
1974 GMC Truck/SUV C15 - Pickup 5.7 2WD
1973 GMC Truck/SUV C15 - Pickup 5.0 2WD
1973 GMC Truck/SUV C15 - Pickup 5.7 2WD
1972 GMC Truck/SUV C15 - Pickup 5.0 2WD
1972 GMC Truck/SUV C15 - Pickup 5.7 2WD
1972 GMC Truck/SUV C15 - Pickup 6.6 2WD
1971 GMC Truck/SUV C15 - Pickup 5.0 2WD
1971 GMC Truck/SUV C15 - Pickup 5.7 2WD
1970 GMC Truck/SUV C15 - Pickup 5.0 2WD
1970 GMC Truck/SUV C15 - Pickup 5.7 2WD
1970 GMC Truck/SUV C15 - Pickup 6.6 2WD
1969 GMC Truck/SUV C15 - Pickup 5.0 2WD
1969 GMC Truck/SUV C15 - Pickup 5.7 2WD
1969 GMC Truck/SUV C15 - Pickup 6.5 2WD
1968 GMC Truck/SUV C15 - Pickup 5.0 2WD
1968 GMC Truck/SUV C15 - Pickup 5.3 2WD
1968 GMC Truck/SUV C15 - Pickup 6.5 2WD
1967 GMC Truck/SUV C15 - Pickup 4.6 2WD
1967 GMC Truck/SUV C15 - Pickup 5.3 2WD
