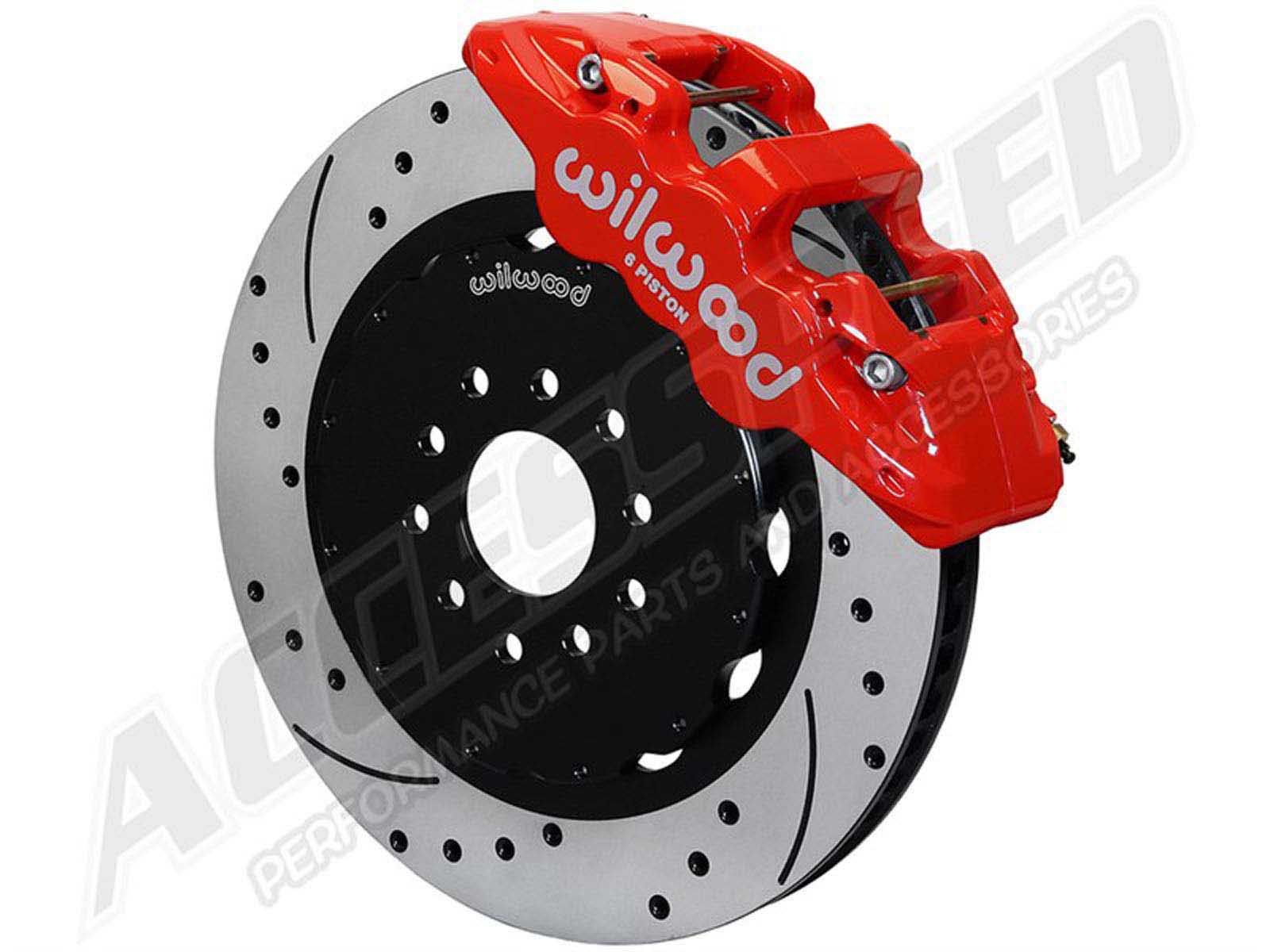

Wilwood 140-15305-DR AERO6 Front 14" Big Brake Kit Red Drilled 1963-1987 C-10 w/Wilwood Pro Spindle

Wilwood 140-15305-DR AERO6 Front 14-inch Big Brake Kit With Red Calipers & Drilled Rotors, Fits 1963-1987 Chevrolet C-10 / GMC C15 GM Truck & SUV with Wilwood Drop Spindles

AERO6 calipers were designed for the specific purpose of providing big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles. For cars, it’s the biggest of the big providing big brake performance for show and dual purpose street and track vehicles. For trucks and SUV’s, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. Direction staggered vane 14” rotors provide maximum cooling for sustained high heat durability.

This kit works with Wilwood Drop Spindle kit part number WIL-831-14201 for 1963-1970 Chevrolet C10 & GMC C-15, and part number WIL-831-14202 for 1971-1987 Chevrolet C10 & GMC C-15 only. If you have not yet purchased the Spindle kit, please click on the part number link listed for your vehicle year and add to your cart.

This brake kit does not include brake lines. Wilwood Flexline brake lines are necessary to complete the installation of the kit and must be ordered separately. See links below for your model year.

For 1963-1966 order Kit # WIL-220-12168

For 1967-1972 order Kit # WIL-220-7056

For 1973-1987 order Kit # WIL-220-11237

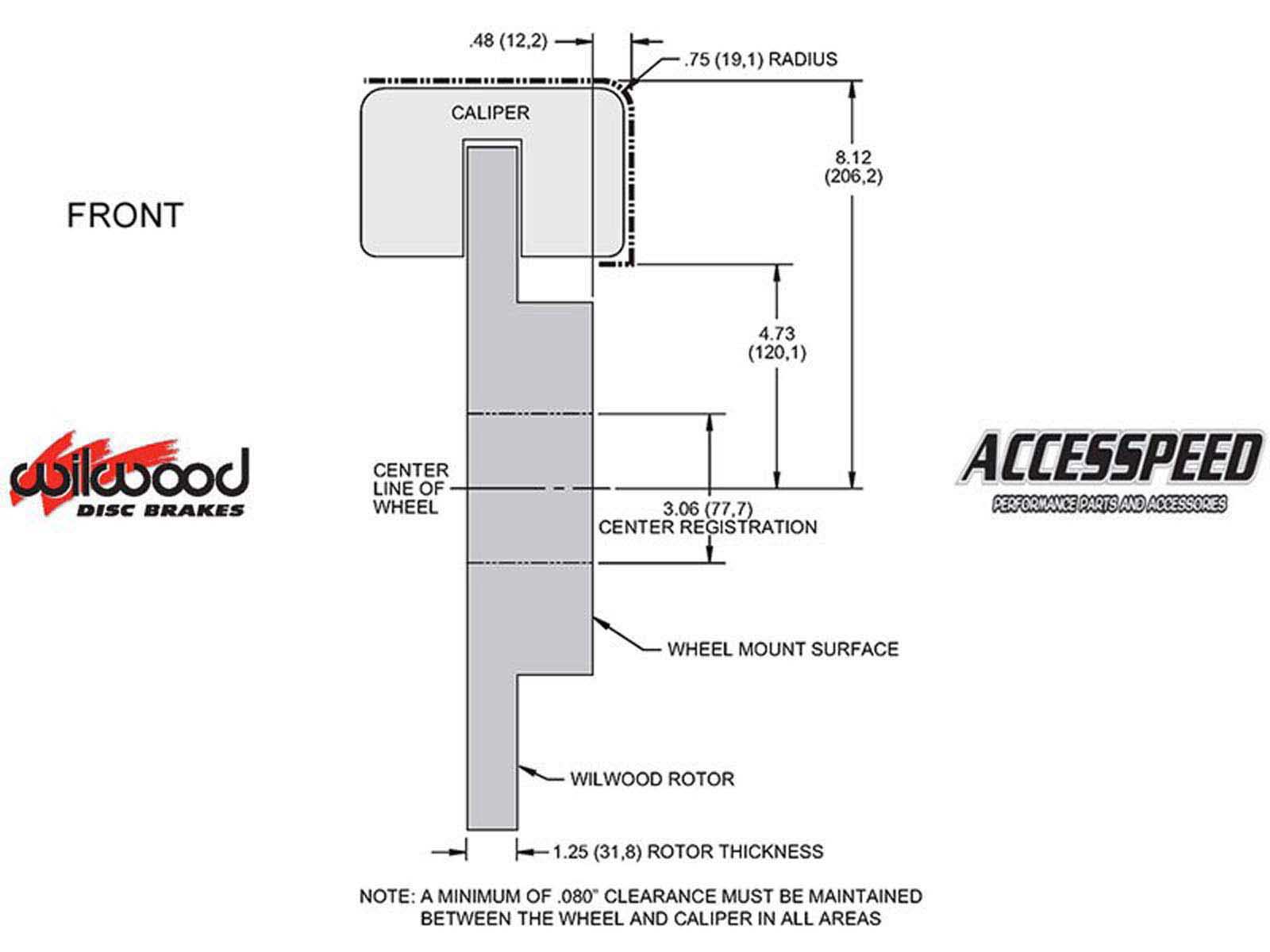

*This Brake Kit may require 18-inch or larger wheels or wheels spacers for proper fit. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.

Notes

This system includes Red Calipers. Please see additional listing for Black Calipers. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering. Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.
