Wilwood SL6R 14" Front & DPR 11" Rear Brake Kit W/2" Drop Spindle, Red, Drilled, 1964-1974 GM A/F/X

Wilwood SL6R 14" Front & DPR 11" Rear Brake Kit W/2" Drop Spindle, Red, Drilled, 1964-1974 GM A/F/X
Part Number: WIL-GM-AFX-3-1411-D-R
Brand: Wilwood
List Price: $4,896.00
Price: $3,849.00

This product qualifies for Free Ground Shipping*
Qty

Wilwood Superlite 14-inch Front & Dynapro 11-inch Rear Big Brake Combo With 2" Drop Spindle, Parking Brake Cable, Brake Lines & Fluid, Drilled Rotors, Red Calipers, Fits 1964-1974 GM A/F/X Body With BOP Axle, 2.75" Bearing, 2.75 Offset

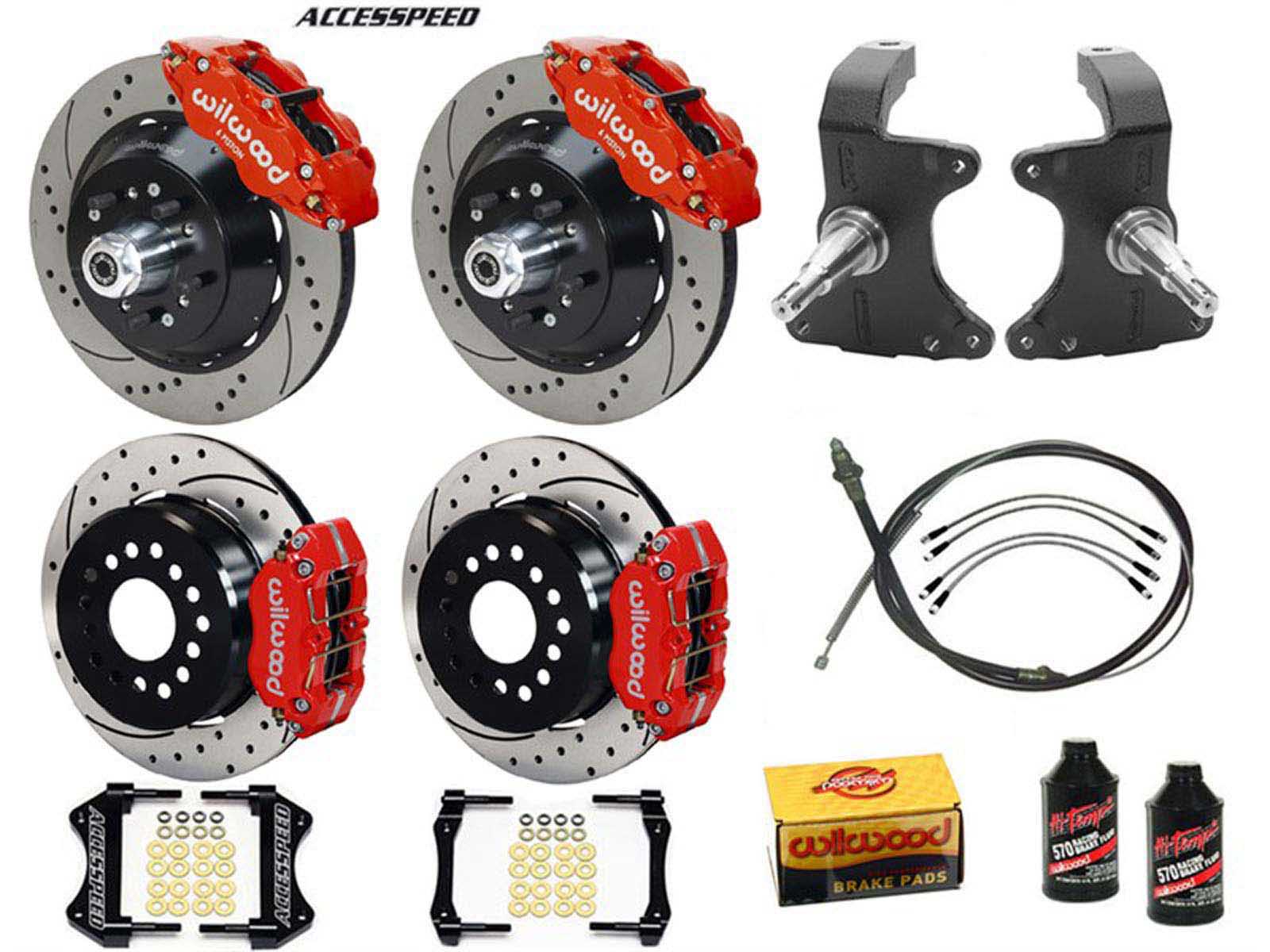

This ACCESSPEED-WIL-GM-AFX-3-1411-D-R is an all-inclusive Front & Rear Big Brake Kit WITH 2-inch Drop Spindles, Front & Rear Stainless Brake Lines, Rear Parking Brake Cable Kit, and 2 Bottles of Wilwood 570 Fluid for a turn-key installation!



FRONT:

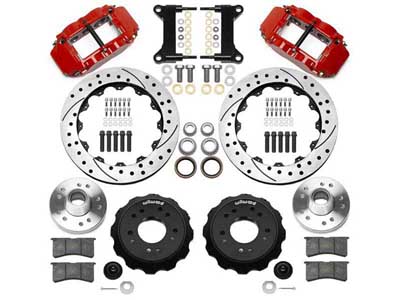

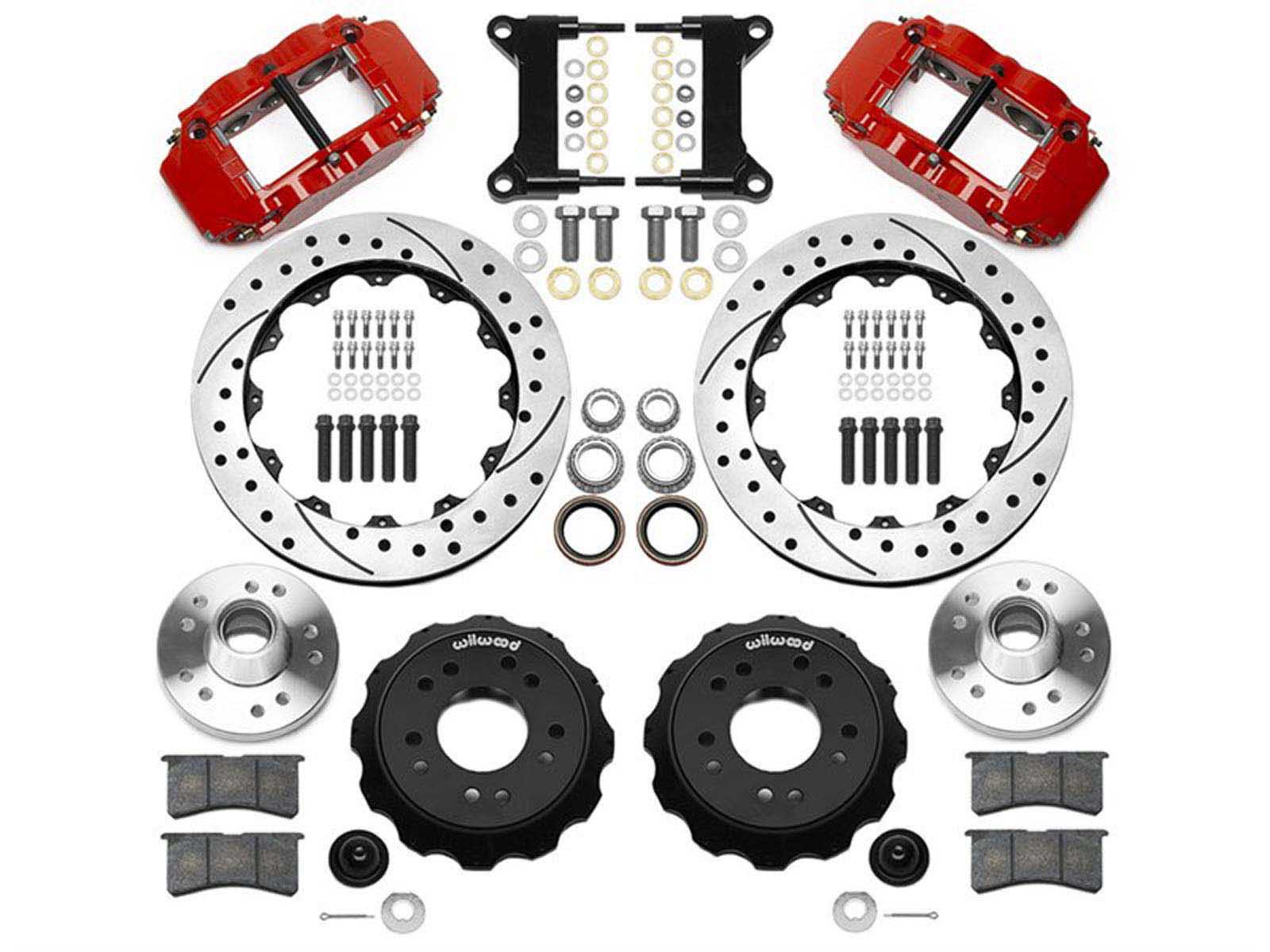

FNSL6R billet forged six-piston calipers with 14" rotors deliver the ultimate combination for braking power and style re designed for the WWE AFX Pro spindles. AFX Pro Spindles fit 1964-1972 GM A Body, 1967-1969 GM F Body, 1968-1974 GM X Body vehicles and are built exclusively for 18” and larger wheels, FNSL6R kits used with WWE AFX Pro Spindles enhance tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application. The 140-15911-DR kit comes complete with calipers, rotors, hub assembly, brackets and hardware. THIS FRONT BRAKE KIT HAS A HUB OFFSET OF: +.38  (This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle.)



REAR:

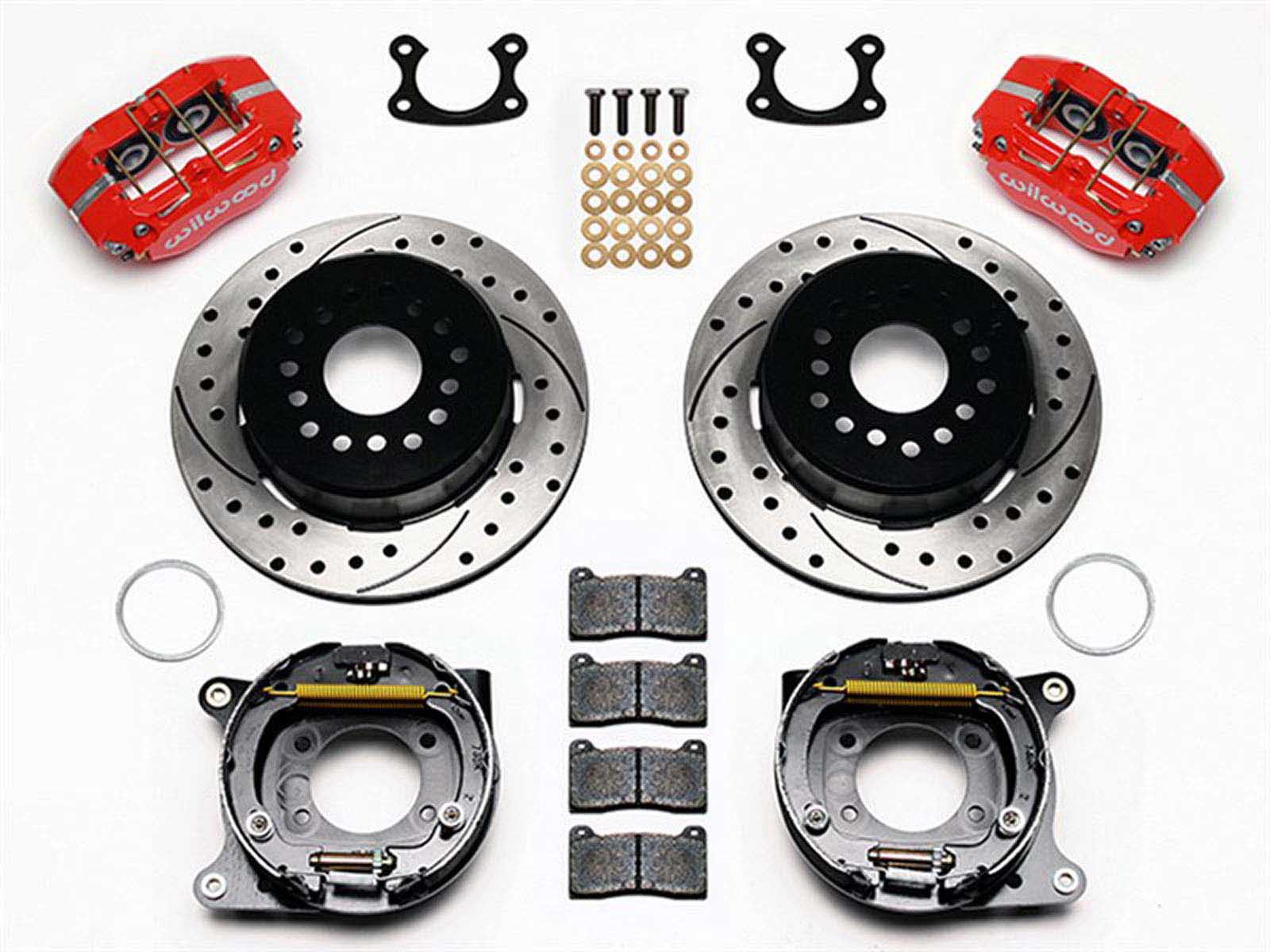

Forged Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 14.00” to 15.00” rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11.00” one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.  This rear kit 140-13513-DR is designed for standard shock mount rear ends.



DROP SPINDLE KIT:

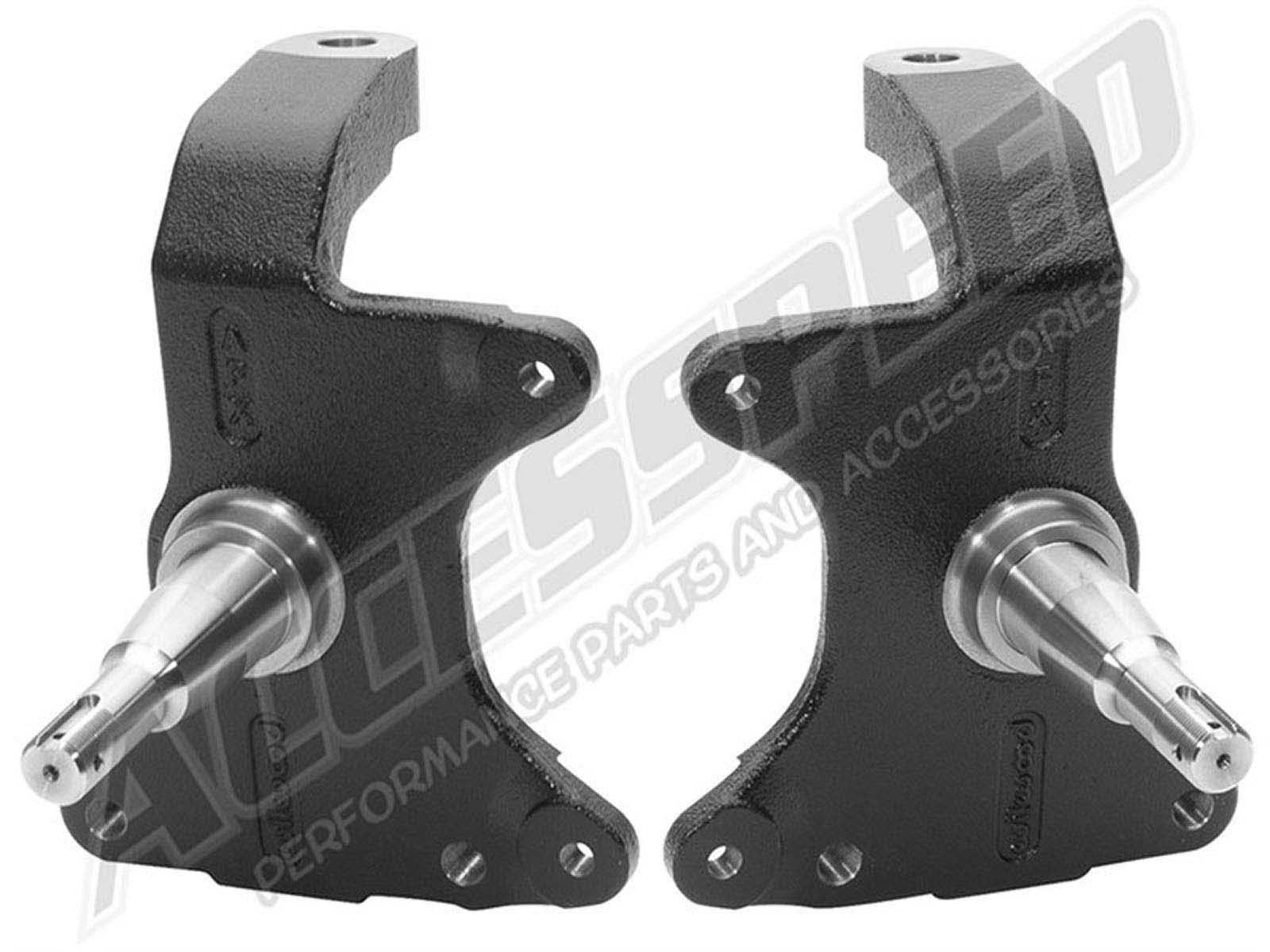

Wilwood’s AFX ProSpindle Kits contain a pair of high strength steel spindles for 1964-1972 GM A Body, 1967-1969 GM F Body, 1968-1974 GM X Body vehicles that use the original bolt on steering arms. Specifically designed for use with Wilwood’s disc brake kits with a 2.00” drop for a more aggressive stance without affecting steering geometry. With the added benefits of providing a lower center of gravity, raised front roll center and a decreased camber change also improve handling with less body roll. Installs using the OE ball joints using original or aftermarket control arms. A unique caliper mounting feature provides fortified attachment of four new brake kit options ranging in rotor sizes from 11.00” to 14.00” diameters, with options for both four and six piston calipers. The 831-15890 spindles mount with OE ball joints in stock or aftermarket control arms, and retain the original bolt-on steering arms. Includes Driver/Left and Passenger/Right spindles.



BRAKE LINES:

Wilwood’s stainless steel braided Flexlines are manufactured to the highest quality standards, and are designed to fit each application.  Accesspeed inlcudes 14" front & rear brake line kits. These premium grade Flexlines are durable and provide “hard line” pedal feel, while allowing braided line heat dissipation. Wilwood 14" Flexline Brake Line Kit 220-7056. (Recommended for most applications - longer lines available.)



PARKING BRAKE CABLE KIT:

This Parking Brake Cable Kit is for Wilwood Rear Big Brake Kits.  Wilwood’s Caliper Cable Kit contains all parts necessary for effective installation on most vehicles. Kit contents include cable and sheath assemblies, clevises and hardware.



BRAKE FLUID:

Wilwood’s specially formulated Hi-Temp° 570 Racing Brake Fluid has a minimum 570° F dry boiling point to withstand the severe heat requirements of automotive racing. Hi-Temp° 570’s low viscosity allows easy bleeding of your brake system, eliminating aeration of the brake fluid caused by foaming due to excessive pumping of the pedal. Hi-Temp° 570 comes in convenient 12 ounce containers hermetically sealed to guarantee against unwanted absorption of moisture which can drastically lower the fluids boiling point (fluid from larger containers tends to become contaminated with moisture, lowering its boiling point and making it unsuitable for racing applications).

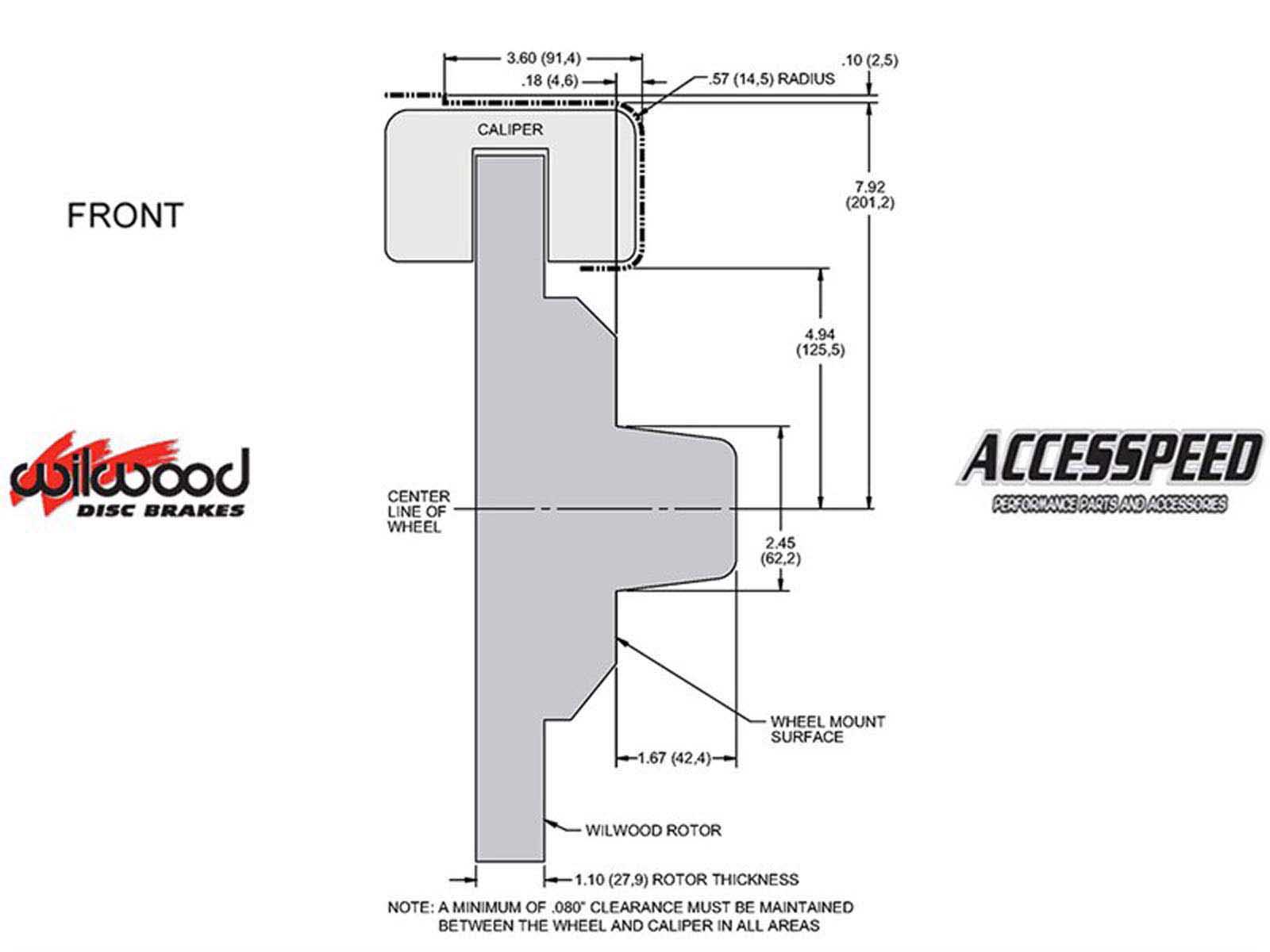

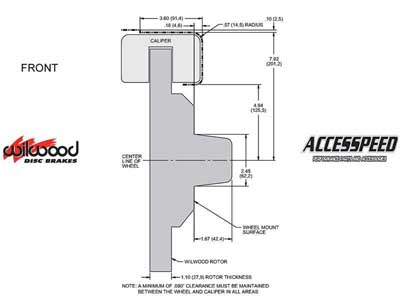

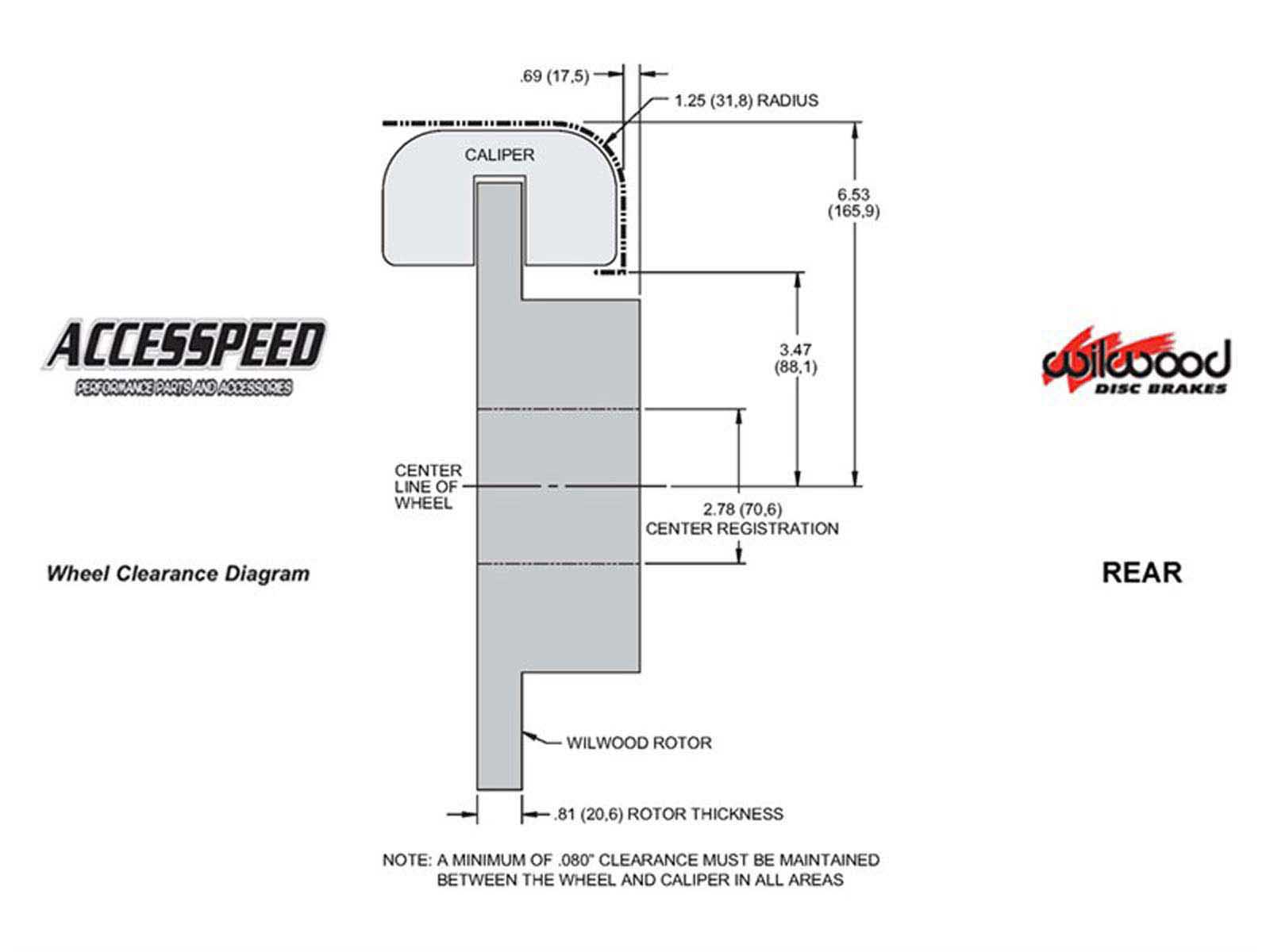

*This Brake Kit may require 18-inch or larger wheels and/or wheel spacers. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.



FITS THE FOLLOWING VEHICLES:

  • 1965-1967 Buick Gran Sport
  • 1966-1968 Buick Skylark
  • 1967-1969 Oldsmobile 442
  • 1967-1969 Oldsmobile Cutlass
  • 1967-1969 Oldsmobile Cutlass Supreme
  • 1967-1969 Oldsmobile F85
  • 1967-1969 Pontiac Acadian
  • 1967-1969 Pontiac Beaumont
  • 1969 Pontiac Grand Prix
  • 1967-1969 Pontiac GTO
  • 1967-1969 Pontiac LeMans
  • 1967-1969 Pontiac Tempest




Notes

Red Calipers. Please see separate listing for Black Calipers.  Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering. Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.

Prop 65 Warning WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Part # Description Price
WIL-GM-AFX-3-1411-D-R Wilwood SL6R 14" Front & DPR 11" Rear Brake Kit W/2" Drop Spindle, Red, Drilled, 1964-1974 GM A/F/X $3,849.00 Add to Cart

Scroll to view product options.

Fits These Applications:

Year Make Model SubModel Engine Transmission Drive
1968 Buick Skylark RWD
1968 Buick Skylark 5.7 RWD
1968 Buick Skylark 6.6 RWD
1967 Buick Gran Sport RWD
1967 Buick Skylark RWD
1967 Buick Skylark 6.6 RWD
1966 Buick Gran Sport RWD
1966 Buick Skylark RWD
1965 Buick Gran Sport RWD
1969 Oldsmobile 442 RWD
1969 Oldsmobile Cutlass RWD
1969 Oldsmobile Cutlass 5.7 RWD
1969 Oldsmobile Cutlass Supreme RWD
1969 Oldsmobile F85 RWD
1968 Oldsmobile 442 RWD
1968 Oldsmobile Cutlass RWD
1968 Oldsmobile Cutlass 5.7 RWD
1968 Oldsmobile Cutlass 6.6 RWD
1968 Oldsmobile Cutlass Supreme RWD
1968 Oldsmobile F85 RWD
1967 Oldsmobile 442 RWD
1967 Oldsmobile Cutlass RWD
1967 Oldsmobile Cutlass 5.4 RWD
1967 Oldsmobile Cutlass 6.6 RWD
1967 Oldsmobile Cutlass Supreme RWD
1967 Oldsmobile F85 RWD
1969 Pontiac Acadian RWD
1969 Pontiac GTO RWD
1969 Pontiac GTO 6.6 RWD
1969 Pontiac Le Mans RWD
1969 Pontiac Tempest RWD
1968 Pontiac Acadian RWD
1968 Pontiac GTO RWD
1968 Pontiac Le Mans RWD
1968 Pontiac Tempest RWD
1967 Pontiac Acadian RWD
1967 Pontiac GTO RWD
1967 Pontiac Le Mans RWD
1967 Pontiac Tempest RWD
