Wilwood 340-14360 Adjustable Dual Pedal, Tandem Cyl. Brake / Clutch, Rev. Swing Mount, 6.25:1

Wilwood 340-14360 Adjustable Dual Pedal, Tandem Cyl. Brake / Clutch, Rev. Swing Mount, 6.25:1
Part Number: WIL-340-14360
Brand: Wilwood
List Price: $294.96
Price: $224.52

This product qualifies for Free Ground Shipping*
Qty

Wilwood 340-14360 Adjustable Dual Pedal - Tandem Cyl. Brake / Clutch - Rev. Swing Mount - 6.25:1

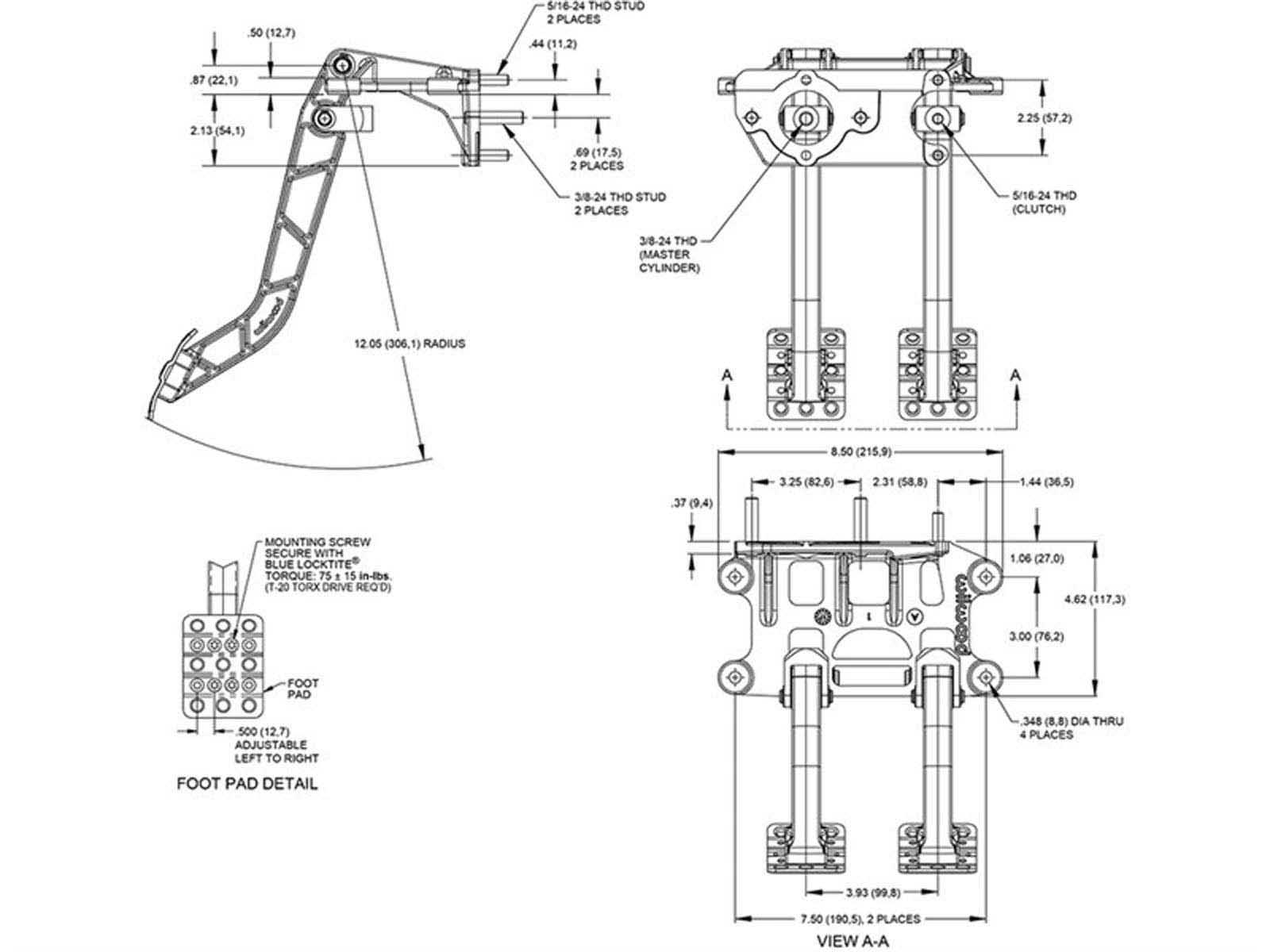

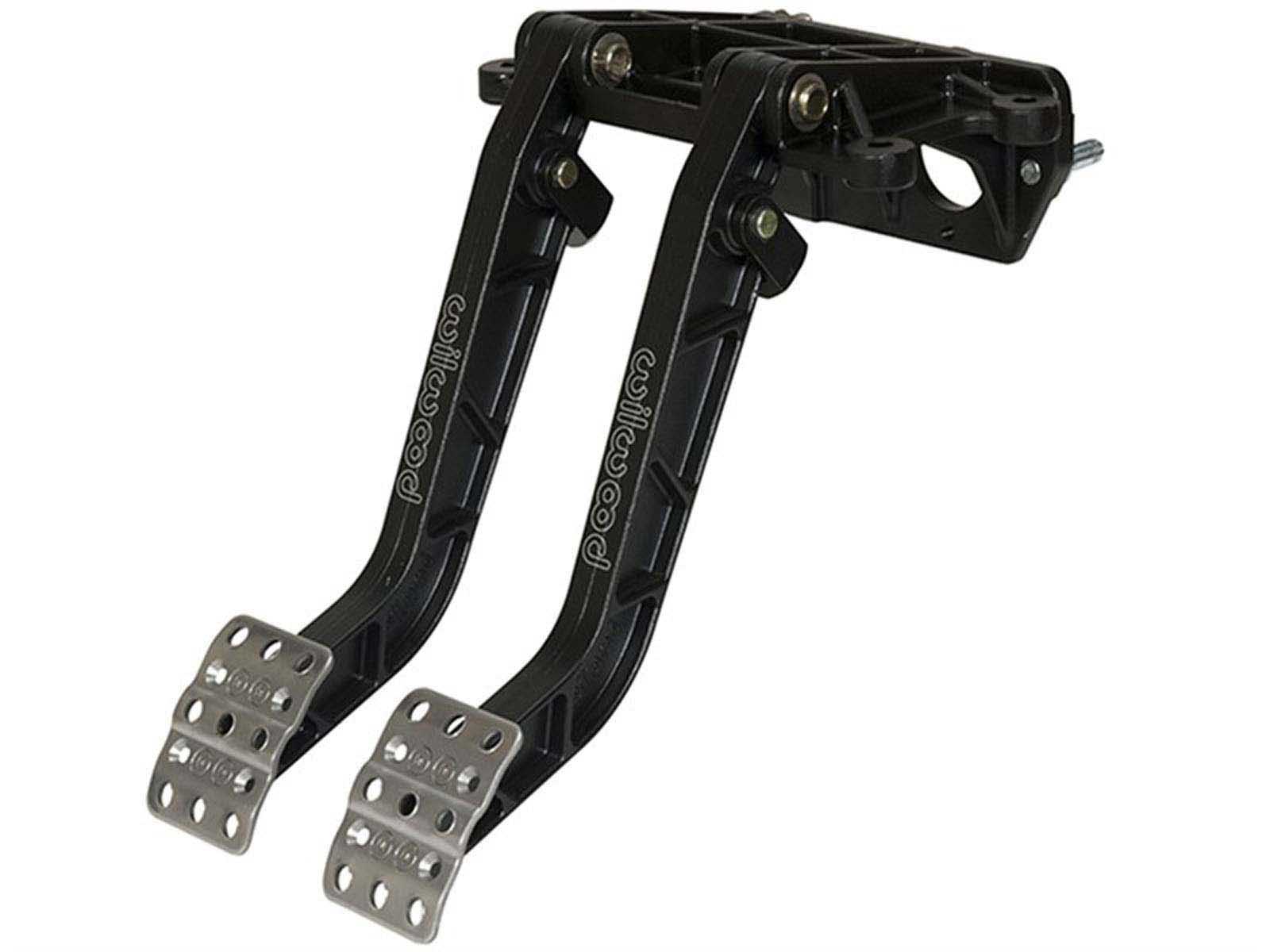

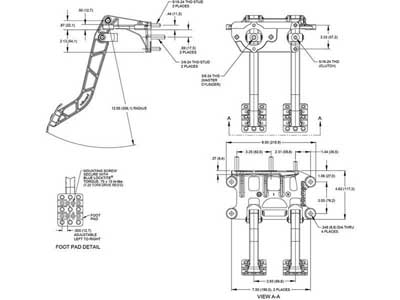

Wilwood's new Swing Mount Tandem Brake and Clutch Assembly simplifies installing a tandem outlet, single pushrod brake master cylinder in conjunction with a hydraulic clutch master cylinder in a forward position outside the firewall. It features a lightweight aluminum frame, with high strength reinforced I-Beam style forged pedal arms in 6.25:1 ratio. The non-skid waffled pedal pads can be laterally adjusted for driver preference or clearance as necessary. Will fit most tandem cylinders available with 3.25 horizontal bolt spacing. Pedal base has additional mount points for vertical mount 2.50" spacing tandem master cylinders using 5/16-18 studs (not supplied with pedal assembly). Clutch master cylinder mount is also a 2.25" vertical mount and will use most popular single outlet cylinders.

Prop 65 Warning WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Part # Description Price
WIL-340-14360 Wilwood 340-14360 Adjustable Dual Pedal, Tandem Cyl. Brake / Clutch, Rev. Swing Mount, 6.25:1 $224.52 Add to Cart

Scroll to view product options.

Fits These Applications:

Year Make Model SubModel Engine Transmission Drive
