Wilwood 340-11295 Adjustable Dual Pedal, Brake / Clutch, Fwd. Swing Mount, 6.25:1

Wilwood 340-11295 Adjustable Dual Pedal, Brake / Clutch, Fwd. Swing Mount, 6.25:1
Part Number: WIL-340-11295
Brand: Wilwood
List Price: $339.96
Price: $260.97

This product qualifies for Free Ground Shipping*
Qty

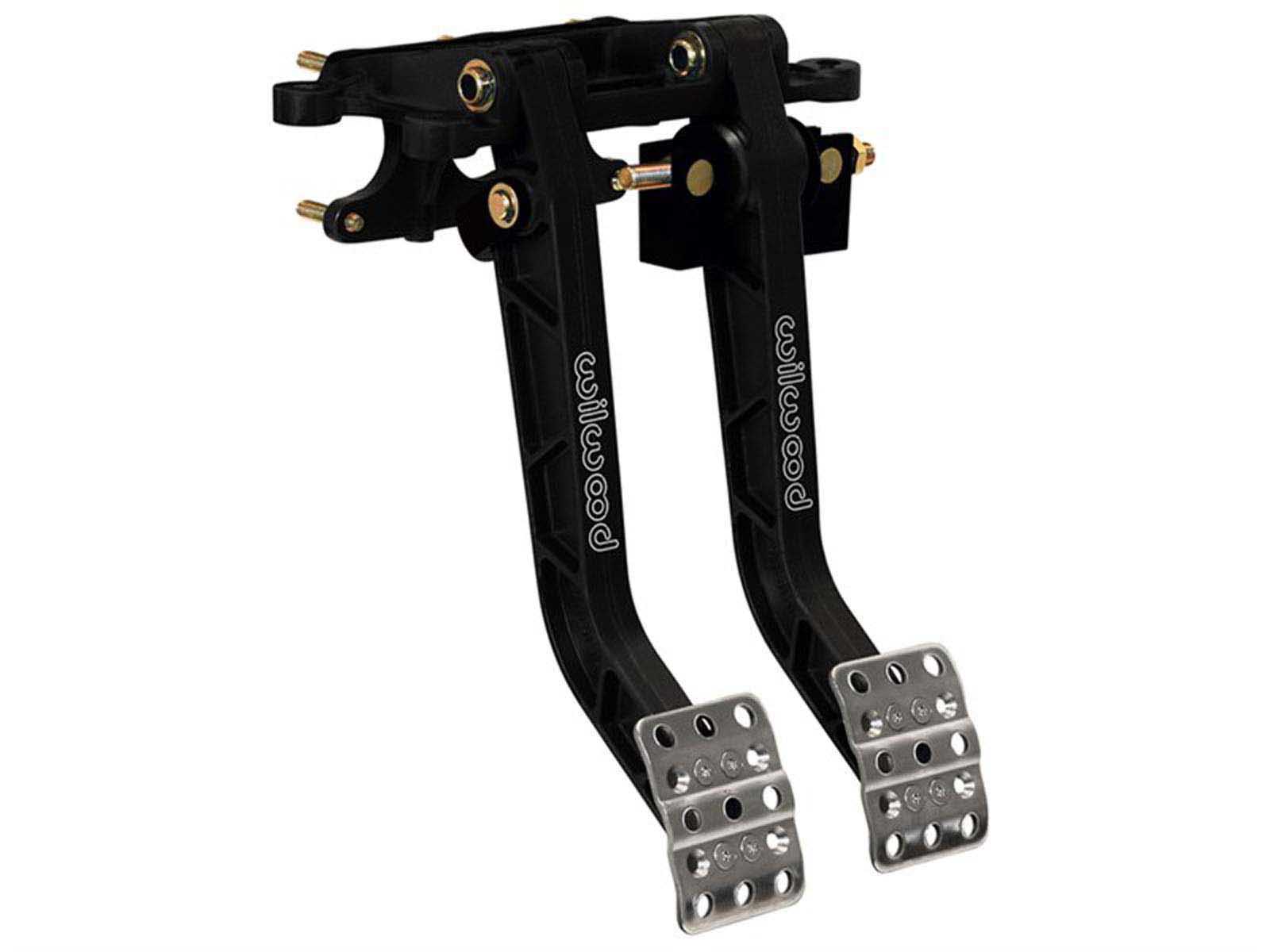

Wilwood 340-11295 Adjustable Dual Pedal - Brake / Clutch - Fwd. Swing Mount - 6.25:1

Wilwood’s swinging mount pedal assembly combines the brake and clutch pedals in one unit with the master cylinders in a forward position outside the firewall. It features a lightweight aluminum frame, with high strength reinforced I-Beam style forged 6.25:1 ratio pedal arms. The non-skid waffled pedal pads can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments. This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size.

Prop 65 Warning WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Part # Description Price
WIL-340-11295 Wilwood 340-11295 Adjustable Dual Pedal, Brake / Clutch, Fwd. Swing Mount, 6.25:1 $260.97 Add to Cart

Scroll to view product options.

Fits These Applications:

Year Make Model SubModel Engine Transmission Drive
