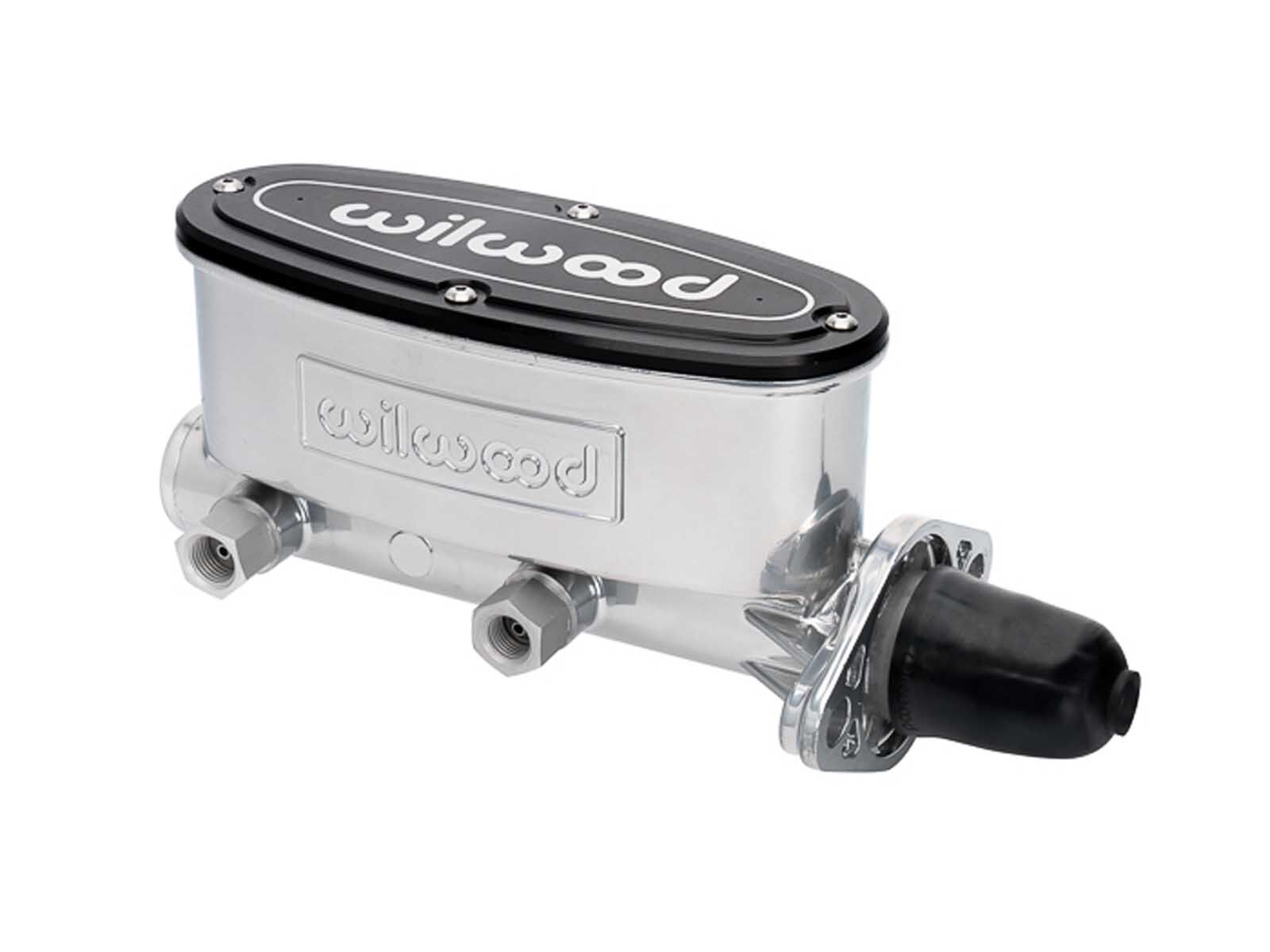

Wilwood 260-18184-P High Volume Tandem Master Cylinder - 15/16" Bore, Chrome Pwd-w/o Pushrod
Wilwood 15/16” bore Tandem Aluminum Master Cylinders from Accesspeed are available in 3 finishes, plain, chrome powder coat, and black e-coat. This bore can be used in manual and power assisted applications and does not come with a pushrod. They are designed for mount flanges from 3.22” to 3.40”, common measurements for most domestic cars and trucks from the mid-1960s to present, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.10” with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3-lbs, a 75% weight savings over most cast iron OE type master cylinders. We also offer the Wilwood combination proportioning valve kit, which includes brackets and stainless lines specifically for use with these master cylinders, see PN WIL-260-13190, or WIL-220-13189 for retrofit kit.
Notes
Images supplied by manufacturer and may be a generic product representtation instead of the exact part number.
Scroll to view product options.
| Part # |
Description |
Price |
|
| WIL-260-18184-P |
Wilwood 260-18184-P High Volume Tandem Master Cylinder - 15/16" Bore, Chrome Pwd-w/o Pushrod |
$304.85 |
Add to Cart |
Scroll to view product options.
Fits These Applications:
| Year |
Make |
Model |
SubModel |
Engine |
Transmission |
Drive |
