Wilwood 140-18208-R AERO6-DM Front 13.38" Big Brake Kit w/ Lines, Red for 2013-2018 Ram 1500 4WD

Wilwood 140-18208-R AERO6-DM Front 13.38" Big Brake Kit w/ Lines, Red for 2013-2018 Ram 1500 4WD

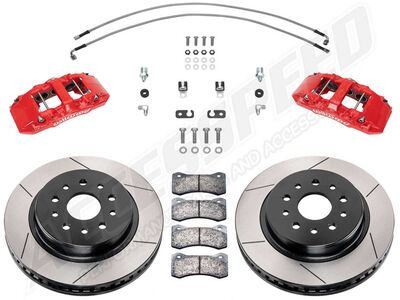

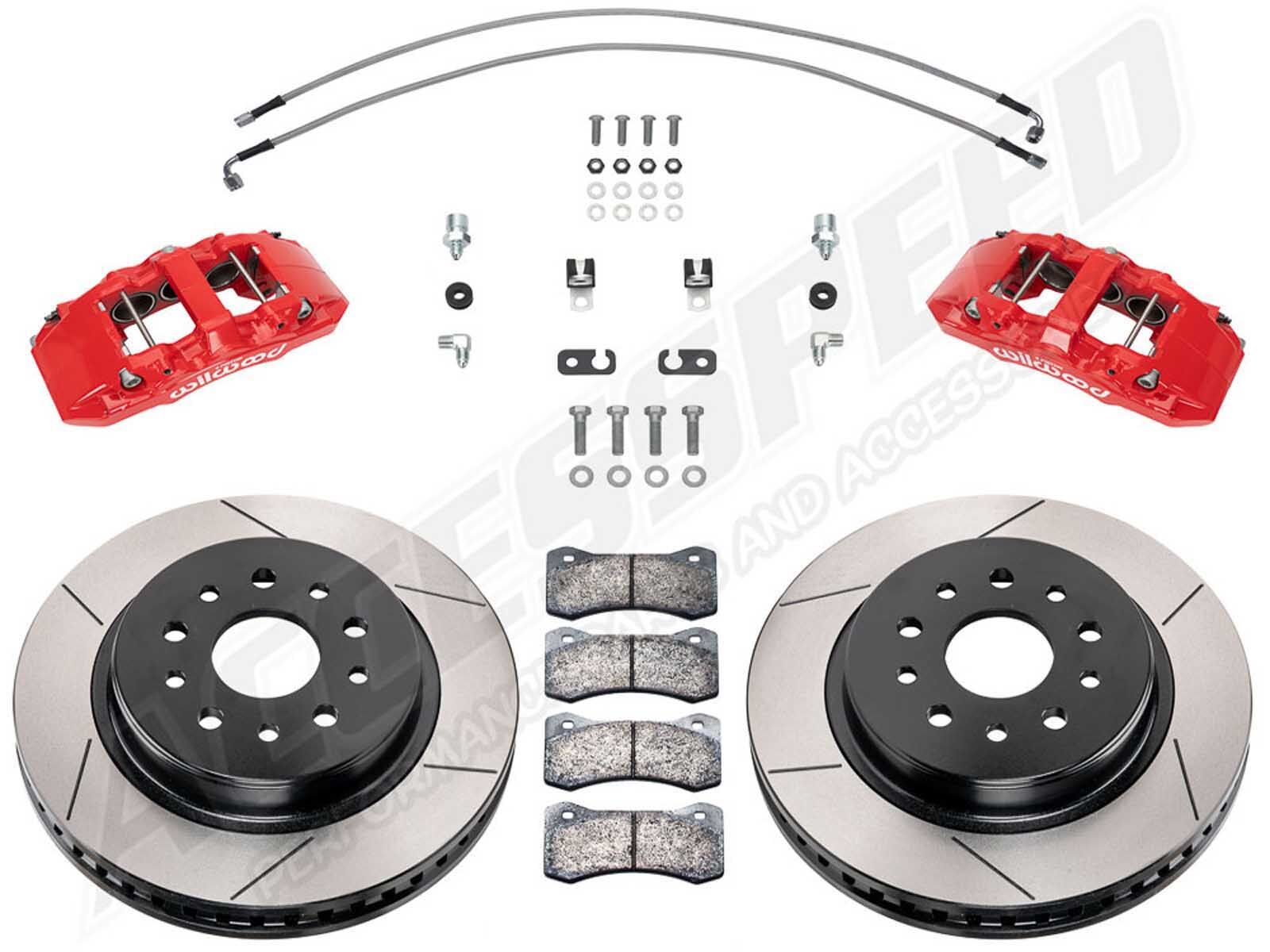

Accesspeed is proud to announce Wilwood’s new AERO6-DM direct-mount caliper brake kits, which are designed to fit most factory and aftermarket 17” wheels for 2013-2018 RAM 1500 4WD trucks. Replace the factory floating calipers with Wilwood’s net-forged aluminum, six piston calipers and premium alloy one-piece rotors. Forged aluminum AERO6-DM six-piston Aerolite direct-mount calipers have been optimized for the Raptor spindle to deliver increased clamping force. Rotors are 13.38” x 1.25” premium long-grain iron alloy, and substantially increase braking performance when paired with the new Wilwood BP-22 SmartPad brake pads, formulated for everyday street or performance driving. Rotors are available GT slotted or SRP drilled and slotted. Calipers are available in gloss red or black powder coat, and at least 25 additional colors (additional charges apply). Accesspeed includes Wilwood stainless braided Flexline brake lines.

KIT FEATURES:

• Directly mounts to factory spindles and hubs with no modifications or additional brackets.
• Provides greater brake torque and increased thermal stability, yet fits behind most 17” wheels and larger.

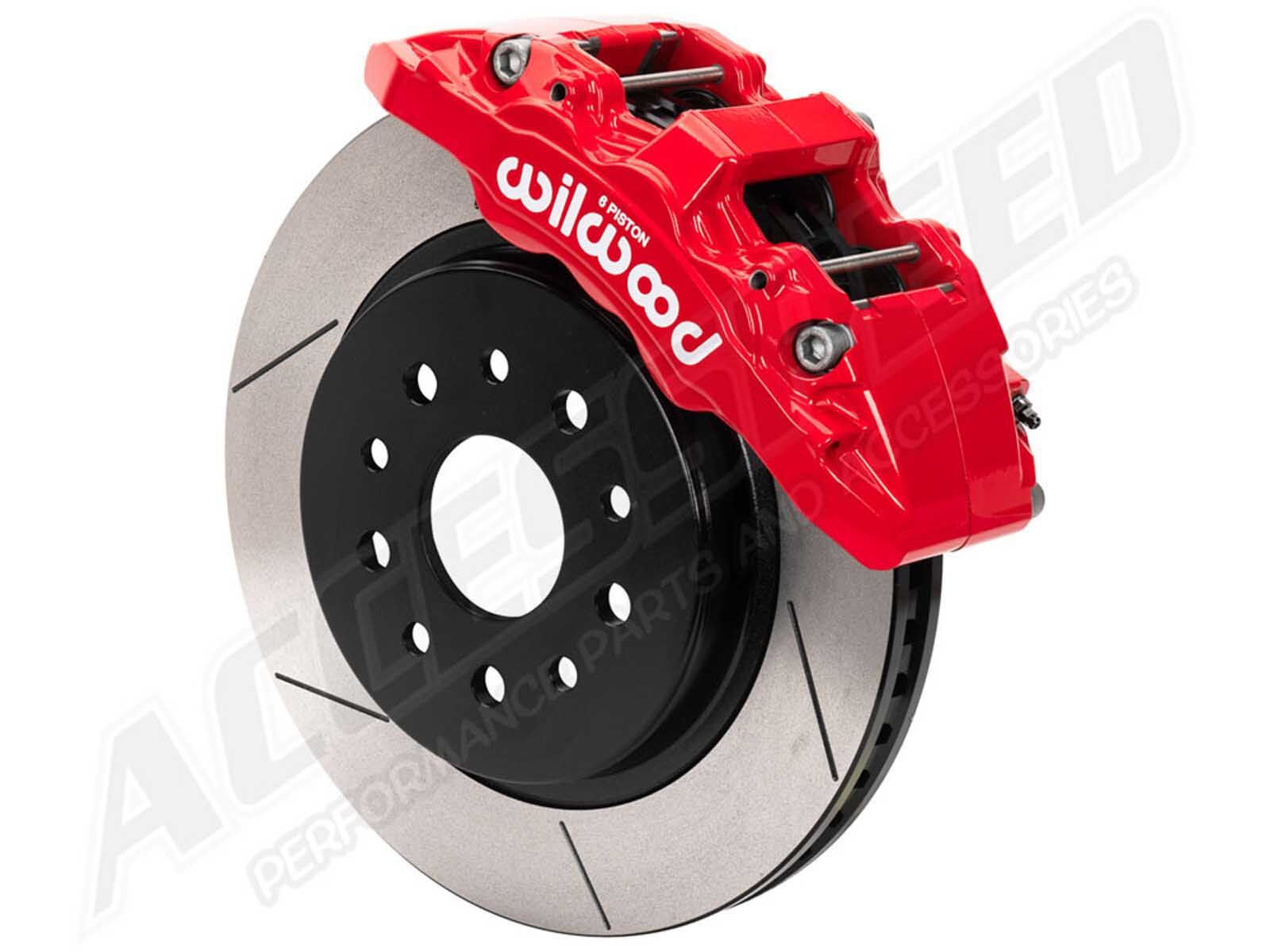

CALIPERS: AERO6-DM

• Stress-flow forged aluminum Aerolite calipers are engineered for direct-mounting with six differential bore pistons for more even clamping force, and closed bridge for minimal deflection.
• Compatible with the factory master cylinder, ABS and all electronic controls.
• Calipers available in gloss black or red powder coat, or 25+ additional color options (additional charges may apply).

ROTORS: GT or SRP

• 13.38” x 1.25” premium-grade, long-grain carbon iron alloy vented rotors.
• Choose GT slotted or SRP drilled+slotted rotors.

PADS:

• BP Series Compound SmartPad.
• New ceramic-based, dual-sport SmartPad for everyday street or performance driving (additional compounds available).

INSTALLATION PARTS:

• Stainless steel flexlines and premium-grade hardware included.

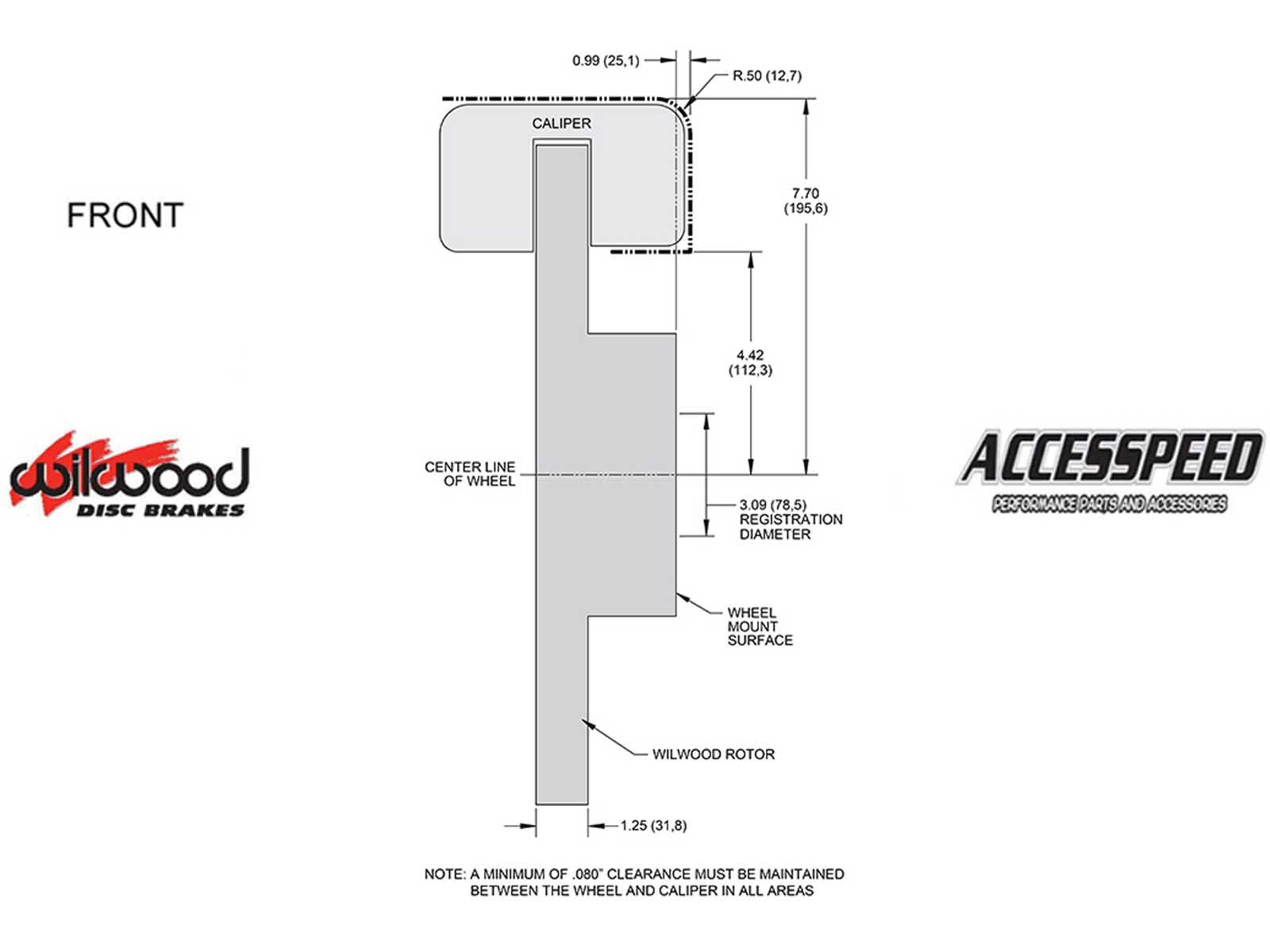

*This Brake Kit may require 17-inch or larger wheels. Please refer to the wheel clearance diagram image to verify wheel caliper clearance.

Notes

Images supplied by manufacturer and may be a generic product representtation instead of the exact part number.
