Wilwood 140-18046-R AERO4 14" Rear EPB Brake Kit, Red, Slotted 1988-1998 GM C1500 5-Lug 3.25 Offset

Wilwood 140-18046-R AERO4 14" Rear EPB Big Brake Kit, Red, Slotted for 1988-1998 GM C1500 5-Lug 3.25 Offset

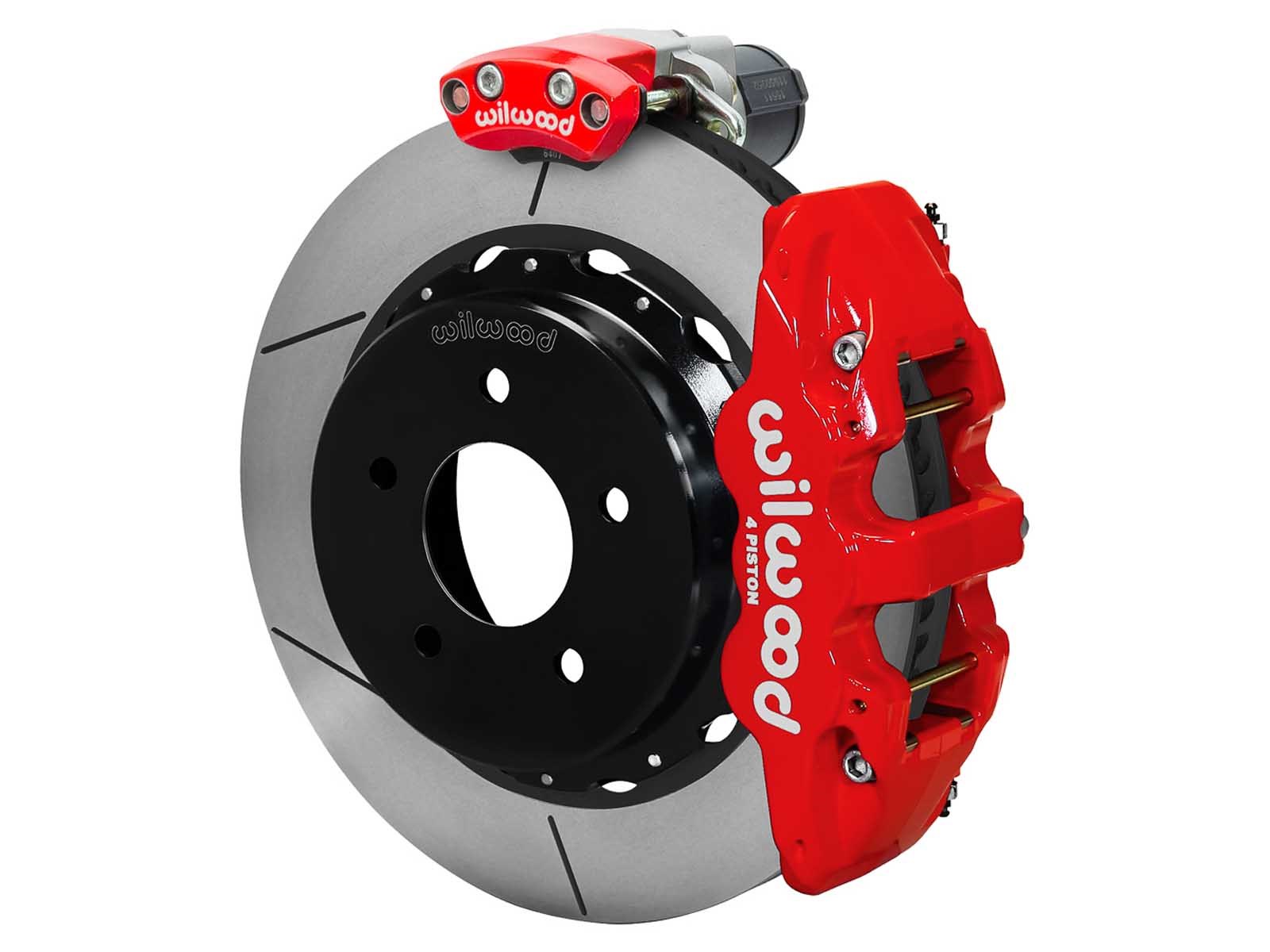

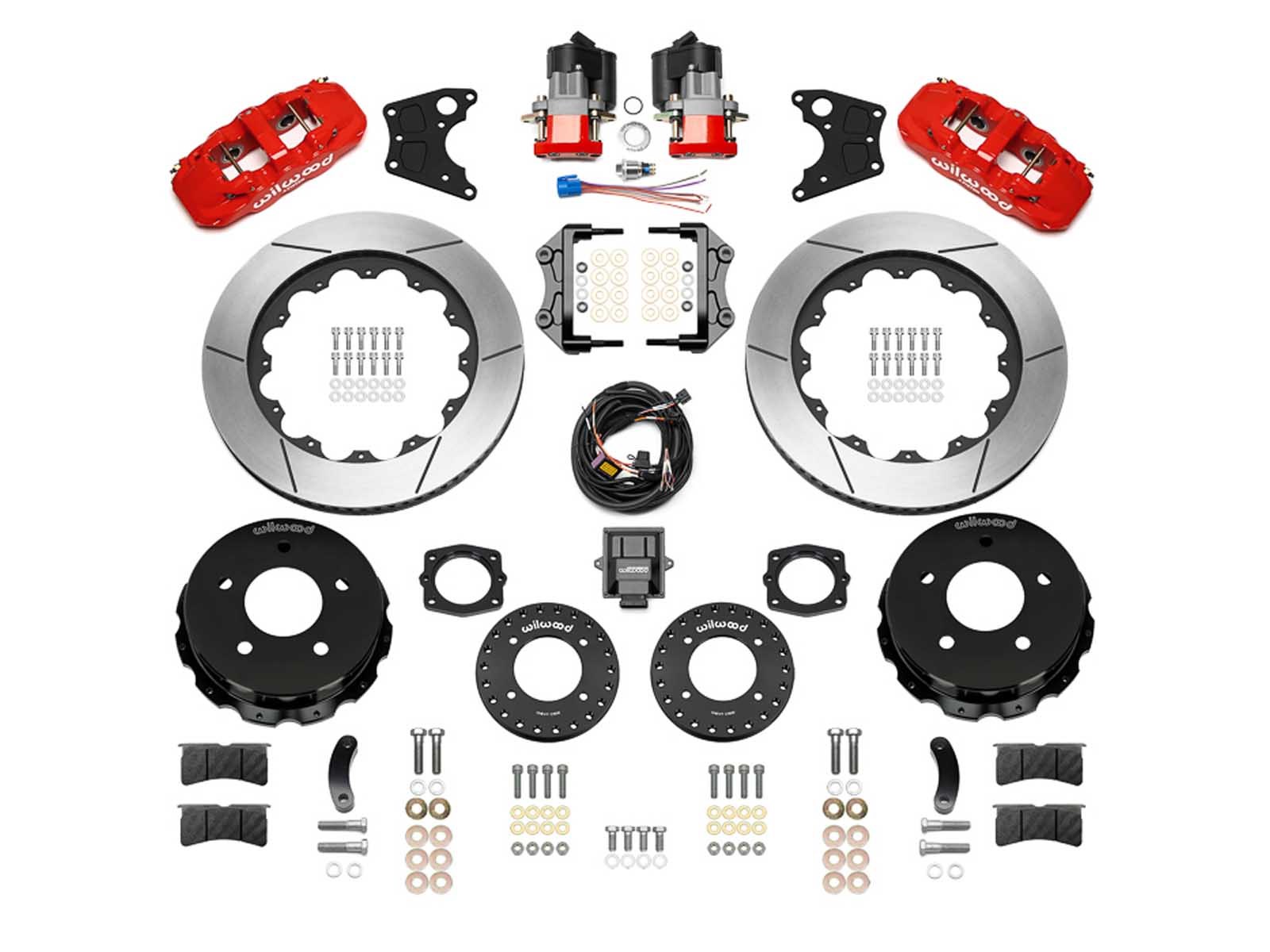

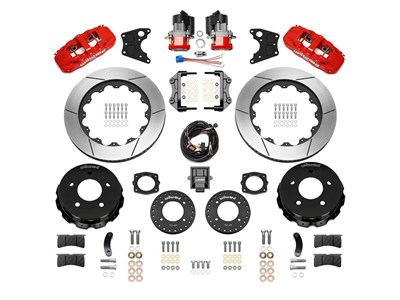

Wilwood AERO4 Big Brake Rear (EPB) Electronic Parking Brake Kits from Accesspeed provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake. Aero4 radial mount four piston calipers, 14” two-piece rotors, and high-performance BP compound pads, provide optimized and balanced braking to compliment front big brake upgrades on all types of custom, show and high-performance street machines. The unique Electronic Parking Brake caliper provides a static high torque static holding power for parking without mechanical cabling. Supplied with control unit and harness assembly, it simplifies installation and use. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

Brake Kit does not include brake lines. Wilwood Flexline brake lines are necessary to complete the installation of the kit and must be ordered separately. See below for brake line kit options:

• Wilwood 12" Flexline Brake Line Kit #WIL-220-17288. (Weld-on tabs for juncture between hard line and Flexline.)
• Wilwood 12" Flexline Brake Line Kit #WIL-220-17289. (Bolt-on bracket for juncture between hard line and Flexline.)

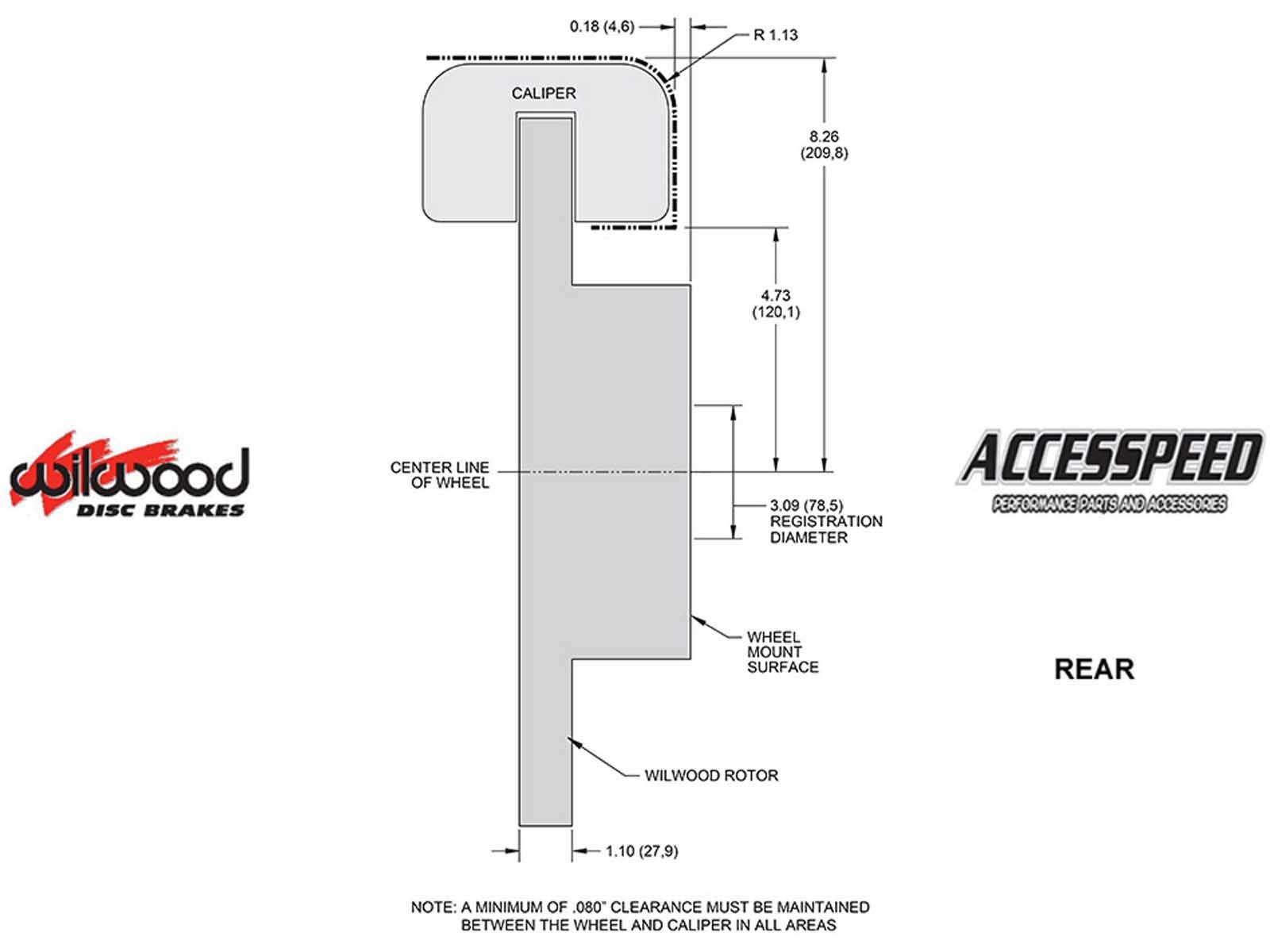

*This Brake Kit may require 18-inch or larger wheels. Please refer to the wheel clearance diagram image to verify caliper clearance for your specific wheel.

Notes

Images supplied by manufacturer and may be a generic product representtation instead of the exact part number.
