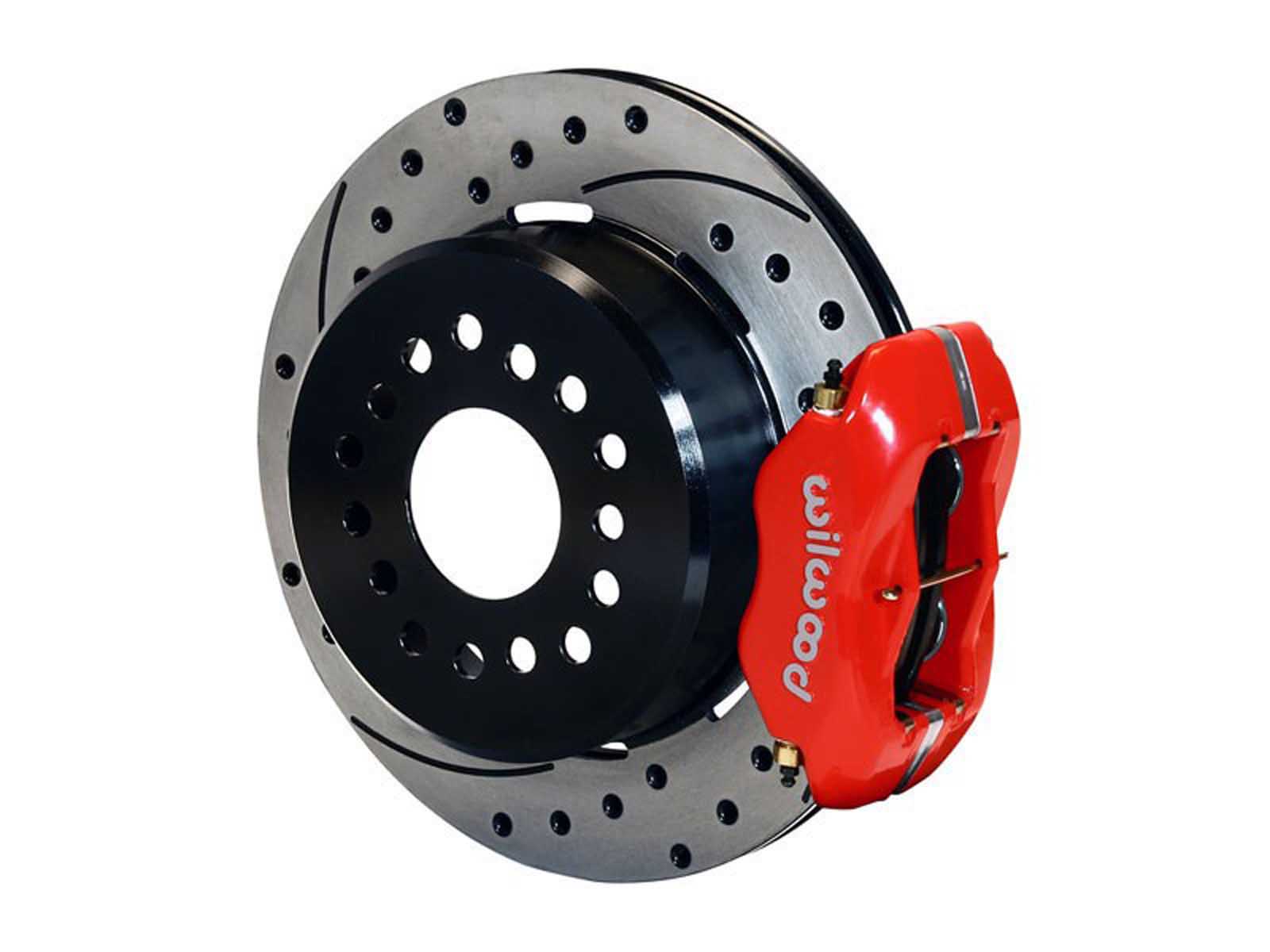

Wilwood 140-13398-DR Dynalite 12" Rear Big Brake Kit, Drilled, Red, 1971-1974 AMC Javelin

Wilwood 140-13398-DR Forged Dynalite Pro Rear 12.19" Big Brake Kit With Red Calipers and Drilled Rotors, Fits 1971-1974 AMC Javelin and Javelin AMX

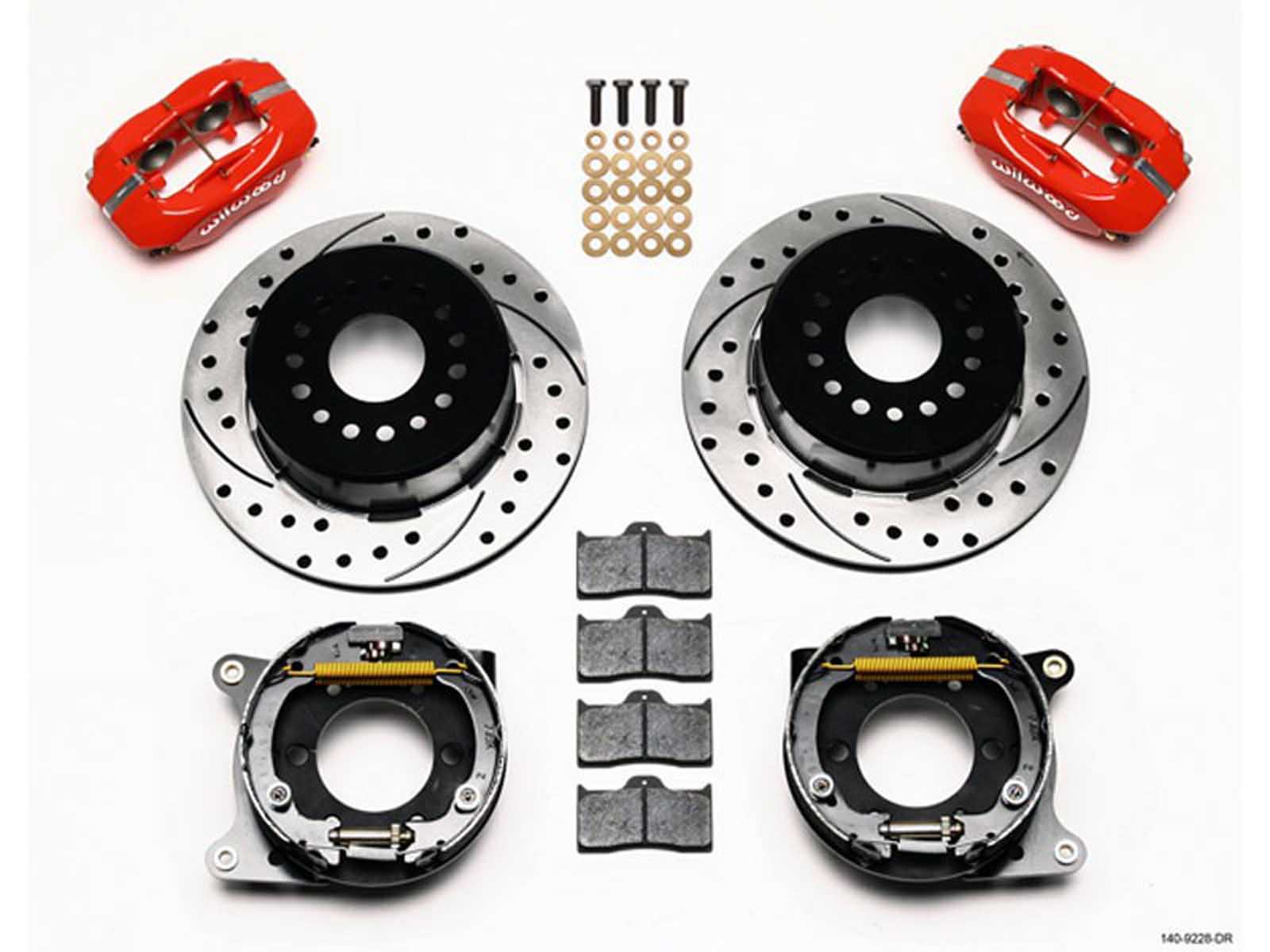

This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application. This brake kit does not include brake lines. Wilwood Flexline brake lines are necessary to complete the installation of the kit and must be ordered separately. Please select your year, make and model to see the correct brake lines for your vehicle.

Some vehicles may require an extended rear parking brake cable for proper function, which is sold separately. Please use kit # WIL-330-11954

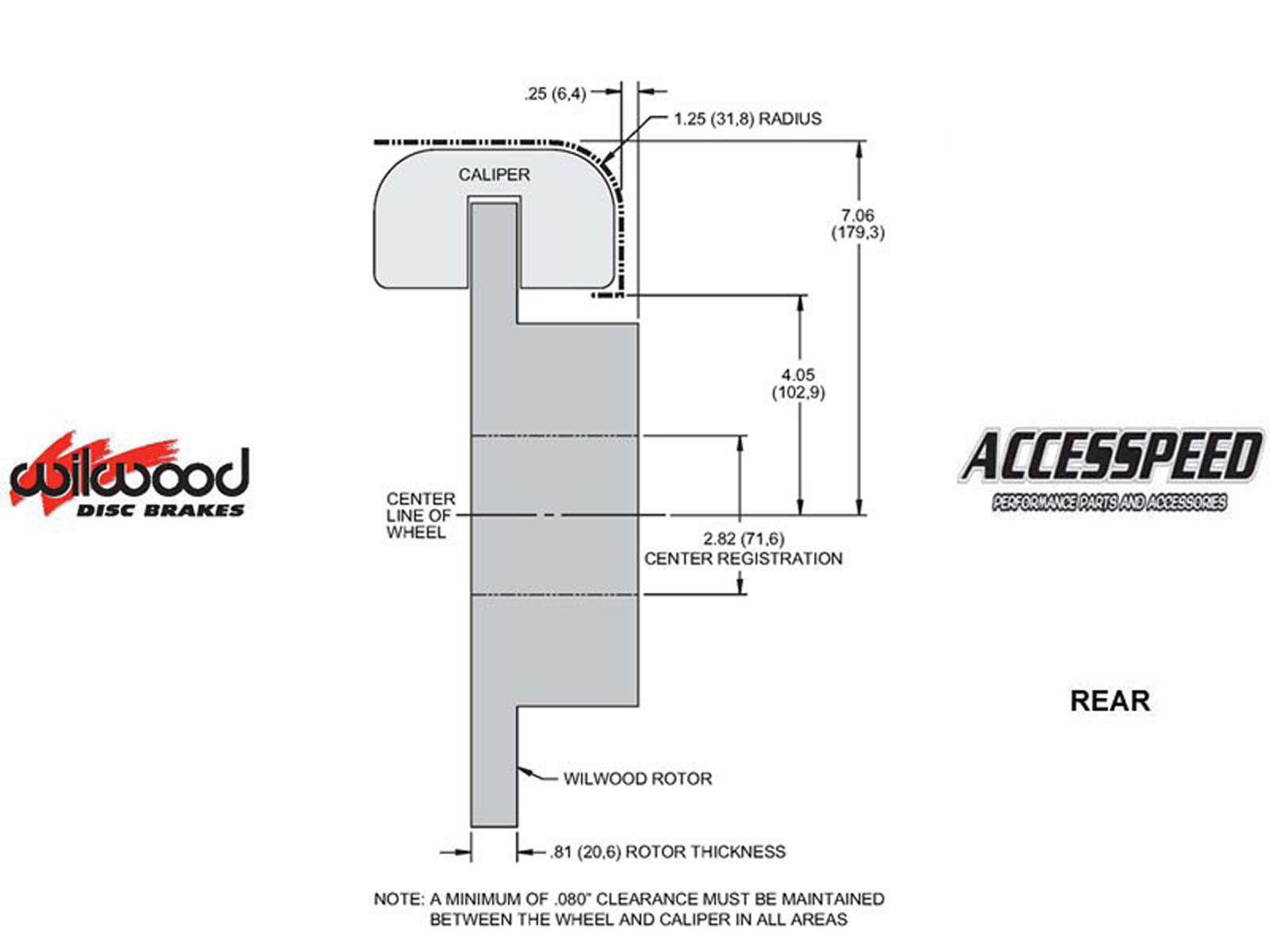

*This Brake Kit may require 15-inch or larger wheels and/or wheel spacers. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.

This kit fits the following vehicles:

American Motors Javelin 1971-1973 American Motors Javelin 1974 American Motors Javelin AMX 1971-1974

Notes

This system includes Red Calipers. Please see additional listings for Black Calipers. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering! Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.

WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Scroll to view product options.

Fits These Applications:
