Wilwood 340-16384 Adjustable Swing Mount Tandem Brake and Clutch Pedal with 6.25-7:1 Ratios

Wilwood 340-16384 Adjustable Swing Mount Tandem Brake and Clutch Pedal with 6.25-7:1 Ratios
Part Number: WIL-340-16384
Brand: Wilwood
List Price: $339.96
Price: $271.63

This product qualifies for Free Ground Shipping*
Qty

Wilwood 340-16384 Adjustable Swing Mount Tandem Brake and Clutch Pedal with 6.25-7:1 Ratios

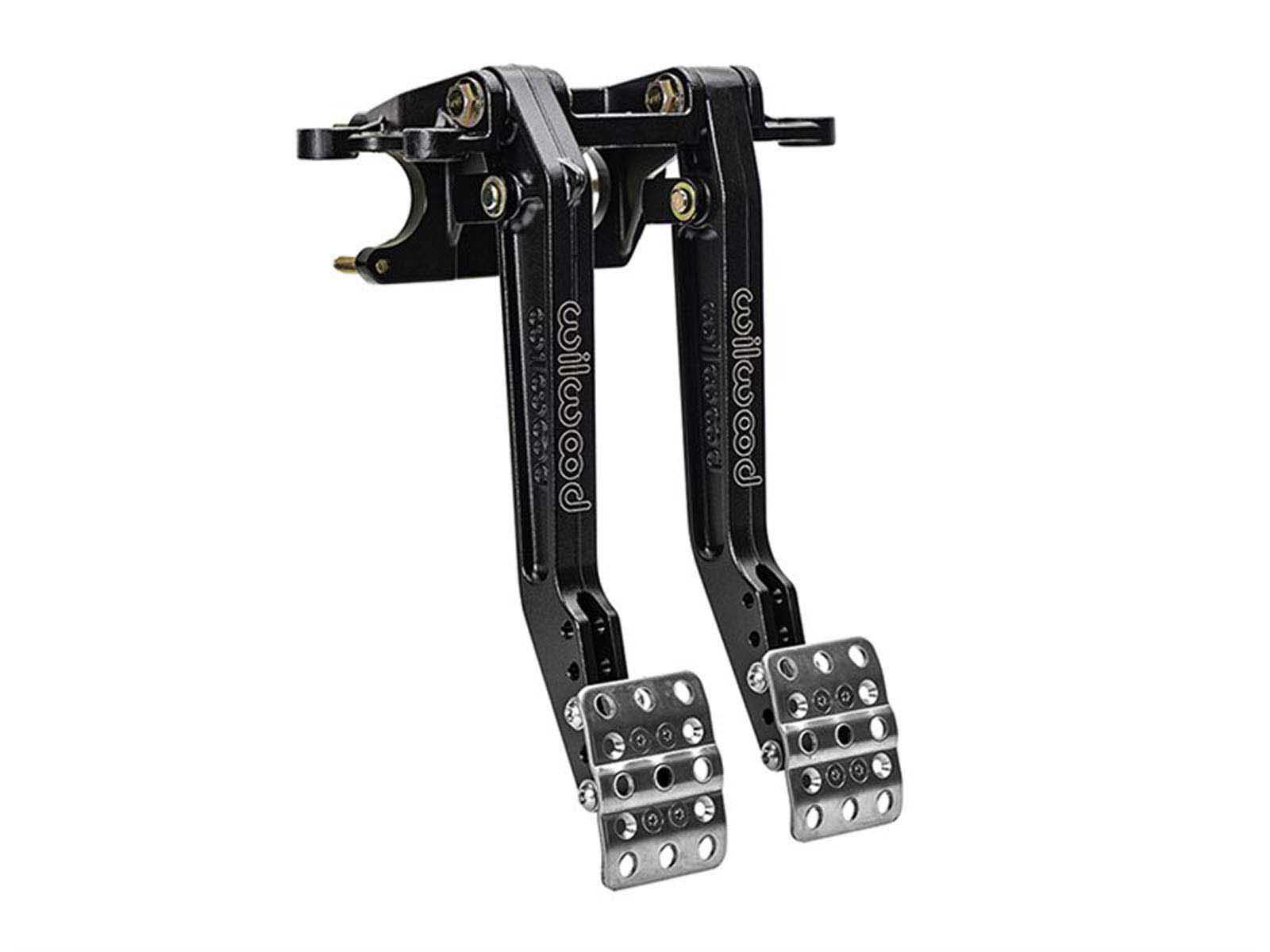

Wilwood adjustable ratio brake pedal and clutch pedal combo from Accesspeed is available in a forward swing hanging assembly. Pedal head adjusts vertically to provide a 6.25, 6.63, or 7.00:1 ratio for more feel or less pedal effort. A clutch master cylinder and tandem brake master cylinder mount to the assembly through the firewall. The non-skid waffled pedal pads can be laterally adjusted to be from 3” to 5” on center for driver preference. The pedals feature a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arms. A pin and clevis pushrod attachment system ensures the smallest possible misalignment angle for bind free operation through the entire range of travel. This pedal accepts a 2.25-inch vertical mount flange single outlet master cylinder for the clutch, and a Wilwood 3.25-inch horizontal flange tandem master cylinder for the brakes, available separately in a variety of styles and bore sizes from Accesspeed.



Prop 65 Warning WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Part # Description Price
WIL-340-16384 Wilwood 340-16384 Adjustable Swing Mount Tandem Brake and Clutch Pedal with 6.25-7:1 Ratios $271.63 Add to Cart

Scroll to view product options.

Fits These Applications:

Year Make Model SubModel Engine Transmission Drive
