Wilwood 340-16380 Adjustable 6.25-7:1 Ratio Tru-Bar Swing Mount Brake Pedal

Wilwood 340-16380 Adjustable 6.25-7:1 Ratio Tru-Bar Swing Mount Brake Pedal
Part Number: WIL-340-16380
Brand: Wilwood
List Price: $529.96
Price: $422.49

This product qualifies for Free Ground Shipping*
Qty

Wilwood 340-16380 Adjustable 6.25-7:1 Ratio Tru-Bar Swing Mount Brake Pedal

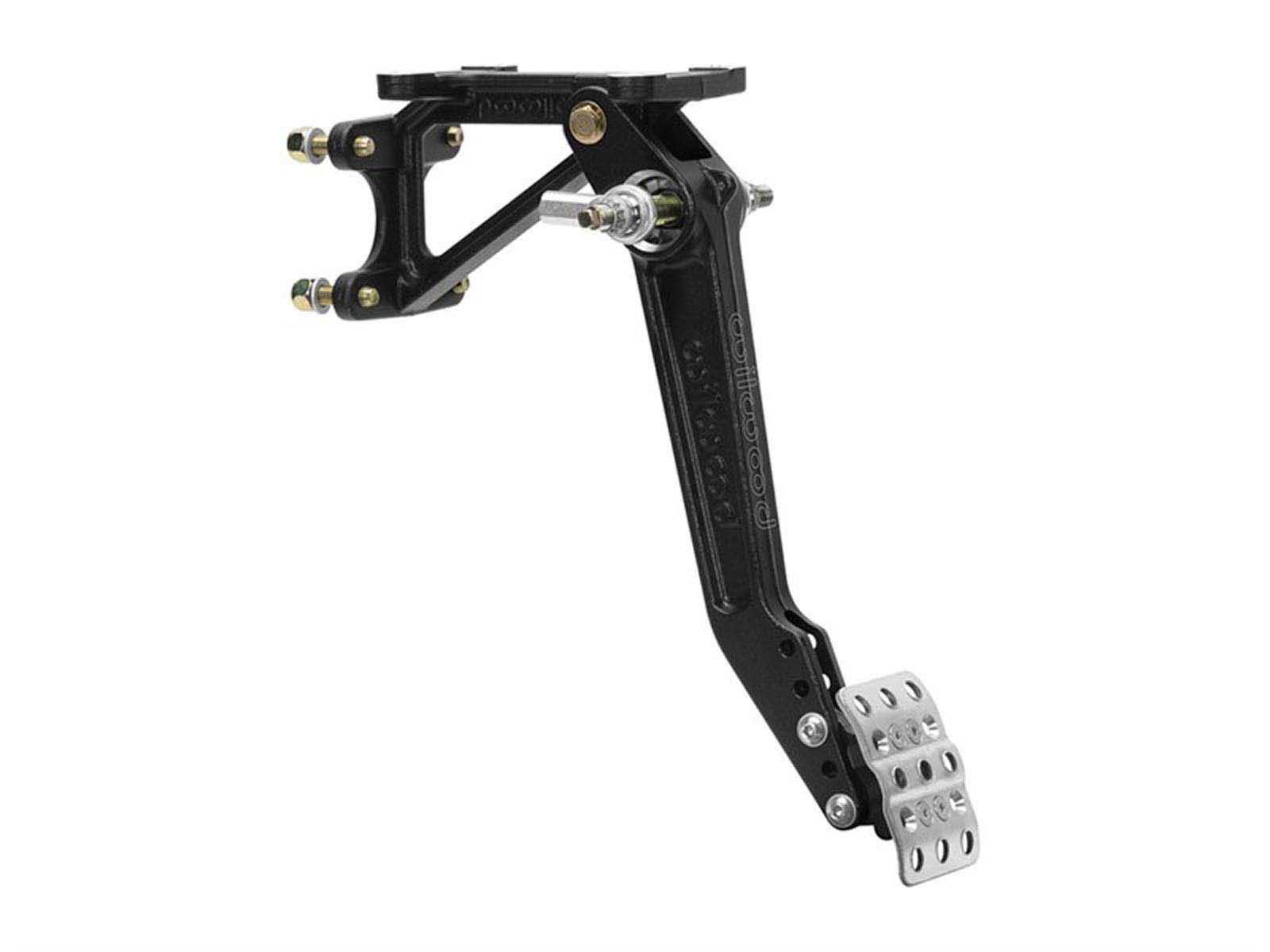

Wilwood adjustable ratio Tru-Bar balance bar brake pedal from Accesspeed is available in a forward swing hanging assembly. Pedal head adjusts vertically to provide a 6.25, 6.63, or 7.00:1 ratio for more feel or less pedal effort. Two brake master cylinders mount to the assembly through the firewall, with a friction-free, trunnion based adjustable Tru-Bar balance bar providing front to rear brake bias fine tuning. The non-skid waffled pedal pad can be laterally adjusted 1/2 inch in either direction for driver preference. The pedal features a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arm. The Tru-Bar incorporates a positive detent stop every full turn to maintain adjustment position and can be locked in place with the included jam nut, or used with an optional remote knob, which is an Accesspeed favorite for quick on-track adjustments. Tru-Bar pedals utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments reducing compliance and friction for more accurate brake feel. Tru-Bar pedals utilize the same chassis and master cylinder mounting as Wilwood balance bar style pedals. This pedal accepts any two Wilwood 2.25-inch vertical mount flange single outlet master cylinders, available separately in a variety of styles and bore sizes from Accesspeed.



Prop 65 Warning WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Part # Description Price
WIL-340-16380 Wilwood 340-16380 Adjustable 6.25-7:1 Ratio Tru-Bar Swing Mount Brake Pedal $422.49 Add to Cart

Scroll to view product options.

Fits These Applications:

Year Make Model SubModel Engine Transmission Drive
